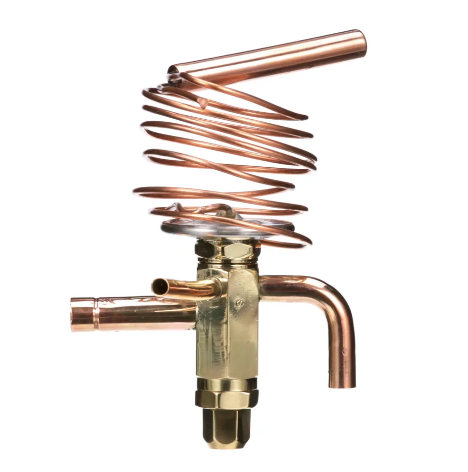

Copeland White-Rodgers 055708 HFES 1HC-02 HF Series Thermostatic Expansion Valve

The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.

Features:

• Stainless steel replaceable power element eliminates corrosion and prevents valve failure
• Two body sizes provide capacities from 1/4 to 20 tons


Specifications:

• Bleed:    No

• Body Style:    Straight Thru

• Capacity, Nominal [Ton]:    1 ton

• Capillary Length [in]:    60"

• Capillary Tube Length:    5 ft.

• Charge Code:    C (Medium Temp)

• Country of Origin:    MX

• Equalizer:    External

• HTS:    8481.80.9045

• Inlet Connection:    3/8" ODF

• Maximum Working Pressure MWP [psig]:    450

• Model Number:    HFES 1HC-02

• Outlet Connection:    1/2" ODF

• Refrigerant Code:    H (R-22, R-407C)

• Strainer:    Not Removable

• Superheat:    Adjustable

• Superheat Setting:    5A

• UL/CUL File Number:    SA5312
