Copeland White-Rodgers 200RB 2T3VLC, Pilot-Operated Refrigerant Solenoid Valve, 3/8” ODF
Save 56%
Original price
$108.80
Current price
$47.60
SKU 053106

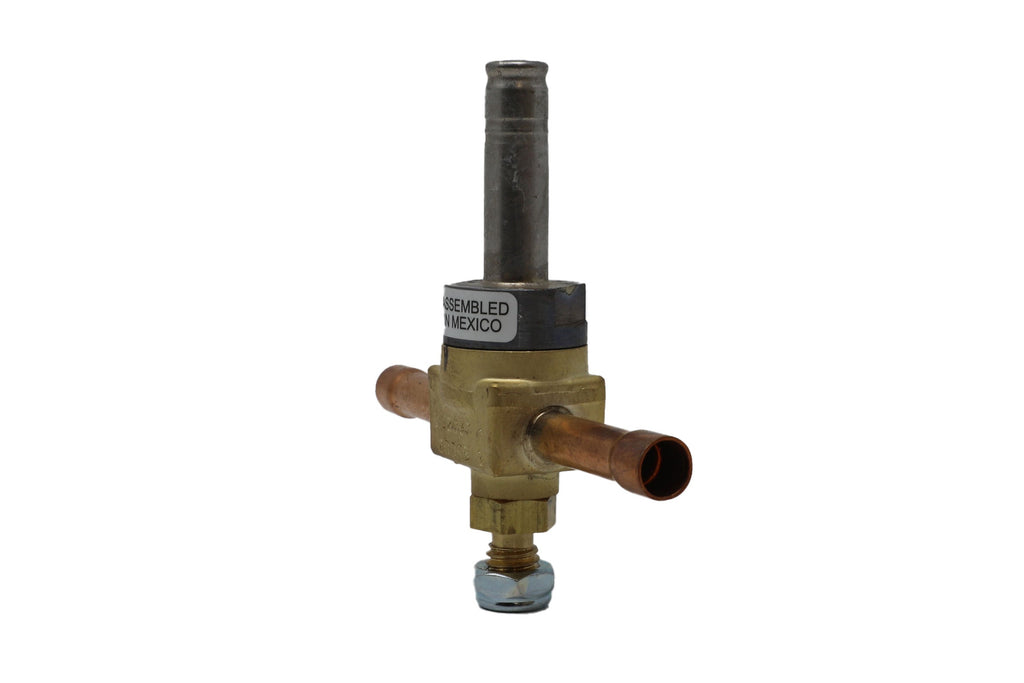

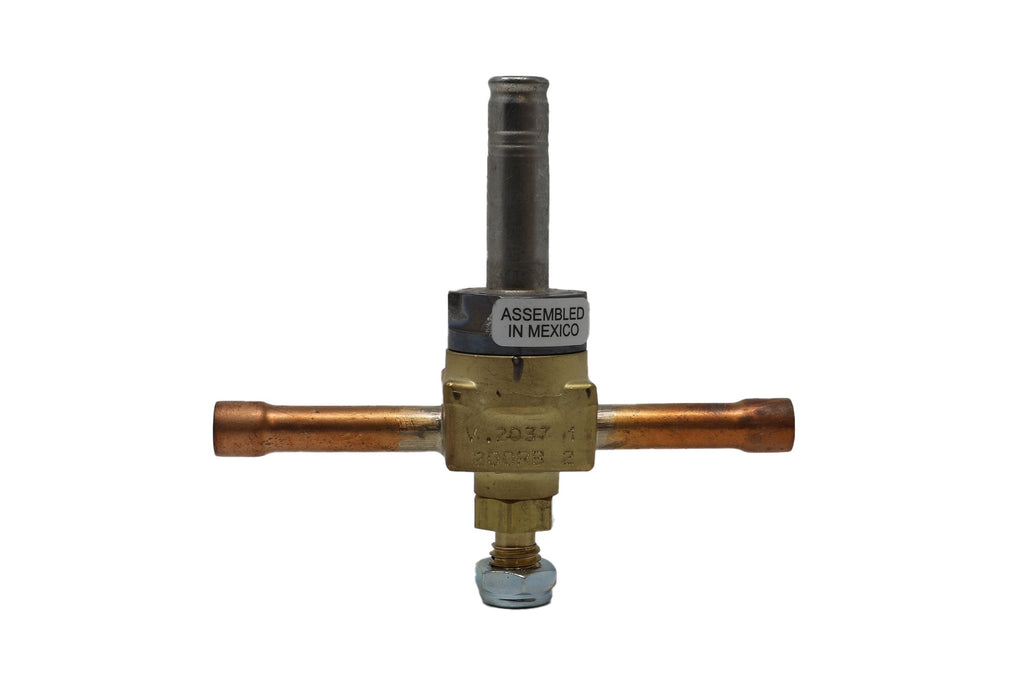

Copeland White-Rodgers 053106 200RB 2T3VLC, 200RB Series Pilot-Operated Refrigerant Solenoid Valve, 3/8” ODF
The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service.
Technical Description:
200RB pilot-operated solenoid valve, 2-way, normally closed for liquid, discharge, or suction gas refrigerant service, port size 2 (1/8"), inlet connection 3/8" odf extended, outlet connection 3/8" odf extended, body style straight thru, coil vlc
Features and Benefits
- One coil fits all valve sizes
- Extended ends for easy installation (standard)
- Long-life molded coils
- PTFE O-ring for superior external sealing
Catalog Page
Instructions
Capacity Tables
Field Drawings
Specifications
| Valve Type: | Pilot Operated, 2-Way, Normally Closed |
| Port Size: | 1/8" |
| Inlet Connection Size: |
3/8” ODF Extended End |
| Outlet Connection Size: | 3/8” ODF Extended End |
| Special Feature: | Standard Valve |
| Maximum Fluid Temperature: | 250°F |
| Maximum Working Pressure: | 680 psig |
| Minimum Operating Pressure Drop: | 2 psi |
| MOPD: | 300 psig |
| Approvals: | UL/CUL File Number MP604 |
