Copeland White-Rodgers SK20B Sensi EIM Kit - Module plus Sensi Touch 2 Thermostat (Black)
Save 59%
Original price
$723.17
Current price
$293.79
SKU SK20B
Copeland White-Rodgers SK20B Sensi EIM Kit - Module plus Sensi Touch 2 Thermostat (Black)

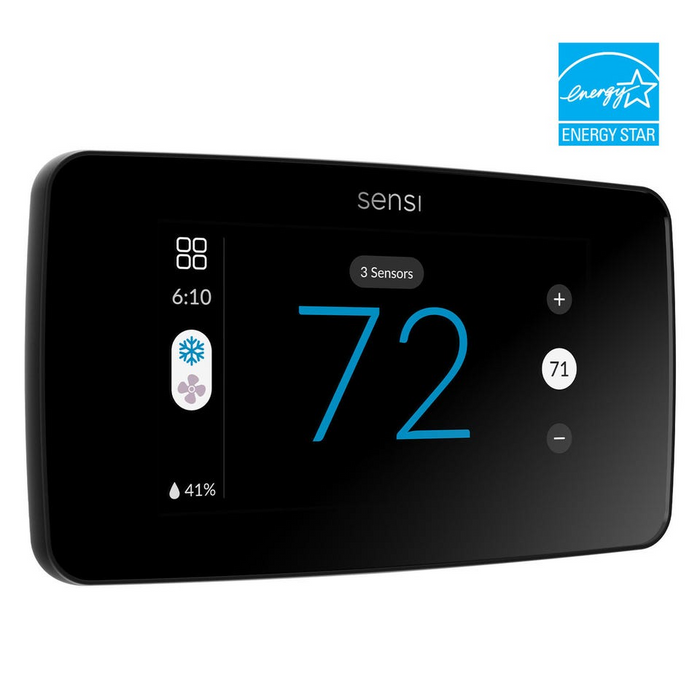

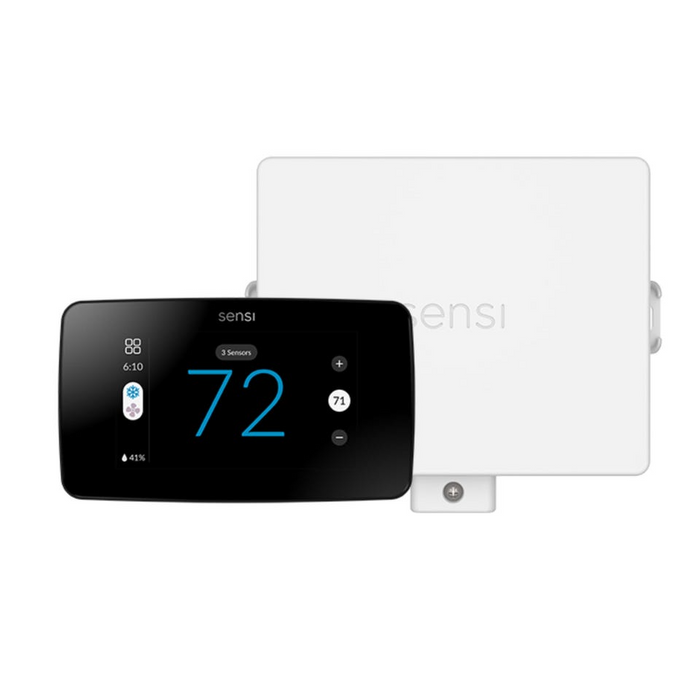

Sensi EIM Kit, Module plus compatible Sensi Touch 2 Thermostat, Black. The Sensi Equipment Interface Module (Indoor + Outdoor) simplifies system upgrades by reducing the need to pull additional wires. Control IAQ accessories for humidification, dehumidification and ventilation. Provides long-range communication with less interference. Requires only two wires to the thermostat to supply power. Compatible with all Sensi Touch 2 Thermostats.
Features
- SENSI TOUCH 2 COMPATIBLE Compatible with all Sensi Touch 2 smart thermostats.

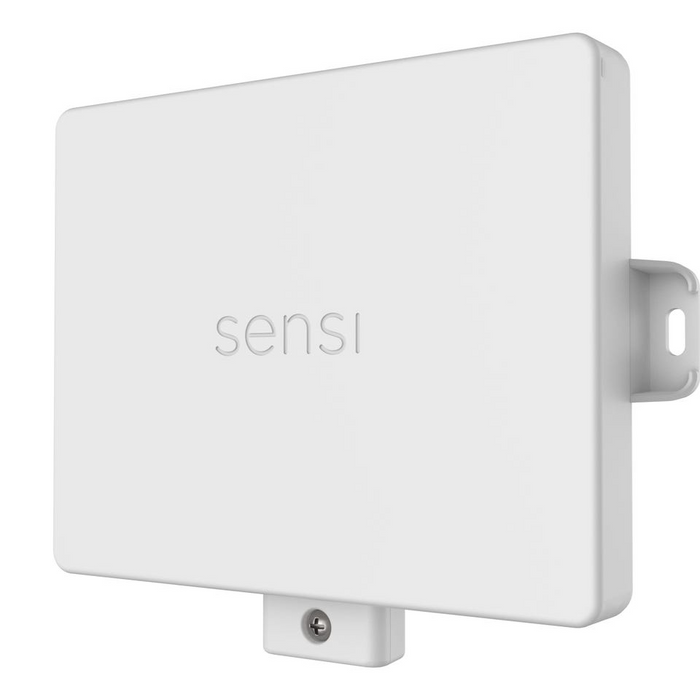

- INDOOR/OUTDOOR APPLICATIONS Waterproof module for use indoor or outdoor, reduces truck stock inventory.
- EASIER INSTALLATIONS No need to pull additional wires for system upgrades. Plus no separate gateway needed for Wi-Fi.
- SENSI CONNECT TECHNOLOGY Equipped with Sensi Connect technology which communicates long distances using strong sub-GHz frequency.
- IAQ CONTROL Three (3) universal terminals for humidification, dehumidification, and ventilation. Compatible with Aprilaire and all major IAQ manufacturers.
- CONTRACTOR BRANDING Promote your company on the front of the module with contact information and logo and the homescreen of Touch 2 smart thermostat.
Specifications
| Ambient Operating Humidity | 0 to 90% RH |
|---|---|
| Auto Changeover (Heat/Cool) | Yes |
| Batteries Included | No |
| California Prop 65 Cancer or Reproductive Harm | Yes |
| California Prop 65 Labeling | On package cancer & reproductive |
| Certifications | Energy Star Certified |
| Title 24 Compliant | |
| Country of Origin | MX |
| Electrical Rating | 20 to 30 Vac, 50/60Hz, NEC Class II |
| Electrical Rating, Current [A] | 1.5A (Per Terminal), 2.5A Maximum (All Terminals Combined) |
| Fan Options | Auto |
| Comfort Circulating Fan | |
| On | |
| Housing Material | Plastic |
| Model Number | SK20B |
| Overall Product Dimensions [in] | [Module] 8.55" L X 6.85" H X 1.6" D |
| Power Source | Hardwire |
| Program Options | 7 Day Programmable |
| Geofencing | |
| Non-Programmable | |
| Program Periods Per Day | 8 (Maximum) |
| Program Style | 7 Day Programmable |
| Replacement Type | Universal Replacement |
| Security Features | Setpoint Temperature Limits |
| Total Keypad Lockout | |
| Service Reminders | Filter Replacement |
| Humidifier Pad Replacement | |
| UV Bulb Replacement | |
| Set-Point Temperature Limits | Yes |
| Setpoint Temperature Range [°F] | 45 to 99 |
| Stages | Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C |
| Storage Temperature Range [°F] | -20 to 150 |
| Style | Horizontal |
| System Switch | Heat-Off-Cool-Aux-Auto |
| System Type | Universal - Single-Stage, Multi-Stage or Heat Pump |

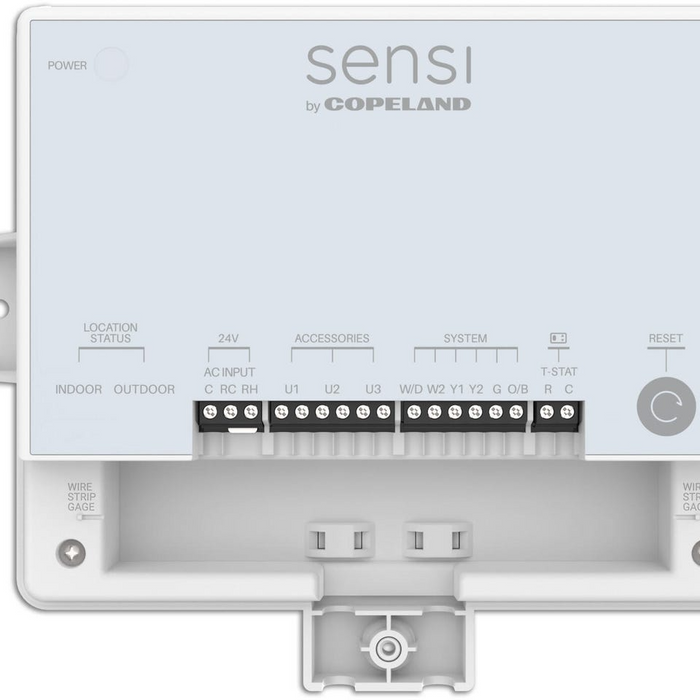

| Terminals | C,RC,RH,U1,U2,U3,W/D,W2,Y1,Y2,G,O/B,R,C |
| Typical Applications | 3-Wire Zone Heat |
| Conventional Air Conditioning | |
| Gas/Oil/Electric Heat | |
| Heat Pump | |
| Voltage | 24 V |
What's Included: EIM, installation guide, zip ties, self tapping screws, thermostat, mounting screws
