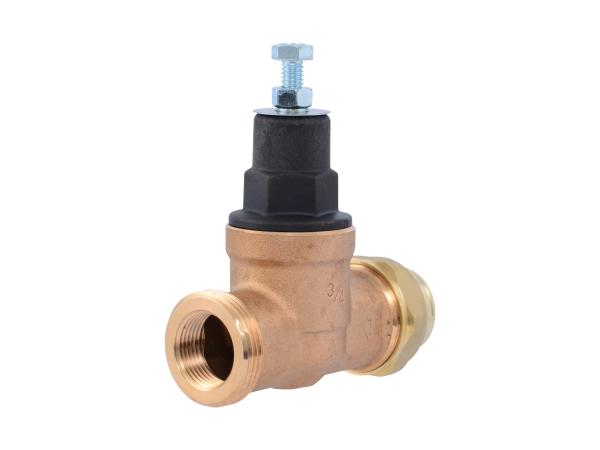

Cash Acme PVA16P-SUTH-60 EB45 3/4" NPT Single Union Pressure Regulating Valve, Poly Top
The lead-free EB45 water pressure regulator features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 pressure regulator valve comes factory set at 60 psi but may be adjusted between 10-70 psi and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.
-
Designed for Tight Spaces - This compact, inline valve design saves space in cramped areas, making it ideal for retrofits, renovations, and installations where space is limited.
-
Versatile - No matter which piping system you’re working with, the EB45 valves come in a range of connection options so you can fit it your way. Get it in push-fit, threaded, copper press, expansion, CPVC and sweat configurations to use with copper, CPVC and PEX pipes without additional fittings or adapters.
Corrosion Resistant - Built with corrosion-resistant brass, stainless steel and durable polymer components, the EB45 is designed to ensure long-term performance in residential and commercial builds, even in areas with hard water.
Common Applications:
- Commercial and domestic water applications
Specifications:
- Maximum Inlet Pressure: 400 psi**
-
Temperature Range: 33°F - 180°F (0.6°C - 82.2°C)
- Service: Water
- Outlet Pressure Range: 10-70 psi
- Factory Set Pressure: 60 psi
Approvals & Listings:
- ASSE 1003
- CSA B356
- NSF/ANSI/CAN 372
- NSF/ANSI/CAN 61
- Listed by IAPMO, ASSE and CSA
