Caleffi 535361HA PresCal™ Pressure Reducing Valve, with Gauge (low lead, pre-adjustable), 1" FNPT

Save 36%
Original price $190.00
Current price $121.85
SKU 535361HA
Currently 2 in stock.

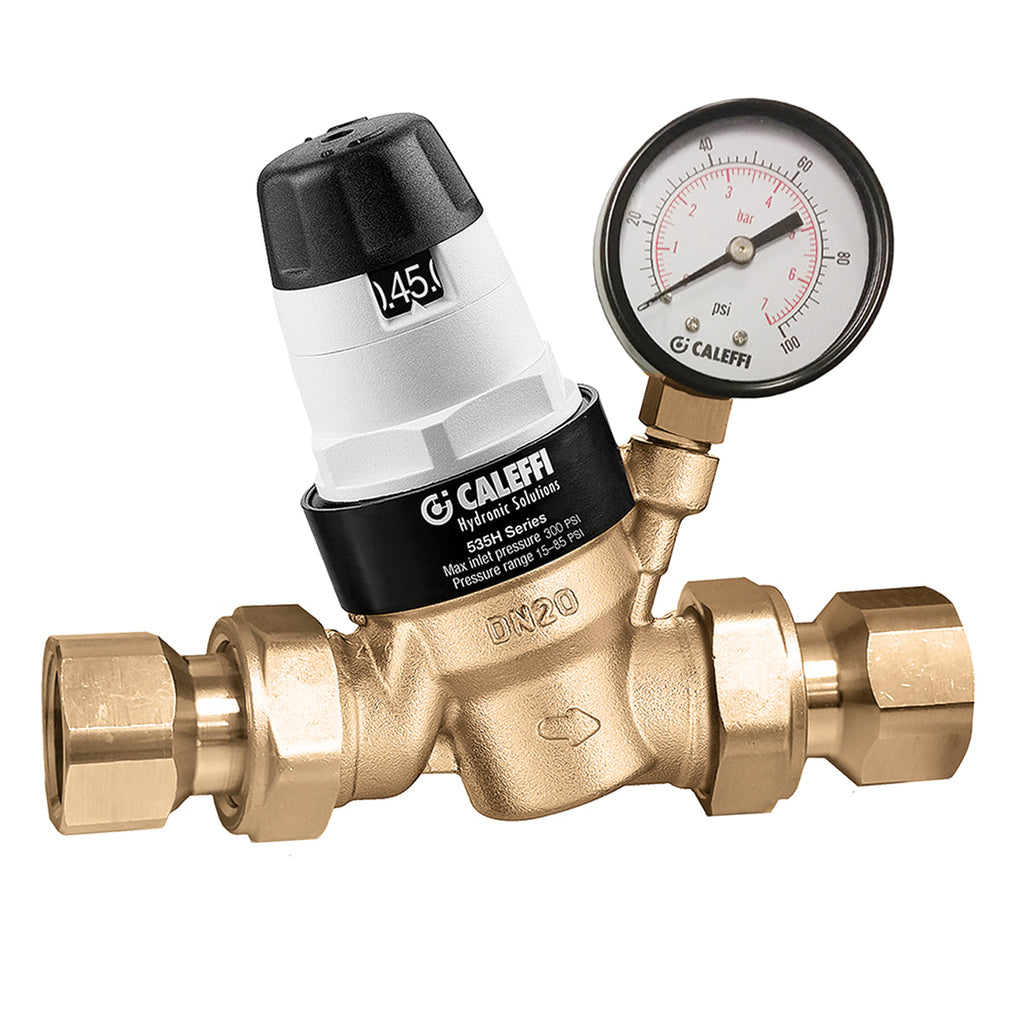

Caleffi 535361HA PresCal™ Pressure Reducing Valve, with Gauge (low lead, pre-adjustable), 1" FNPT

The Caleffi PresCal™ 535H pressure reducing valve is precision engineered to deliver accurate pressure regulation under varying pressure and draw conditions. Low internal pressure losses produce superior falloff performance enabling more flow capacity to fixtures. NSF/ANSI/CAN 61 compliance, superior 180°F temperature rating, anti-scale components and convenient cartridge design add to the many features of this versatile and dependable PRV. UV Outdoor protective cover included for non-freezing outdoor installations.


  • Pre-adjustment knob:  15 to 90 psi adjustment range with convenient psi setting visible from front and back. Includes tamper-proof locking screw.
  • Removable self-contained cartridge with stainless steel mesh filter:  Maximum debris protection and convenient in-pipe maintenance and servicing.
  • Conical seat and shuttle design:  Together with large cross-section flow chamber, minimizes pressure drop within valve. Results in superior falloff performance compared to competitors and quiet operation.
  • Contour-shaped peroxide-cured diaphragm:  Enables accurate pressure regulation under frequent and sudden pressure fluctuations, a common cause of premature valve wear. Peroxide-cured EPDM elastomers for chlorine and chloramine resistance and long life.
  • Precision engineering:  Tight manufacturing tolerances creates very uniform 360º flow past conical seat. Prevents wire draw erosion during low flow conditions, a common cause of upward system pressure creep during no-demand periods.
  • Hot water boost system compatible:  NSF/ANSI/CAN 61 rated to 180ºF (commercial hot). Scale resistant internal parts to prevent flow inconsistencies. Certified to ASSE 1003, CSA B356 and NSF/ANSI 372. Plenum rated: compliant with Standard UL 2043, without cover.



  • Max. Working Pressure:  300 psi (20 bar)
  • Setting Pressure Range:  15 - 90 psi (1-6 bar)
  • Factory Setting:  45 psi (3 bar)
  • Max. Working Temperature:  180°F (80°C)

    Compliance with the following codes:  IPC, IRC, UPC and NPC for use in accordance with the U.S. and Canadian plumbing codes

    Compliance with the following standards:
         ASSE 1003
    CSA B356
         NSF/ANSI 61
    , Drinking Water System Components - Health Effects
         Reduction of Lead in Drinking Water Act, California Health and
                      Safety Code 116875
          S.3874, Reduction of Lead in Drinking Water Act
          UL 2043, Plenum Rating
