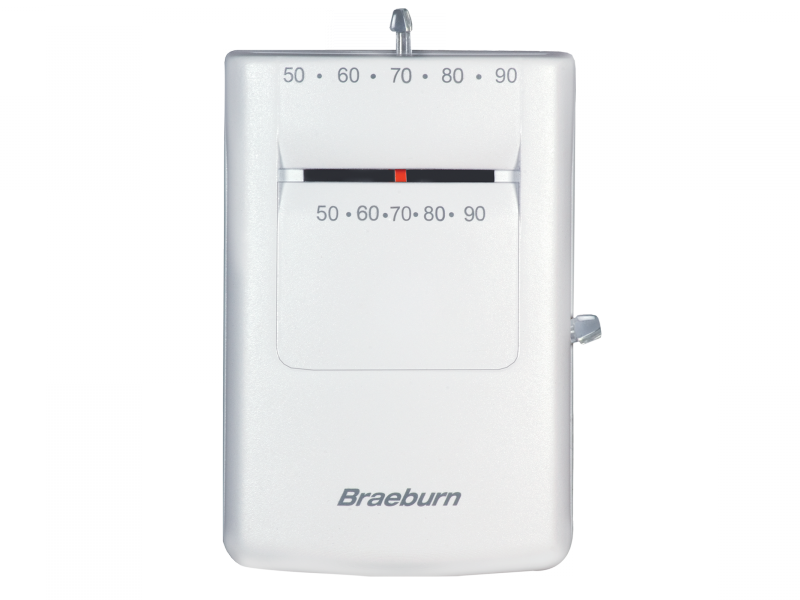

Braeburn 505 Heat Only Mechanical Thermostat

Save 9%
Original price $18.60
Current price $16.93
SKU 505
Currently 17 in stock.

Braeburn 505 Heat Only Mechanical Thermostat

Products usually ship within 1 business day.

  • Dependable switch performance
  • Environmentally safe - Mercury-Free
  • Integrated sub-base and front mounted wiring terminals helps make installation easy
  • Plated terminals reduce corrosion
  • No leveling required during installation
  • Heavy duty heat anticipator



SPECIFICATIONS

  • Dimensions:  4.60" x 3.13" x 1.25"
  • Electrical Rating:  24 Volt AC (18-30 VAC)
  • Heat Anticipation:  0.15 to 1.2 amps
  • Compatibility:  Single stage gas, oil or electric heating systems, 250mv - 750mv millivolt heating systems
  • Control Range:  50° - 90°F (10­° - 32° C)
  • Storage Temperature:  14° to 140° F (-10° to 60° C)
  • Operating Humidity:  5% to 95% Relative Humidity
  • System Lever:  OFF/HEAT
  • Terminations:  Rh, W
