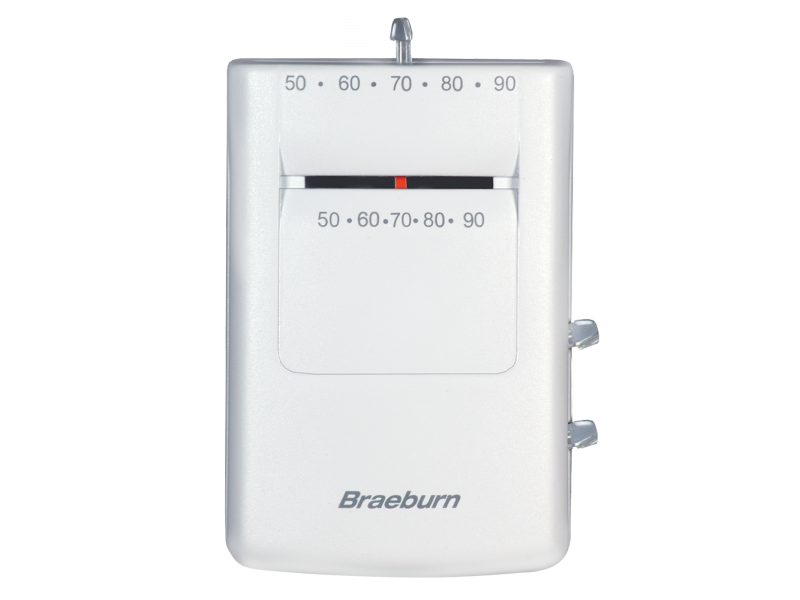

Braeburn 500 1 Heat/1 Cool Mechanical Thermostat

Products usually ship within 1 business day.

• Dependable switch performance
• Environmentally safe - Mercury-Free
• Integrated sub-base and front mounted wiring terminals helps make installation easy
• Plated terminals reduce corrosion
• No leveling required during installation
• Heavy duty heat anticipator

SPECIFICATIONS

• Dimensions:  4.60" x 3.13" x 1.25"
• Electrical Rating:  24 Volt AC (18-30 VAC)
• Heat Anticipation:  0.15 to 1.2 amps
• Compatibility:  Single stage gas, oil or electric heating or cooling systems, single stage heat pump systems, 250mv – 750mv millivolt heating systems
• Control Range:  50° - 90°F (10­° - 32° C)
• Storage Temperature:  14° to 140° F (-10° to 60° C)
• Operating Humidity:  5% to 95% Relative Humidity
• System Lever:  COOL/OFF/HEAT
• Terminations:  O, G, Rc, Rh, B, Y, W
