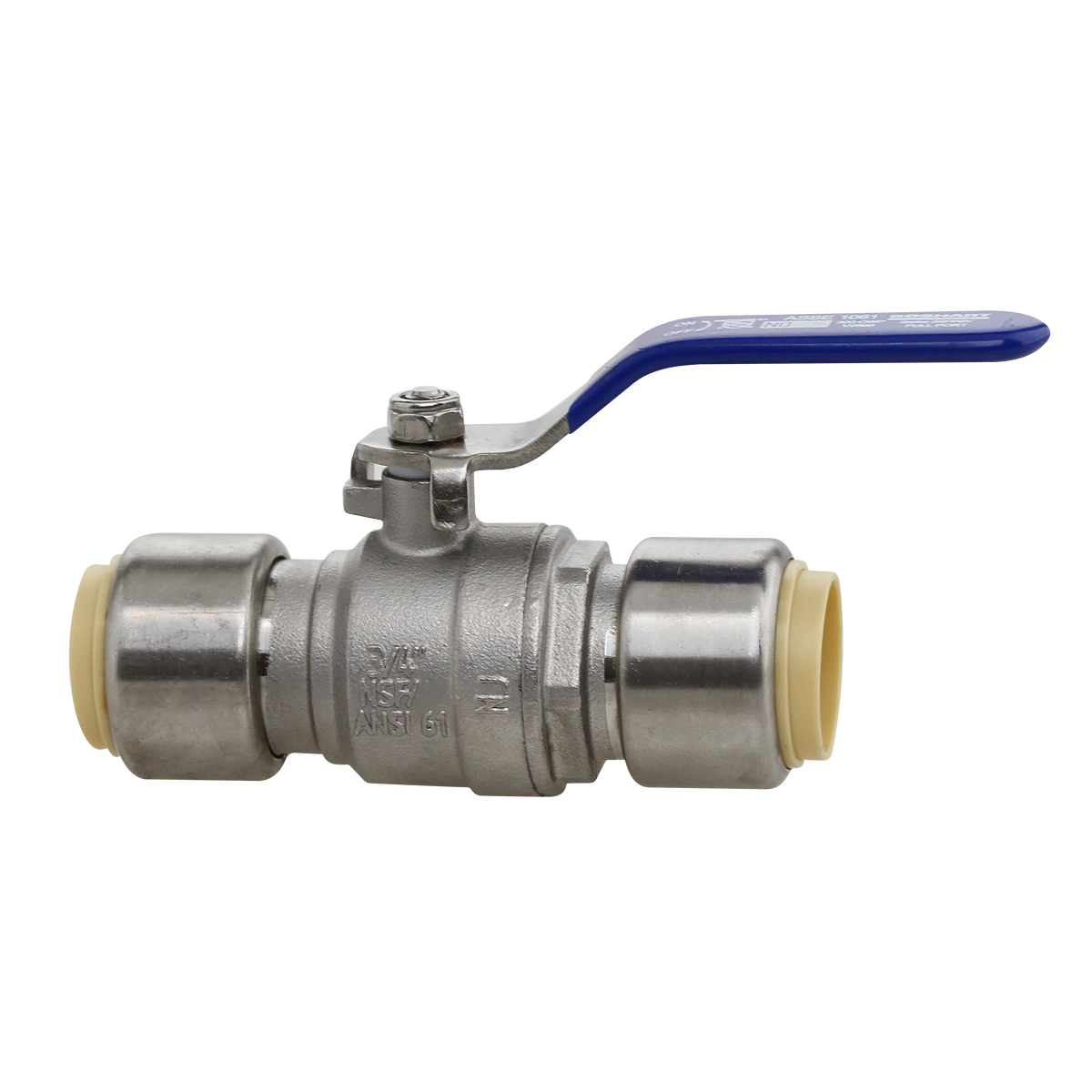

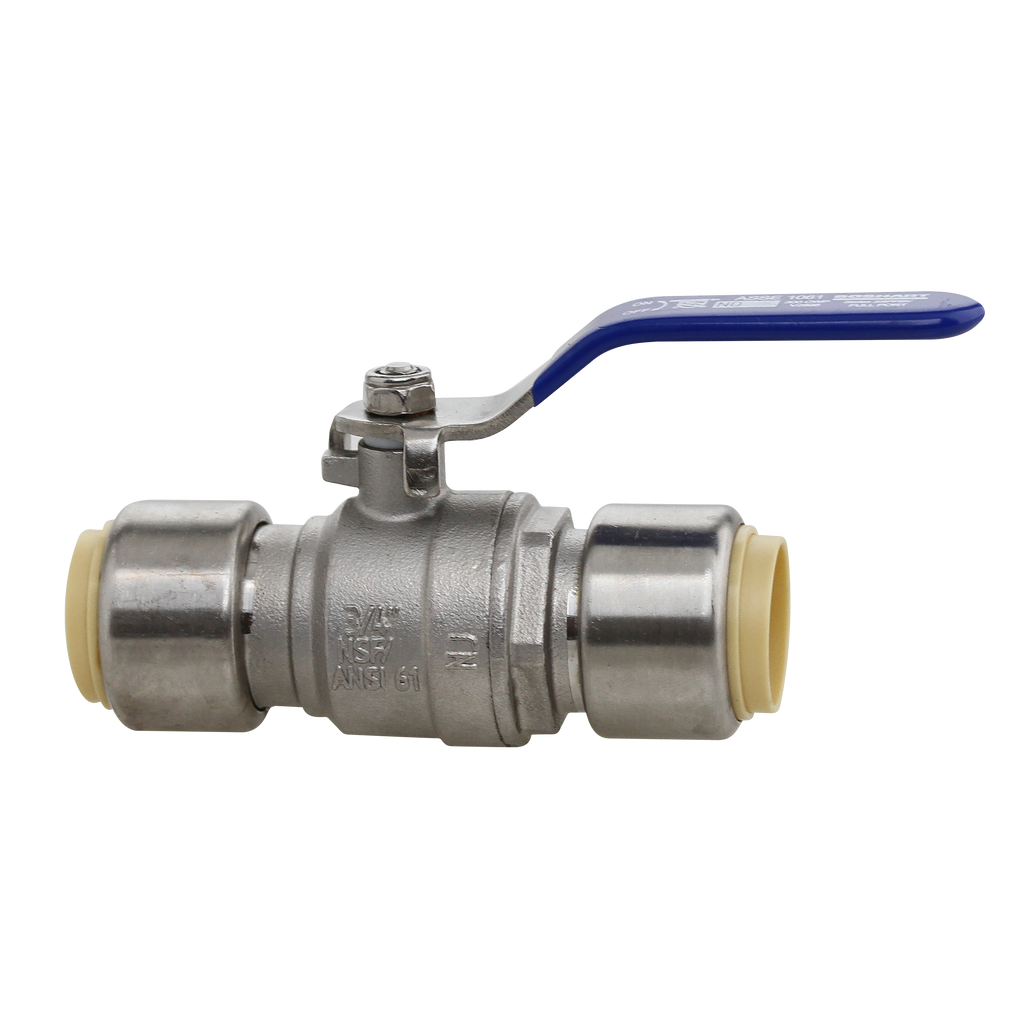

Boshart SSPFBV-07 3/4" 304 Stainless Steel Push-Fit Ball Valve, CTS

Boshart's Stainless Steel Push Fit Ball Valves are designed for use on copper, CPVC, PEX PE-RT & HDPE piping in plumbing and hydronic heating systems. Approved for use in both underground and behind- the-wall applications (with proper wrapping to prevent corrosion). Eliminates need for soldering, crimping, or solvent welding, making them perfect for repairs in wet, hazardous or hard-to-reach locations. Valves come complete with stiffeners for PEX, PE-RT & HDPE piping, which can be removed for copper installations. Additionally, these valves are reusable and easily disassembled using the plastic disconnect tool.

• Eliminates the need for soldering, crimping, or solvent welding.
• Ideal for wet, hazardous, and dry repairs in hard to access locations or where open flame for soldering could be a fire hazard.
• Plastic disconnect clip is used to release the gripper ring, making for an easy disconnection.
• Each valve comes complete with an integral polysulfone tube stiffener, required for use with PEX, PE-RT & HDPE piping.

SSPFBV Tech Sheet



Specifications

Size:	3/4"
Handle Type:	Locking
Design:	Full Port
Connection Type:	Push Fit, CTS
Primary Material:	304 Stainless Steel
Temperature Range:	Up to 200°F (93°C)
Maximum Pressure Rating:	300 PSI
Product Model Short Description:	304 Stainless Steel Push-Fit Ball Valve
