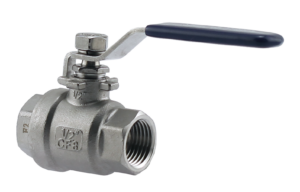

Boshart SSBV304-07 3/4" FPT Stainless Steel Full Port Ball Valve, 1000 PSI CWP

Boshart’s Stainless Steel Ball Valves come in 2 different materials to suit a variety of applications. 304 CF8 Stainless Steel can be used in conventional situations, where 316 CF8M Stainless Steel can be used in more demanding environments. Please note that SSPEXBV-05, SSPEXBV-07 and SSPEXBV-10 are only available with 304 Stainless Steel.

• Threads conform to ANSI/ASME B1.20.1
• Full port design
• Two piece investment cast body
• Blow-out proof stem
• Solid stainless steel ball - sizes 1/4" to 1-1/4"
• Hollow stainless steel ball - sizes 1-1/2" to 4"
• Stainless steel handle with blue plastic sleeve
• NSF/ANSI Standard 372 Certified (Drinking Water System Components - Lead Content - Stainless Steel alloys do not contain any lead 0.00% Pb)
• Maximum Pressure Rating: 1000 PSI CWP. CWP (Cold Working Pressure) is an indication of the pressure rating for valves at a temperature range of up to 100 °F (37 °C). The pressure rating drops as them temperature increases; for example at
  375°F the max pressure rating drops to 100 PSI. Refer to the Pressure-Temperature chart below.

304 Stainless Steel Ball Valve (Threaded) Spec Sheet

Specifications
