Description

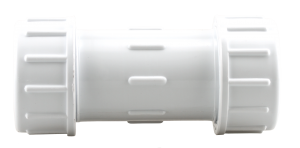

Boshart 29-CC15 1-1/2" PVC Compression Coupling, Nitrile Seals
Boshart’s compression fittings are easy to use and create a water tight seal. They are designed for quick connections, system modifications or repairs.
- For use as a repair coupling on piping systems with iron pipe size according to ASME/ANSI B36.10
- Max Temperature Rating: 140°F (60°C)
- Max Pressure Rating: 150 PSI @ 73°F (22°C)
CAUTION:
- Pipes must be properly retrained or end blocked to prevent blow off after installation.
WARNING:
- Not for use in compressed air or gas systems. Do not test system with compressed air or gases.
Spec Sheet
|
Size: |
1-1/2" |
| Connection Type: | IPS |
| Gasket Material: | Nitrile Rubber |
| Primary Material: | PVC |
| Maximum Working Pressure: | 150 PSI @ 73°F |
| Product Model Short Description: | PVC Compression Fittings |
