Bacharach 0024-8523 Fyrite® InTech® Combustion Analyzer with Protective Rubber Boot and Hard Carrying Case

Sold out
Original price $881.00
Current price $792.90
SKU 0024-8523
Currently 0 in stock.

Bacharach 0024-8523 Fyrite® InTech® Combustion Analyzer with Protective Rubber Boot and Hard Carrying Case

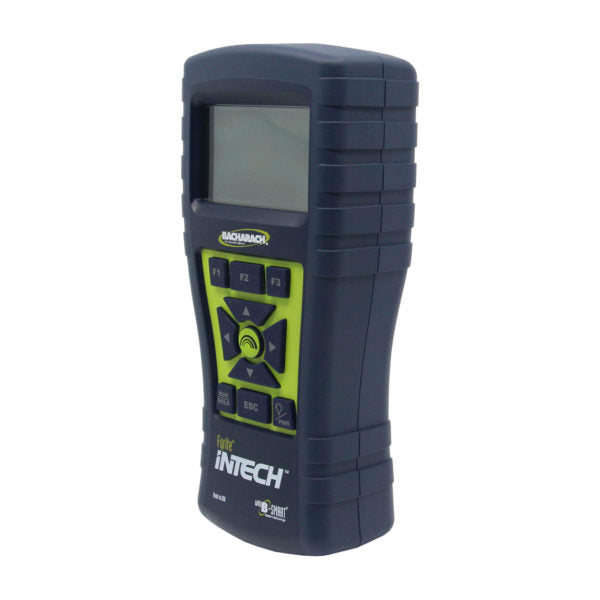

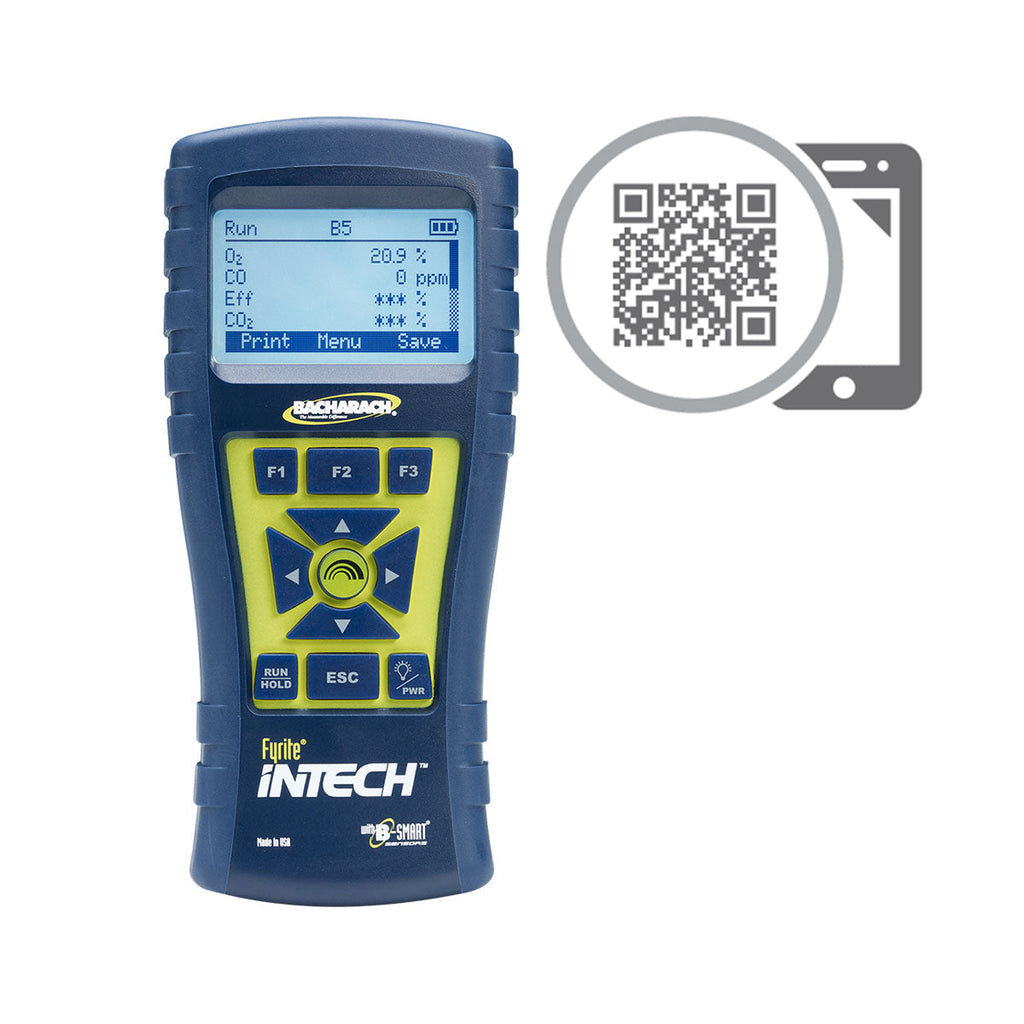

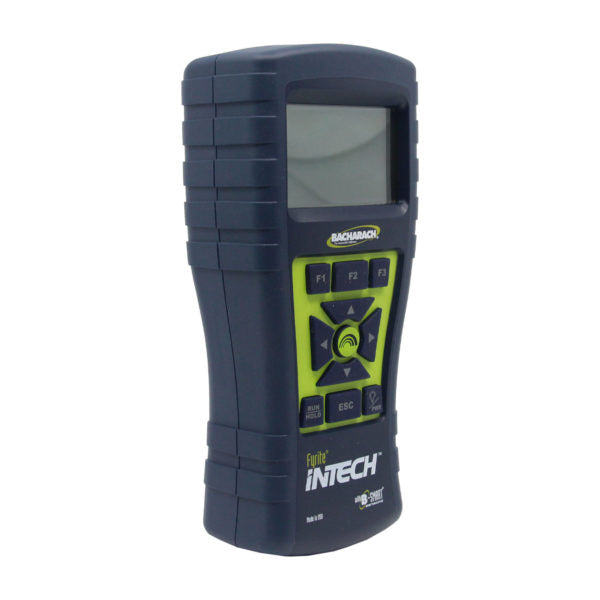

Handheld Combustion Analyzer for Residential Applications

Bacharach’s InTech® is the perfect tool for entry-level residential HVAC technicians providing readings for O2, CO, CO2, Combustion Efficiency and Temperature. The InTech® is available with pre-calibrated gas sensors to minimize downtime and maintenance costs. The Combustion mobile app (available for Android & iOS) allows users to create and send customizable combustion reports on-site.

 The InTech® combustion analyzer is the perfect tool for entry-level and residential technicians who need to ensure safe operating conditions and determine combustion efficiency. The InTech® features 6 fuels in the North American configuration to suit a wide variety of applications.

The InTech® includes sensors for O2 and CO, with an option for an external NOx filter. The CO sensor can be replaced in the field without down time using pre-calibrated sensors. The InTech® calculates values like efficiency, CO2 and CO air-free to help monitor combustion processes effectively and accurately.


  • All-in-one instrument makes combustion tuning fast and simple with readings for O2, CO, CO2, combustion efficiency, and temperature

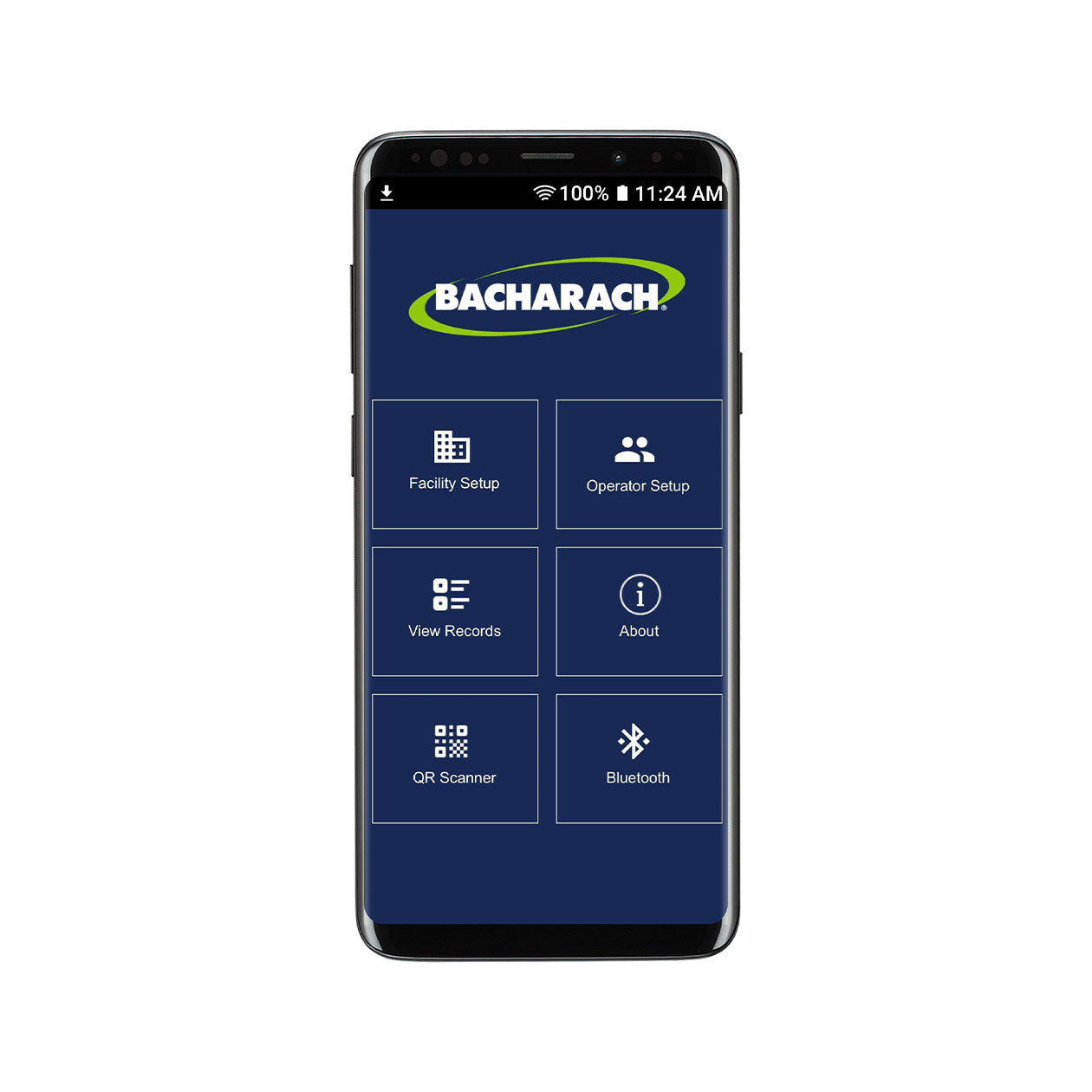

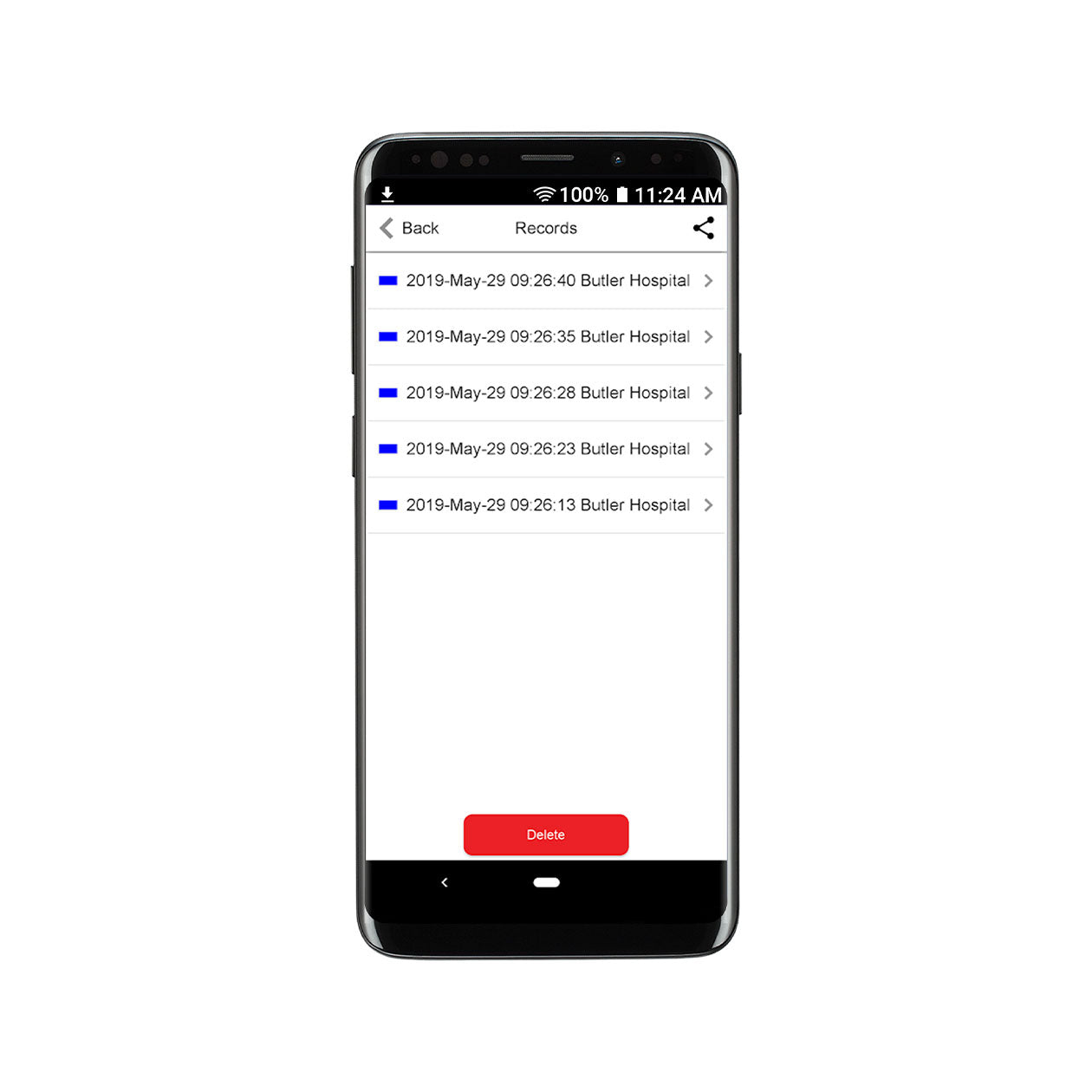

  • Combustion App allows users to quickly create custom reports with comments and send via email (available for Android & iOS)
  • Automatic sensor protection helps technicians protect the analyzer in harsh environments, extending sensor life
  • Ambient CO monitoring function allows technicians to check for dangerous CO levels
  • Quick and easy sensor replacement in the field reduces downtime and doesn’t require calibration gas

All kits include:

  • Probe with 12 in. sample tube (approximately 6 ft. total length), water trap and particulate filter
  • 4x AA batteries
  • User manual
  • Hard carrying case
  • Protective Rubber Boot


Product Data Sheet

Product Manual



Sensors: Up to 2
Measuring Range: 0 to 20.9% 0 to 2000 ppm
Stack Temperature: -4 to 1202 °F (-20 to 650 °C)
User Interface: Monochrome LCD w/Backlight
Display Size: 2.7 in. (69 mm)
Power: 4 × Alkaline Batteries
Run Time: 15 Hours (Alkaline Batteries)
Warm-Up Time: 30 to 60 seconds
Digital Communications: USB 2.0 (mini-B), IrDA
Ambient Temperature: 23 to 113 °F (-5 to 45 °C)
Humidity: 15 to 90% RH (non-condensing)
Altitude: 1 ATM ± 10%
Product Dimensions (L×W×H): 8" × 3.6" × 2.3" (20.3 × 9.1 × 5.8 cm)
Product Weight: 1 lb. (0.45 kg) including batteries
Fuel Equations: Natural gas, oil 2/6, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel
Approvals: CE, EN 50379-1 , EN 50379-3
Internal Memory: 10 Records
Warranty: 2 Years (including sensors)
Printer: IrDA + Bluetooth Printer (Optional)
Country of Origin: United States
