Bacharach 0024-8518 Insight Plus Combustion Analyzer Kit

Sold out
Original price $1,993.00
Current price $1,793.70
SKU 0024-8518
Currently 0 in stock.

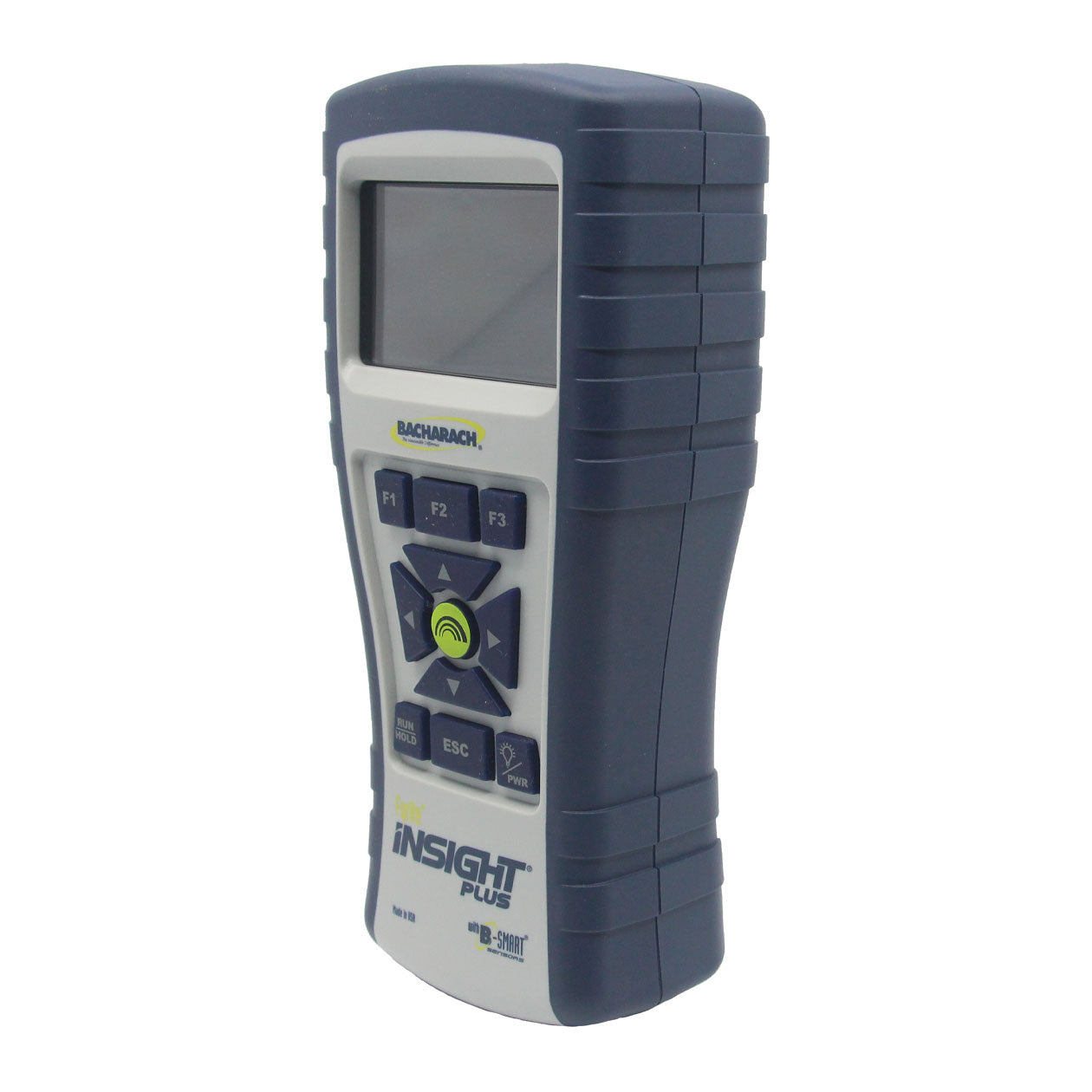

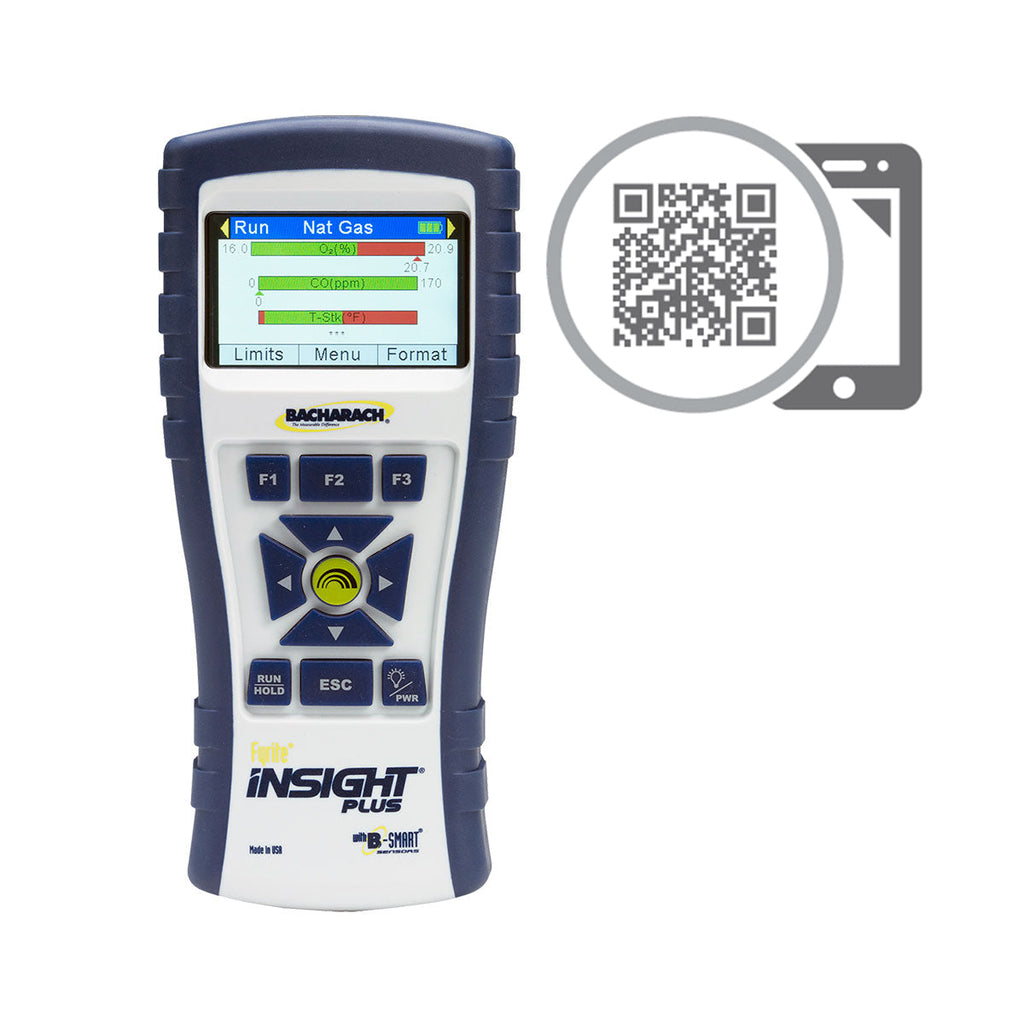

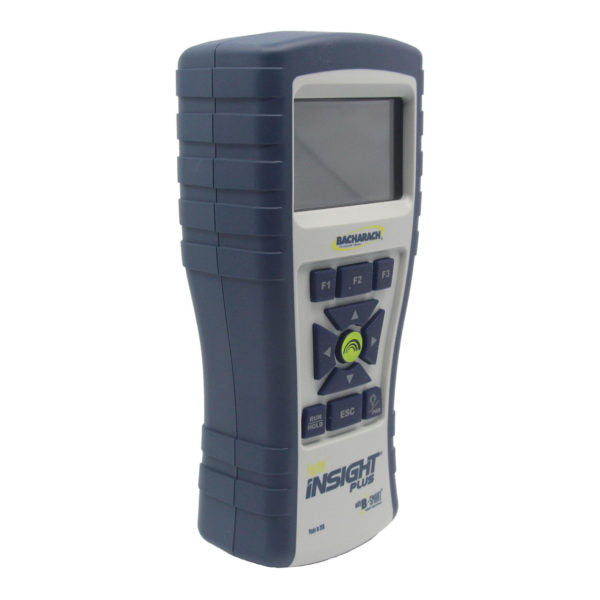

Bacharach 0024-8518 Insight Plus Combustion Analyzer

Handheld Combustion Analyzer for Commercial Applications

The Insight® Plus is the perfect tool for busy residential / light-commercial technicians who need to ensure safe operating conditions and determine combustion efficiency. Powered by innovative Tune-Rite® software (patent pending), the industry’s first-ever on-demand HVAC “assistant,” the Insight® Plus helps both new and seasoned technicians save money by making more thorough and efficient service calls.

The Insight® Plus includes sensors for Oxygen (O2) and Carbon Monoxide (CO), which includes a built-in NOx filter. The CO sensor can be replaced in the field without down time using pre-calibrated sensors. O2 sensors carry a 2 or 3 year warranty depending on the sensor installed. O2 sensors are field replaceable and do not require calibration. The Insight® Plus calculates values like efficiency, CO2 and CO air-free to help monitor combustion processes effectively and accurately.

FEATURES

  • All-in-one instrument makes combustion tuning fast and simple with readings for O2, CO, CO2, combustion efficiency, temperature and draft
  • Industry-exclusive Tune-Rite HVAC assistant analyzes combustion data and provides real-time troubleshooting suggestions
  • Automatic sensor protection helps technicians protect the analyzer in harsh environments, extending sensor life
  • Long life O2 sensor with 3 year warranty reduces maintenance costs and downtime
  • Quick and easy sensor replacement in the field reduces downtime and doesn’t require calibration gas

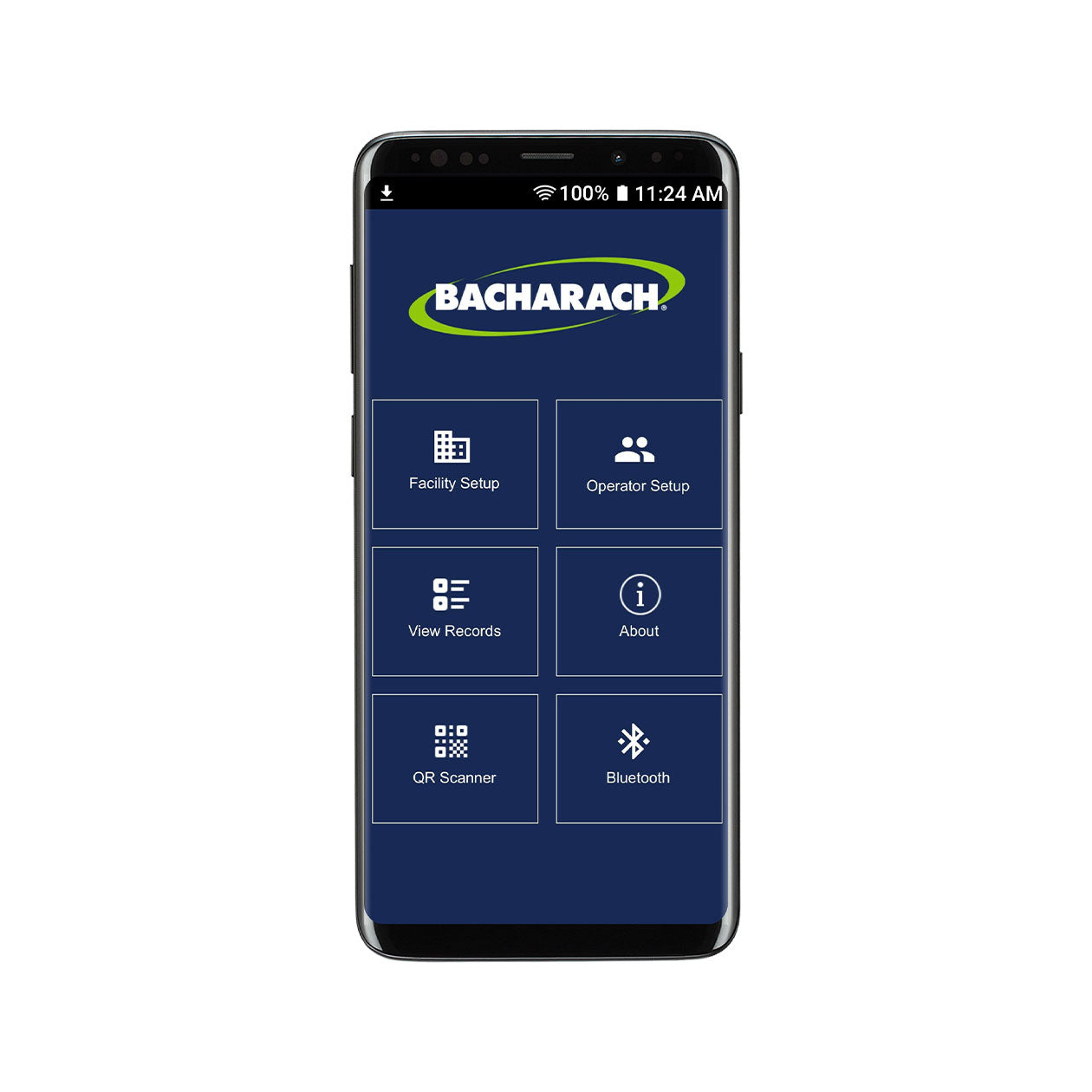

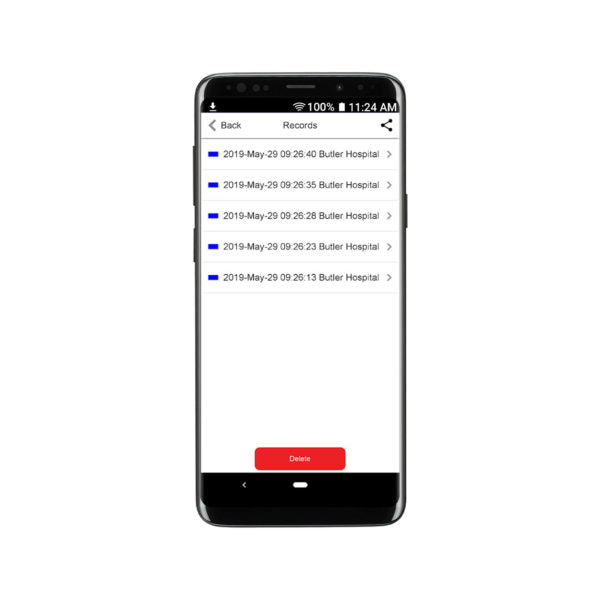

  • Combustion App allows users to quickly create custom reports with comments and send via email (available for Android & iOS)

All kits include:

  • Probe with 12 in. (30 cm) sample tube (approx. 6 ft. (1.8 m) total length), water trap, particulate filter and probe stop
  • Spare filters (qty. 3)
  • Protective rubber boot
  • 4 × AA batteries
  • User manual
  • Hard carrying case

 Reporting kit adds:

  • IrDA wireless printer
  • USB cable
  • Fyrite® User Software
  • 4 additional AA batteries



Product Data Sheet

Product Manual



Specifications:

Measuring Range: O2 0 To 20.9%, CO 0-4000 ppm
Stack Temperature: -4 to 1202 °F (-20 to 650 °C)
Draft / Differential Pressure: ± 40 inH2O (±10 mbar)
User Interface: Color LCD w/ backlight
Display Size: 2.8 in (72 mm)
Power: 4 × Alkaline Batteries
Run Time: 15 Hours (Alkaline Batteries)
Warm-Up Time: 30 To 60 Seconds
Digital Communications: USB 2.0 (mini-B), IrDA
Ambient Temperature: 23 to 113 °F (-5 to 45 °C)
Humidity: 15 to 90% RH (non-condensing)
Altitude: 1 ATM ± 10%
Product Dimensions (L×W×H): 8" × 3.6" × 2.3" (20.3 × 9.1 × 5.8 cm)
Product Weight: 1 lb. (0.45 kg) including batteries
Fuel Equations: Natural gas, coal, oil 2/4/6, wood, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel, +2 optional custom fuels
Approvals: CE, EN 50379-1, EN 50379-3
Internal Memory: 100 Records
Warranty: Instrument: 2 Years (Including Sensors), O2 Sensor: 3 Years (Long-life Sensor, If Equipped)
Printer: IrDA + Bluetooth Printer (Optional)
Country of Origin: United States
