Appion SPDKIT-V MegaFlow Vacuum Speed Kit

Save 21%
Original price $679.99
Current price $539.99
Currently 1 in stock.

Appion SPDKIT-V MegaFlow Vacuum Speed Kit

Products typically ship within 1 business day.

The Greater the Flow... the Faster it will Go!

The MegaFlow SpeedKit-V makes it easy to hook-up multiple simultaneous connections. The kit contains (1) 3/8in FL and (1) 1/2in FL Speed-Y. Both Speed-Y's have (2) 3/8in MFL fittings and are Vacuum-Rated to 20 microns. Between both Speed-Y's, the SpeedKit-V will work on most Vacuum Pumps.

The MegaFlow Speed-Y is Vacuum-Rated to 20 microns and designed for high pressure refrigerants, such as R410a. The MegaFlow Valve Core Removal Tools work with both Standard 1/4in Systems and Ductless 5/16in Systems. Always remove valve cores from the system for Full Flow and Fast Evacuation.

The MegaFlow SpeedKit-V features (2) 1/2in 6ft MegaFlow Vacuum-Rated Evacuation Hoses. The Vacuum-Rated hoses won't permeate or collapse in a deep vacuum. With a large interior diameter these MegaFlow hoses have greater flow than standard 3/8in hoses.

Features and Benefits

  • Maximize the Flow of ANY Vacuum Pump - Works on all vacuum pump with 3/8in MFL and 1/2in MFL fittings
  • Up to 16x Greater Flow when compared to evacuation with a manifold
  • Fast and Simple - Simple setup, Fast evacuation, Reduced job times
  • Vacuum-Rated Components - Tools that do not leak in a deep vacuum
  • Full Flow - No flow restrictions across the whole setup
  • Ultra-Flexible Large Diameter Hoses - Get into tight spaces and significantly reduce evacuation times
  • Upgradable to ≈ 12CFM of flow with the addition of (2) MGABAS/MGABRO
  • Tool bag Included - Quickly organize and efficiently carry tools

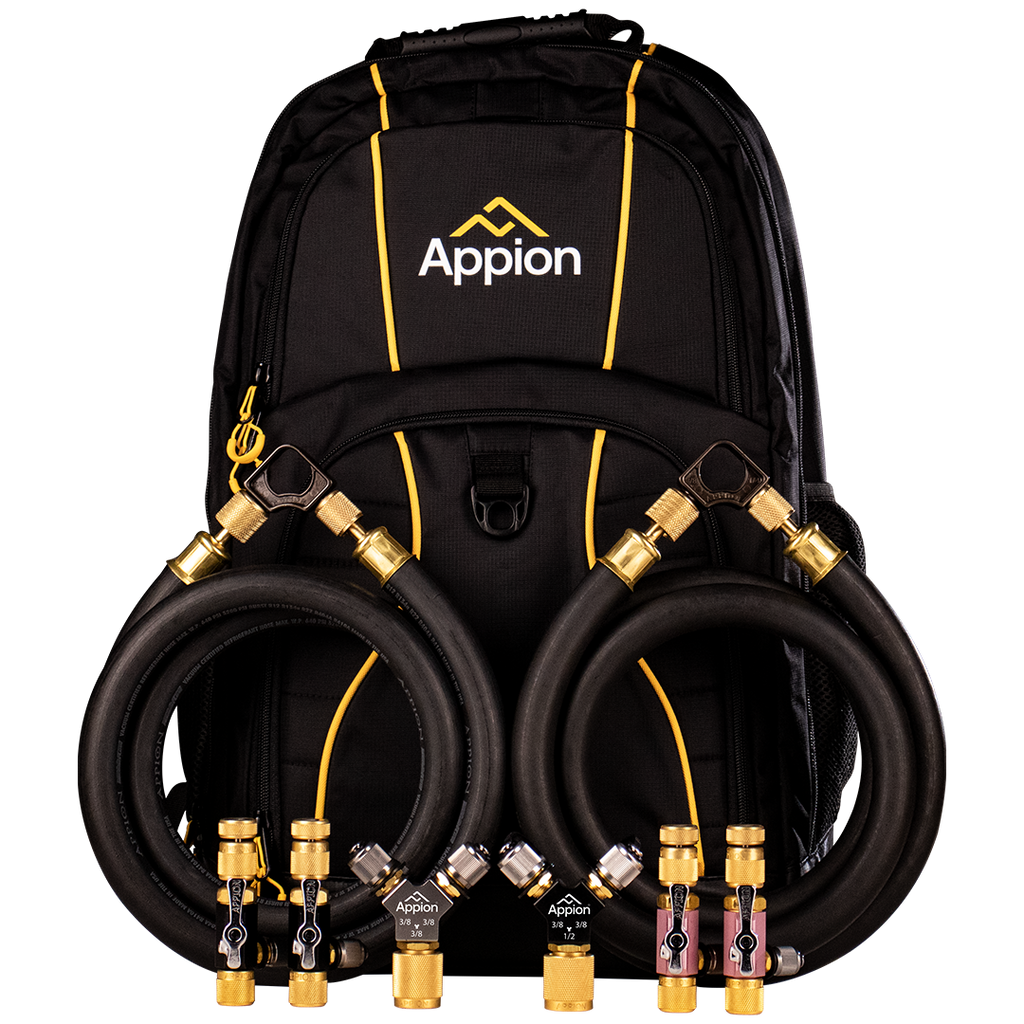

This Kit Includes:

  • (2) MegaFlow 1/2in Hose - 6ft (3/8in FL to 1/4in FL) Black

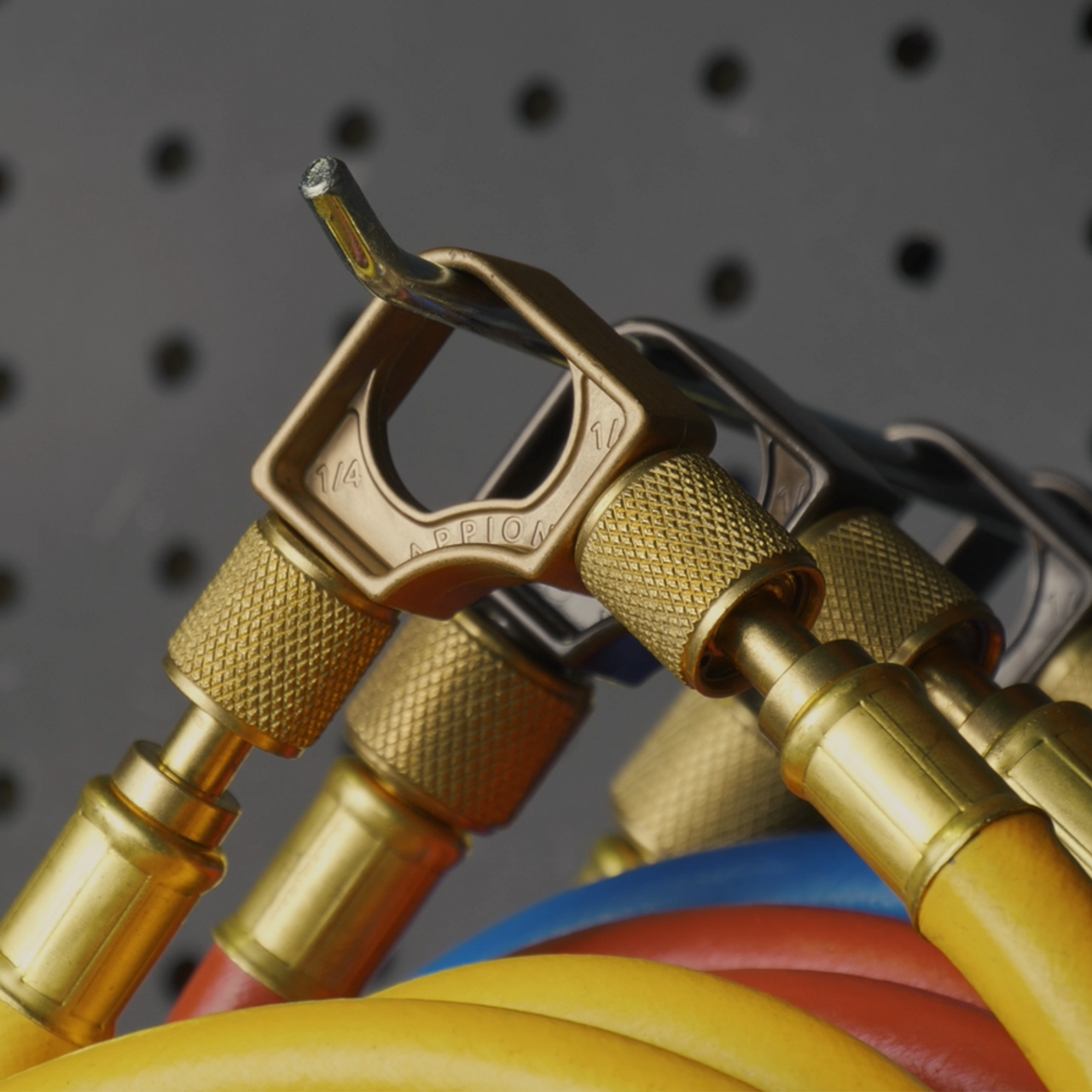

  • (2) MegaFlow Valve Core Removal Tool - 1/4in
  • (2) MegaFlow Valve Core Removal Tool - 5/16in
  • (1) MegaFlow Speed Y 3/8in
  • (1) MegaFlow Speed Y 1/2in
  • (1) MegaFlow SpeedKit Carry Bag


Want Fast and Simple Evacuation?

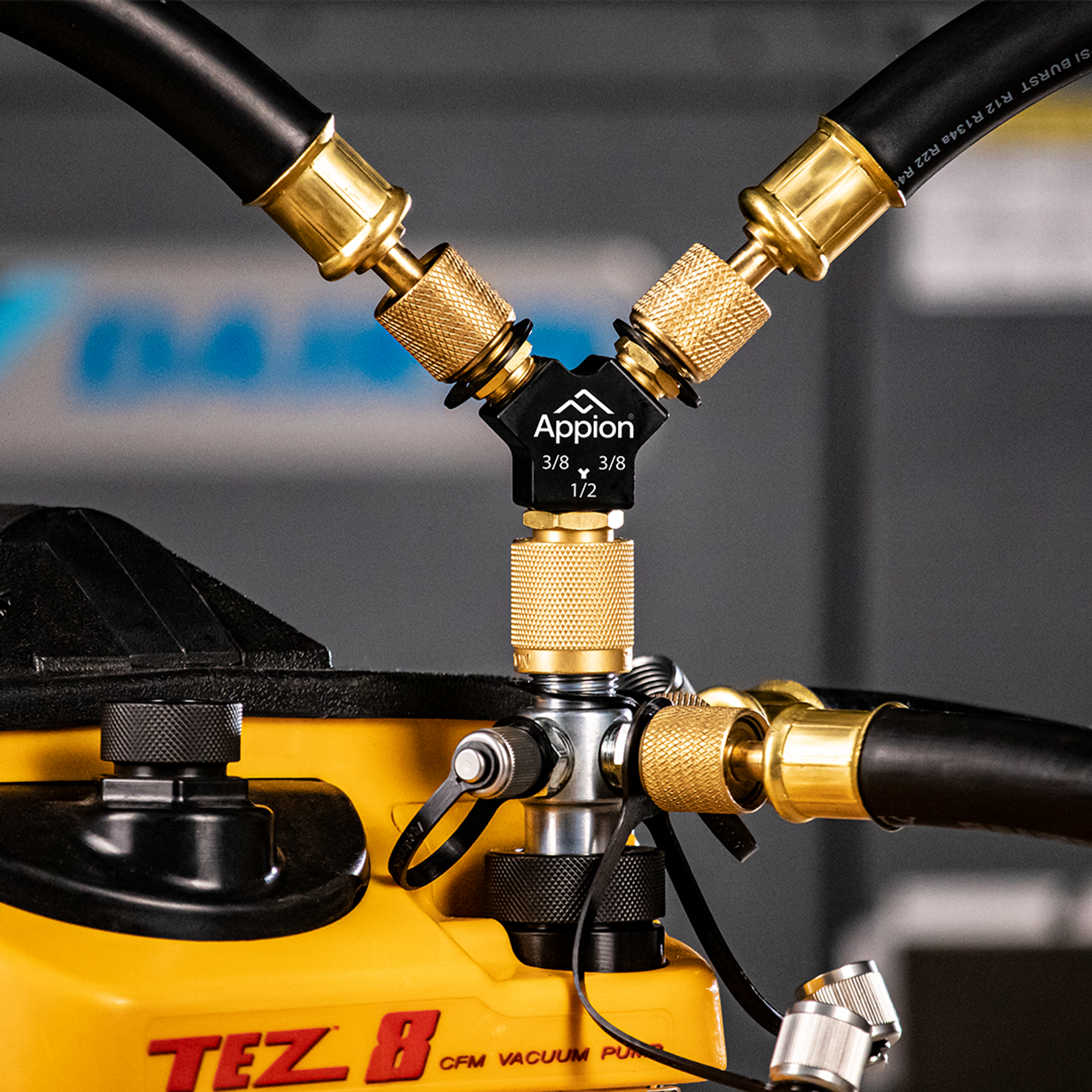

With the MegaFlow Speed-Y, fast evacuation is simpler than ever. No manifold, no tangle of hoses, and reduced connections. The Speed-Y enables Full Flow to any vacuum pump, without the restrictive manifold.

Are your Tools Rated for Vacuum?

Tools and fittings that aren't Vacuum-Rated can leak under deep vacuum. All of the tools included in the MegaFlow SpeedKit-V are Vacuum-Rated to 20 microns. This setup will give you the peace of mind that your tools aren't going to leak in a deep vacuum.

Product Brochure

Quick Start Guide
