Amprobe NCV-1030 Non-Contact Voltage Probe, Dual Range, 12 to 1000V, w/ Flashlight

Save 3%
Original price $30.99
Current price $29.99
SKU NCV-1030
Currently 13 in stock.

Amprobe NCV-1030 Non-Contact Voltage Probe, Dual Range, 12 to 1000V, w/ Flashlight

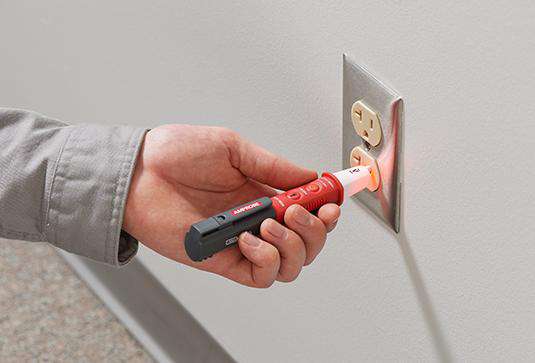

The Amprobe NCV-1030 Non-Contact Voltage (NCV) tester provides maximum safety and convenience for detecting AC voltage without interrupting electrical systems. Designed to conveniently fit in your shirt pocket, the NCV-1030 tester performs in indoor and outdoor settings. Safety tested to the highest category measurement, CAT IV 1000 V, as well as IP65 water and dust resistant, the NCV-1030 is fit for the toughest industrial applications.

  • Non-contact voltage detection from 50 to 1000 V AC
  • NCV LOW range (> 12 V AC)
  • Built-in work light
  • Water and dust resistant - IP65 rated
  • Audible and visual voltage indication
  • On / Off switch



Specifications

Voltage Indication Bright red LED and buzzer
Voltage Ranges 12-50 V AC, 50-1000 V AC, 50-400 Hz
Duty Cycle Continuous
Safety Compliance IEC 61010-1 3rd Ed., UL61010-1 2nd Ed. and CAN/CSA-C22.2 No. 61010-1-04 +Update No. 1:2008 to CAT IV 1000 V, Pollution degree 2, IP65
Battery 2 x 1.5V LR03 (AAA)
Temperature Range 32 °F to 104 °F (0 °C to 40 °C), ≤ 80% RH
Current Consumption Approximately 80 mA
Dimensions 156.2 x 23.5 x 27.5 mm (6.14 x 0.92 x 1.08 in)
Weight Approx. 60 g (0.13 lb)
