Ambro Controls 1811187 Pro Torch for OxyMax Mobile Brazing & Welding System

Designed for demanding HVAC and refrigeration applications, the Ambro Controls Pro Torch delivers a powerful, high-temperature flame capable of brazing copper pipe up to 1½” with confidence.

Engineered for contractor-grade performance, the 14″ torch features built-in gas and oxygen controls for precise flame adjustment and maximum control on the job. Three interchangeable tips provide the versatility to handle a wide range of brazing applications, while integrated check valves enhance safety and reliability.

Designed for use with the Ambro Controls OxyMax kit (sold separately), the Pro Torch delivers the performance professionals depend on in the field.

Application: Heating, Soldering, Brazing, Cutting on larger diameter pipes up to 1½”

• Powerful flame for brazing up to 1½” pipe.
• Comes with 3 interchangeable tips for precise flame control.
• 14" long torch handle.
• Built in gas and oxygen controls.
• Durable torch construction.
• Designed for HVAC and Plumbing contractors.
• Compact, lightweight & ultra-portable.
• Quiet operation.
• Includes check valves.
• For use with OxyMax Mobile Brazing System.



Product Flyer

Instruction Manual

Oxygen SDS

MAP-Pro SDS



Specifications

SKU:	1811187
Application:	Heating, Soldering, Brazing, Cutting on copper or aluminum pipes up to 1½”
Fuel Type:	Designed for use with MAP Pro and Oxygen, as part of the Oxyset Mobile Brazing System (sold separately)
Oxygen Pressure:	Minimum 60 PSI Maximum 90 PSI
Fuel Gas Pressure:	Minimum 7 PSI Maximum 14 PSI
Torch Dimensions:	14” Long (tip to hose)
Tip Sizes:	#3 (0.787”), #5 (0.945”) and Rosebud
Net Weight:	0.77lbs (350g)

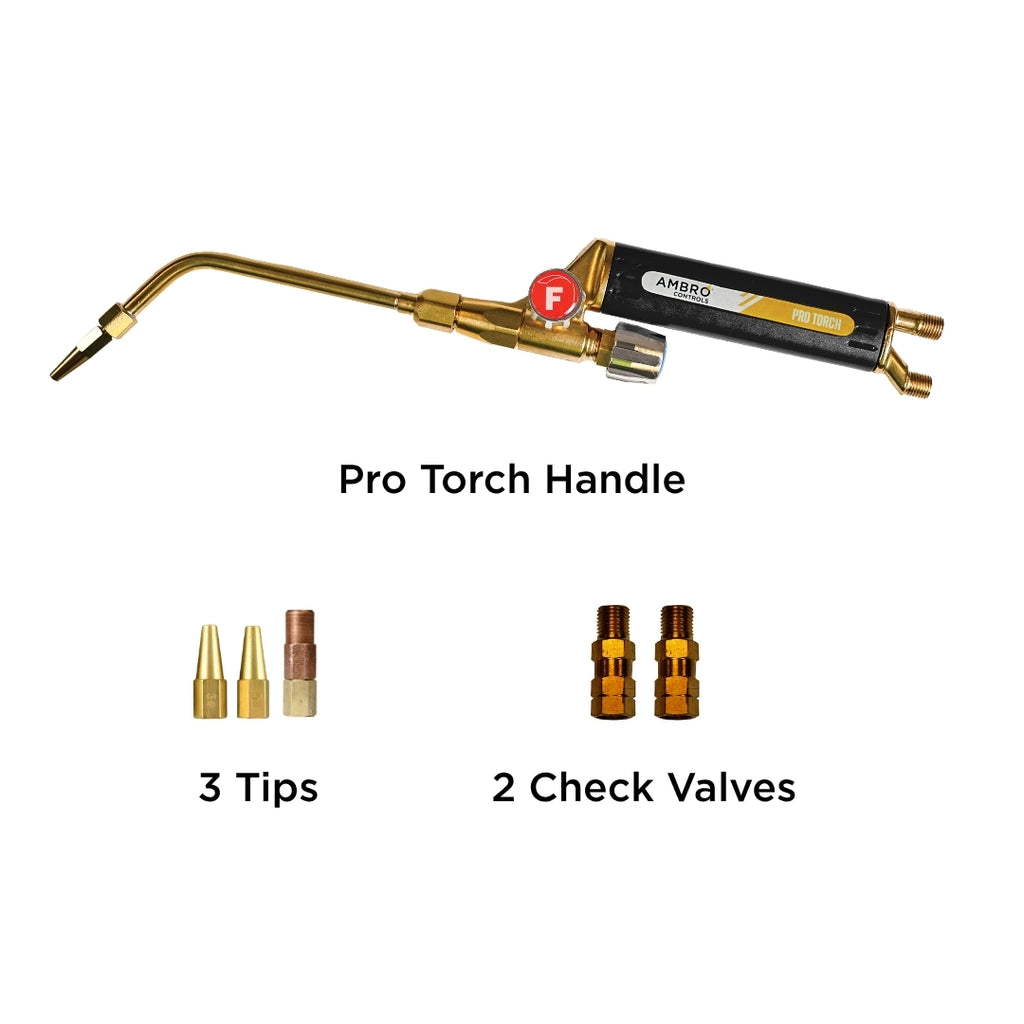

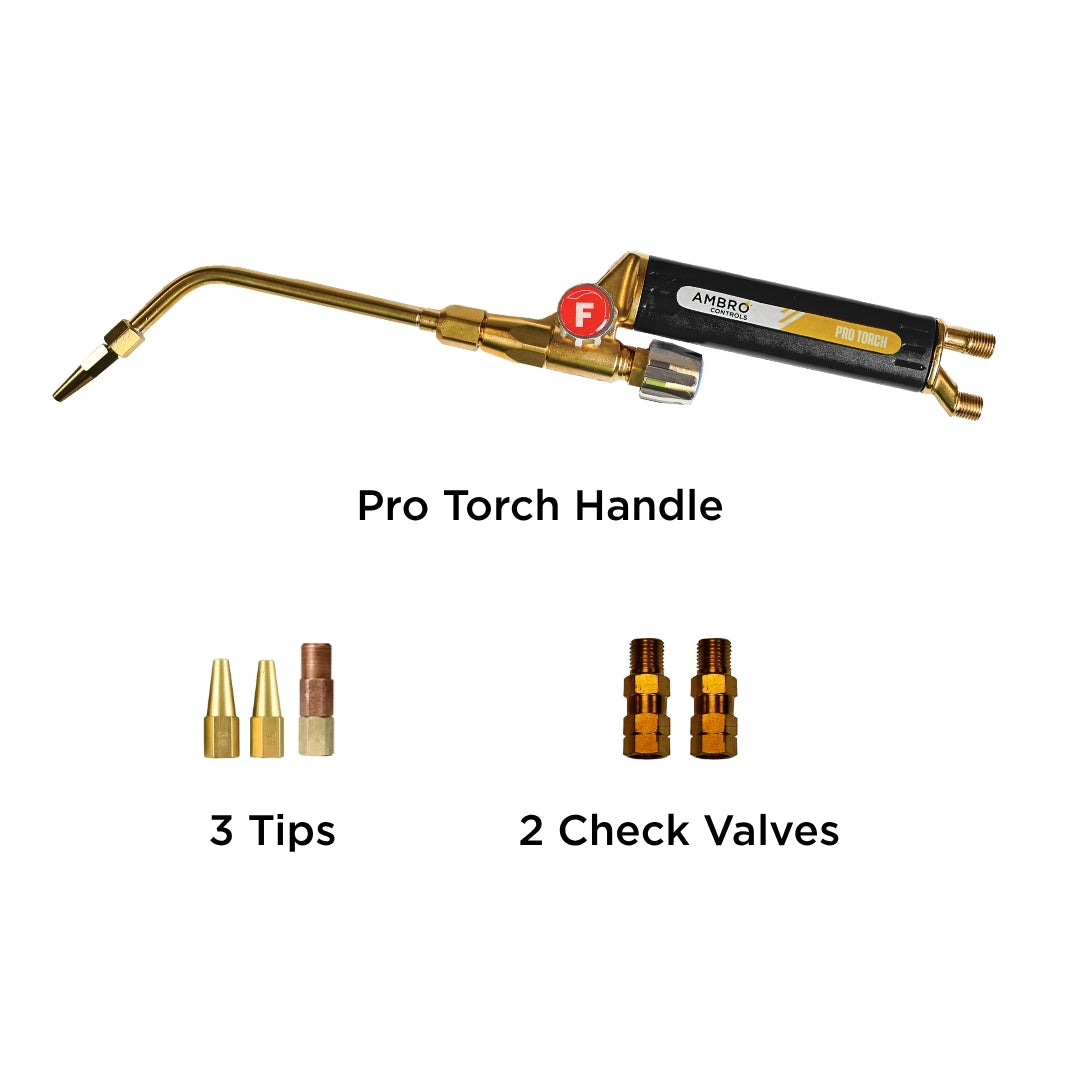

Box Includes:	14” torch, 3 interchangeable tips, 2 check valves (torch end)
Max. Flame Temperature:	~5400°F (3000°C)
Approx. Run Time:	1L Oxygen Cylinder: 17mins 1.9L Oxygen Cylinder: 25mins 14.1oz (400g) MAP-Pro Cylinder: 1.5hr
