Ambro Controls 1811185 PerforMax MAP-Pro Brazing Torch

SKU: 1811185
Price:
$69.30
Stock:
In stock (69 units), ready to be shipped

Description

Ambro Controls 1811185 PerforMax MAP Pro Brazing Torch

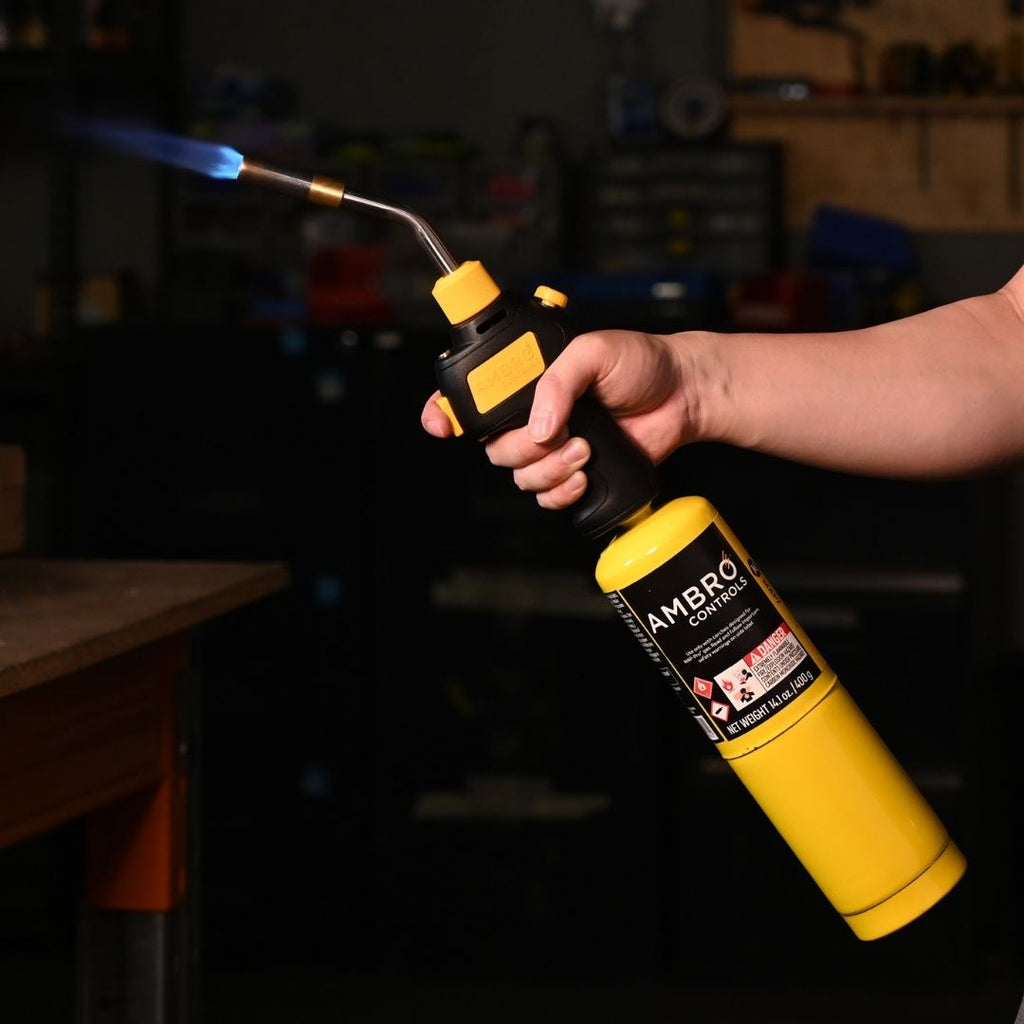

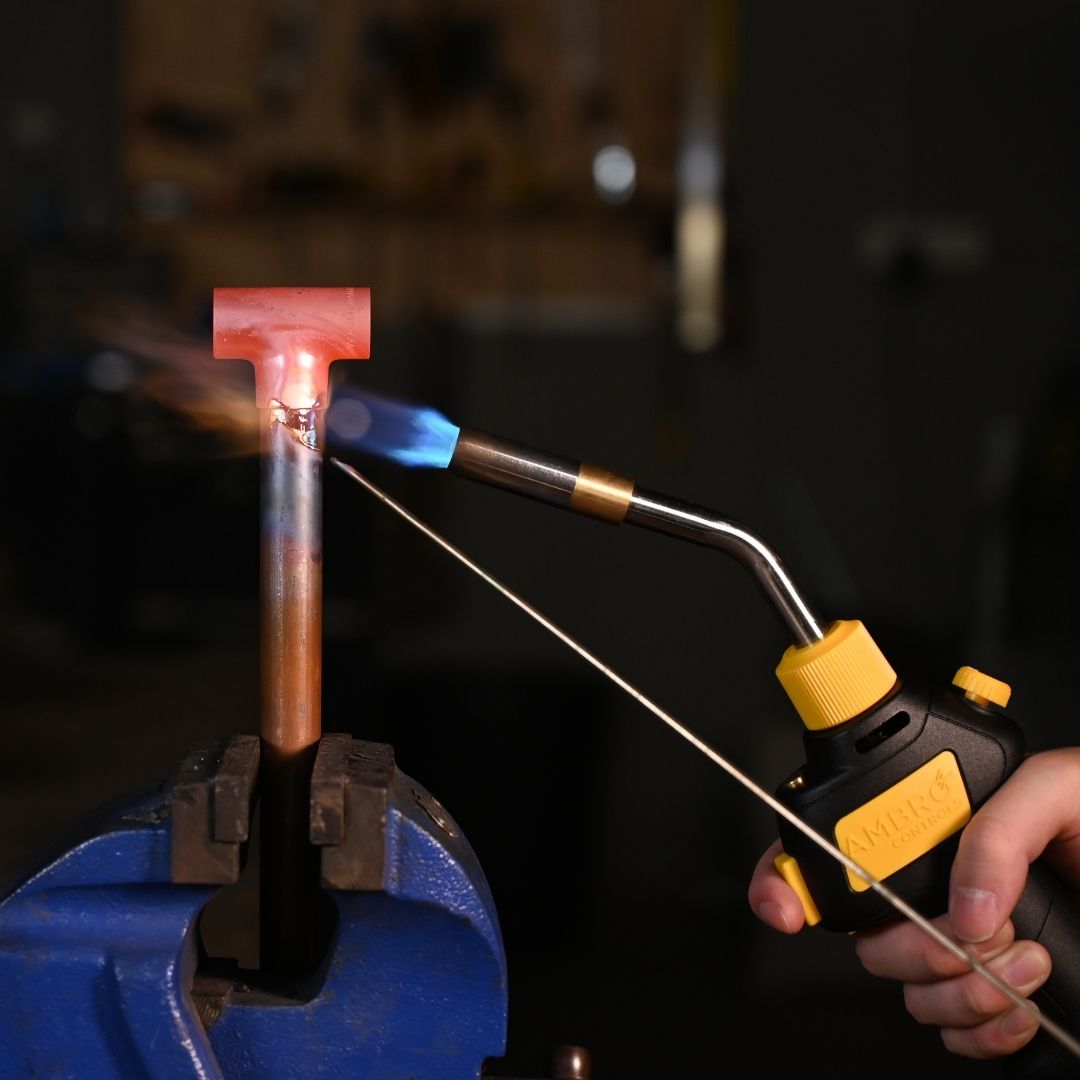

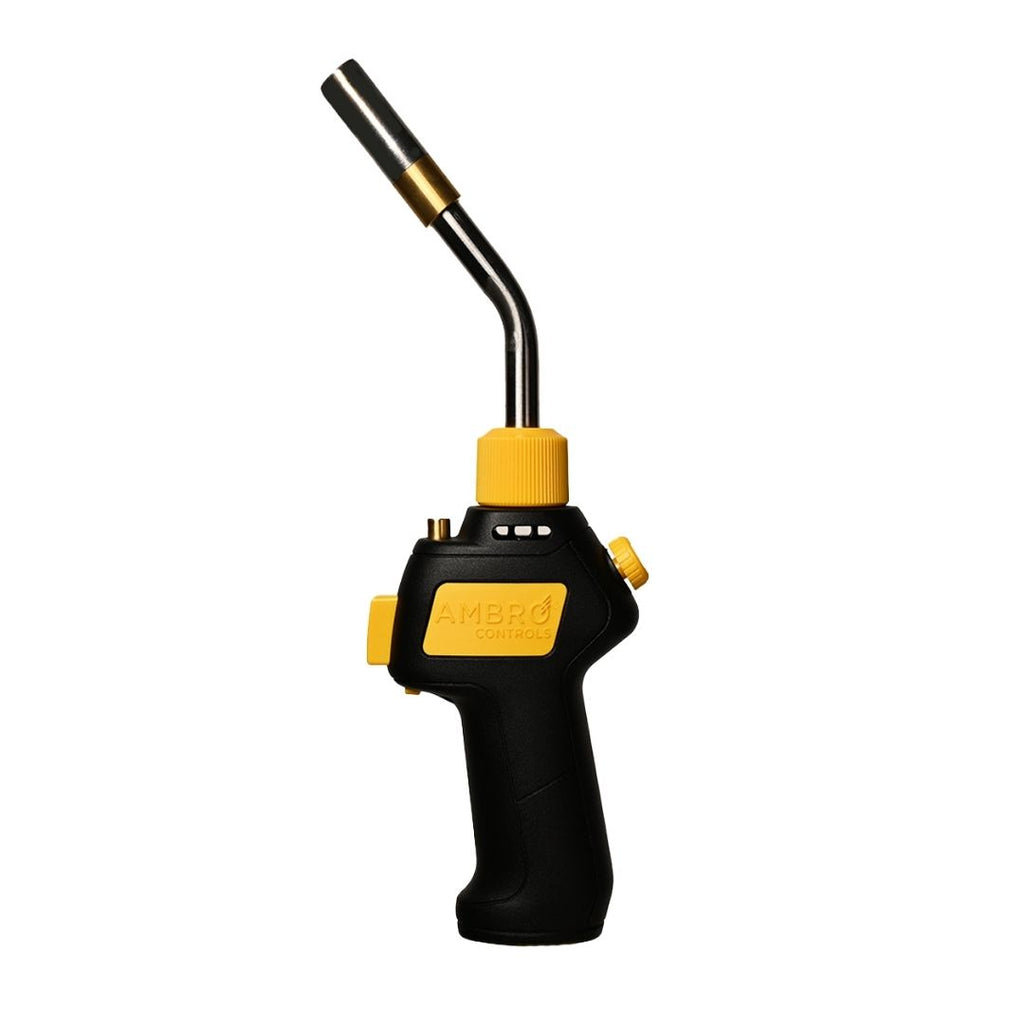

The PerforMax Torch is a high intensity trigger start torch with a 360-degree swivel burn tube, and adjustable flame control. This brazing torch comes with a continuous flame lock, allowing finger free use and is pressure regulated for consistent performance when inverted. The burn tube can be rotated 360 degrees and locked in place – this allows for angled use without causing wrist strain. The Max-Power flame delivers fast heat transfer, making this torch ideal for use with Map-Pro in multiple lower demand applications including up to 1” diameter brazing, soldering and heating.

  • Max-Power flame
  • 360° swivel burn tube
  • Instant on-off ignition
  • Continuous flame lock
  • Adjustable flame
  • Pressure regulated for consistent performance when inverted
  • Durable aluminum alloy body with ergonomic design for easy handling
  • For use with Map-Pro

Product Flyer

Instruction Manual

MAP-Pro SDS



Specifications

SKU: 1811185
Application: Brazing on up to 1” diameter pipes, Soldering, Heating, Heat treating
Fuel Type: Designed for use with MAP Pro
Suitable for use with Propane
Flame Type: Max-Power. A fast-spinning concentrated flame, for increased heat output.
Connection: CGA 600
Ignition Type: Trigger Start
Net Weight: 1.2lbs (556g)
Max. Flame Temperature: ~3730°F (2054°C) – In air flame temperature
Approx. Run Time: 1.5hrs per 14.1oz cylinder. Based on continuous use with fully open valve.
Includes: 1x PerforMax torch



You may also like

Recently viewed

  • 5 stars: 4 (67%)
  • 4 stars: 2 (33%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Abdul Hall

Great gear

D
David Greer

great price , unit with mapp gas will get hot enough to silfoss 15 % on a 7/8 (but barely ) ya got to stay on it

A
Anonymous

Will get you oit of a jam. We have used it on 7/8. It works well. 3/4 and less no problems.

J
Jason Bengel

I'm impressed with this torch. I'm able to get copper hot a lot faster with a butane tank and completing my solder work faster. I love the button that holds the on switch, but had to deduct a star for two reasons: about half the time, I have to really press the trigger switch and jiggle it to get the "hold" released (this has terrified me as as I don't like a delay in getting a hot flame turned off). The "volume control" on the gas also isn't great and is nearly useless (for an expensive device, I expected more). The dial knob is basically "on" or "off" -- there is no in-between, meaning if I try to reduce the flame size, the flame just goes out. It's an on or off condition (with a large flame). Has me wondering if mine has a slight defect in the gas volume control, but definitely lost a star as I expected better precision for flame control. There are times I don't need a gigantic flame cone when soldering in a confined space, and this gigantic flame is a bit too hot for reducing.

A
Anonymous

Excellent does the job ypu need.

O
Oral

Worked as advertised.
