Ambro Controls 1811170 OxyMax Kit Mobile Brazing System; 3 Torches in One Kit

The OxyMax Kit is the complete portable commercial HVACR kit for soldering, brazing, welding, cutting and heating on-the-go. The larger lightweight caddy features a rear pocket for extra storage, a torch holder to fit the included Precision, Pro and Power torch handles as well as an adaptor ring to allow brazing with either the 1L or 1.9L Ambro Oxygen cylinders (sold separately). Ambro Controls HVACR systems are engineered for use with our range of disposable gas cylinders. Our largest set, the OxyMax, enables brazing on pipes from 1/8” to 3” in size, making it the all-in-one solution for highly mobile tradespeople or for working in hard-to-reach areas.

A mixture between oxygen and gas fuel is ideal in many applications due to its adjustable heat output, this kit is suitable for a variety of applications including: welding, brazing, silver soldering, aluminum coil repair and more.

Use with the Ambro Controls 1L or 1.9L Oxygen Disposable Cylinder and 400g MAP-Pro Cylinder. (Not included in the kit).

Application: Commercial HVACR: Soldering, Brazing, Welding, Cutting, Heating

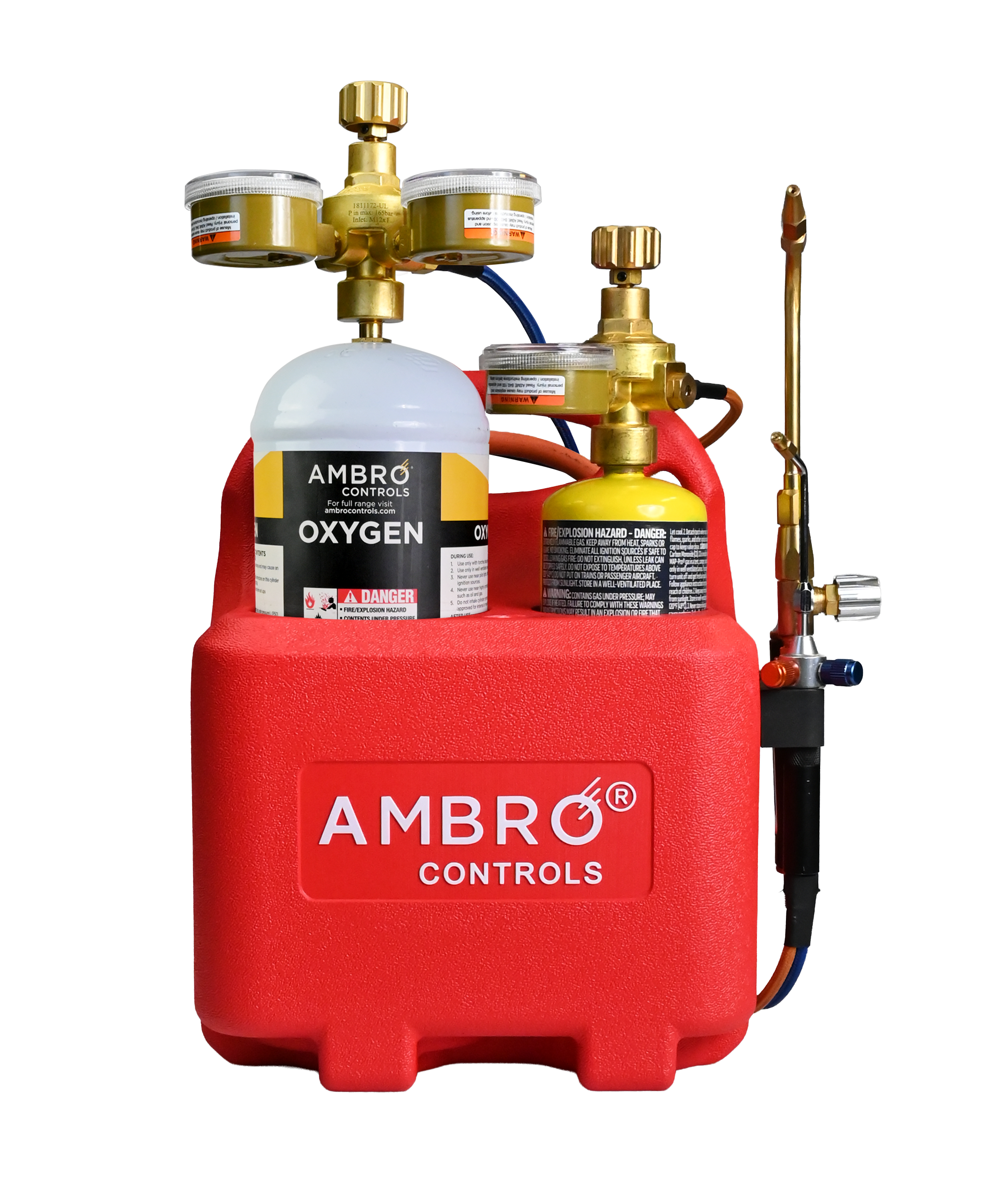

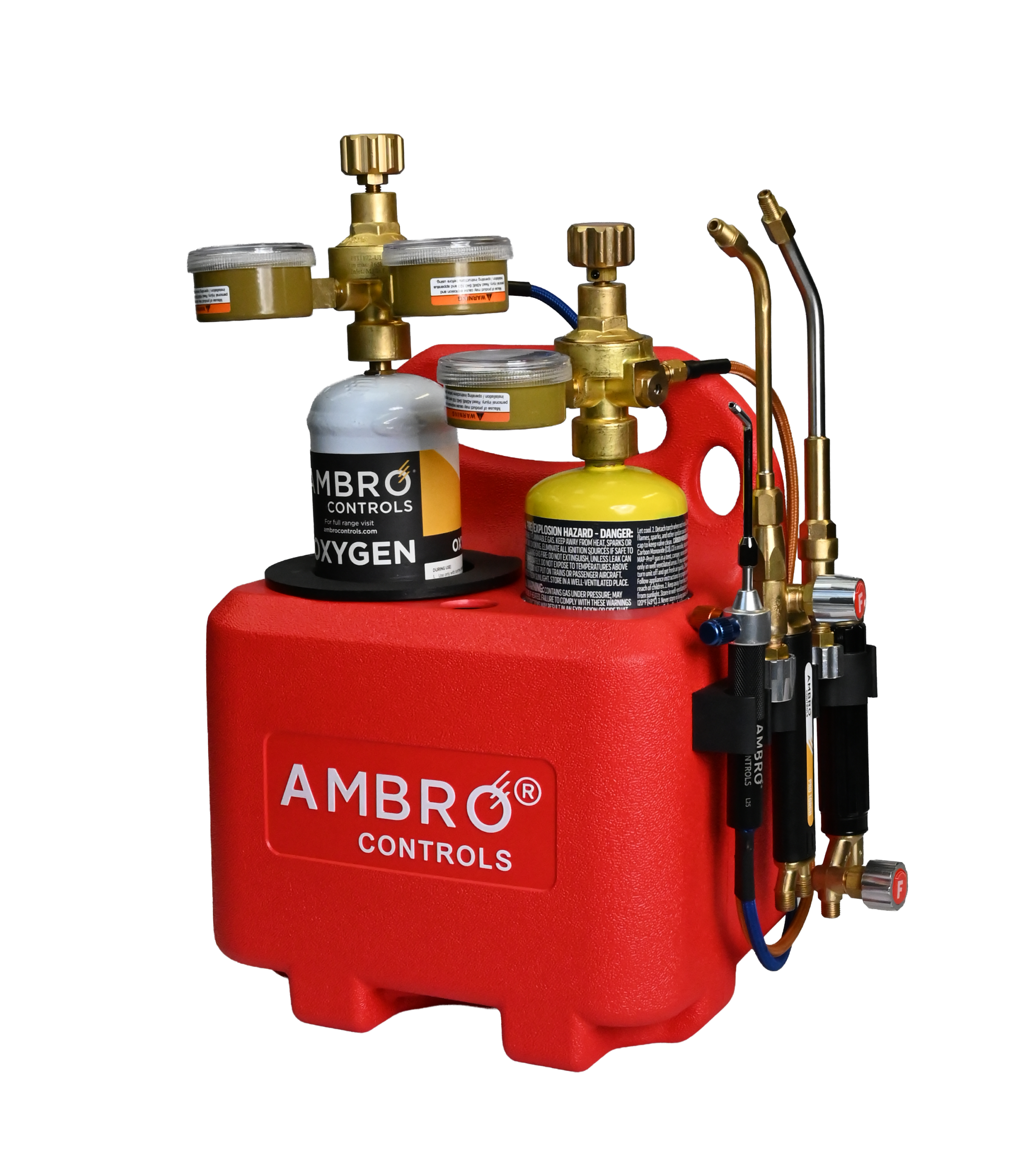

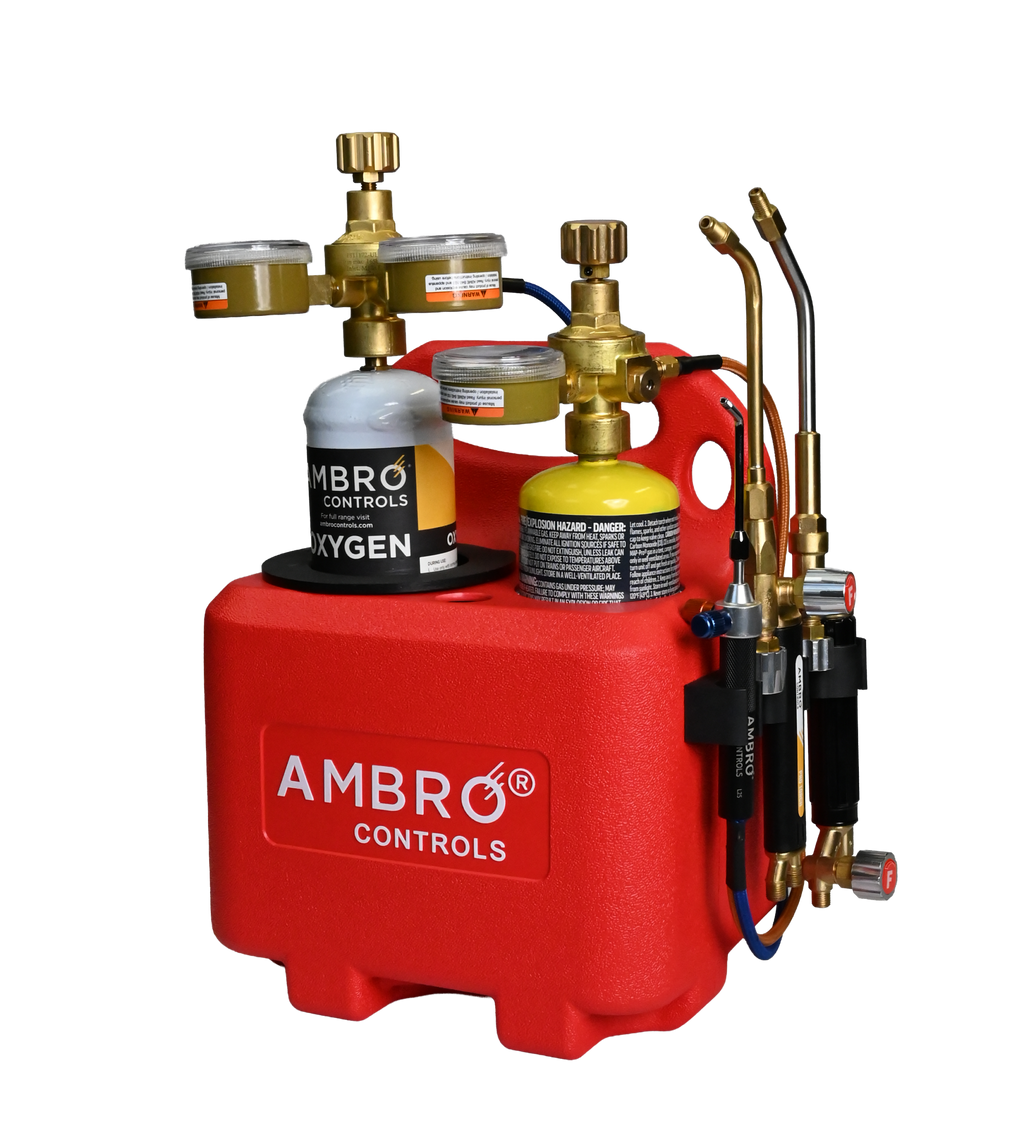

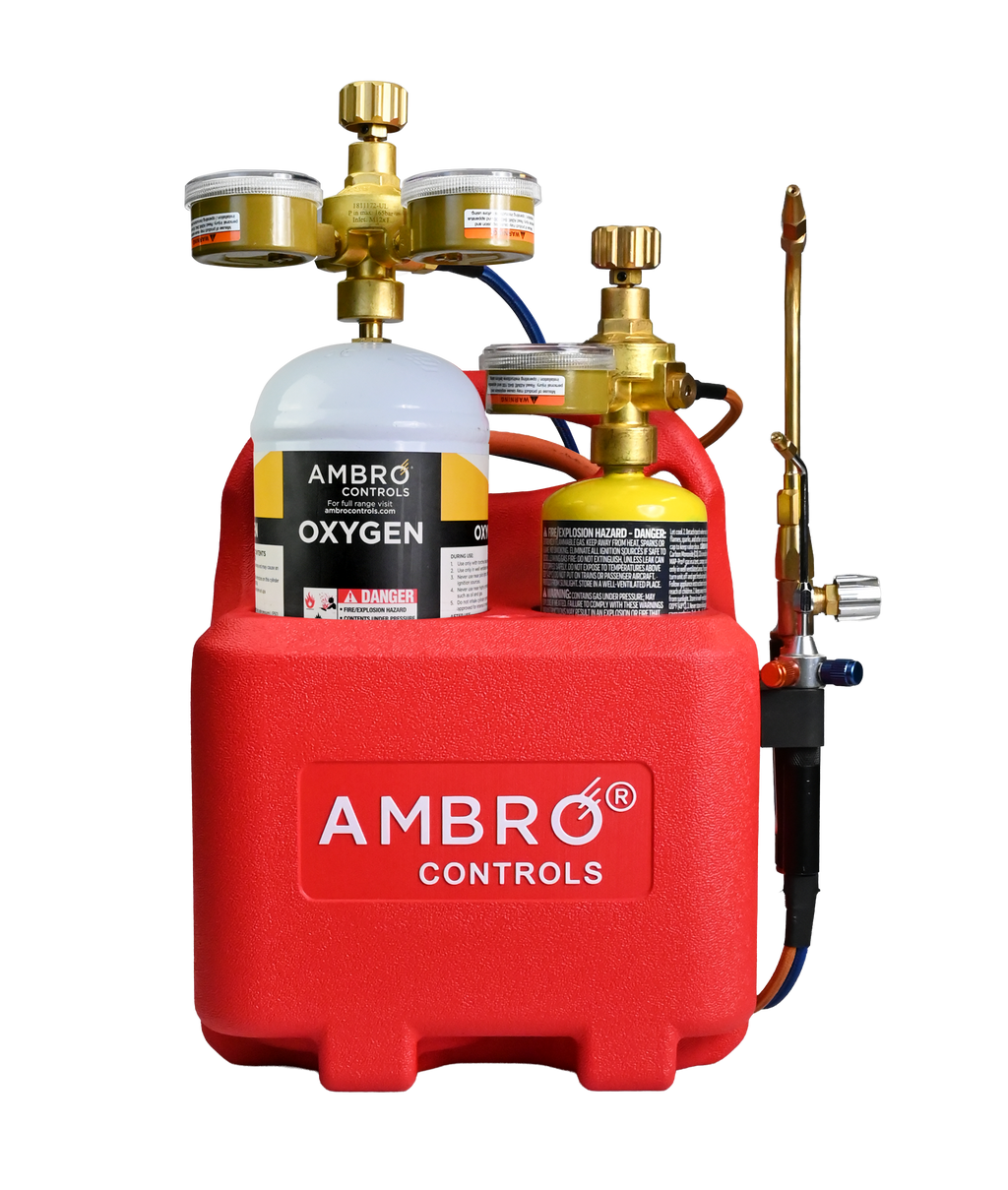

*Map-Pro and Oxygen Cylinders shown for display purposes. Not included with kit.

• Delivers maximum portability for brazing in commercial HVACR

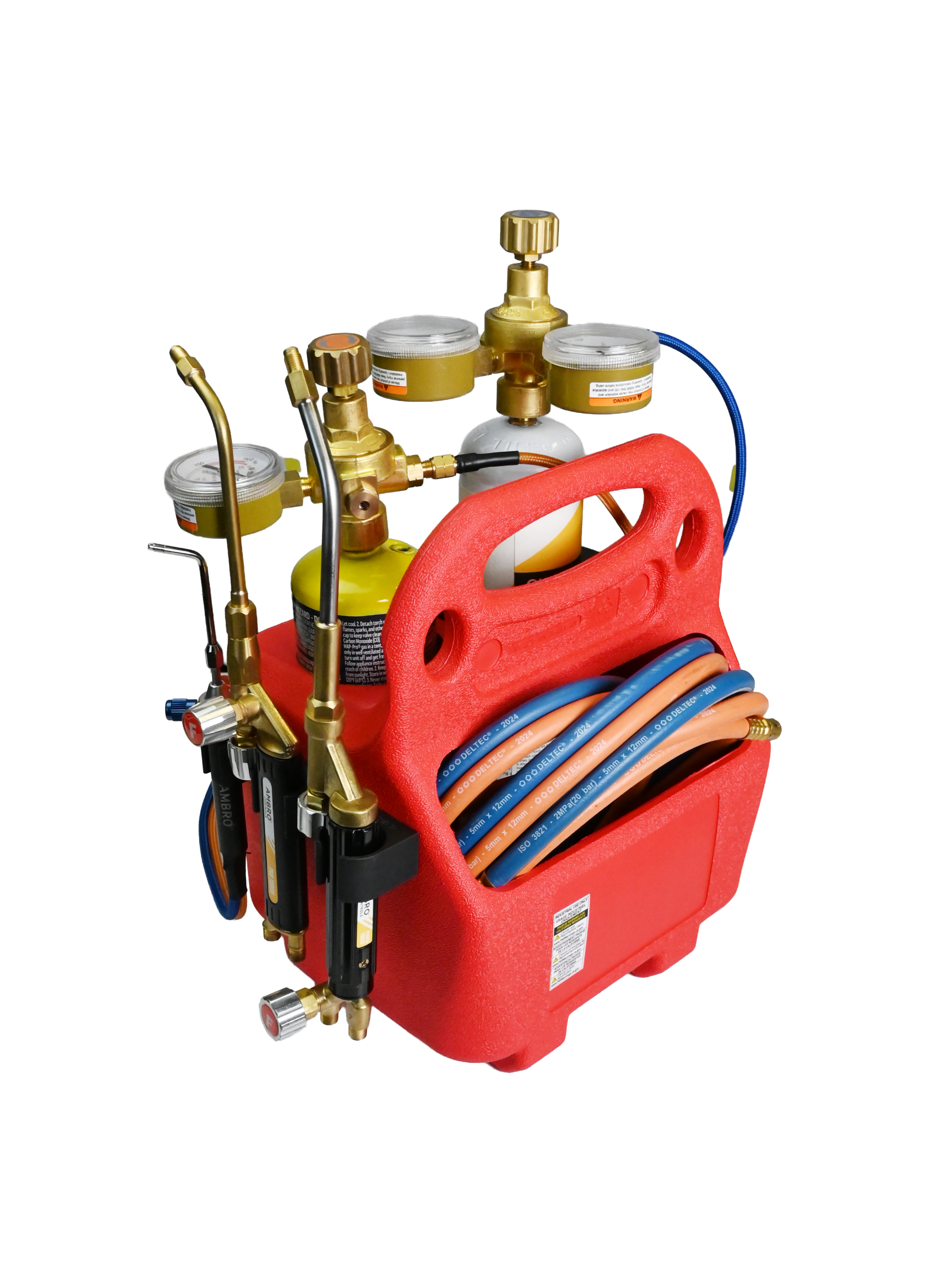

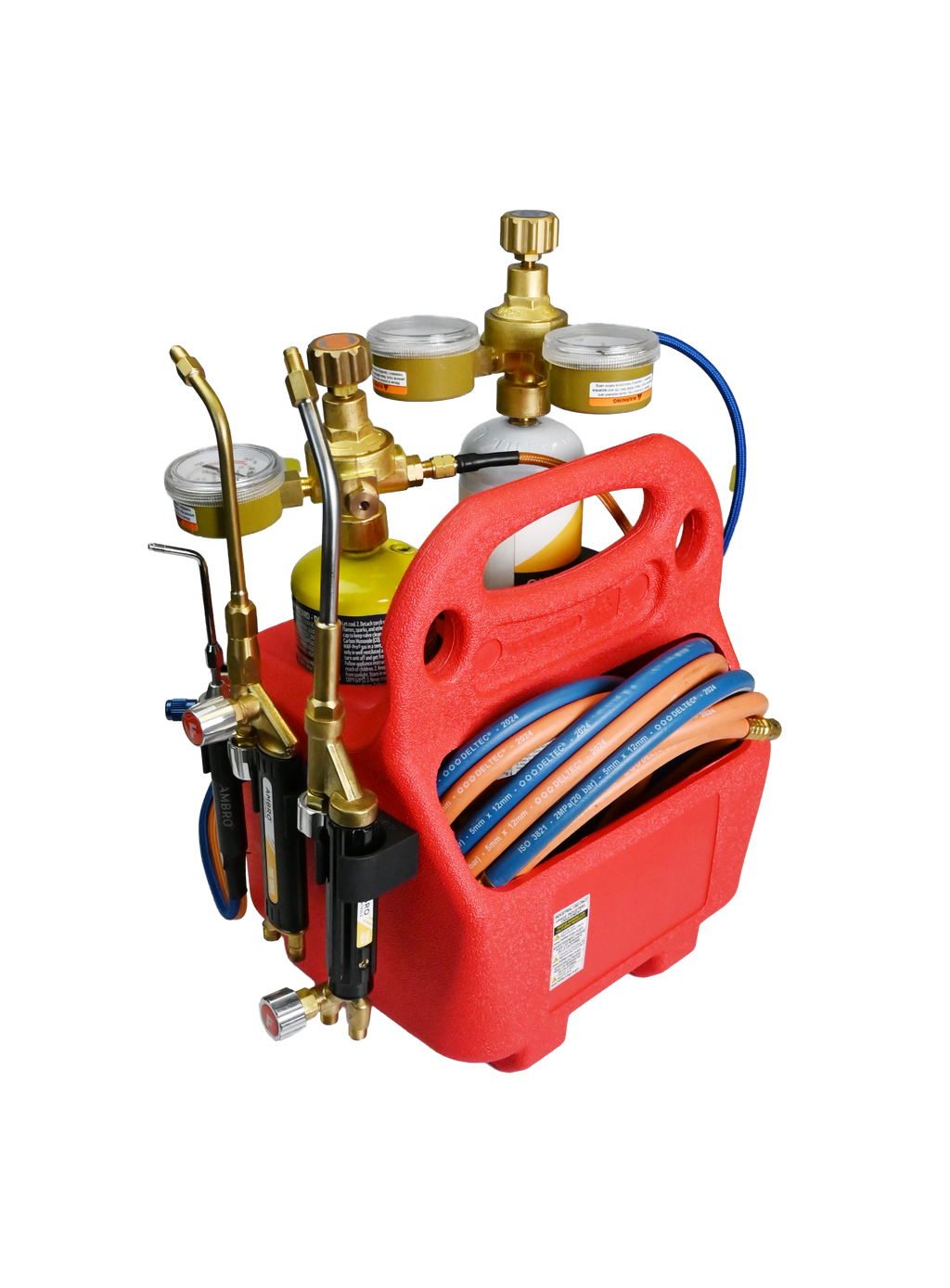

• Compact, portable, lightweight & multi-functional caddy
• Comes with 3 torch sizes: Precision, Pro and Power
• Enables brazing on pipes from 1/8” up to 3” in size
• Suitable for use with 14.1oz MAP-Pro & 1L or 1.9L Oxygen cylinders, sold separately
• Fits 1L & larger 1.9L Ambro Oxygen cylinders (adaptor ring included)




Product Flyer

OxyMax Kit User Manual - 181170

Oxygen SDS

MAP-Pro SDS



Specifications

SKU:	1811170
Application:	Commercial HVACR: Soldering, Brazing, Welding, Cutting, Heating
Fuel Type:	Ambro Controls 1L and 1.9L Oxygen Disposable Cylinder and 14.1oz (400g) MAP-Pro Cylinder
Torches Included:	1 x Precision Torch with 6.5ft twin hose assembly w/ 4 tips, 0.037” (0.95 mm), 0.047” (1.2 mm), 0.053” (1.35 mm), 0.063” (1.6 mm). 1 x Pro Torch w/ 2 tips 0.0787 (2.0mm), 0.0945” (2.4mm) and a rosebud tip 0.0472” (1.2mm) 1 x Power Torch w/ 2 tips 0.028” (0.7mm), 0.035” (0.9mm) and a rosebud tip 0.0472” (1.2mm)
Hose Connection:	Blue Oxygen Hose – (6.5ft length, 1/8” ID, CGA20) Orange Gas Hose – (6.5ft length, 1/8” ID, CGA21)*6.5ft twin hose assembly included with Precision Torch
Regulator Connection:	1x Blue oxygen regulator: Inlet (M12x1) Outlet (CGA20) 1 x Orange gas regulator:  Inlet (CGA600) Outlet (CGA21)
Flame Temperature Air:	up to ~5432°F (3000°C)
Net Weight:	150 oz (4.25kg)
Weight:	1L Oxygen: 169 oz (4.8kg) 1.9L Oxygen: 175oz (4.95kg) (11lbs) Based on assembled caddy with 1.9L Oxygen and MAP 14.1 oz (400g)
Included in Box:	Precision troch w/ 6.5ft twin hose & 4 tips, Pro torch with 2 tips and Rosebud, Power torch w. 2 tips & rosebud, 2 check valves (torch end), oxygen regulator, fuel gas regulator, 6.5ft twin hose assembly, flint sparker, spanner, 3 spare o-rings, and caddy w/ oxygen cylinder adaptor ring.
