Description

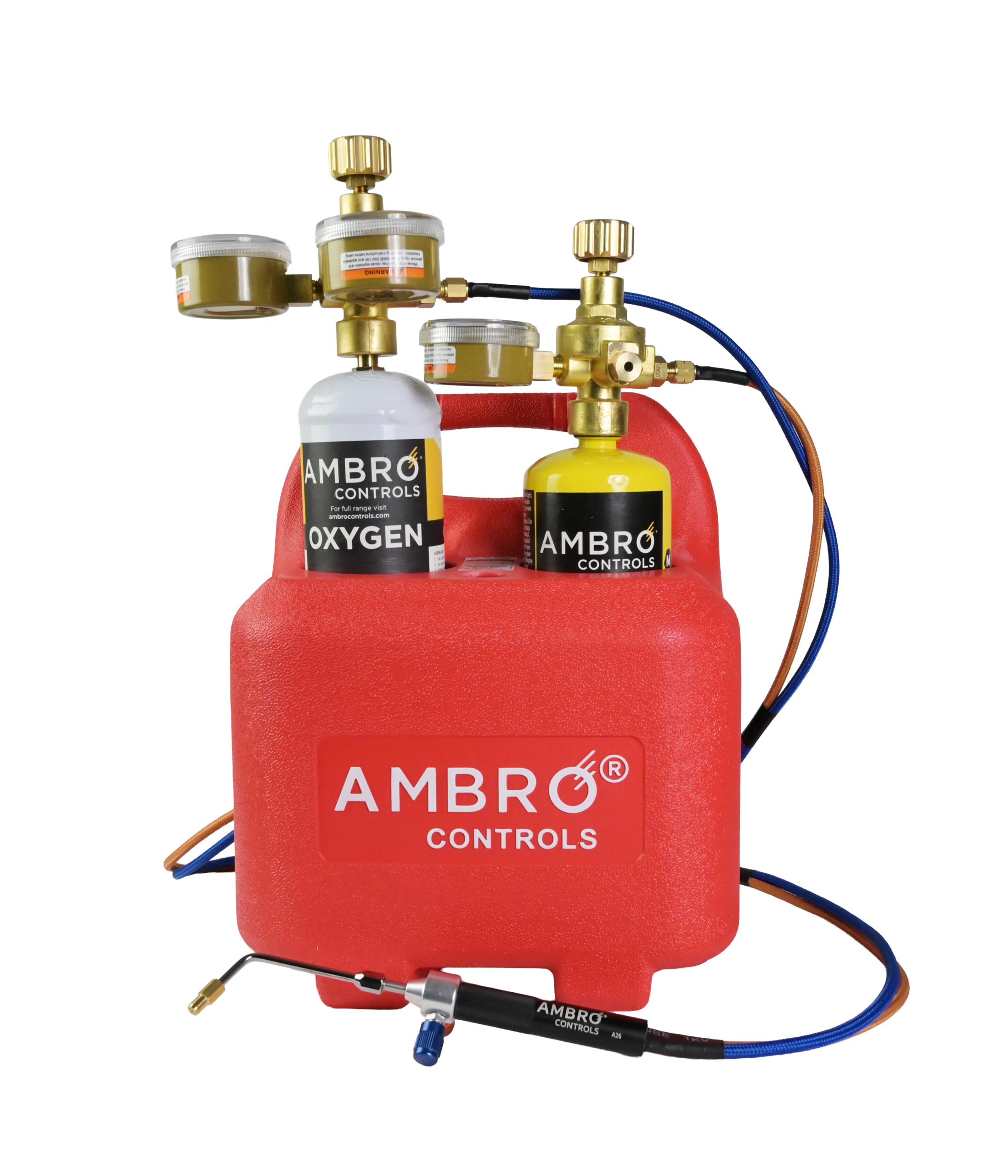

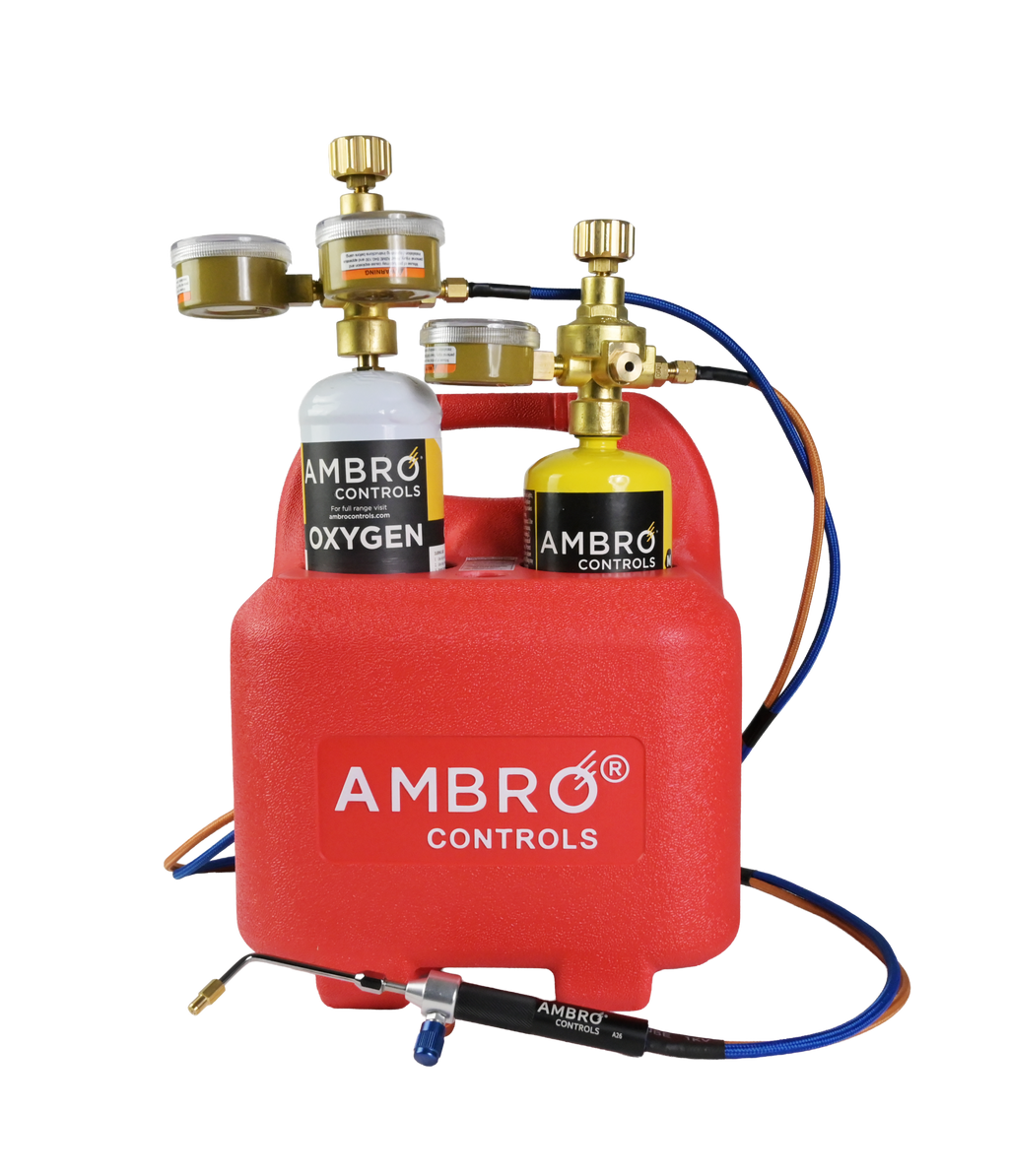

Ambro Controls 1811160 Oxy Precision Kit Mobile Brazing System
The Oxy Precision Kit is a portable welding & brazing system designed for precise repair jobs in hard to work spaces. Powered by disposable oxygen and map-pro cylinders, the kit comes with the signature Ambro easy-to-carry caddy. The included Precision torch with flexible twin hose assembly is ideal for pinpoint accuracy in any HVAC/R repair including aluminum microchannel.

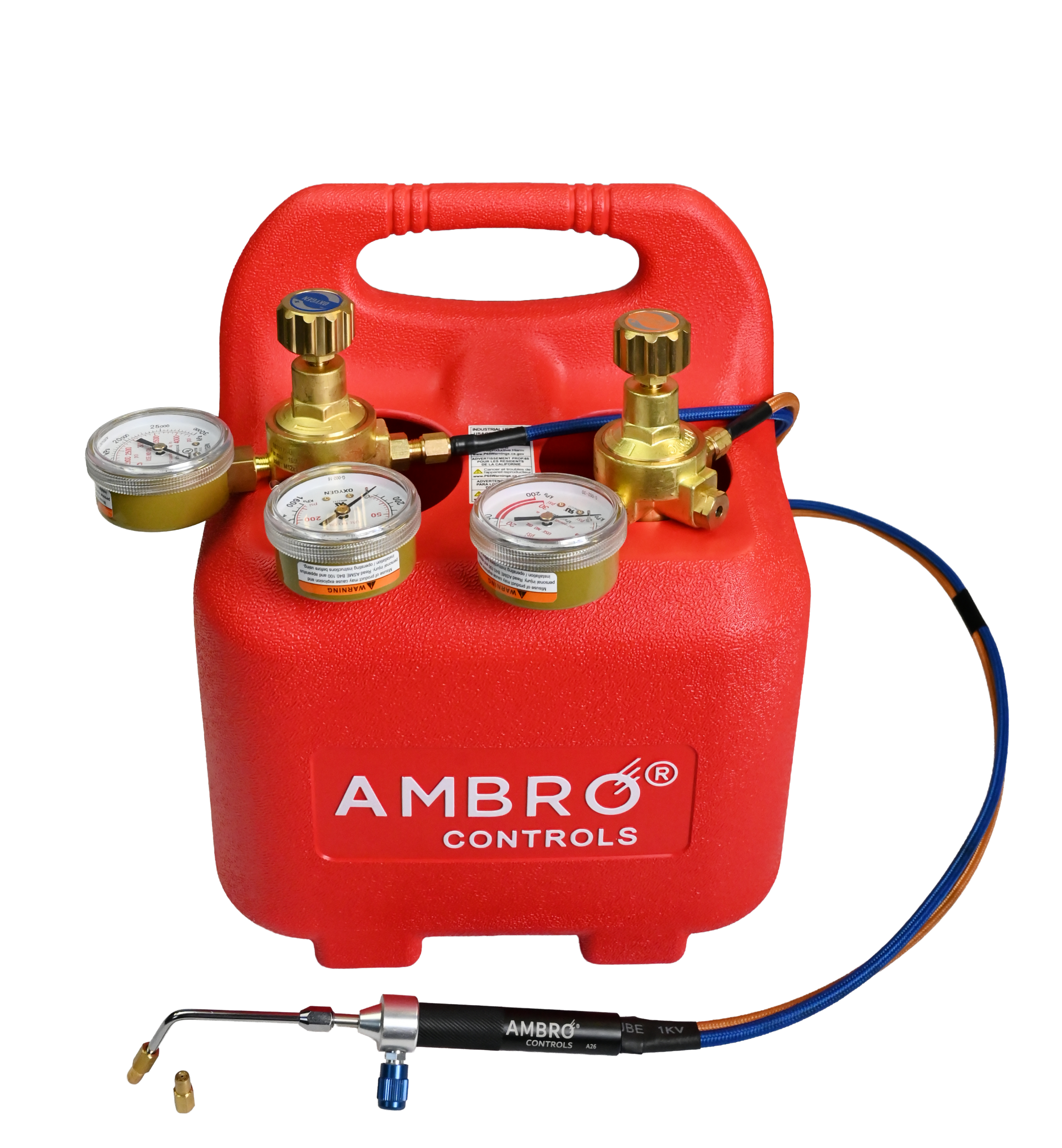

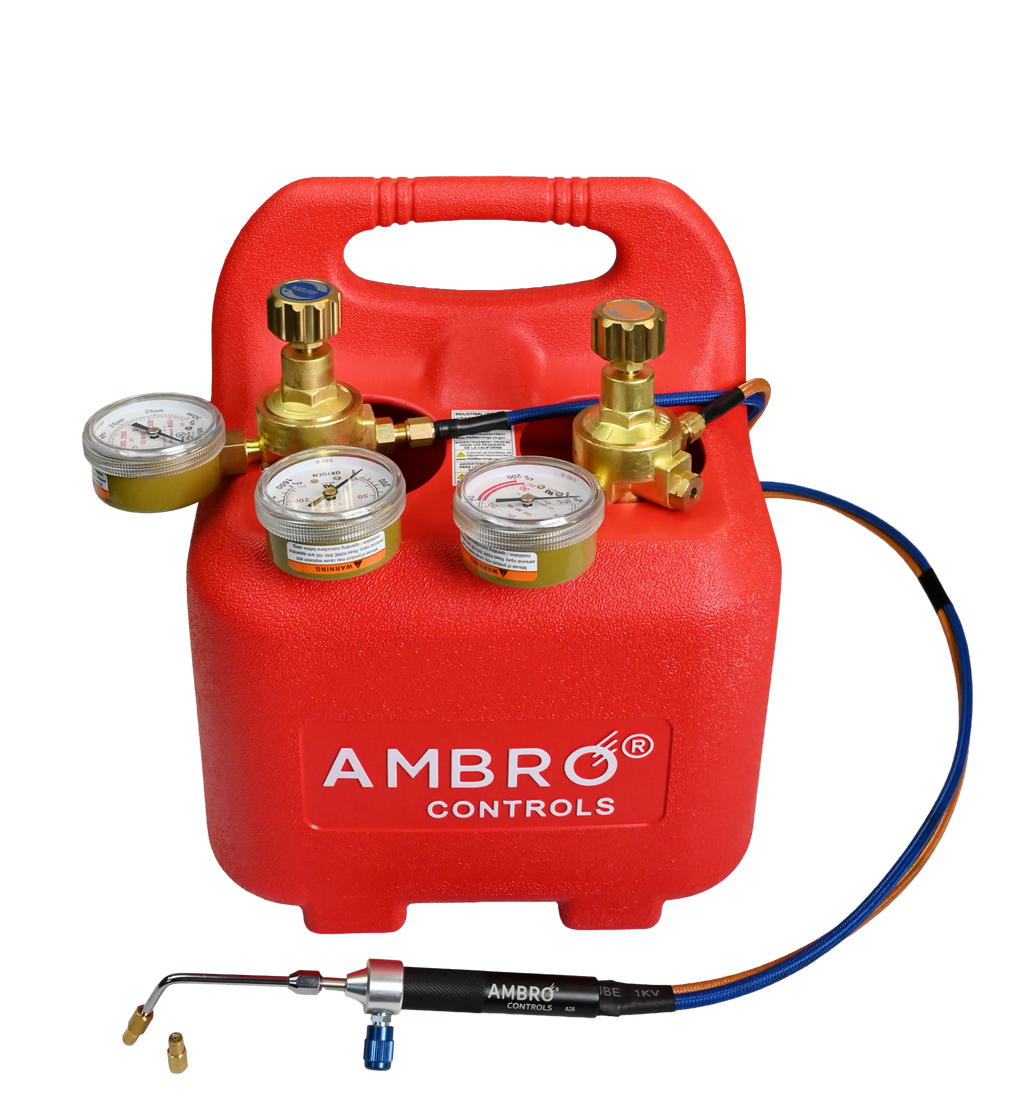

Powered by a mixture of oxygen and map-pro the Oxy Precision kit is ideal in many applications due to its adjustable heat output including: welding, brazing, silver soldering, aluminum repair and heating. The Oxy Precision kit includes: Ambro Precision Torch, Oxygen regulator with contents & pressure out gauge, MAP-ProTM regulator with outlet gauge, 2 x Nozzles, Flint sparker, Spanner and 6.5ft flexible twin hose assembly.
Use with the Ambro Controls 1L or 1.9L Oxygen Disposable Cylinder and 400g MAP-Pro Cylinder. (Not included in the kit).
Application: Soldering, Brazing, Welding, Cutting, Heating
Part Number (SKU): 1811160
MAP (Minimum Advertised Price): $399.00
*Map-Pro and Oxygen Cylinders shown for display purposes. Not included with kit.
- Designed for HVAC and Plumbing contractors
- Compact, lightweight & ultra-portable
- Pinpoint precision flame for increased accuracy
- 2 Nozzle sizes included
- For use with MAP-Pro & Oxygen cylinders, sold separately
Product Flyer
Oxy Precision Kit User Manual - 181160
Oxygen SDS
MAP-Pro SDS
Specifications
| SKU: | 1811160 |
| Application: | Soldering, Brazing, Welding, Cutting, Heating |
| Flame Adjustment: | Yes |
| Continuous Flame Lock: | No |
| Flame Temperature Air: | up to ~3000°C |
| Net Weight: | 70.5oz (2kg) |
| Dimensions: | 17” (43cm) H x 10” (25cm) W x 7” (18cm) D |
| Net Weight: | 101 oz |
| Kit Includes: | 1 x Blue oxygen regulator with 2 gauges (inlet thread is M12x1, outlet thread is CGA20), 1 x Orange MAP//Pro (Propylene) regulator with 1 gauge (inlet thread is CGA600, outlet thread is CGA21), 1 x Precision torch with 6.5ft twin hose assembly, 2 x Welding tips 0.037” (0.95 mm), and 0.063” (1.6 mm), 1 x Fitting wrench, 1 x Flint sparker, 1 x Cylinder rack, 3 x Spare O-rings (ID .301”, OD .441”, Thickness .070”) for oxygen regulator inlet |
| Indicative Application Range for Precision Torch: |
Oxygen Pressure – 29PSI Fuel Gas Pressure – 4.5 – 7.2 PSI Welding Range: Tip #1: 0.0591 – 0.0787 inch, Tip #2: 0.0787 – 0.0984 inch, Tip #3: 0.0984 – 0.118 inch, Tip#4: 0.118 – 0.1376 inch * Note: This kit only comes with Tip #1 and Tip #4 |
