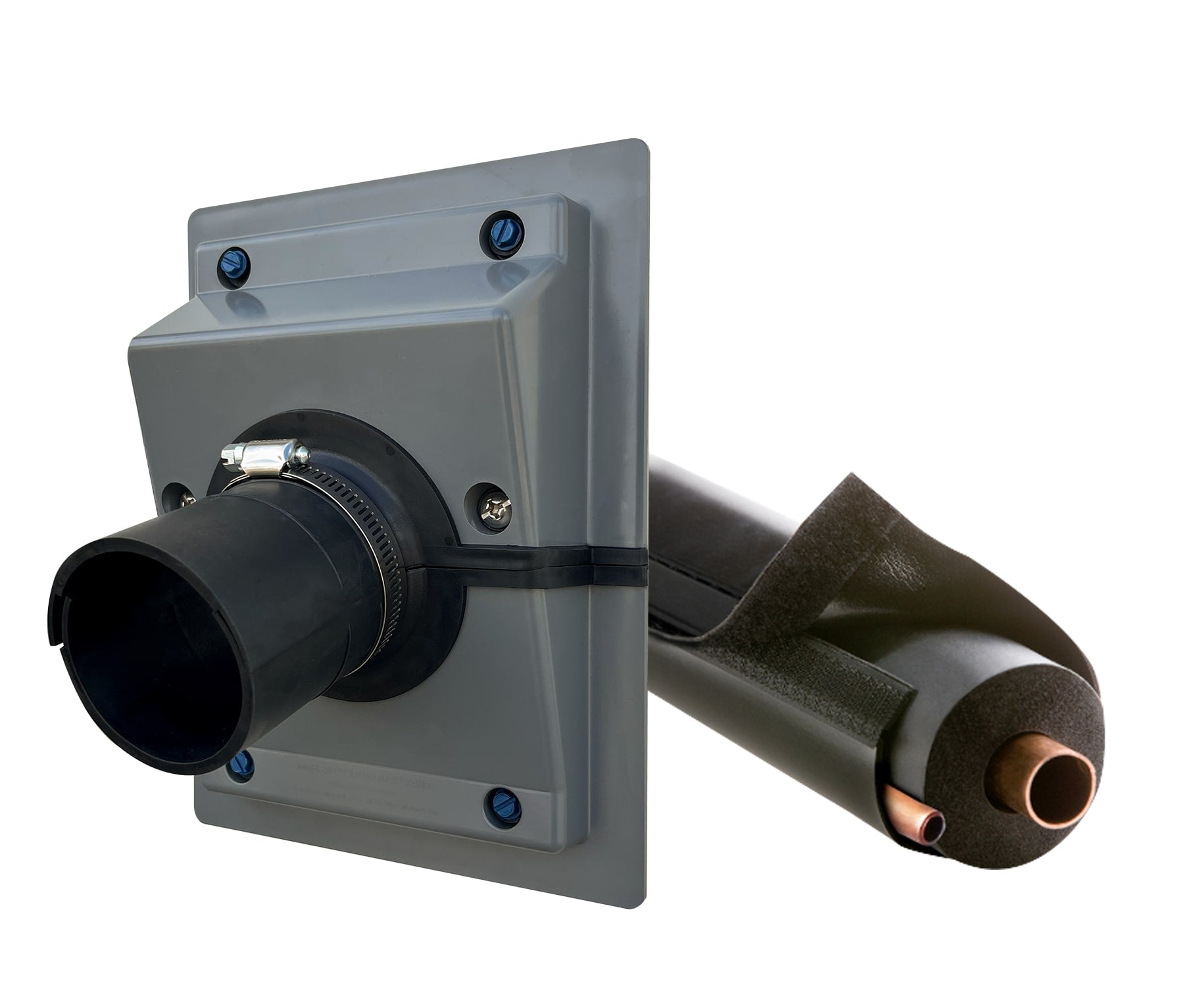

Airex TGS-675G-72C-B PRO-SYSTEM RETROFIT KIT for 5/8" - 7/8" Line Sets with 3/4" Wall Insulation, Gray/Black (TITAN OUTLET & E-FLEX GUARD)

The AIREX PRO-SYSTEM KIT™ is a 2-in-1 system used to gasket seal HVACR piping penetrating through exterior walls from air leakage (AIREX TITAN OUTLET™) and to protect pipe insulation from outdoor weather and physical damage (AIREX E-FLEX GUARD™). The AIREX TITAN OUTLET™ mechanically fastens to exterior vertical wall surfaces while its elastomeric sleeve secures and isolates HVACR piping for mechanical vibration. The AIREX E-FLEX GUARD™ protective jacket mechanically connects to the TITAN OUTLET’s wall sleeve with a stainless-steel clamp, supplying a complete pipe protection system to achieve optimal HVACR performance and long-term durability.

Utilize the AIREX PRO-SYSTEM KIT™ to aesthetically meet mandatory building requirements and energy efficiency standards.

SUPERIOR PIPE PROTECTION SYSTEM

• 2-in-1 kit includes all you need to achieve a mechanical wall seal and
  superior outdoor insulation protection
• Long-lasting with 10-year warranty, removable & reusable
• Sustainable energy savings (BEST OF IBS Award Finalist, Best Energy Efficient Product)
• Meets mandatory building, energy, residential, mechanical, and green codes
• Impermeable to water, yet has needed permeability to vapor (Class II Vapor Retarder)
• Rodent proof
• Controls damaging pipe vibration
• Works with both central and ductless installations
• Made in the USA


FULL CODE COMPLIANCE INSTALLATION

• Outlet Body, Outlet Sleeve made of Superior Outdoor Resistant Materials.

• Includes Corrosion Resistant Hose Clamp, Anchor Screws with Gasket Washers and Lubricant for a Long-lasting Installation.
