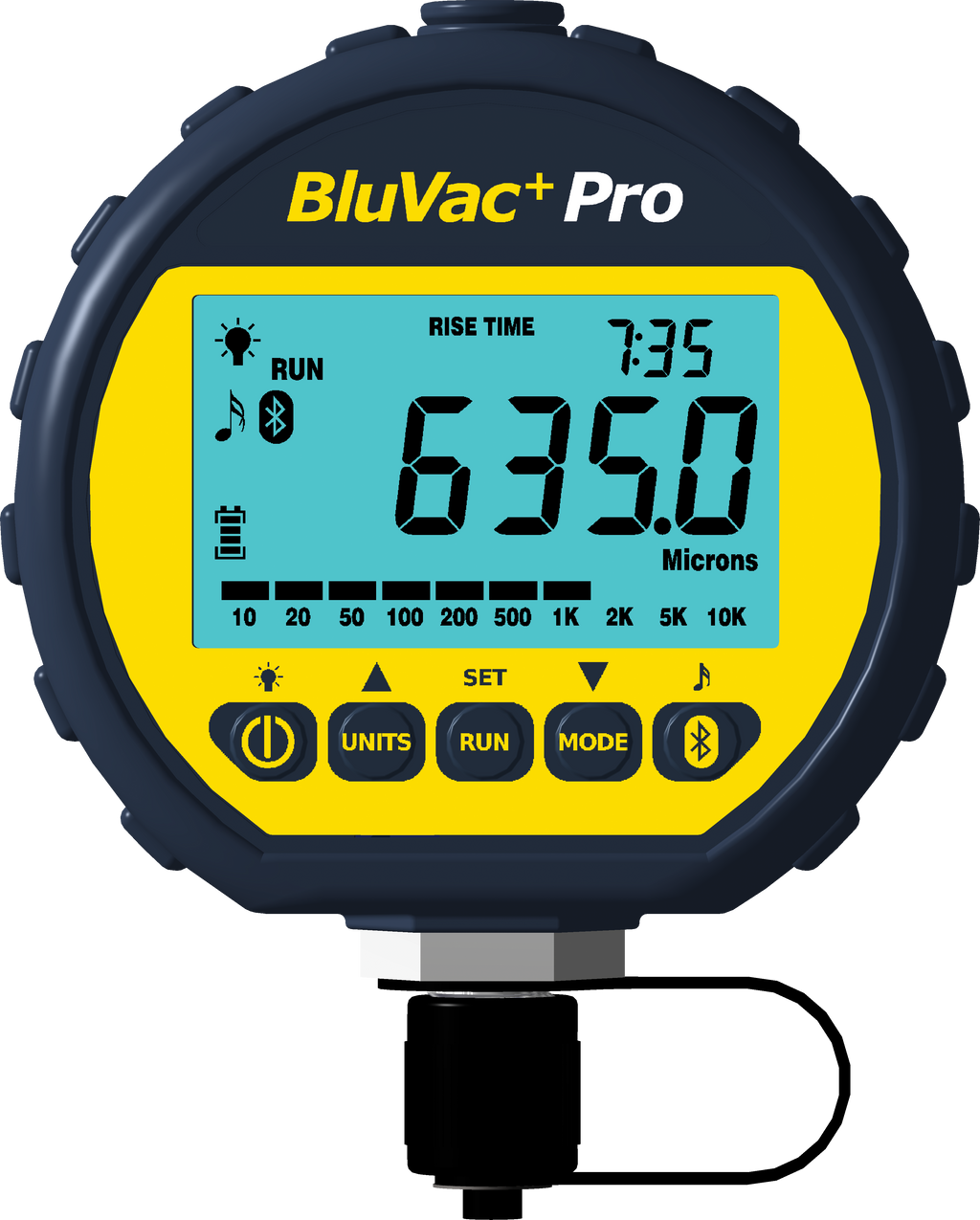

AccuTools A10702 BluVac+ Pro Wireless Digital Vacuum Gauge

SKU A10702
Currently 6 in stock.

AccuTools A10702 BluVac+ Pro Wireless Digital Vacuum Gauge

Products usually ship within 1 business day.

The AccuTools BluVac+ Pro Wireless Digital Vacuum Gauge is a state-of-the-art wireless digital vacuum gauge utilizing patented technology to deliver the highest accuracy and resolution available. The BluVac+ Pro has Bluetooth Smart® wireless capability, an Evacuation Progress Indicator, Saturation Temperature Display, and a Leak Rate Indicator in either units/second or units/minute.

The BluVac+ Pro can be operated stand-alone or in conjunction with an iOS or Android compatible app.

The BluVac+ Pro’s unique Rise Time Analyzer can consistently ensure proper evacuation, providing a PASS or FAIL indication in as little as 15 seconds. This eliminates the need to wait for the completion of a manual rise-time test.

Operating for up to 300 hours on a single 9V alkaline battery, the BluVac+ Pro sports a large 1/2″ numeric display and a bright blue backlight. The BluVac+ Pro measures from 0—25,000 microns with 0.1 micron resolution below 10,000 microns.

The BluVac+ Pro has two programming modes — Evacuation and Rise Time Testing — dramatically increasing your productivity on the job. Its Vacuum Leak Rate indicator shows both evacuation progress, and assists in determining the presence of leaks or moisture. Also included are Ambient and Saturation Temperature Indicators, accurate to within 0.2°F (0.1°C).

The Evacuation Progress Indicator show increasing vacuum even while the pressure exceeds 25,000 Microns.

Innovative Oil Sensor and Self-Diagnostics ensure accuracy. The BluVac series of digital vacuum gauges are the only field-calibratable vacuum gauges that require no special equipment for calibration.


What’s Included

  • BluVac+ Professional Digital Wireless Vacuum Gauge
  • Brass Coupler
  • Protective Rubber Boot
  • Detachable Swivel Hook
  • Battery (One 9V Alkaline)
  • Instruction Manual



  • Bluetooth Smart® Wireless Capability
  • 0 to 25,000 Micron Range with 0.1 Micron Resolution less than 10,000 Microns
  • Measures Vacuum in Microns, Pascals, Millibar, Millitorr, mmHg, PSI, and InHg
  • Large, high-visibility back-lit LCD display
  • Programmable Evacuation and Rise Time Analyzer with unique alarm feature
  • Long Battery Life — Up to 300 Hours on One 9V Alkaline Battery
  • “Analog” Vacuum Level Bar Graph
  • Evacuation Progress Indicator
  • Vacuum Leak Rate, Ambient Temperature, and Saturation Temperature Indicator
  • Automatic Oil Sensor
  • Measures Temperature in Fahrenheit and Celsius to 0.1°
  • Built-in memory retains all previous settings
  • Rugged, Compact Design — About the Size of a Manifold Gauge
  • Calibration Self Test — Can be field calibrated with no special equipment
  • Sensor withstands overpressure up to 500 PSI
  • Ideal for HVAC/R Service and Industrial Use


App Features

  • View vacuum on digital gauge or graph
  • Bar graph vacuum indicator
  • Automatic notifications of evacuation process
  • Leak check feature
  • Record evacuation process
  • Export as graphical PDF
  • Export as comma-delimited CSV


Mobile Device and App Compatibility

  • Android and iOS devices with Bluetooth Smart®
  • BluVac by MeasureQUICK
  • iManifold by North Park innovations Group


BluVac+ Owner's Manual



Range: 0 – 25,000 Microns
(3333.1 Pa, 33.331 mBar, 25,000 mTorr, 25.000 mmHg,
0.48341 PSI, -28.037 inHg)
Vacuum Accuracy: 5% of Reading +/- 5 Microns
Vacuum Resolution: 0.1 Micron (@ 0.0 to 9,999.9 Microns)
1 Micron (@ 10,000 to 25,000 Microns)
Programming: Evacuation Timer
Rise Time Analyzer
Maximum Overpressure: 500 PSI
Temperature Accuracy: 0.2°F (0.1°C)
Temperature Resolution: 0.1°
Warm-up Time: Instant
Response Time: Instant
Power: One 9V Alkaline Battery
Battery Life: Up to 300 Hours
Operating Temperature: 10°F – 122°F (-12°C – 50°C)
Weight: 7 oz. (200g)
including Battery, Boot and Swivel Hook
Dimensions: 3.5” x 3” x 1.25”
(9cm x 7.5cm x 3cm)
Vacuum Port Fitting: ¼” Male Flare – Anodized Aluminum with Dust Cap
U.S. Patent Nos.: 8,504,313 and 8,768,633
