Yellow Jacket 69320 AccuProbe™ IR Leak Detector

SKU 69320
Currently 2 in stock.

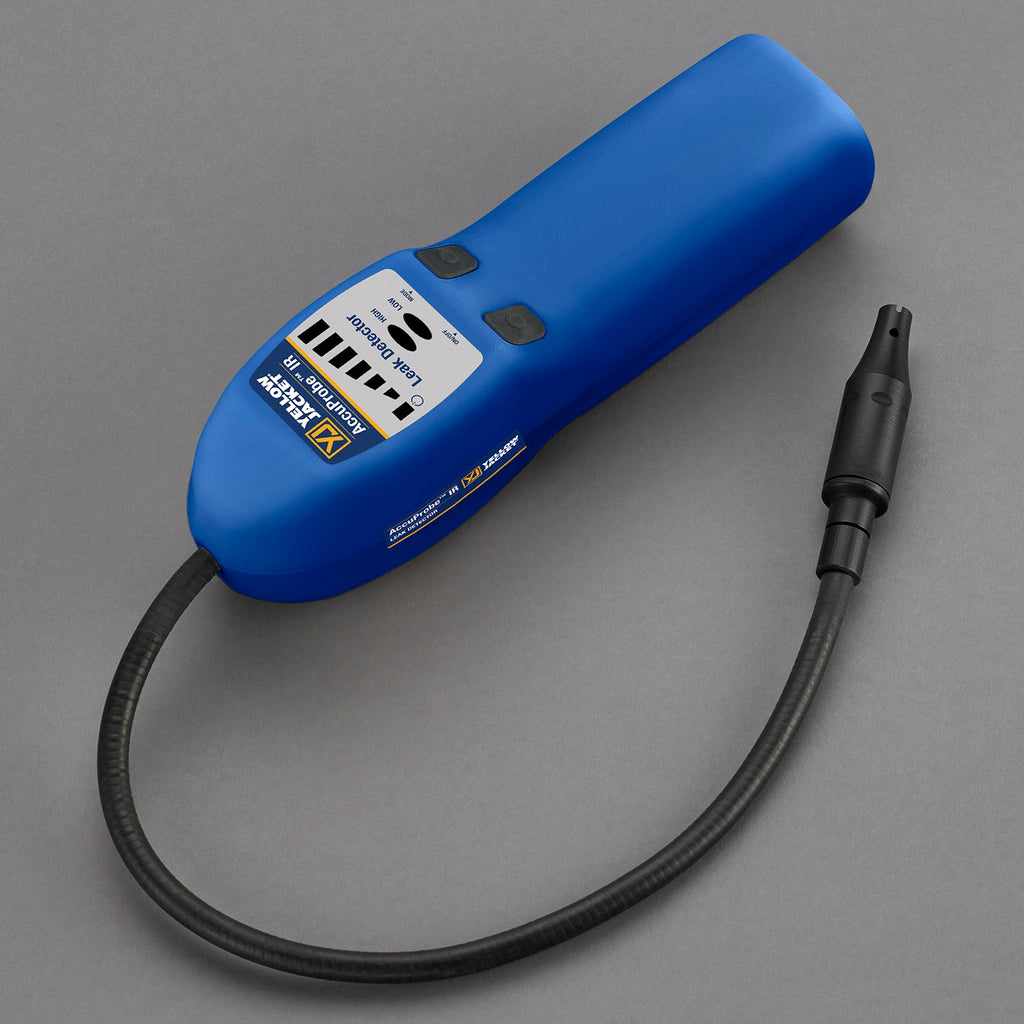

Yellow Jacket 69320 AccuProbe™ IR Leak Detector

Use the infrared (IR) sensor for ultimate sensitivity, accuracy and reliability.

Identifying the smallest leaks is fast and easy. The YELLOWJACKET® AccuProbe™ IR detects all CFC, HCFC, HFC and HFO refrigerants, including R-134A, R-404A, R-410A and R-1234YF. The SmartAlarm® LED shows the size of the leak on a rising scale. Coupled with two modes for sensitivity gives the AccuProbe IR the ability to locate a leak of any size.



  • Sensor Type: Infrared
  • Senses All CFC, HCFC, HFC and HFO Refrigerants
  • Sensitivity Modes: High and Low (Auto Zero)
  • Manual zero capability
  • Audible and Visual Leak Indication
  • Regulations: CE, EN14624, EN61010, SAE2913
  • Rechargeable Li-Ion Battery
  • Sensitivity will not degrade over time
  • USB micro charging port (cable included)
  • Includes one (1) spare filter
  • Includes carrying case
  • Two year over-the-counter warranty
  • Made in the USA


AccuProbe Spec Sheet

AccuProbe IR Manual



Minimum Sensitivity:
0.1 oz/yr. (3 g/yr.)
Body Material: ABS
Body Length:  8.25" (210 mm)
Probe Length: 17" (430 mm)
Weight: 0.84 lb. (0.38 kg)
Calibration: Automatic
Response Time: Instantaneous
Battery Life: 8 hours
Fast Charge Time: 3 hours
Holds Charge When Not in Use: 9 months (app.)
Operating Temperature Range: -4°F to 140°F (-20°C to 60°C)
