Technological Innovations Combined with the Most Comprehensive Apps…YJACK VIEW^® and measureQuick^®.

The YELLOW JACKET^® TITANMAX^™ Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth^® to the YJACK VIEW^® App or measureQuick^® App for further analysis.

• Measures high and low side pressures and temperatures
• Displays vapor and liquid saturation temperatures
• Calculates system superheat and subcooling
• On-board data logging; export to your computer with USB or to your phone via YJACK VIEW^® App
• Compatible with measureQuick^® App
• Pressure hold mode displays rate of change for vacuum and positive pressure measurements
• Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW^®

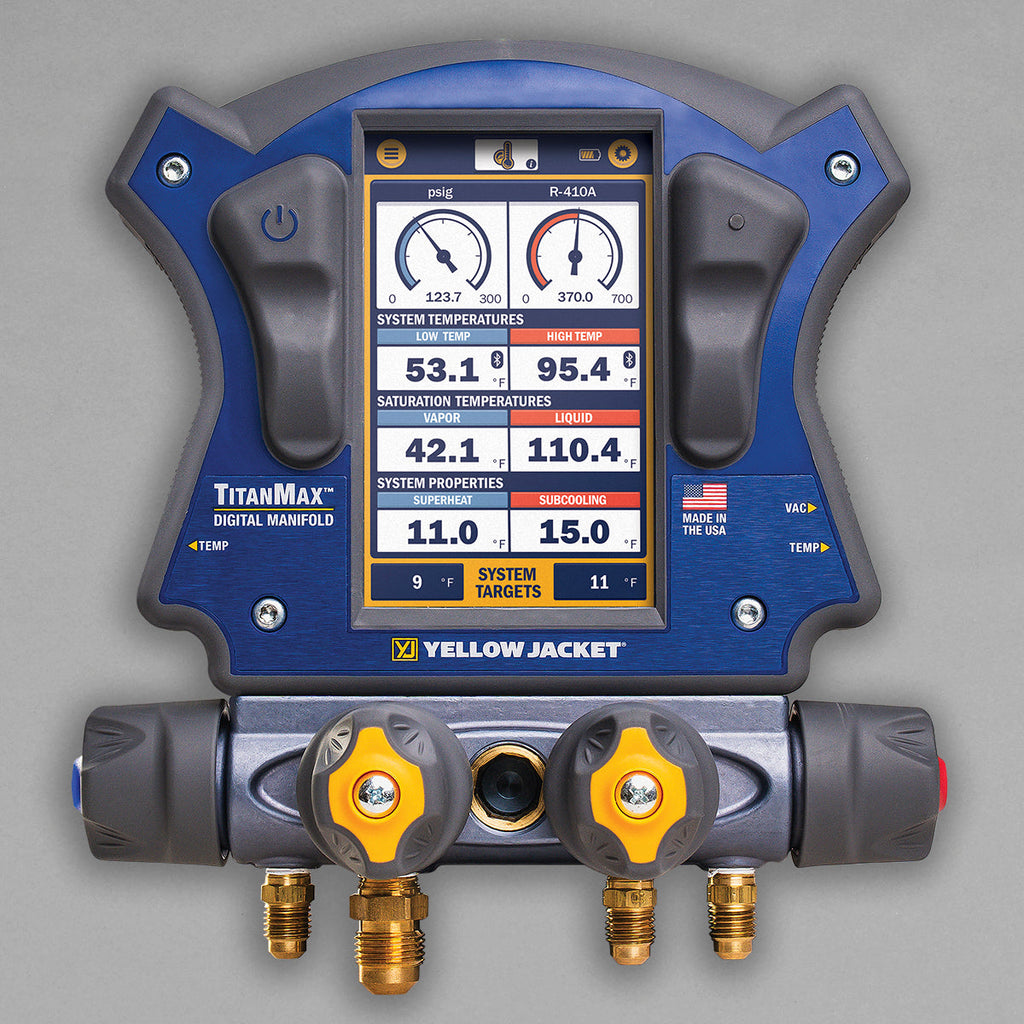

• High resolution, full color, backlit, 5″ touchscreen display
  • Ultimate user interface - information on major screens
  • Adjustable timing for auto shut-off
  • Touchscreen never has to be calibrated
  • Digital and graphical pressure/temperature measurements
  • Choose from relevant refrigerant profiles stored including A2L - may designate 3 favorites
• Robust housing with ergonomic grip

  • 4-way TITAN^® valve block

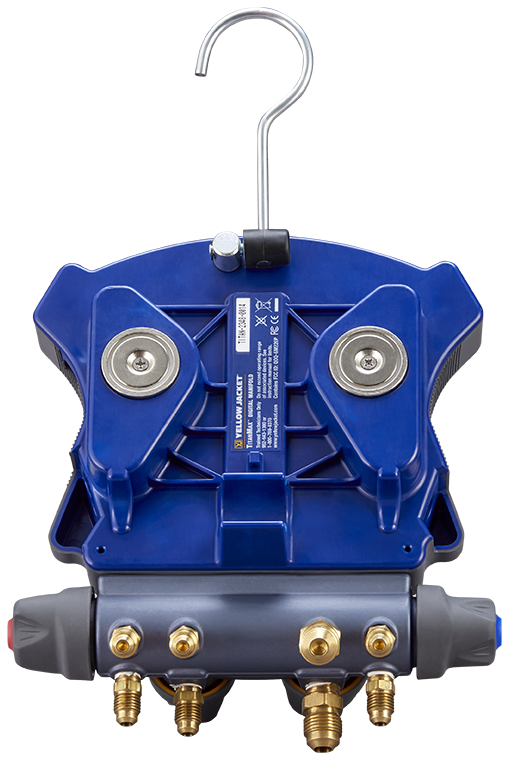

  • Integrated magnets for mounting on equipment cabinet may also be used to store TITAN^® Temperature Clamps
  • Pivoting hook
  • Convenient connections for USB port, temperature clamps, and vacuum sensor
• External vacuum sensor with vacuum target notification

  • Vacuum measurements, set targets and leak testing
• Larger temperature clamps (2) for up to 1-5/8″ pipes

• Bluetooth^® 5.2; range up to 1,000 feet

• Maximum working pressure 740 psia (51.0 bar)

• Multiple languages: French, Spanish, German and English

• Rechargeable battery with life indicator
  • Continuous use no backlight: 80 hours
  • Continuous use with full backlight: 4.5 hours

• US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)

• Meets IP52 standards

• Two-year warranty
