Yellow Jacket 40881 TITANMAX™ Digital Manifold

$793.62
SKU 40881
Currently 3 in stock.

Yellow Jacket 40881 TITANMAX™ Digital Manifold


Technological Innovations Combined with the Most Comprehensive Apps…YJACK VIEW® and measureQuick®.

The YELLOW JACKET® TITANMAX Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth® to the YJACK VIEW® App or measureQuick® App for further analysis.

  • Measures high and low side pressures and temperatures
  • Displays vapor and liquid saturation temperatures
  • Calculates system superheat and subcooling
  • On-board data logging; export to your computer with USB or to your phone via YJACK VIEW® App
  • Compatible with measureQuick® App
  • Pressure hold mode displays rate of change for vacuum and positive pressure measurements
  • Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW®

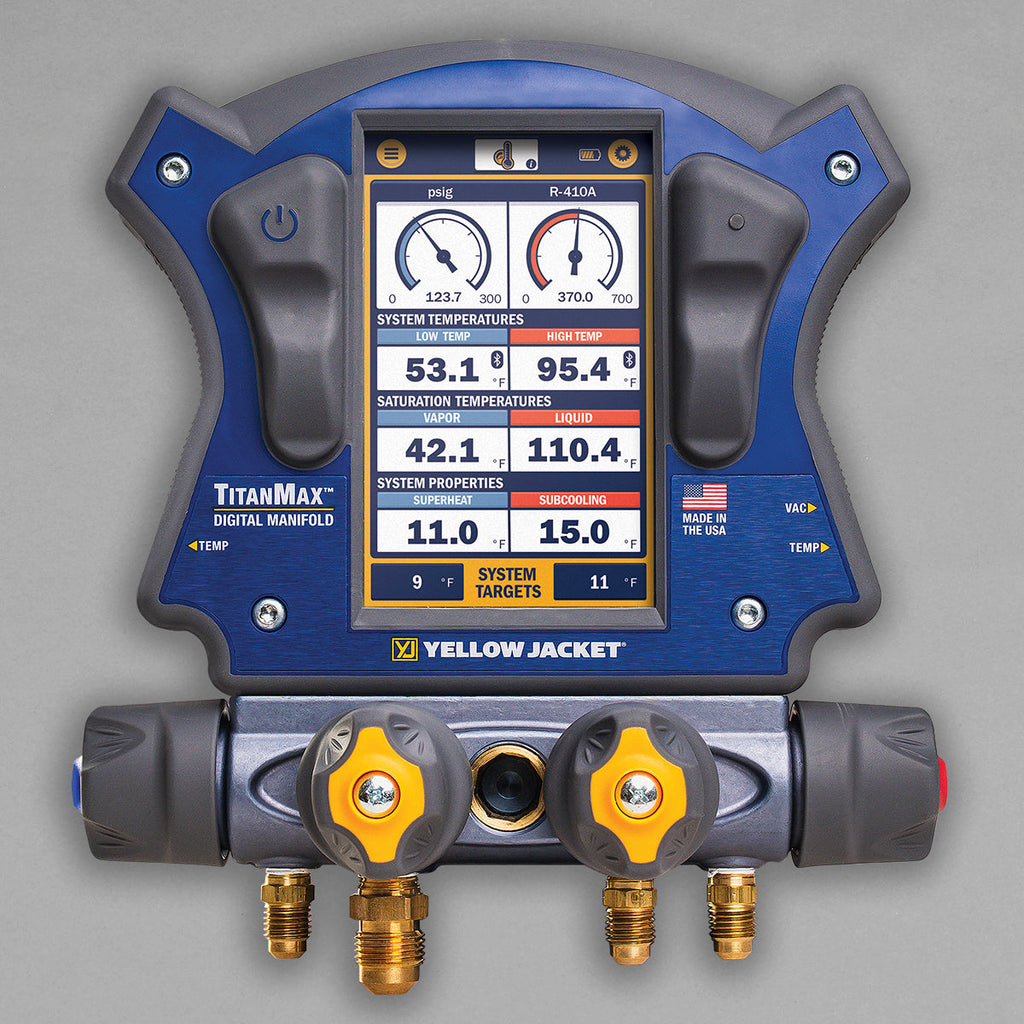

    • High resolution, full color, backlit, 5″ touchscreen display
  • Ultimate user interface – information on major screens
    • Adjustable timing for auto shut-off
    • Touchscreen never has to be calibrated
    • Digital and graphical pressure/temperature measurements
    • Choose from relevant refrigerant profiles stored including A2L – may designate 3 favorites
  • Robust housing with ergonomic grip
    • 4-way TITAN® valve block

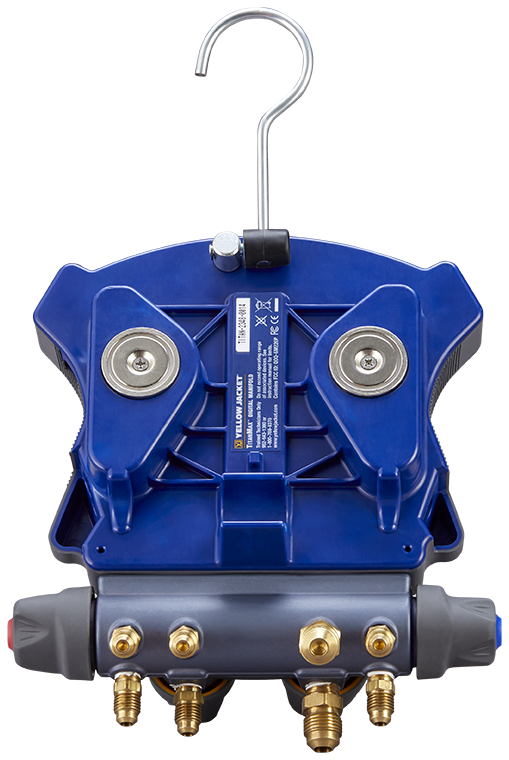

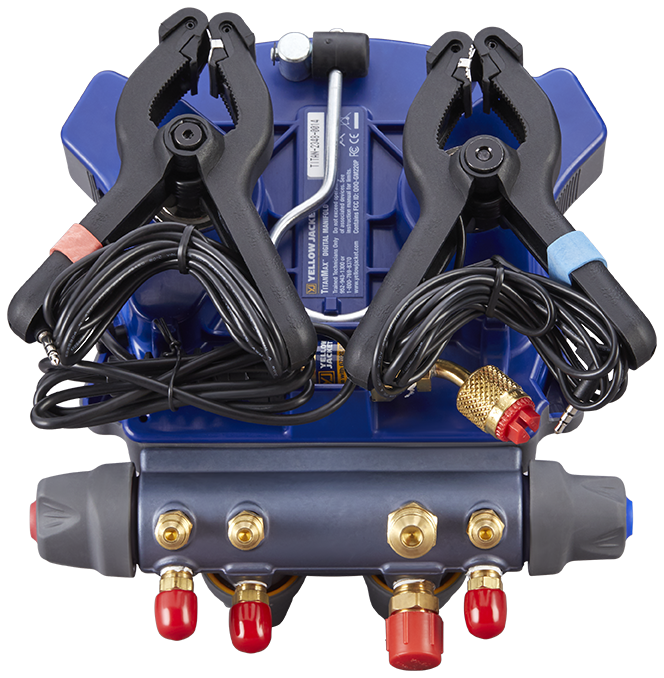

    • Integrated magnets for mounting on equipment cabinet may also be used to store TITAN® Temperature Clamps
    • Pivoting hook
    • Convenient connections for USB port, temperature clamps, and vacuum sensor
  • External vacuum sensor with vacuum target notification
    • Vacuum measurements, set targets and leak testing
  • Larger temperature clamps (2) for up to 1-5/8″ pipes
  • Bluetooth® 5.2; range up to 1,000 feet
  • Maximum working pressure 740 psia (51.0 bar)
  • Multiple languages: French, Spanish, German and English
  • Rechargeable battery with life indicator
    • Continuous use no backlight: 80 hours
    • Continuous use with full backlight: 4.5 hours
  • US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
  • Meets IP52 standards
  • Two-year warranty

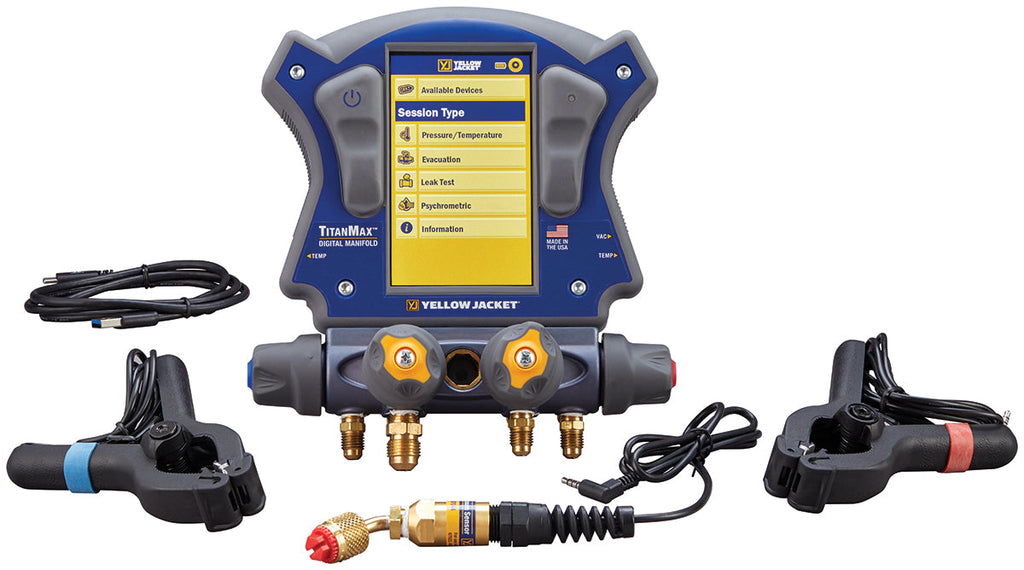

Includes:

  • TITANMAX Digital Manifold
  • TITAN® Temperature Clamps (2)
  • Vacuum Sensor
  • USB-C Charging/Data Cable



Spec Sheet

YJACK Series Product Spec Sheet

User Manual

Quick Start Guide
