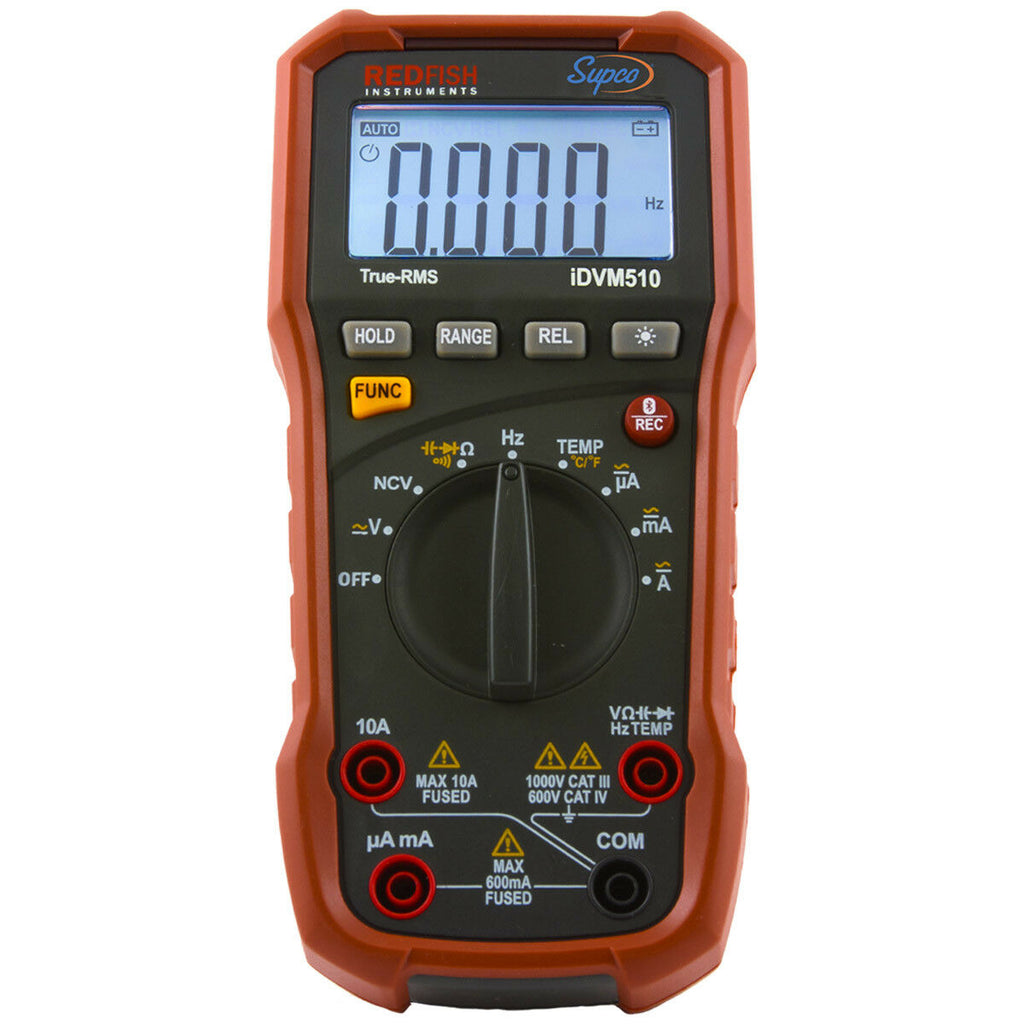

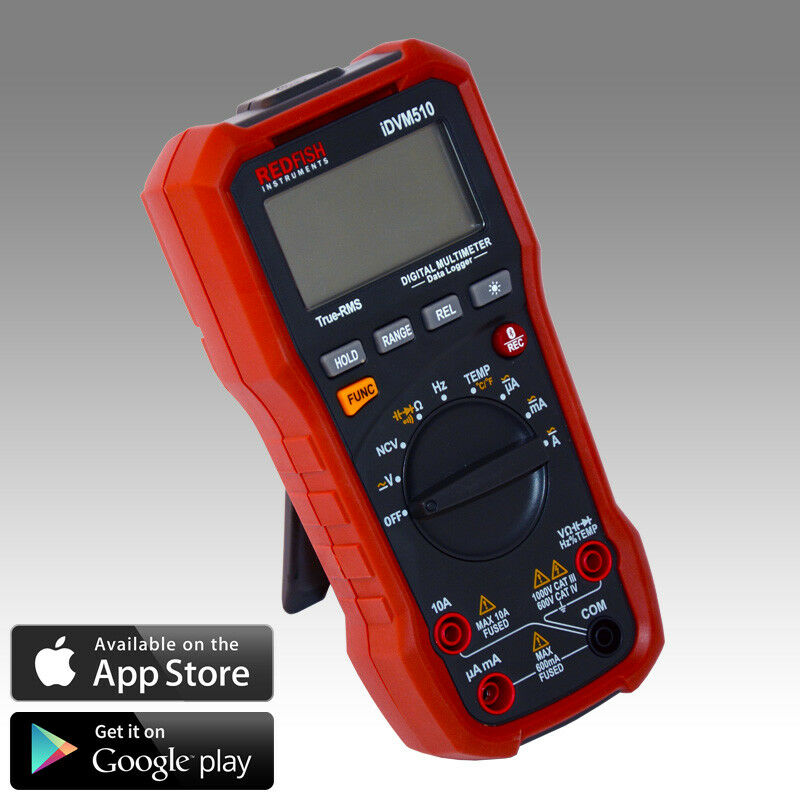

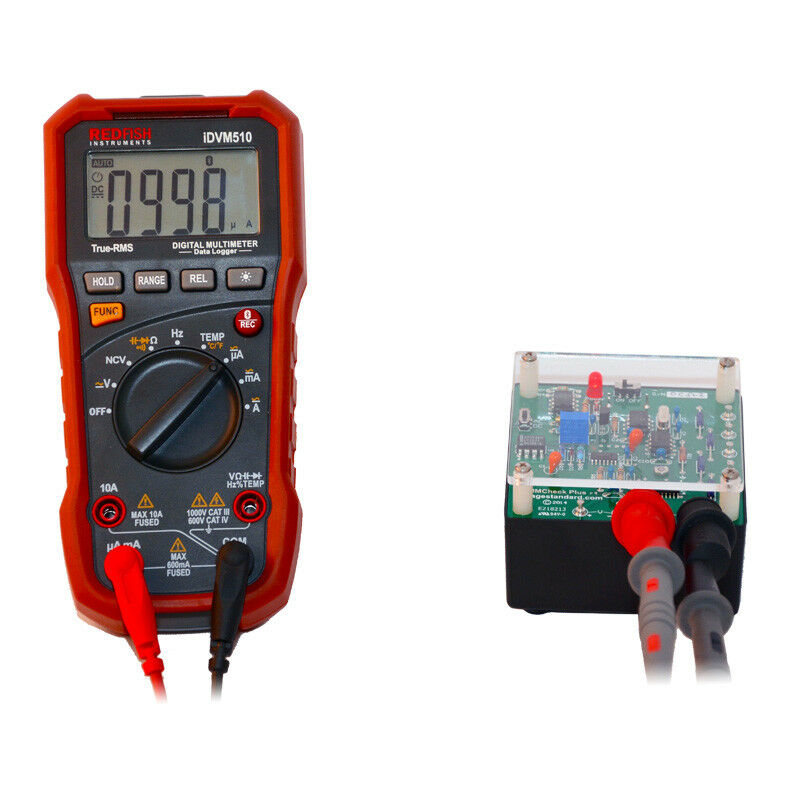

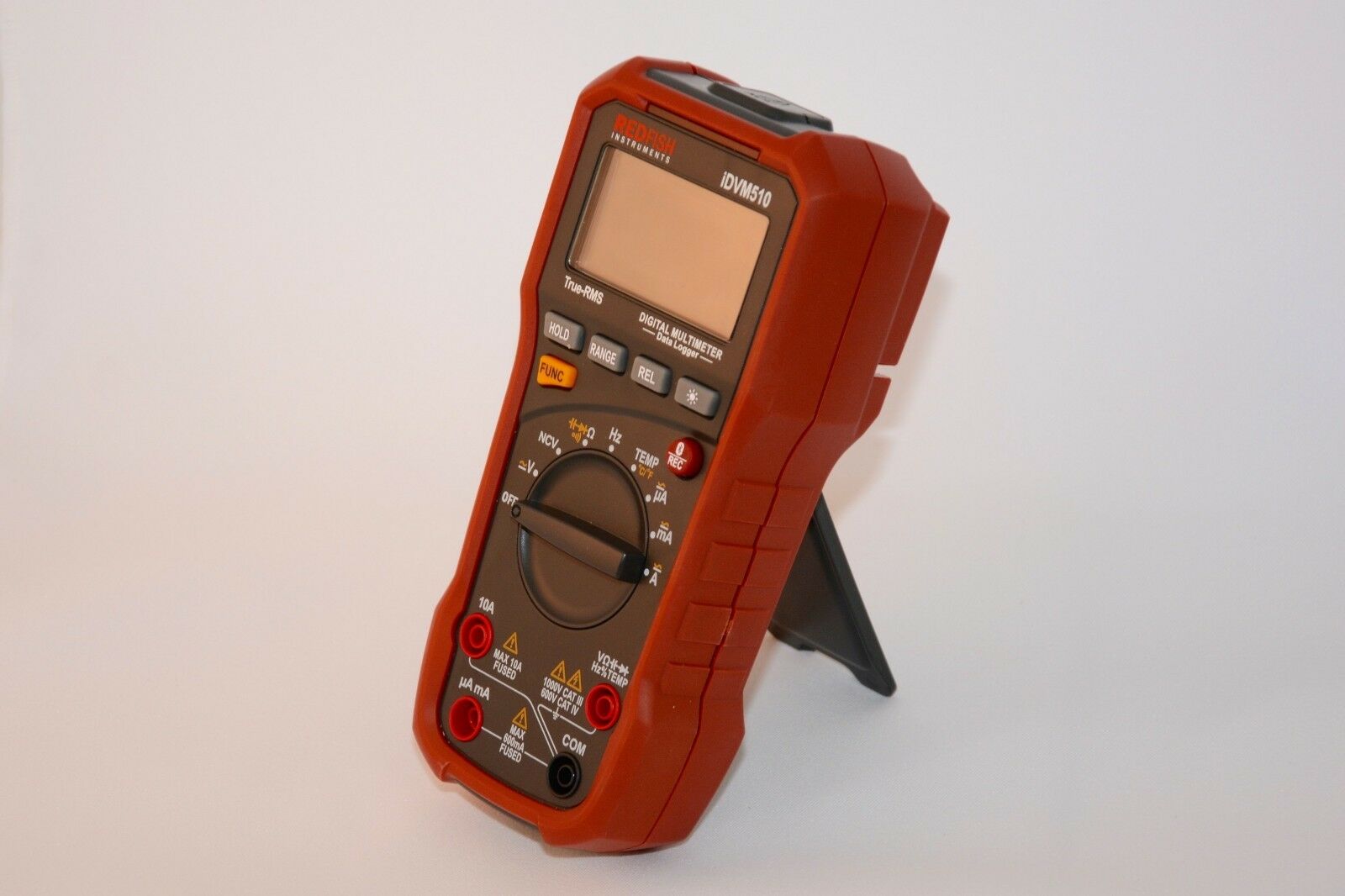

Supco Redfish iDVM510 TechLink™ Wireless Multimeter

The iDVM 510 is a true professional-grade CAT IV 1000V & CAT III 600V multimeter and data logger – and, as always, iOS and Android enabled.

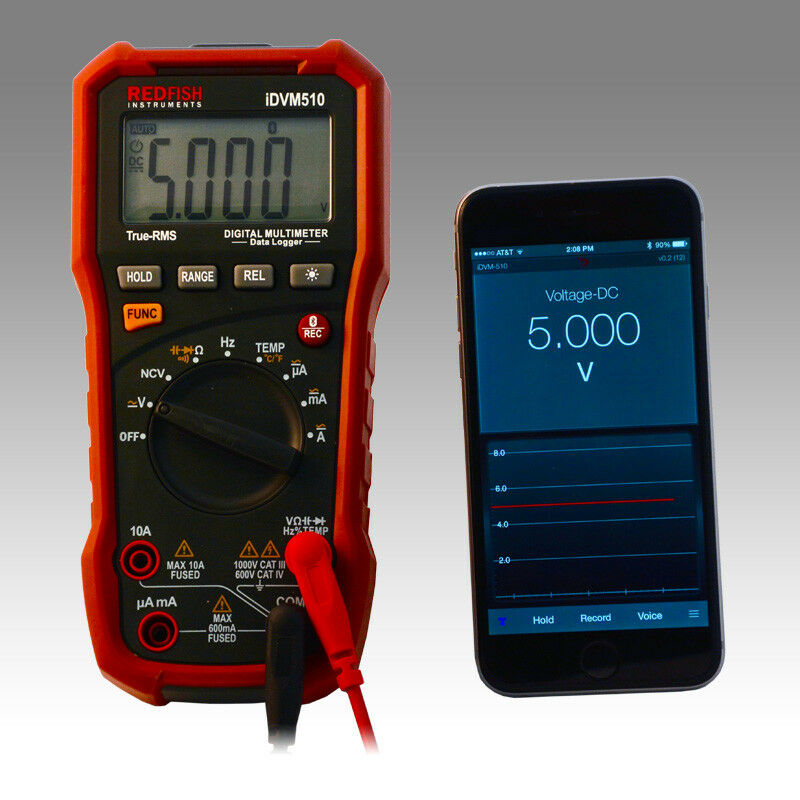

The new iDVM 510 provides integration with iOS and Android mobile devices – read measurements at a distance, log data on the meter or your mobile device, display data in a variety of formats, and share data via email, a cloud service (such as Dropbox), or ad-hoc web server. The best multimeter and data logger for the price – EVER!

Versatile

• Uses the newest Bluetooth Low Energy (BTLE) standard for extended connection distances and low power consumption
• Works with the SupcoTechLink™ application and MeasureQUICK
• Easy to use - configure in seconds with your smart phone or tablet

Truly Professional Grade

• Tested to IEC/EN61010 safety standards 600V CATIV and 1000V CATIII
• Ingress Protection - IP54 protects from dirt and splashed water
• 6,000 count (3-3/4 digit) resolution

Features

• True RMS
• Bluetooth connectivity via BTLE (v4.0)
• On-board data logging via 2MB of RAM/FLASH
• Auto/manual ranging
• Low battery indication
• LCD backlit display
• Hold function
• Relative (zero) funtion
• LED non-contact voltage sensor indicator
• 2-year warranty
• Bluetooth/record activation button
• K-type thermocouple
• High quality test leads
• Lead holder on the back
• Magnetic holding strap
• Double molded housing
• Auto power off (APO) funtion
• Powered by a single 9V battery
