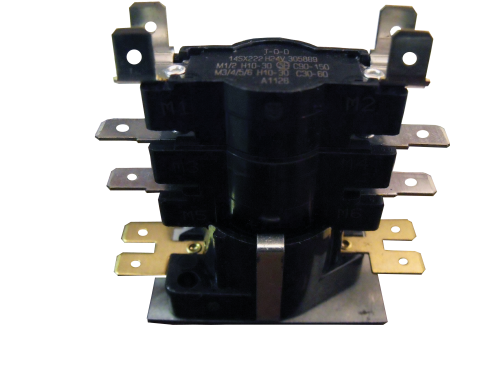

Supco Q112 24V 3-Switch Heat Sequencer - Replacement for Weatherking 4223115607
$27.99
SKU Q112
Supco Q112 24V 3-Switch Heat Sequencer - Replacement for Weatherking 4223115607
Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 3 switches which turn on at 10-30 and off M1-M2 at 90-150, M3-M4 at 30-60 & M5-M6 at 30-60 seconds.
FEATURES
- UL® and CSA® approved
- 24 volt control circuit
- Five second delay between all subsequent stages, unless they function together
SPECIFICATIONS
| Timing: | Contacts M1-M2 will turn on 1st and turn off last |
| On M5 - M6: | 10 - 30 Seconds |
| Off M5 - M6: | 30 - 60 Seconds |
| On M3 - M4: | 10 - 30 Seconds |
| Off M3 - M4: | 30 - 60 Seconds |
| On M1 - M2: | 10 - 30 Seconds |
| Off M1 - M2: | 90 - 150 Seconds |
APPLICATIONS
- Oil furnaces
- Gas furnaces
- Heat pumps
- Electric furnaces
CROSS REFERENCE
| Weatherking®: | 4223115607 |
