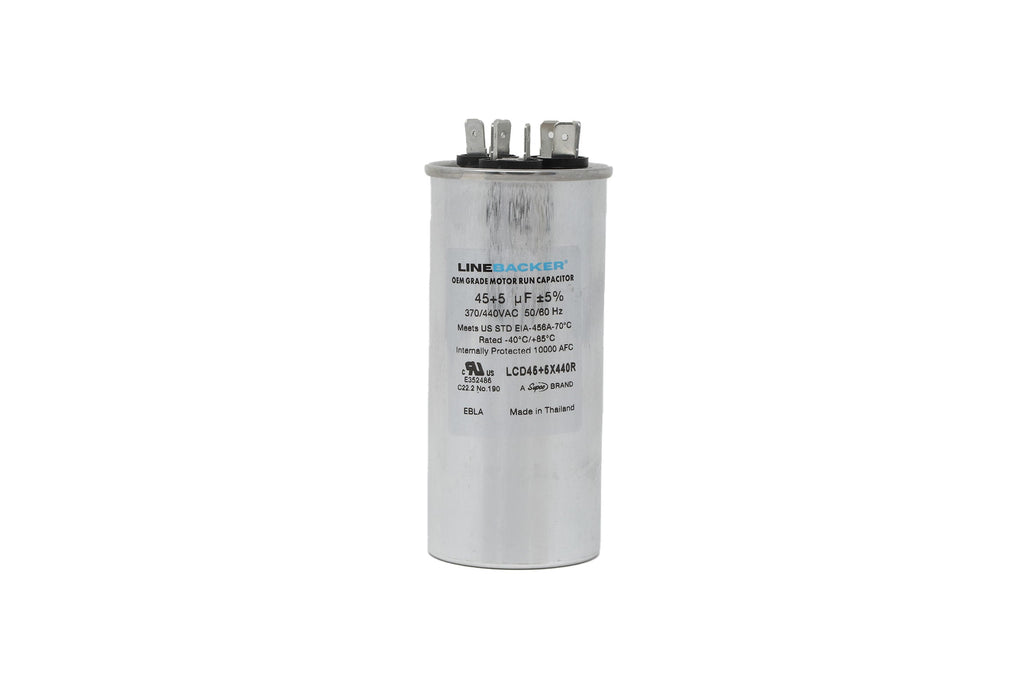

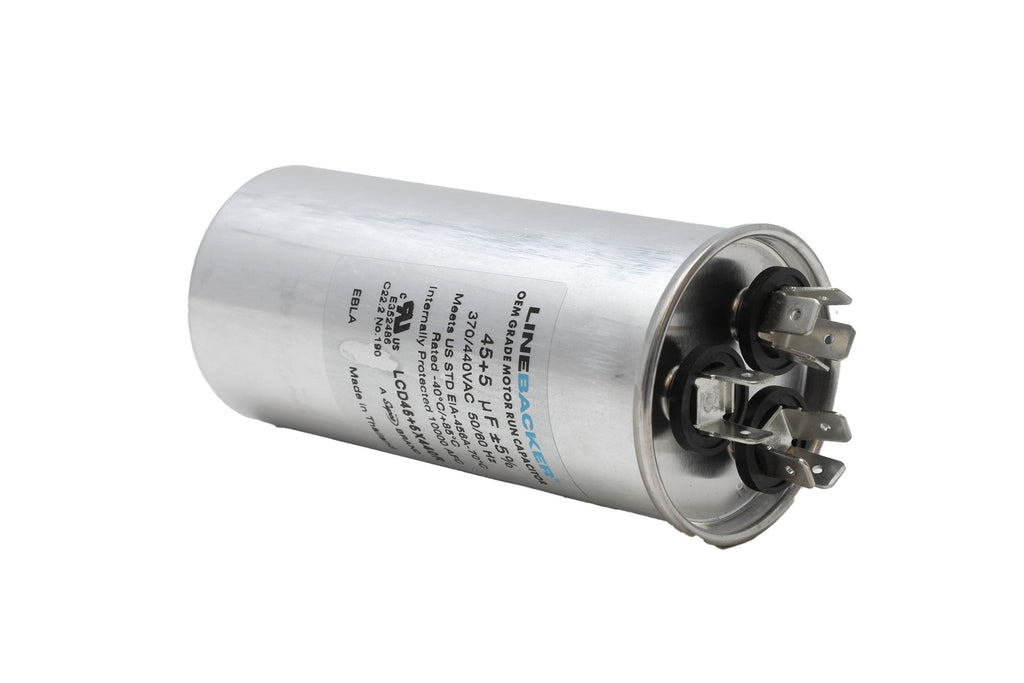

Supco Linebacker LCD45+5X440R Round Dual Run Capacitor

$6.39
SKU LCD45+5X440R
Currently 60 in stock.

Supco Linebacker LCD45+5X440R Round Dual Run Capacitor

Engineered by an ISO manufacturer with over twenty years' experience in OEM capacitor fabrication, Linebacker® capacitors are manufactured by the OEM factory and are 100% in-line production tested to the same rigorous standards.

  • 10,000 AFC pressure sensitive short circuit interrupting capability
  • 3-year warranty from the date of purchase
  • Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
  • Life tested to 85° C operating temperature for 10,000 cycles
  • Manufactured with thick polypropylene foil to handle increased operating temperatures
  • Meets EIA-456A accelerated life test at 70° C for 60,000 hours
  • PCB-free oil to prevent over-heating
  • UL File # E352486
  • US and Canada UL approved (C22.2NO.190)
  • Locate a Distributor Near You



Brochure



    Specifications

    Voltage: Up to 440 VAC
    Operating Temperature: -40°F to 185°F (-40°C to 85°C)
    Foil Thickness: 6.0 µm +/- 5%
    Standard Tolerance: +/- 5%
    MFD Value: 45+5
    Style: Round
    Size: 1.97x4.33
