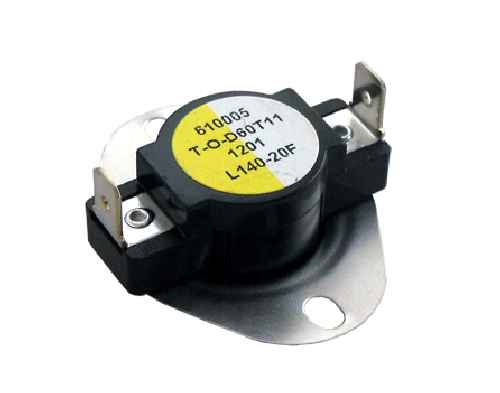

Supco L140 L-Series Snap-Action SPST Limit Control Thermostat, L140-20F

$3.98
SKU L140
Currently 50 in stock.

Supco L140 L-Series Snap-Action SPST Limit Control Thermostat, L140-20F

The L-Series style temperature controls have a bi-metal disc that senses the temperature and quickly separates the contacts. This results in long life characteristics at loads up to 25 amps at 240 VAC. L-Series switches are single pole single throw 60T11 style (3/4”) with auto-reset. These switches are designed to open on temperature rise and are enclosed and provides greater protection than the exposed construction.

  • Close when temperature differential is reached
  • Open on rise
  • 1/4" quick disconnect terminals
  • Welded construction for integrity of current-carrying components
  • 60T electrical ratings - see Downloads for application sheet



Applications

  • Most home laundry dryers
  • Fan and limit applications



Specifications

RLA @ 120VAC / 240VAC: 25A
Pilot Duty @ 120VAC / 240VAC: 125 VA
LRA @ 240VAC: 30A
LRA @ 120VAC: 60A
FLA @ 240VAC: 5A
FLA @ 120VAC: 10A
°Differential: 20°
Open ( °F): 140°
Close ( °F): 120°
