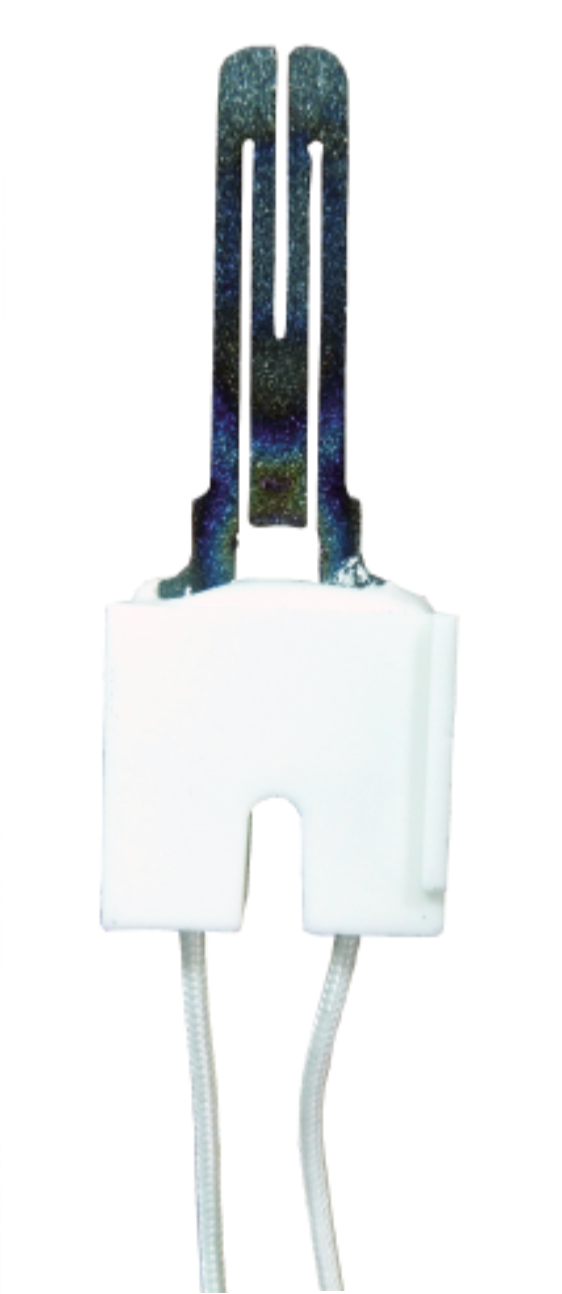

Supco IG408 Furnace Ignigtor, Exact replacement Silicon Carbide Flat Igniter
Exact replacement silicon carbide flat igniter
Features and Benefits
- 18 gauge copper high temperature fiberglass insulated lead wires
- Direct replacement kit for Robertshaw® 41-408
- Faster time to temperature response
- Higher resistance to oxidation
- Longer usable life
- Lower power consumption
- More robust in transit
- Stronger more durable design
- Supco® flat igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design
- Superior gas lighting ability
Specifications
| Minimum Temperature: |
1800°F / 980°C @ 98 Volts |
| Maximum Temperature : |
3100°F / 1705°C @ 132 Volts |
| Time to Temperature : |
<17 seconds @ 115 +/? 10 VAC |
| Resistance: |
50 to 1100 Ohms |
| Steady State Current : |
2.9 to 5.0 Amps Maximum @ 132 Volts |
| Igniter Material: |
Silicon Carbide |
Applications
- Pool heaters
- Unit heaters
- Water heaters
- Boilers
- Furnaces
Cross Reference
| Amana: |
B340039P01 |
| Johnstone: |
L45-545, L37-815
|
| Norton: |
MB457025, MB478266, 271N
|
| Rheem Rudd: |
62-22441-01, 62-22668-93 |
| Robertshaw: |
41-408 |
Starlite:
|
1408 |
| Surface Ignitor Company (SIC): |
DS408KX |
| Trane: |
IGN34 |
| White-Rodgers: |
767A-372 |
