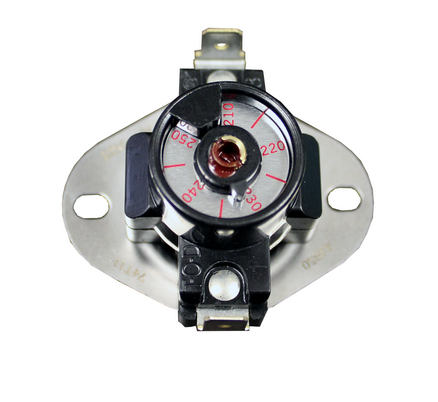

Supco AT014 Snap-Action SPST Adjustable Limit Control Thermostat, Open on Rise
$9.21
SKU AT014
Supco AT014 Snap-Action SPST Adjustable Limit Control Thermostat, Open on Rise
The AT series temperature controls feature adjustable fan or limit operation in a versatile 3/4"(19mm) bimetal disc design. The snap-action of the temperature sensing bimetal provides high-speed contact separation for exceptional life.
- Dial knob
- Series covers almost 95% of heater and dryer applications
- 40° adjustable range
- 1/4" quick connect terminals
- UL® recognized
- CSA approved
- Open on rise
Specifications
| Voltage: | 120V/240V |
| RLA @ 120VAC / 240VAC: | 25A |
| LRA @ 240VAC: | 60A |
| LRA @ 120VAC: | 72A |
| FLA @ 240VAC: | 10A |
| FLA @ 120VAC: | 14A |
| °Differential: | 40° |
| Adjustable range: | 210° to 250° |
