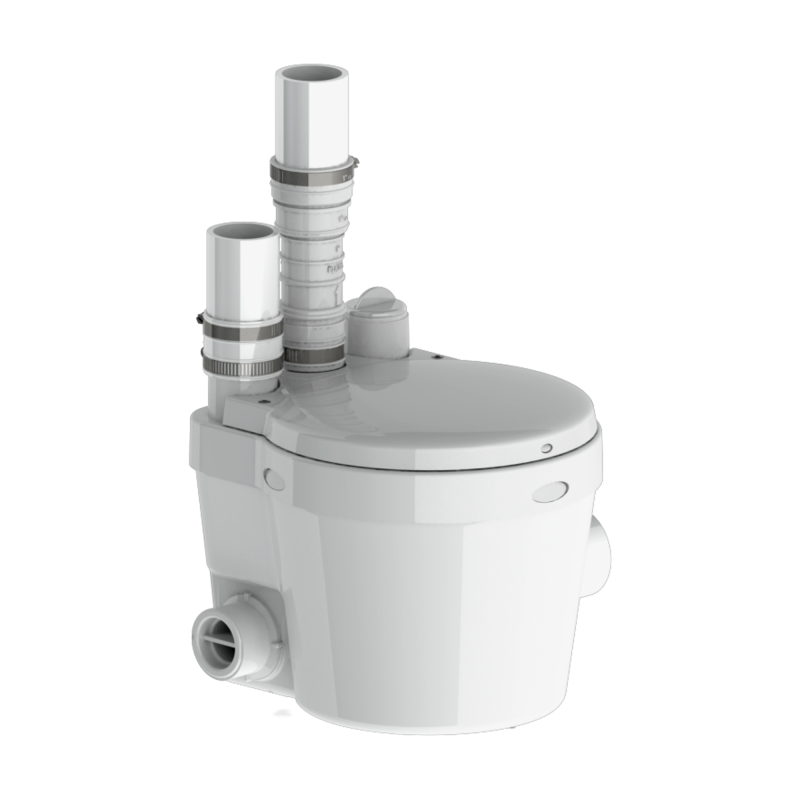

Saniflo 021 Saniswift Drain Pump, Medium Duty

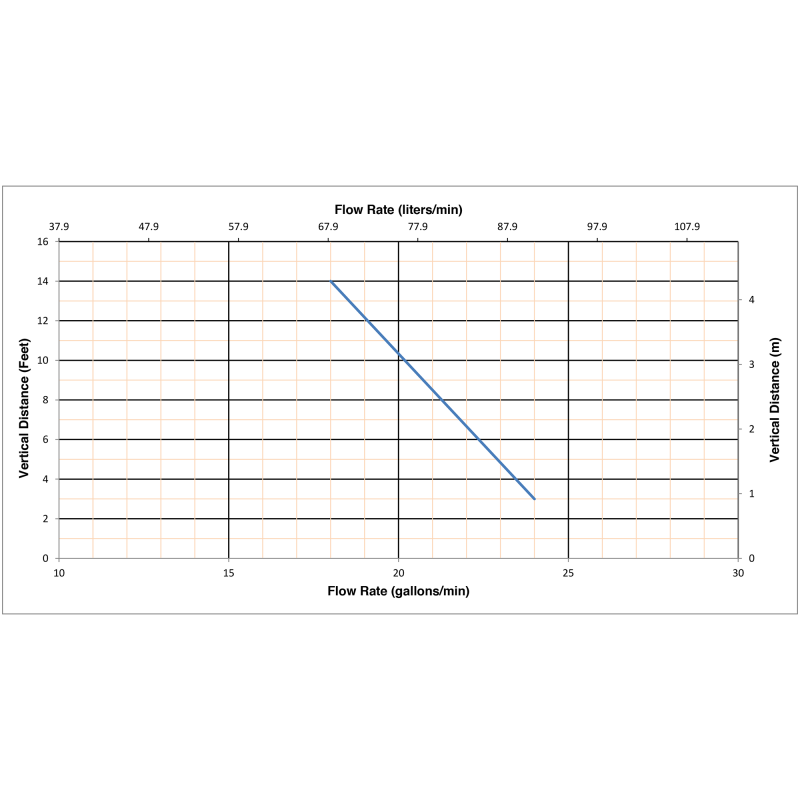

The Saniswift drain pump is used to pump gray water away from a variety of fixtures in residential applications. The system is able to discharge the waste up to 14 feet vertical and/or 140 feet horizontal.

• Discharges the waste through either a 1", 1-1/4" or 1-1/2" rigid pipe. A non-return valve is included on the discharge fitting assembly provided with the system.
• Has been designed with a 1-1/2" vent connection on the top of the lid. All plumbing codes require connection to a vent system. Either inlet located on top of the housing can be used for the vent or as an inlet. Please note that the vent system should be a two-way air vent as air needs to freely flow both ways. Note: The use of mechanical vents, air admittance valves or similar devices is not permitted.

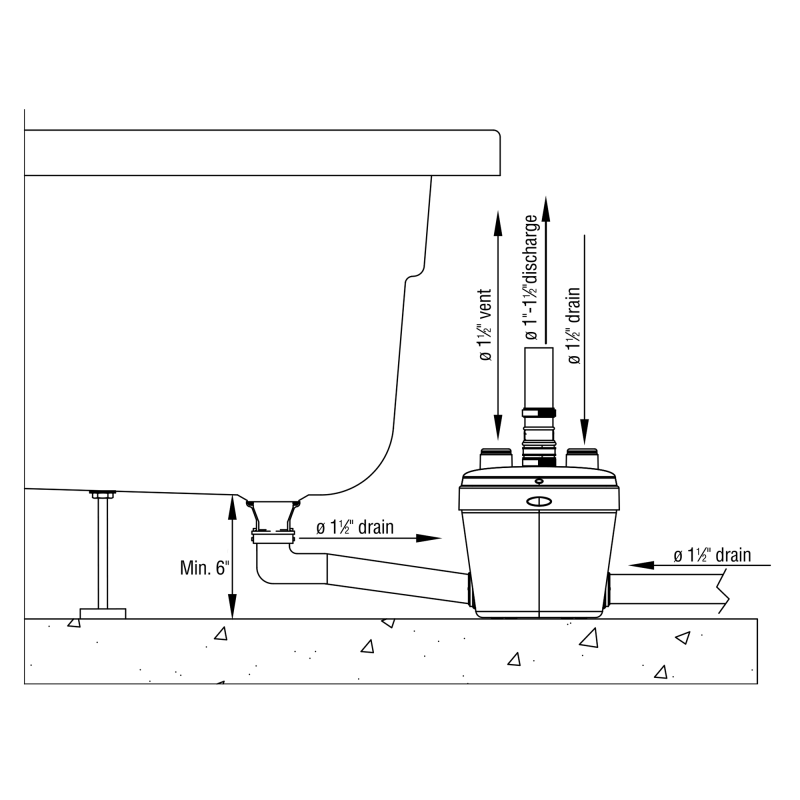

• Discharges gray water from a kitchen sink, shower, dishwasher, washing machine (indirect connection via laundry sink). The gray water will drain into the system via three 1-1/2" inlets, two low inlets (with built-in check valves) on either side of the housing and one on top of the enclosure.

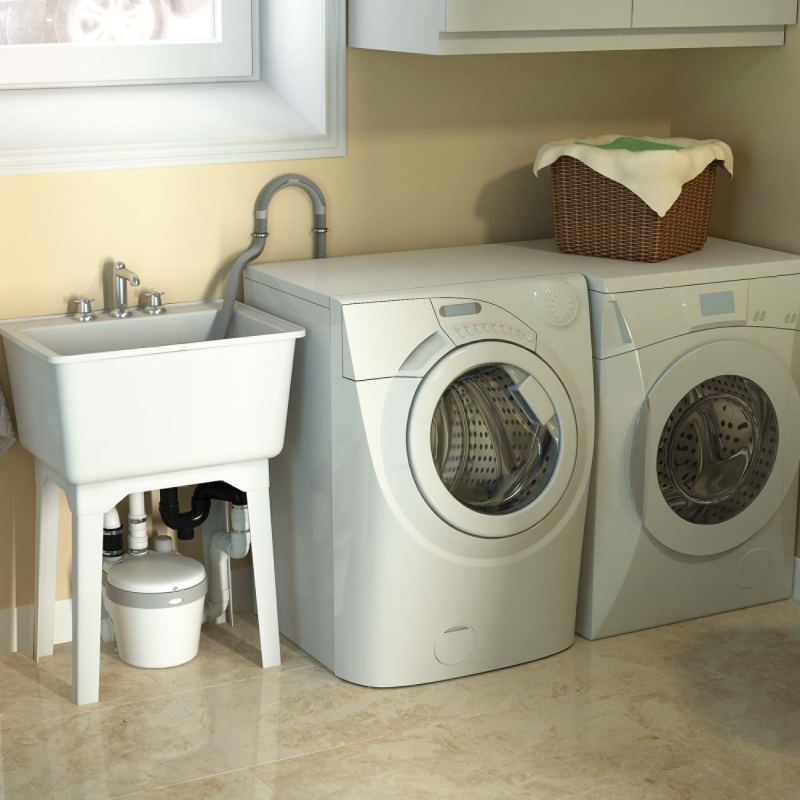

An easy solution for a remote laundry room installation or for any gray water application.

• Residential drain pump
• ↑ 14 Ft ↑ and/or ← 140 Ft →

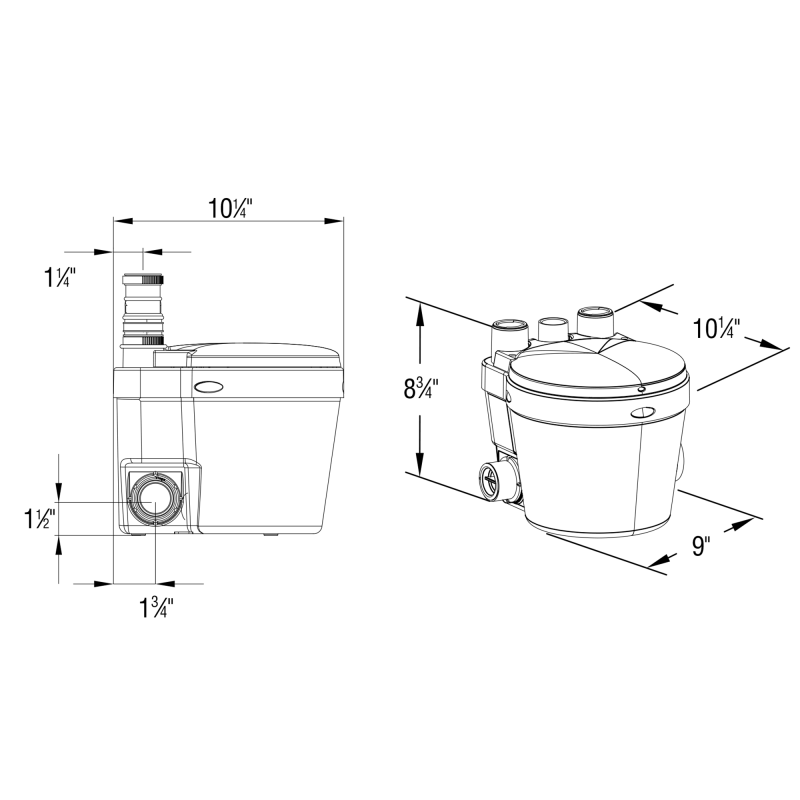

• Compact design
• Powerful and economical

AN EASY SOLUTION FOR A REMOTE LAUNDRY ROOM INSTALLATION OR FOR ANY GRAY WATER APPLICATION

Powerful and economical with a compact design and multiple inlets which makes it perfect for installations anywhere you can imagine. The perfect quiet solution designed with low drain inlets which facilitate the installation of a shower in residential applications. Built-in check valves prevent any backup into the connecting fixtures.
