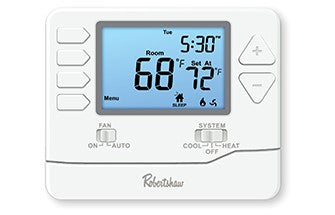

Robertshaw RS9220 Programmable Wall Thermostat, Multi-Stage - 2 Heat / 2 Cool

SKU RS9220
Currently 10 in stock.

Robertshaw RS9220 Programmable Wall Thermostat, Multi-Stage - 2 Heat / 2 Cool

Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat.
Multi-Stage - 2 Heat / 2 Cool

  • Large terminal blocks for easy installation
  • Universal sub-base
  • Quick-access menu button
  • Contractor/technician setup menu
  • Easy-to-understand programming menus
  • Intuitive wake, leave, return, sleep programming icons
  • 24V AC Powered  OR Battery Operation (Included)
  • 6Year Limited Warranty
  • Factory pre-set energy efficiency program Simple, yet powerful control.
  • Large, easy-to-read 4.6-square-inch blue backlit display
  • Easy-access front-load battery compartment
  • Adjustable temperature differential (swing) for energy optimization and maximum system life
  • Adjustable room temperature calibration
  • Adjustable setpoint limits
  • Five-minute selectable on/off compressor delay protection for short-cycling prevention
  • Separate O and B terminals

    RS9220 Sell Sheet


    Series Application Multi-Stage 2 Heat / 2 Cool Programmable
    Factory Part Number RS9220
    UPC 662013228231
    Dimensions 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
    Mounting Type Wall or junction box
    System Fuel Source Gas, electric or oil
    Heat Pump Compatibility Systems without auxiliary or emergency heat
    Millivolt Application Compatibility Yes
    Temperature Range 41°F to 95°F (5°C to 35°C)
    Control Temperature 44°F to 90°F (7°C to 32°C)
    Display Accuracy +- 1°F (at 68°F) / +- 1°C (at 20°C)
    Power Source 24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)
    Terminals Rh, Rc, C, Y, Y2, W, W2, G, O, B

    Cross Reference:

    AMERICAN STABILIS HP-15, HP-15EF, HP-2001, HP-22, R-200, R-205
    BRAEBURN 1220, 1220NC, 2100, 2110, 2200, 2200NC, 2220, 3300, 5100, 5200, 5220, 5300, 5400
    CARRIER 33CS071-01, P274-1100, P274-1300, P274-2100, P374-1000, P374-1100, P374-2300, P474-1050, TC-PAC, TC-PHP
    CARRIER/AIR COND.CO. MP10, MP11, MP30, MS10, MS11, MS12, MS13, MS20, MS21, MS22, MS23, MS24, MS25, P274-0200, P274-1100, P274-1300, P274-2100, P374-0300, P374-1000, P374-1100, P374-1600, P374-2100, P374-2300, P474-0100, P474-2050, ZP2M
    COLUMBUS ELEC/CEMCO CTC400, HP15, HP15EF, HP2001, HP22, HPC82B48AI, HPC82B48DI, HPC86B48AI, HT233D04, MT521, R200, R205, XL521
    EMERSON 6717-1F95-1271, 6793-1F95-1277
    ENERSTAT/VALERA DSL450, DSL-450, DSL600, DSL-600, DSL700, DSL-700, dsp600, SC1, SC-1, SHP1, SHP-1, SHP2, SHP-2, SMS1, SMS-1
    HEATCRAFT A-2122-01-CS
    HONEYWELL PC8900, T7100D, T7100E, T7100F, T7300, T7300F, T8001C1019, T8001C1217, T8001F, T8001F1004, T8011F1002, T8011R1006, T8011R1014, T8024D1010, T8024F1007, T8411R1002, T8411R1028, T841E1007, T8511, T8524, T8524D1007, T8524D1015, T8611, T8611G1004, T8611G1103, T8611G2001, T8611M7008, T8611M7040, T8611M7057, T8611R1000, T8611R1141, T8621, T8621A7002, T8621D7006, T8624D1006, T8624D1030, T8624D2004, T8624D2017, T874A-D, TH1210D1008, TH2210D, TH2210D1007, TH3210D1004, TH4210D, TH4210D1005, TH5220D1003, TH5220D1029, TH5320C1002, TH5320D, TH5320U1001, TH6220D1002, TH6220D1028, TH6320D, TH6320U1000, TH8320U1006, TH8320U1008, TH8321, TH8321U1006, TH8411R, Y594G1252
    ICM SC2200, SC2300
    JOHNSON CONTROLS T500HPN-1, T500HPP-1, T500MSN-1, T500MSP-1
    JOHNSTONE SUPPLY L38-397, L38-398, L38-401, L38-402, L39-013, L39-622, L39-624, L40-473, L40-474, L44-189, L44-193, L44-195, L44-197, L44-199, L44-712, L44-713
    LUX DHP2120, HP2110, PSDH121, PSPA722, PSPA722E, PSPA732, TX1500E, TX9100E
    MAPLE CHASE 0962-1, 962
    PERFECT SENSE PS3210, PS5000
    ROBERTSHAW 9825I2, RS5210, RS6210
    ROBERTSHAW CLIMATE 300-202, 300-203, 300-208, 300-224, 300-225, 300-226, 300-227, 300-229, 300-230, 500-116, 8625, 9615, 9620, 9710, 9715i, 9720, 9720i, 9725i2, 9815i, 9820i, 9865i, 9870i, 9915i, 9920i, CM64U-647-503, RS3210, RS4220, RS5220, RS6220
    SECO TM1000-2H-1C, TM1060-2H-1C, TM1080-1H-2C
    WHITE-RODGERS 1F72-151, 1F85-0471, 1F89-0211, 1F95-0680, 1F95-1280
