Robertshaw 700-406 24 Volt Combination Gas Valve

Save 47%
Original price $197.68
Current price $103.81
SKU 700-406
Currently 9 in stock.

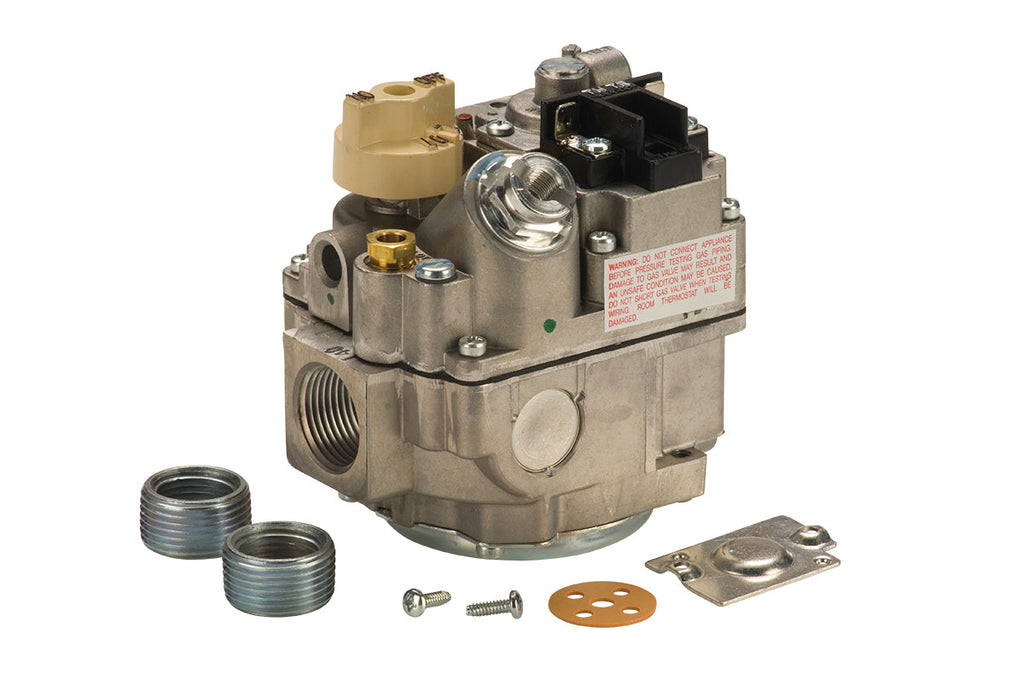

Robertshaw 700-406 24 Volt Combination Gas Valve

The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

Features and Benefits

  • Gas cock dial marking Off - Pilot - On
  • Pilot outlet 1/4” tubing
  • Ambient temperature of -40°F to 175°F
  • Combination screw/spade terminal type
  • Maximum inlet pressure 14” WC (0.5 PSI)
  • Standard NEMA terminals
  • Inlet filtered screen
  • Various gas types: natural, manufactured, mixed, LP, and
    LP/air mixtures
  • Multiple actuators available
  • RoHS compliant


Series Application: 24 Volt Combination Gas Valve
Factory Part Number: 7000BER
Pressure Regulation: Uni-Kit
Capacity: 300,000 BTU
Reducer Bushing (NPT): 2
Inlet Size: 3/4"
Electrical Rating: 24V AC @ 0.2 Amps, 50/60 Hz|12V DC @ 0.18 Amps, 50/60 Hz
Outlet Size:  3/4"
Side Outlets: Straight-Thru



Cross Reference

BDP (Day & Night): 01-1922B
Carrier:  440502566, EF53CK-248
Carrier/Air Cond. Co.: EF33CB243, EF53CH241, EF53CK248, EF53CZ190
Controls of America:

CC150DEB, CC250DE, CC250DEB, CC251DE 34, CC251DEB 34, CC251ED, CC251EDF, CC251EM 34, CC251EMD 34, SL5525EDR, SLS521DE, SLS521DEB, SLS521EDB, SLS525EDR, SLS526DE

Farley's: 1108
Frymaster: 377501502, 8100353
Grainger: 4E+125
Henney Penney: 29728, 439502719, 439502719A
Honeywell: V41A1119, V41A1135, V41A1139, V41A1143, V41A1234, V41A1CM4, V41A1L5, V41B1054, V41B1088, V41B1104, V41B1CM4, V41B1L3, V41B1L4, V41D1139, V41D1147, V41D1170, V41DY5CM4, V41DY5L5, V41DY6L5, V41E1036, V41E3LA, V41K1034, V5306B1017, V800A1012, V800A1038, V800A1088, V800A1104, V800A1128, V800A1229, V800A1260, V800A1278, V800A1286, V800A1294, V800A1302, V800A1336, V800A1351, V800A1369, V800A1377, V800A1393, V800A1400, V800A1401, V800A1419, V800A1427, V800A1591, V800B1004, V800B1020, V800B1038, V800B1046, V800B1079, V800B1103, V800B1111, V800B1137, V800B1145, V800B1152, V800B1160, V800C1060, V800C1144, V800C1326, V800C1334, V801C1027, V80A1088, V8108D1703, V810A1020, V810A1079, V810A1103, V810A1145, V810A1152, V810A1160, V810C1002, V810C1028, V8139A1024, V8139A1057, V8139B1006, V8139B1014, V8139B1022, V8139B1030, V8146A1025, V8146A1066, V8146A1082, V8146B1007, V8146B1015, V8146B1023, V8146B1031, V8146C1013, V8146D1003, V8146D1011, V8146E1000
V8146E1026, V8168B1000, V8168B2DS4, V8168B4DS4, V8168D1006, V8168D1014, V8168D2DS4, V8168D3DS4, V8168K1000, V8168K1DS4, V8168L1008, V8168L1016, V8168Q1023, V8168W1019, V8168W1027, V8170A1008, V8170A1016
V8170AY7DS4, V8170B1006, V8170C1004; V8170D1036, V8170D1044, V8170E1017, V8171A1007,  V8171A1X3, V8171B1005, V8171B1DS3, V8180A1022, V8180A1154, V8180A1162, V8180B1020, V8180B1061, V8180B1087
V8180D1034, V8180D1133, V8180D1166, V8180D1265, V8180D1299, V8180D1307, V8180D1414, V8180D1422, V8180D1497, V8180D1588, V8180D1620, V8180D1679, V8180D1703, V8180D1778, V8180E1007, V8180E1031
V8180E1114, V8180E1189, V8180E1221, V8180E1239, V8180F1005, V8180F1013, V8180F1039
V8180F1062, V8180F1070, V8180F1088, V8180F1096, V8180F1104, V8180F1112, V8180F1120
V8180F1138, V8180F1146, V8180F1153, V8180F1161, V8180F1179, V8180G1003, V8180G1011
V8180H1001, V8180H1019, V8180H1027, V8180H1035, V8180H1043, V8180H105,
V8180H1068, V8180H1076, V8180H1084, V8180J1006, V8180J1014, V8180J1022, V8180J1030, V8180K1004
V8180K1012, V8180K1020, V8180K1038, V8180K1046, V8180K1053, V8180K1061, V8180K1079, V8180K1087
V8180K1095, V8180K1103, V8180K1106, V8180K1111, V8180K1129, V8180K1137, V8180K1145, V8180K1152
V8180K1178, V8180K1186, V8180K1194, V8180K1202, V8180K1210, V8180K1228, V8180K1236, V8180K1244, V8180K1251, V8180K1269, V8180K1277, V8180K1285, V8180L1002, V8180L1010, V8180L1028, V8180L1036, V8180L1044, V8180L1051, V8180L1069, V8181A1039, V8181B1003, V8181B1011, V8181B1029
V8181B1037, V8181B1045, V8181B1052, V8181B1060, V8181B1078, V8181B1086, V8181B1094
V8181D1066, V8181D1082, V8181E1006, V8181E1030, V8181E1055, V8181E1071, V8181F1004
V8181G1002, V8181K1003, V8181K1011, V8181K1029, V8181K1037, V8181K1045, V8181L1001
V8181L1009, V8181L1019, V8181L1027, V8181L1035, V8181L1043, V8181L1050, V8181L1068, V8181L1076
V8181L1084, V8181M1009, V81C1000, V81C1DJ3, V8235A1258, V8235B1009, V8235B1017, V8235B1025, V8235B1033, V8235B1041, V8235B1058, V8235B1066, V8235B1074, V8235B1082, V8235B1090, V8235B1108, V8235B1116, V8235B1124, V8235B1132, V8235B1140, V8235B1157, V8235B1165, V8235B1173
V8235B1181, V8235B1199, V8235B1207, V8235B1215, V8235B1229, V8235D1005, V8235D1013, V8235D1021, V8235D1039
V8235D1047, V8235G1008, V8235G1016, V8235G1024, V8240B1002, V8240B1010, V8240B1028
V8240D1008, V8243B1009, V8243B1017, V8243B1025, V8243B1033, V8243B1041, V8243C1007, V8243C1015
V8245A1023, V8257B1002, V8257B1010, V8257B1028, V8257B1036, V8257B1069, V8257D1008, V8263A1006, V8263B1004, V8263B1012, V8280B1003, V8280B1011, V8280B1029, V8280C1001, V8280C1019, V8280C1027, V8280C1035, V8280C1043, V8280C1050, V8280C1068, V8280D1009
V8280D1017, V8280D1025, V8280D1033, V8280D1041, V8280D1066, V8280D1074, V8280D1082
V8280E1006, V8289A1006, V8289B1004, V8292A1001, V8292A1019, V8292A1027, V8292A1035, V8292A1100, V8292A1118, V8292A1191, V8292B1009, V8292C1007, V8292D1005, V8292D1013, V8294A1017, V850A1034, VR800A1400, VR801D1031

ITT/General Control:  B57RF, B57RF58, B59R06, B59SK43, V501
Johnstone Supply: L36-406
Lennox Industries:  72P94
Midco International:  8418-61
Modine Manufacturing: 301501503, 301502566, 302502899, 377501503, 377502752, 5H605800B2, 5H605800B3, 5H-66001
5H68771B2, 5H68771-B3

92S105G13, 92S2105G13, 92S6205B1, 92S6205G1, 93S2205G12, 93S2205G4AE4451-1, AE4451-114
AE4451-117, AH4451-1, AHC4451-1, G91LGB-1, G92GGB, G92GGC, G92LGB, G93EGM-2, GSV2105G13

Pitco: 403501729, 403501798, 403502719, PP10719, PP10720
Raypak Inc: 4F8501798, 601009
Repco: 2022-140
Robertshaw: 302-501-502, 302-501-503, 302-501-524, 302-501-584, 302-531-567, 307-531-515, 377-501-503
440-501-730, 4D5-501-729, 7000BER, 700-411
Robur: 15691-412, 302501730
Steveco: 215-505, 215508, 217-507
Teledyne Still/LAARS: 3A1502560, 442502860
Trane:  13120279-02, 300501503, 302501503, X13120279010
Uni-Line: 1250-402, 302502806, 302505513, 63208, 7000BER-LP, 700404, 700-404, 700-405
700406, 700-C406
W. W. Grainger: 4E+125
Wayne Home Equipment:  60270
Whirlpool:  99794754
White-Rodgers: 3607, 3636, 3637, 3661A-628, 3661A-688, 36C01-200, 36C01-204, 36C01-212, 36C01-282, 36C01-300
36C01-302, 36C01-400, 36C01-403, 36C01-405, 36C03-205, 36C03-211, 36C03-222, 36C03-230,
36C03-245, 36C03-251, 36C03-255, 36C03-258, 36C03-322, 36C03-400, 36C03-409, 36C03-445, W36C03400
