Yellow Jacket 69086 Handheld Digital Vacuum Gauge

SKU 69086
Currently 3 in stock.

Yellow Jacket 69086 Handheld Digital Vacuum Gauge

Products usually ship within 1 business day

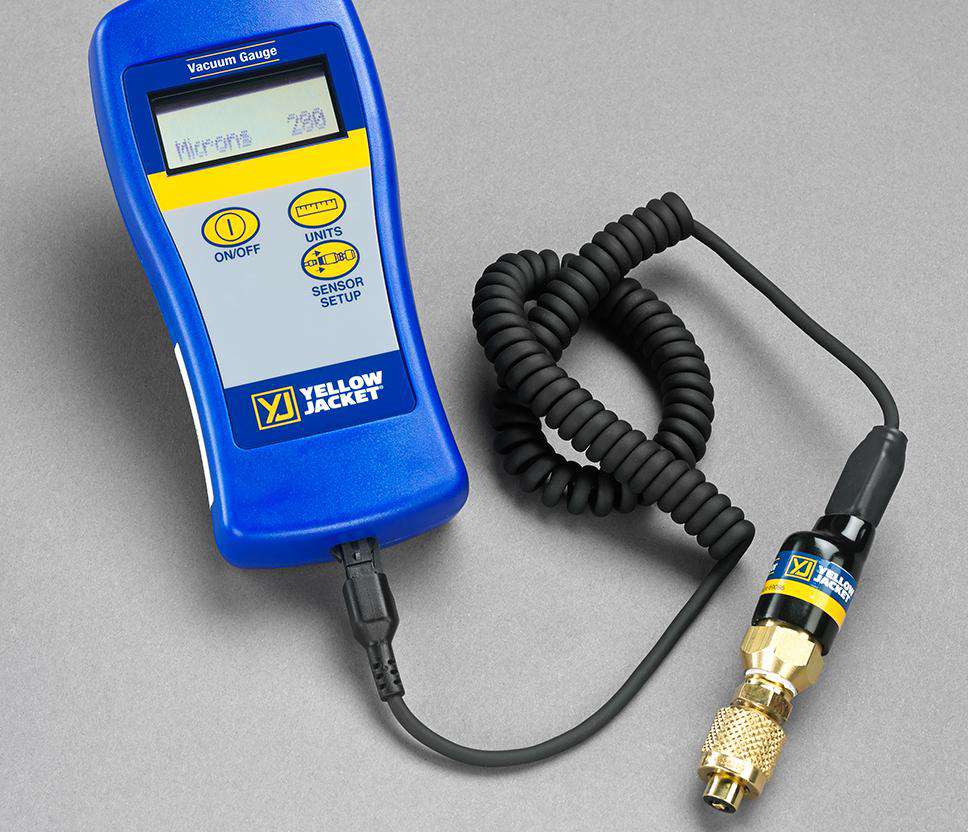

With this easy-to-use gauge, be certain that air and moisture have been removed from the system. Extendable coiled sensor cord allows you to place the sensor where you want and hold the control up to 6' away for easy readability. If the sensor gets dirty, simply pull a new sensor out of your tool kit, plug it into the gauge, run through a quick calibration process, and be back on the job within minutes. Simple push of a button changes the display readout between 7 units of vacuum, each displaying down to the equivalent of 10 microns of vacuum to let you know that your vacuum pump is clean and performing properly.

  • Unique patented thermal conductivity sensor automatically compensates for temperature
  • Replaceable, cleanable, plug-in sensor (Part #69087) handles 450 psi positive pressure
  • Displays 7 different units of vacuum (microns, milliTorr, Torr, millimeters of mercury, millibar, kiloPascal and Pascal)
  • 12″ coiled sensor cord stretches to 24″ for easy reach, connectivity and readability of display
  • Magnetized on back for secure, upright positioning on any magnetized surface
  • Low battery indicator
  • Automatic shut-off after 20 minutes
  • Calibration standards traceable to NIST
  • 32° to 122°F (0° to 50°C) operating temperature range
  • 14 oz. (392 g) with battery
  • Approximately 25 hours continuous battery life
  • Accuracy: +/- 20% of reading
  • Made in the USA


Instruction Manual
