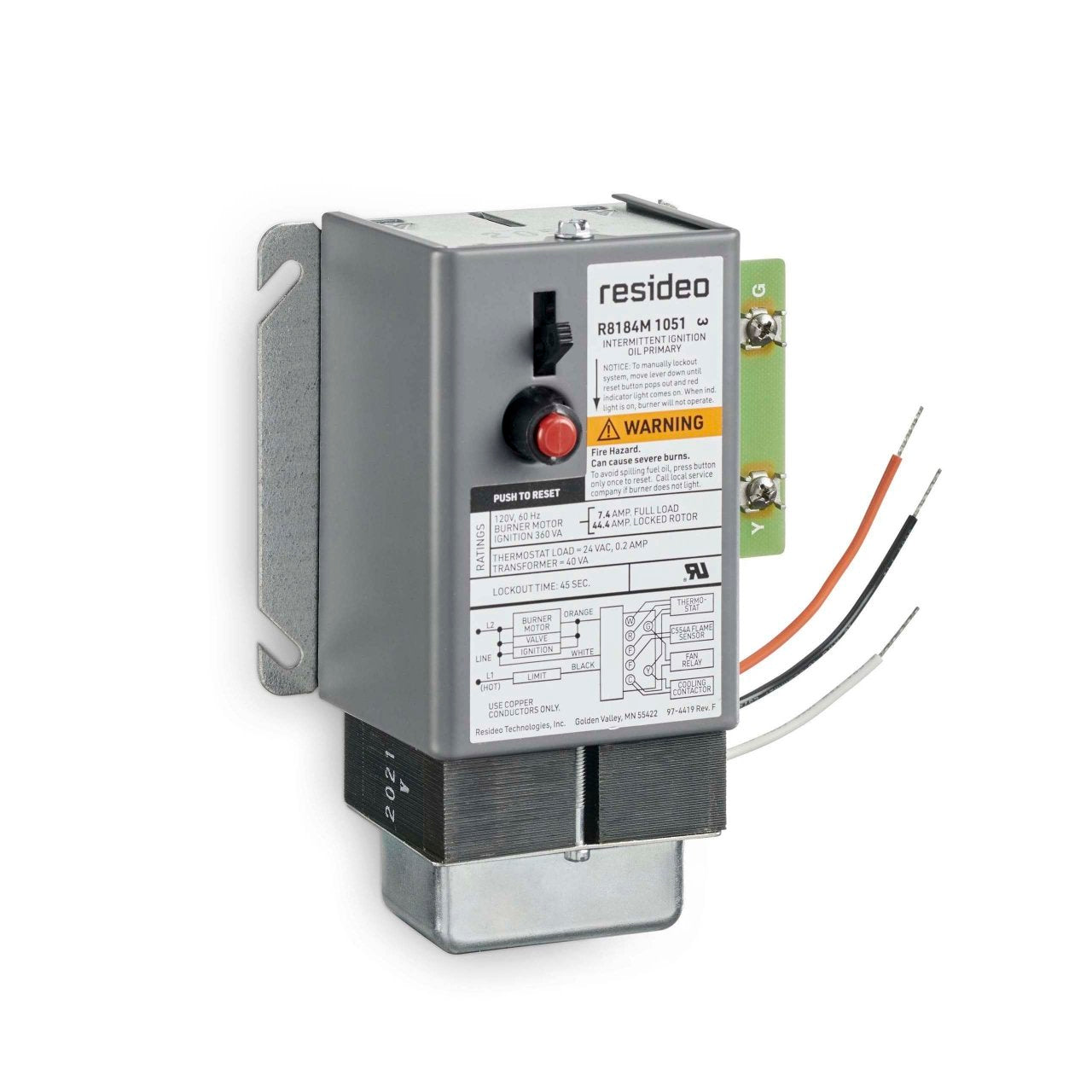

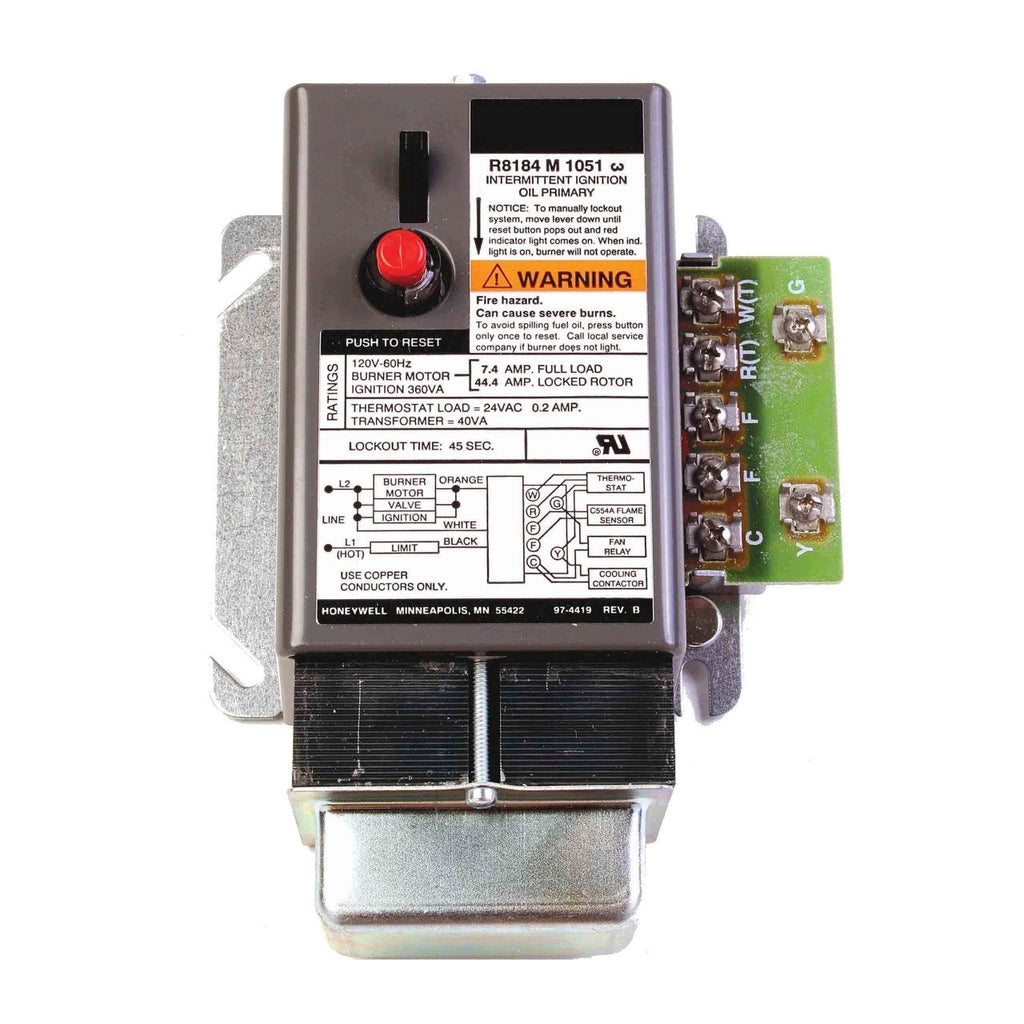

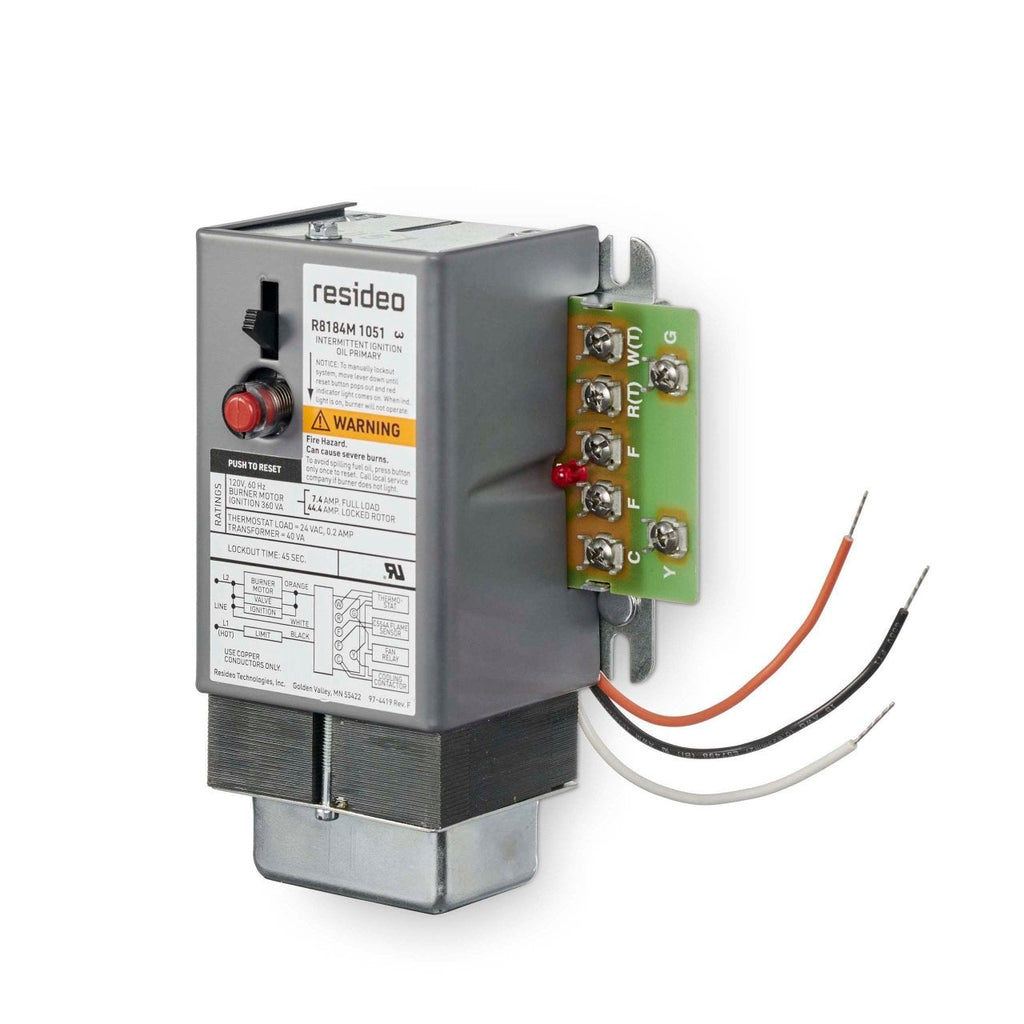

Resideo R8184M1051/U Protectorelay® Oil Burner Control with 45 Second Safety Timing
$219.27
SKU R8184M1051/U
Resideo R8184M1051/U Protectorelay® Oil Burner Control with 45 Second Safety Timing
Easy To Install. Reliability You Can Trust.
Series 80 Protectorelay® Oil Burner Control with transformer to provide power for cooling controls
The Protectorelay oil burner controls from Resideo have a 45 second safety timer, alarm outputs, and manual safety switch. The oil burner controls provide automatic, nonrecycling control of an intermittent ignition oil burner system. They also control the oil burner, oil valve, and ignition transformer in response to a call for heat.
- Intermittent ignition is on while the burner is on.
- Solid state flame sensing circuit.
- External button to manually reset safety switch after lockout.
- Enclosed safety switch must be manually reset after safety shutdown.
- R8184M includes 40 VA transformer and Y and G terminals for connection of cooling equipment.
- Mounts on standard 4 x 4 in. junction box.
- C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.
Sell Sheet
Specifications
|
Application: |
Operates oil burner or oil valve and the ignition transformer in response to a call for heat from the thermostat. |
|
Dimensions: |
4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep |
| Temperature Range (F): | -40 F to +147 F |
| Mounting: | Mounts on standard 4 x 4 in. junction box |
| Approvals, Underwriters Laboratories Inc.: | UL Component Recognized; File no. MP268, guide no. MCCZ2 |
| Ignition Type: | Intermittent |
| Timing, Safety Switch: | 45 sec. |
| Electrical Ratings, Contacts (full load): | 7.4 A @ 120 Vac; 3.7 a @ 240 Vac |
| Electrical Ratings, Contacts (locked rotor): | 44.4 A @ 120 Vac; 22.2 A @ 240 Vac |
