Reed Mfg H12I Hinged Pipe Cutters, Cast Iron/Ductile Iron, 8" - 12"

Save 5%
Original price $1,994.34
Current price $1,894.62
SKU 03152
Currently 2 in stock.

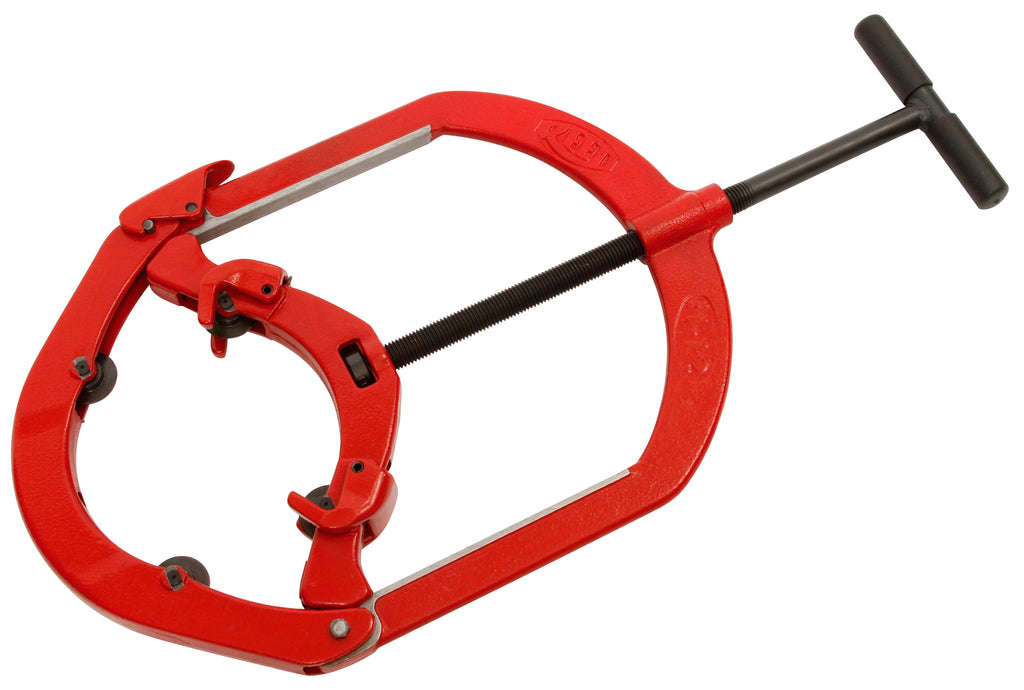

Reed Mfg H12I Hinged Pipe Cutters, Cast Iron/Ductile Iron, 8" - 12"

Hinged Pipe Cutters feature four wheels to cut steel, stainless steel, cast and ductile iron with only 90° to 110° handle swing. Only 4” (125 mm) clearance is required around pipe. Strong guide fingers ensure perfect wheel alignment for square cuts. A closed 360° frame on the hinged pipe cutter forces all energy into cutting the pipe for maximum efficiency. There is no shower of sparks in this cold cut. REED has the only 4-wheel pipe cutter that tracks every time and the only one recommended for ductile iron, steel, and stainless steel to Schedule 100. This tool is a REED invention.

  • Pipe Cutter with hinge is a REED invention that needs only 4” (102 mm) of clearance around pipe.
  • Efficient handle swing of only 90° to 110°.
  • Opens with hinge to place cutter around the pipe.

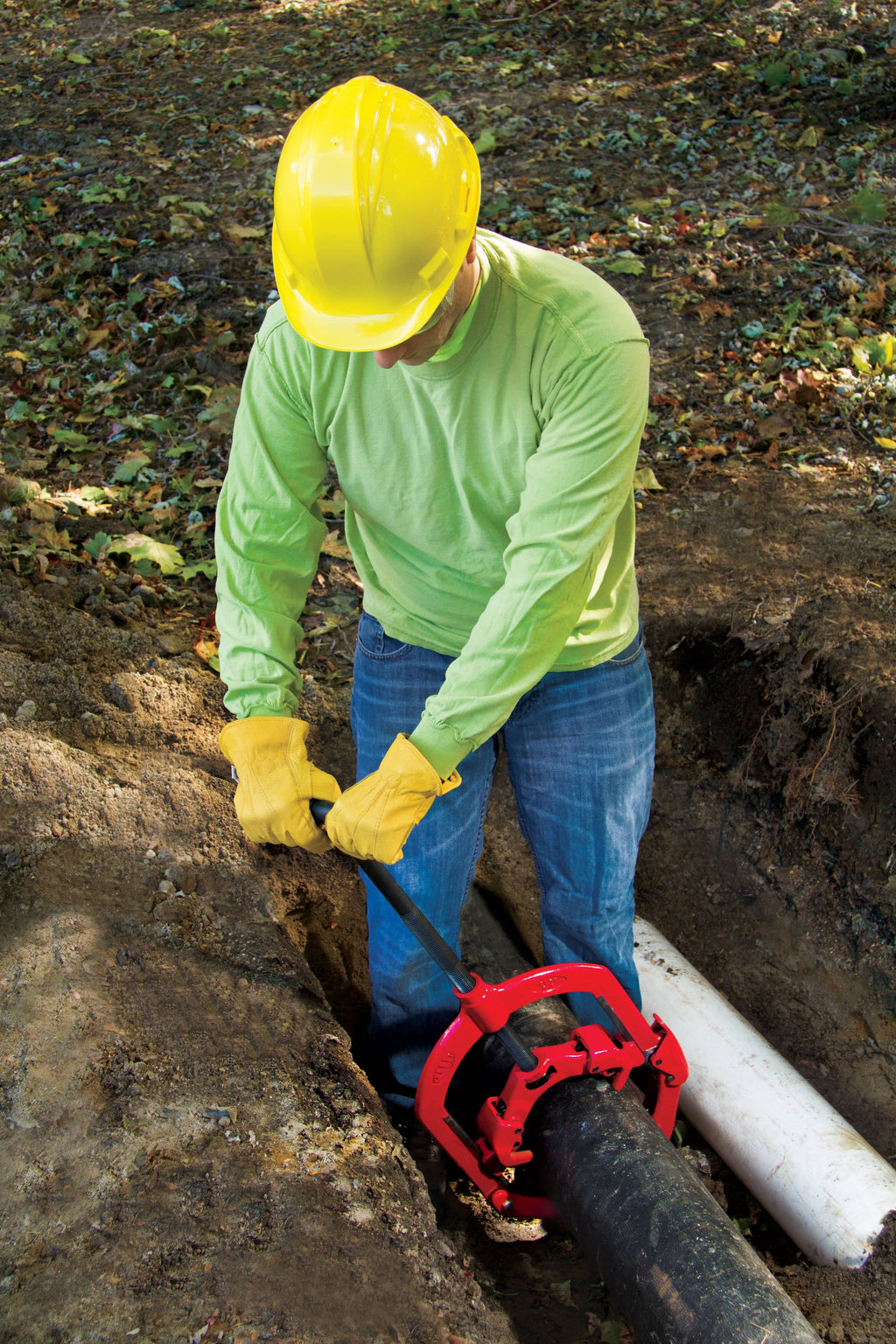

  • Can be used anywhere - in the ditch, underwater, overhead, in racks of pipe!
  • Ships with cutter wheels installed for cutting steel and stainless steel pipe.
  • Pipe Capacity (in-nom):  8 - 12
  • Cutter Wheel:  HI6
  • Application:  Cast Iron, Ductile Iron
  • Length:  34"
  • Weight:  34.9 lbs

Wheels for same size cutters are interchangeable. Recommend only Reed cutter wheels be used with these hinged cutters. Reed wheels are made from high shock-resistant tool steel on computerized (CNC) machines and then precisely heat treated. This allows for a thinner profile yet stronger blade, so they:

  • Cut easier and faster, especially stainless steel and ductile pipe.
  • Last much longer.
  • Allow for shorter cutter handle for work in tight spaces.
  • Provide the best value.


Parts Diagram
