Ranco RBFD-163S 3/8" ODF Sweat Bi-flow Filter Drier, 16 Cubic Inches

$17.59
SKU RBFD-163S
Currently 47 in stock.

Ranco RBFD-163S 3/8" ODF Sweat Bi-flow Filter Drier, 16 Cubic Inches

Ranco® Filter Driers are designed to stop contaminants and remove moisture from refrigerants to protect those sensitive system parts.

Available in both single direction and bi-flow models, Ranco Filter Driers are compatible with R22, R134A, R404A, R407C, R410A, R502, R507 and R290 refrigerants, and rated for 1-50 Tons. A filter pad removes particles down to an industry leading 20µm, and top quality desiccant, available in a solid core configuration, induces and sustains a state of dryness. Optional activated alumina added to the desiccant also helps remove inorganic acids present in refrigerant.

To provide superior protection and excellent filtration in a leak-free steel body assembly, Ranco Filter Driers go through thorough design, production, testing, and quality processes. Ranco® team of engineers from around the globe set out to design the most durable and efficient filter driers that will keep systems running safely for years to come. Our ISO 9001:2008 certified manufacturing facilities then exercise the highest level of craftsmanship in manufacturing, ensuring that every part exceeds your expectations.

  • Premium filter materials allow for 40% more filtration, ensuring greater reliability
  • Top-quality desiccant for excellent absorption and long lasting durability
  • Solder or mechanical fittings facilitate ease of installation
  • Mesh/fiberglass filter pad designed to prevent contaminants passing into or being released back into the system, ensuring superior protection. Removes particles down to 20μm
  • Leak free welds

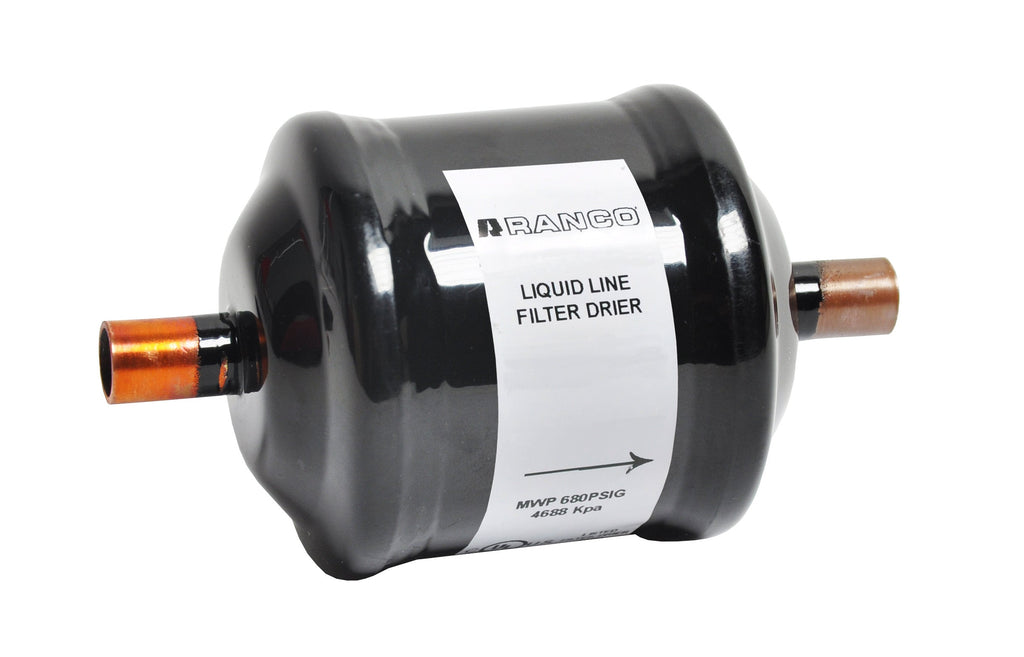

**The image shown is for illustration purposes only and may not be an exact representation of the product.**

Ranco Filter Driers Sell Sheet

Attributes:

Flow Bi
Capacity 16 cu. in.
Fitting Type ODF
Fitting Size 3/8"
Dimension A 5.75"
Dimension B 4.67"
Dimension C 2.99"
Dimension D 4.43"
Operating Pressure 0 to 680 psi (0 to 47 bar/4.7 MPa)
Temperature Range -40°C to 70°C (-40°F to 158°F)
Compatible Fluids R22, R134A, R404A, R407C, R410A, R502, R507, R290
Desiccant Type Solid core (80% desiccant, 20% activated alumina)



Cross Reference:

PARKER HANNIFIN  BF163S
EMERSON  BFK-163S
DANFOSS  DCB 163S
SANHUA  FDBI-163-S
