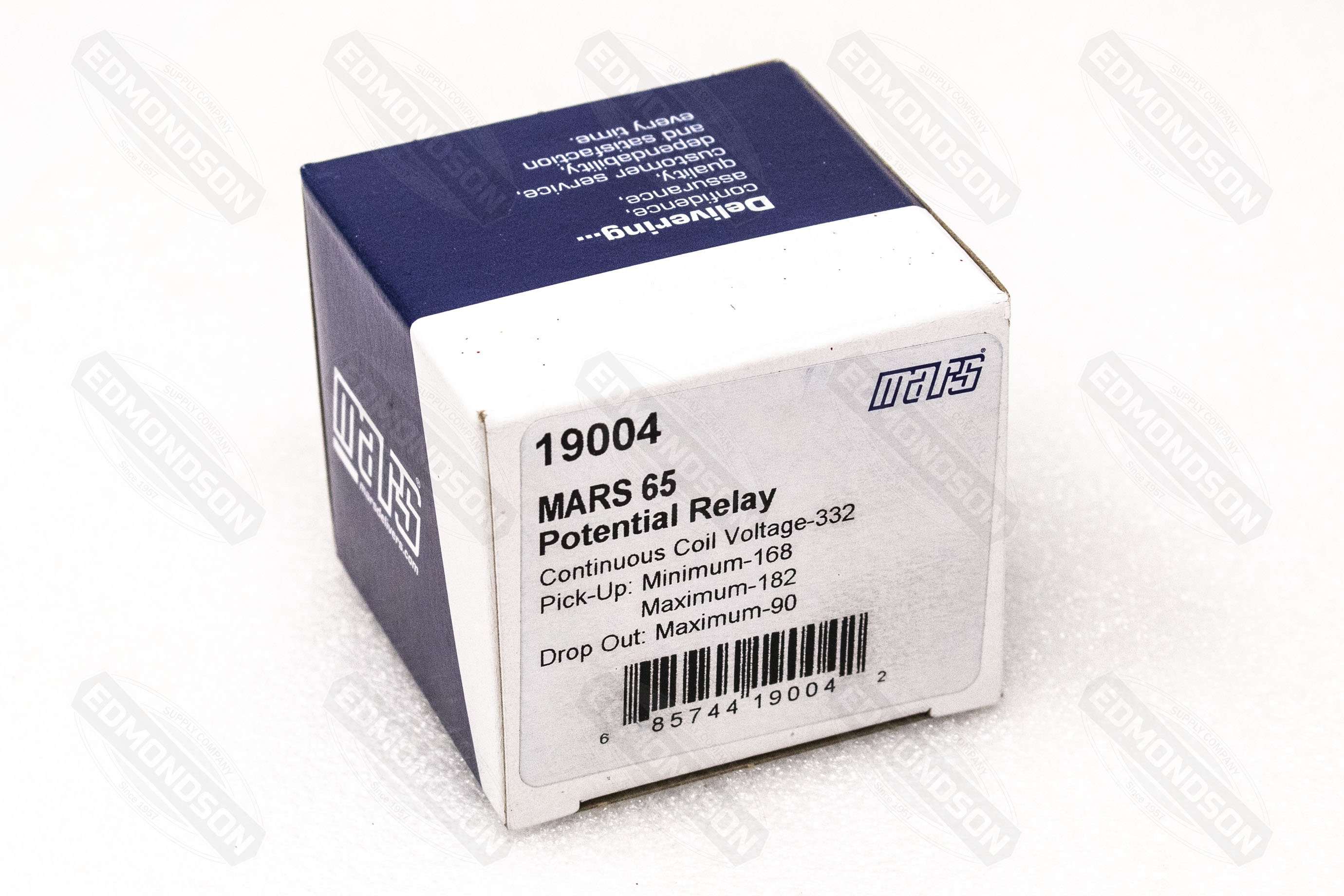

MARS 19004 65 Universal Potential Relay, 332V
The MARS refrigeration potential relay service kit has become an industry standard since its introduction over fifty years ago. Its long-term reliability and easy replacement have been the key to its success. The wide calibration ranges and the universal bracket make the MARS potential relay service kit a must on every service truck.
- Genuine MARS relays replace thousands of O.E.M. models
- Non-Positional
- Wide range of selectivity

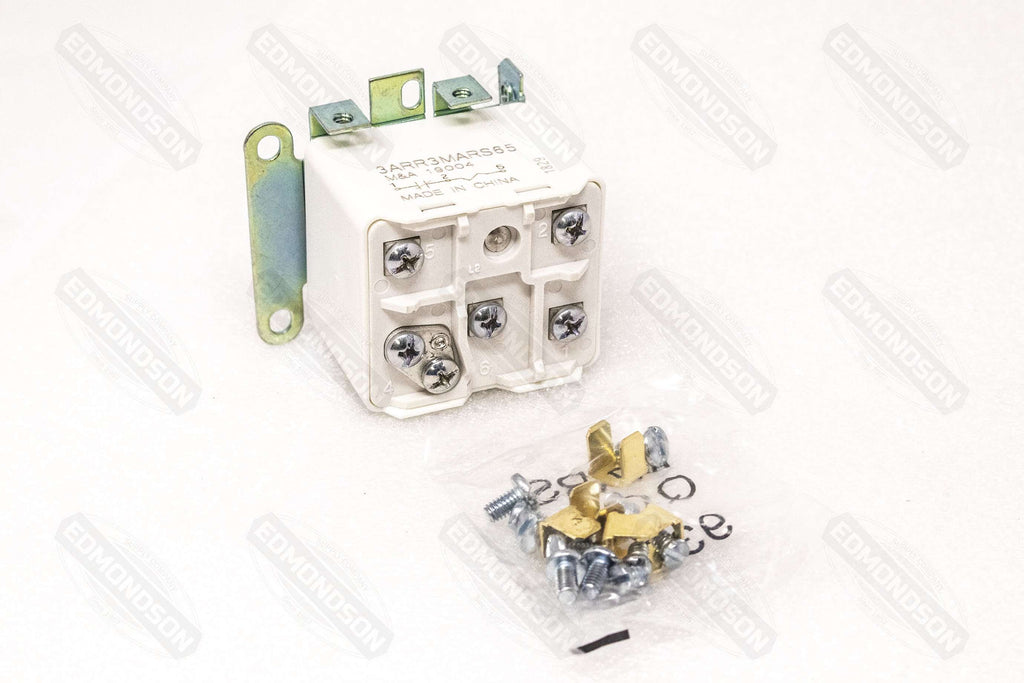

- QC-6 Kit included with each relay to convert screw-on to push-on
- Instructions and wiring diagram included in each relay

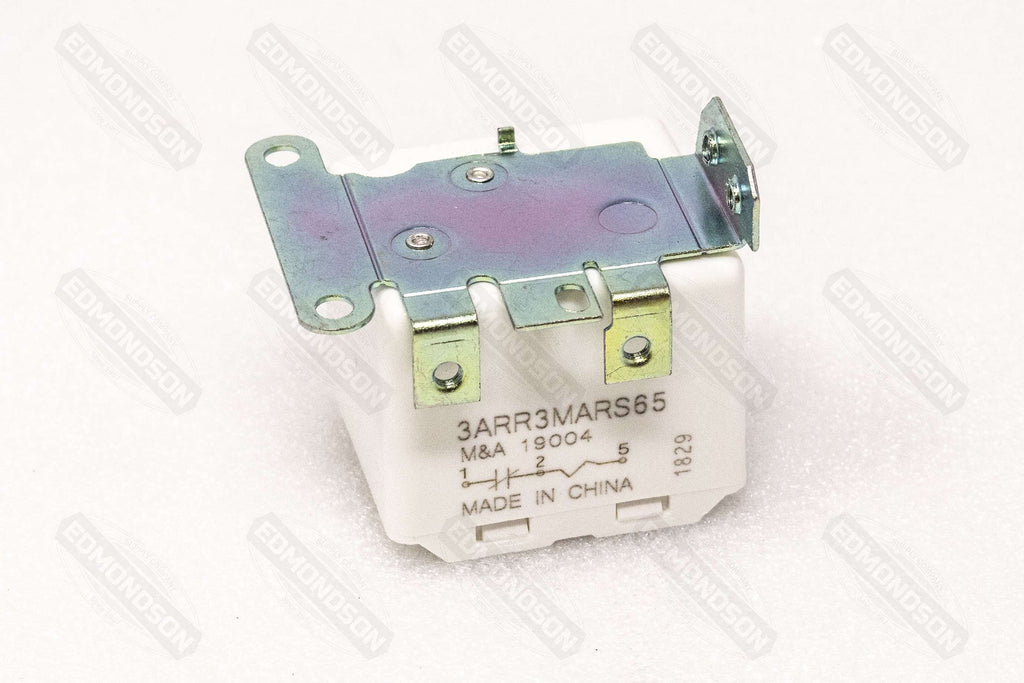

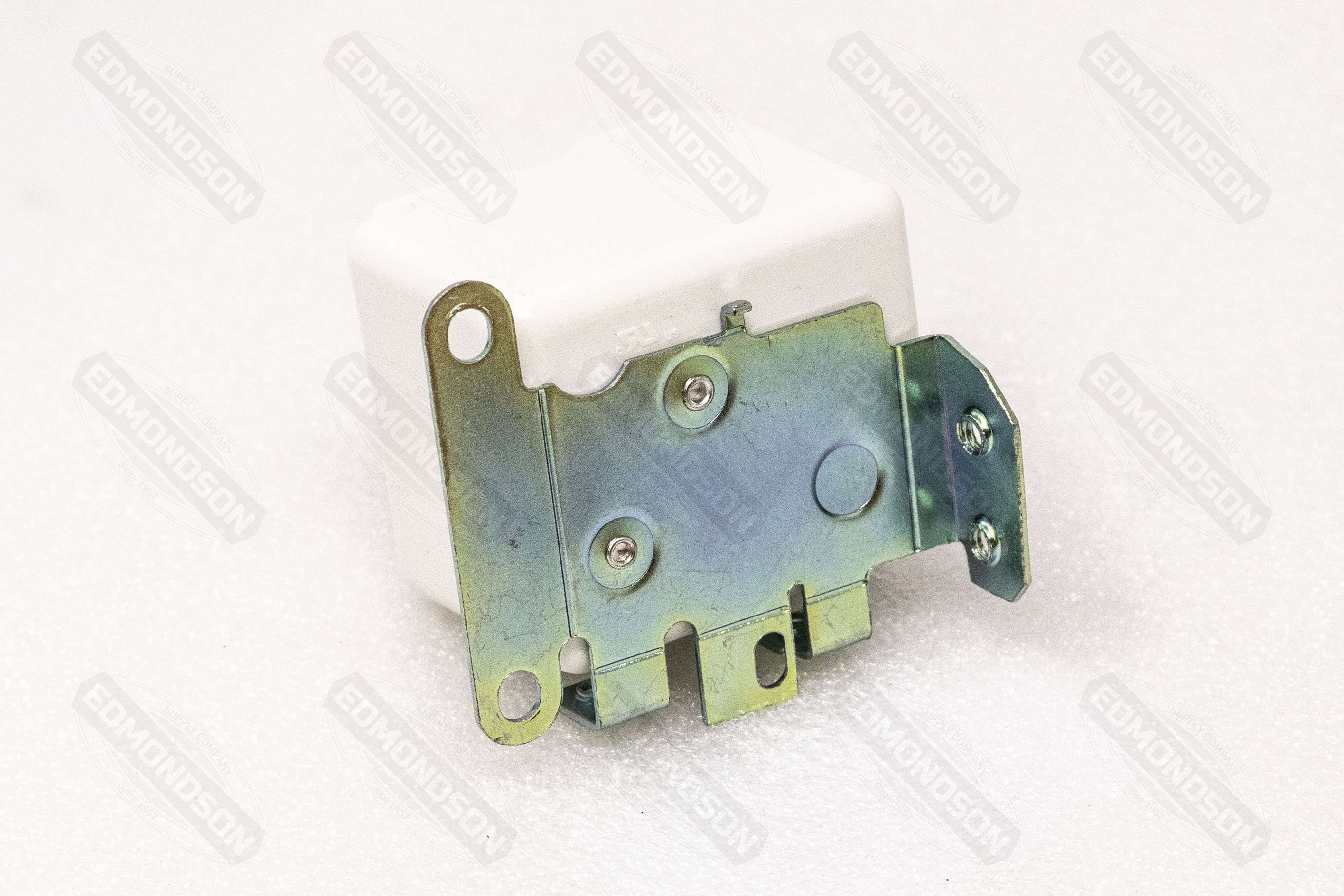

- Universal break-off bracket on each relay. Simply snap-off parts not needed
- UL and CSAlistings available
Specifications
| Contact Rating Amps: | 35 |
| Pick-up Voltage: | 168 to 182 |
| Relay Type: | Motor Starting |
| Mounting: | 4 Holes Screw Type Steel |
| Hold Voltage: | 332 |
| Drop-Out Voltage: | 90 |
| Hz: | 60 |
| Terminal Style: | Quick Connect |
| HP Rating: | 1/3 |
