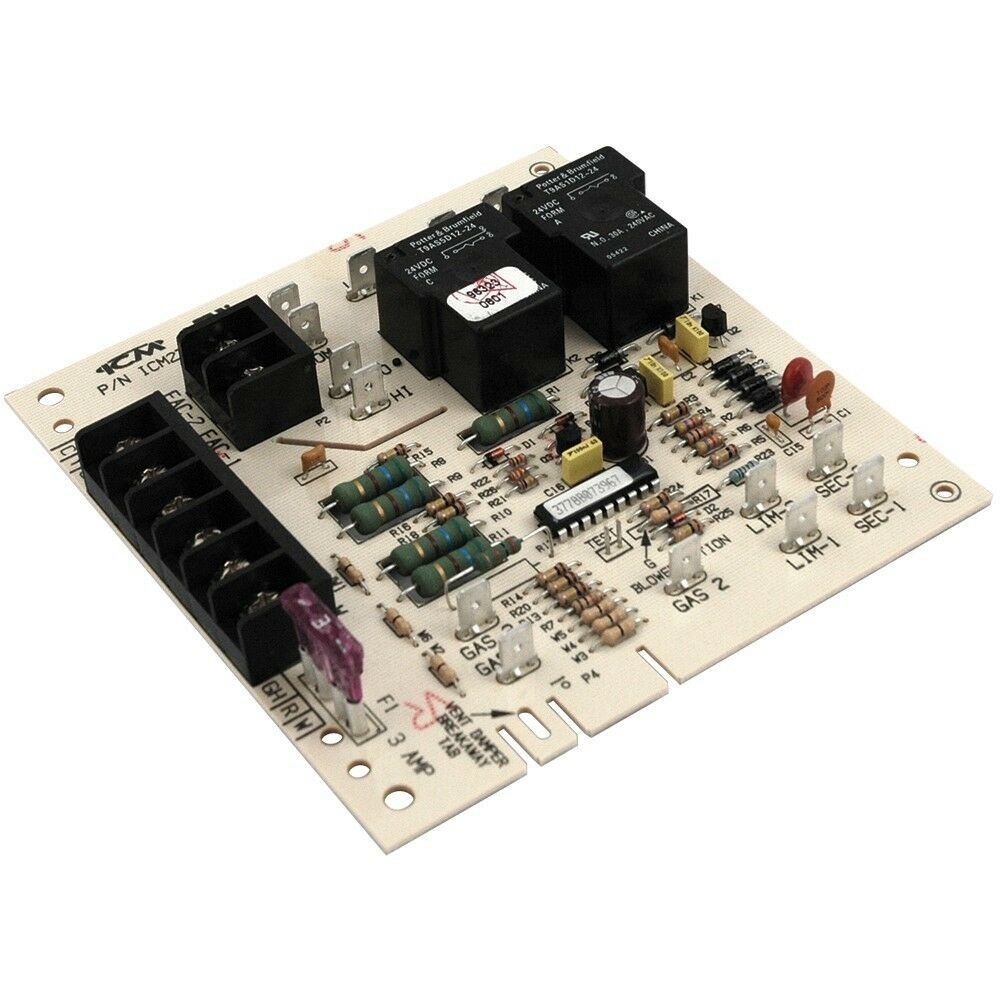

ICM Controls ICM271 Fan Blower Control Board, Replacement for Carrier
- Reliable solid state fan blower control
- Specifically designed to replace popular gas furnace centers
- Pin selectable blower delays
- High power, relay output
- Dual function fan delay timer
- Controls the circulating fan in heat pump, A/C and forced air systems
- OFF delay purges ducts for residual air
- ON delay allows air to reach the proper comfort level prior to energizing the fan
SPECIFICATIONS
-
Voltage: 18-30 VAC
- Contact ratings:
-
N.O.: 20 amps
-
N.C.: 10 amps
- Time delay:
-
Heat ON delay: 75 seconds
-
Heat OFF delay: 105 seconds
-
Cool OFF delay: 90 seconds
-
Dimensions: 2.85" x 2.00" x 2.00"
REPLACES
-
Carrier: 302075-3, CES0110017, CES0110018, HH84AA010, HH84AA011, HH84AA012, HH84AA013, HH84AA020, P771-7002
-
Robertshaw: 695-100
