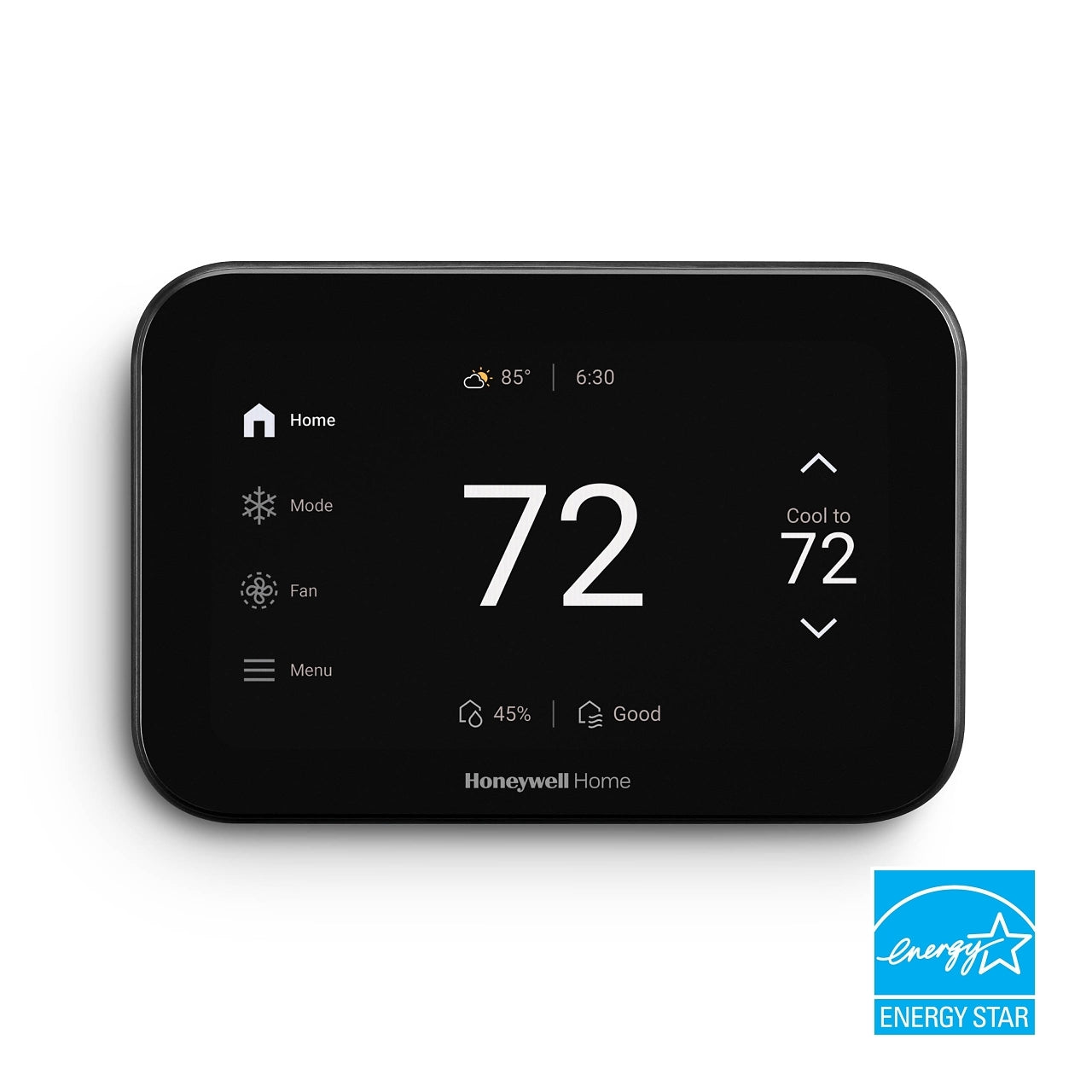

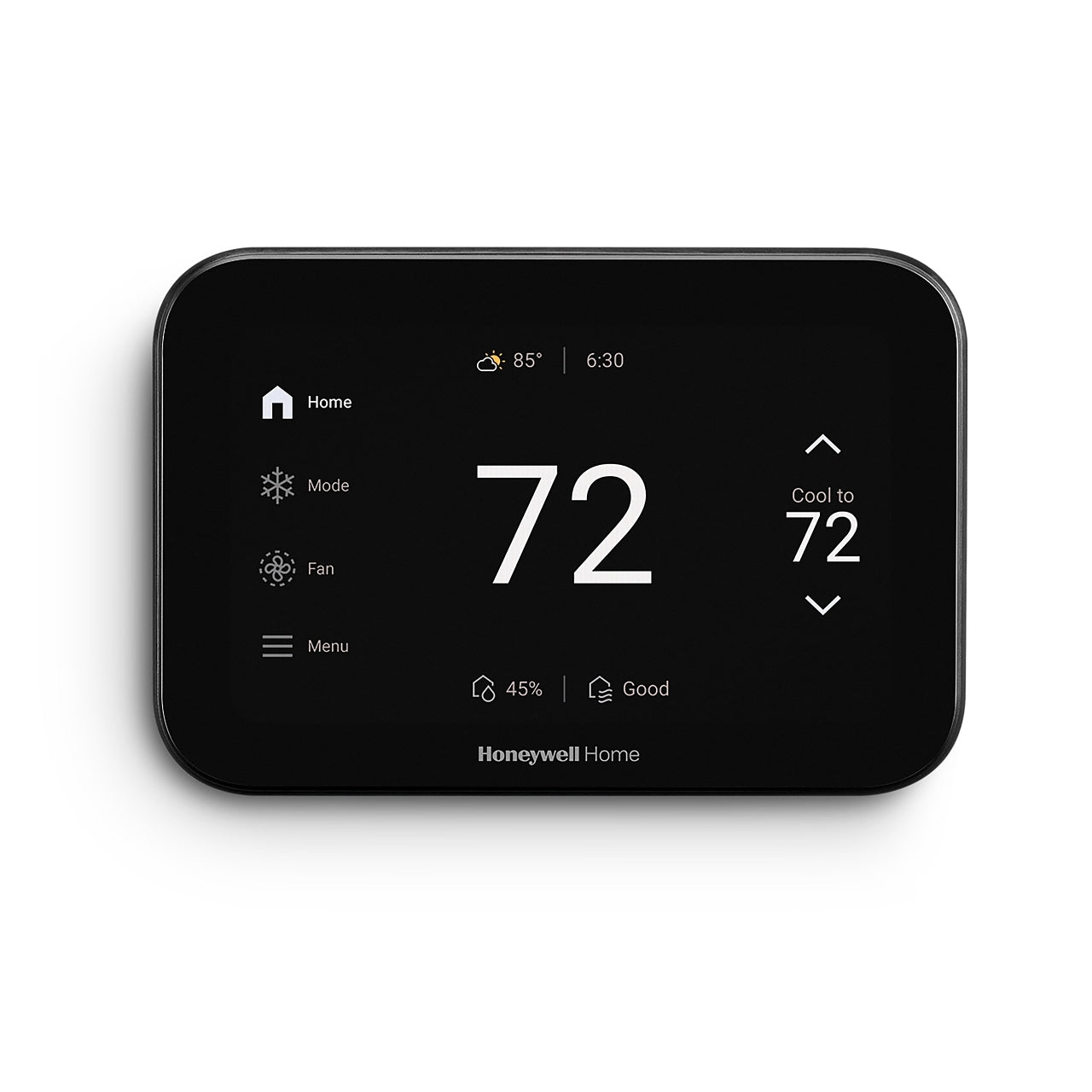

Honeywell Home THX1200B6/U ElitePRO™ S1200 Smart Thermostat in Black
$218.00
SKU THX1200B6/U
Honeywell Home THX1200B6/U ElitePRO™ S1200 Smart Thermostat in Black

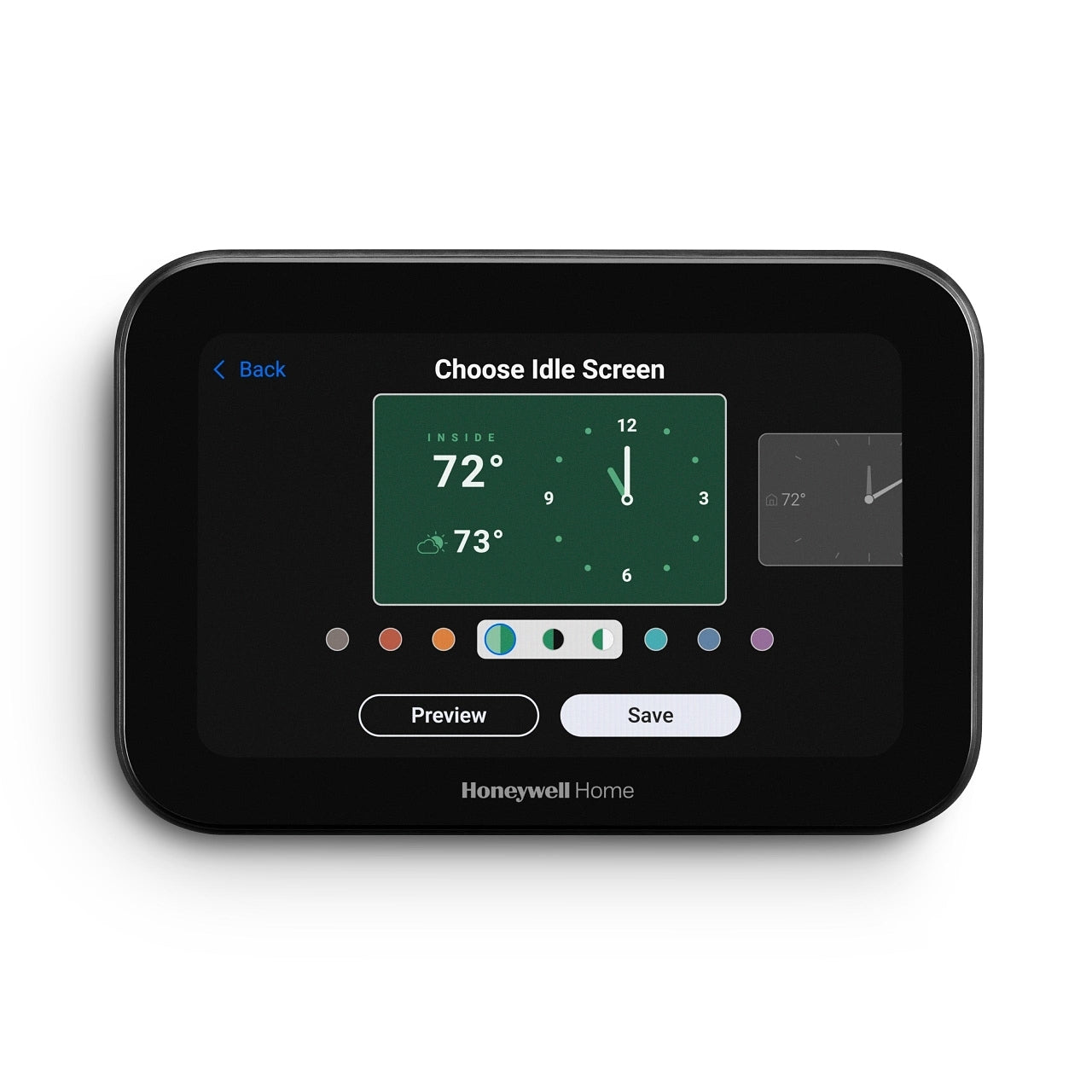

The sleek Honeywell Home ElitePRO S1200 Smart Thermostat delivers modern design, customizable touchscreens, and advanced indoor air quality (IAQ) control. Homeowners can even see and speak to visitors at the door directly from the thermostat - compatible with First Alert and Ring streaming doorbells.
Features:

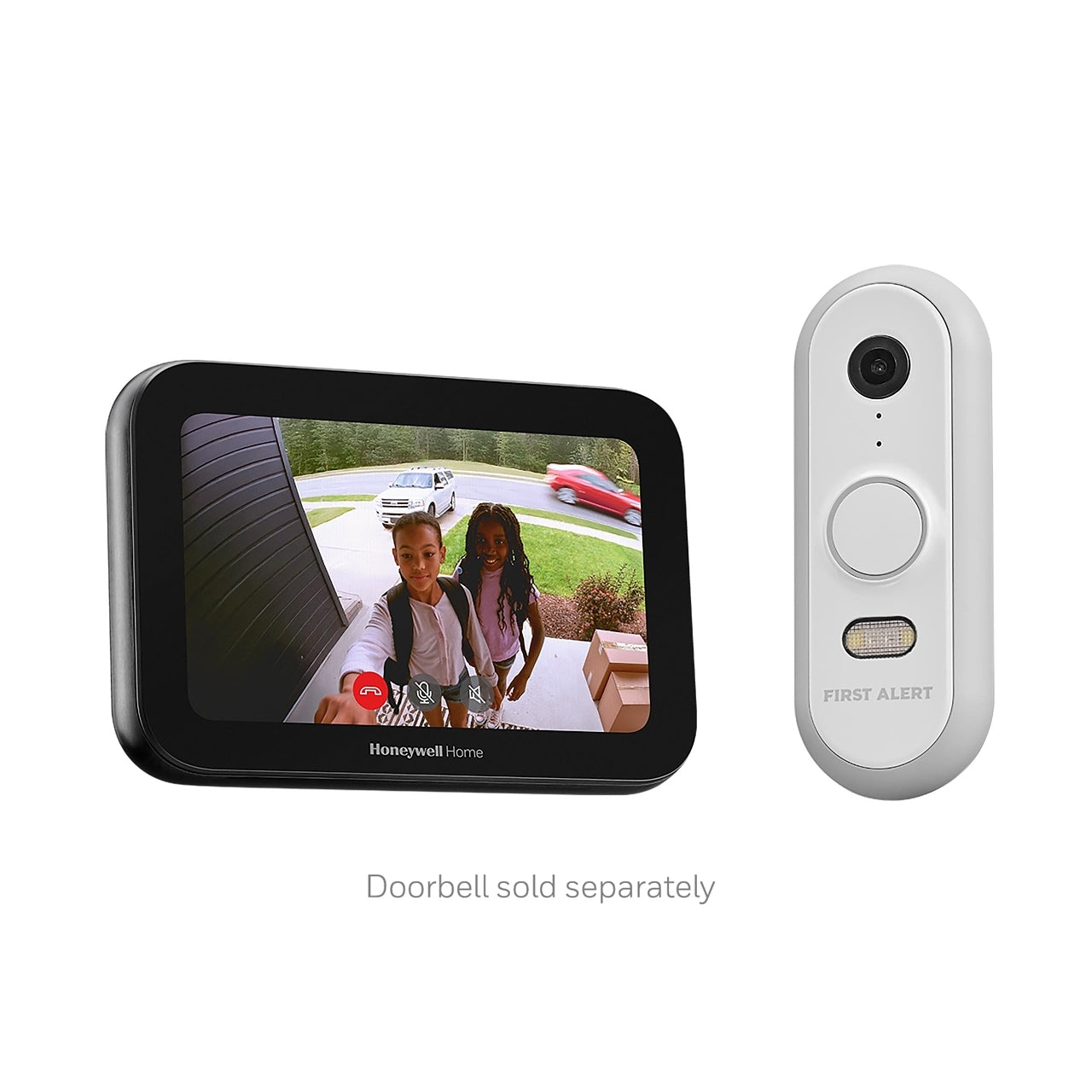

- Streams video from First Alert®; and Ring®; doorbells
- Works with residential and commercial systems up to 4H/2C heat pump or 3H/3C conventional
- Control up to 2 IAQ devices¹ with configurable outputs

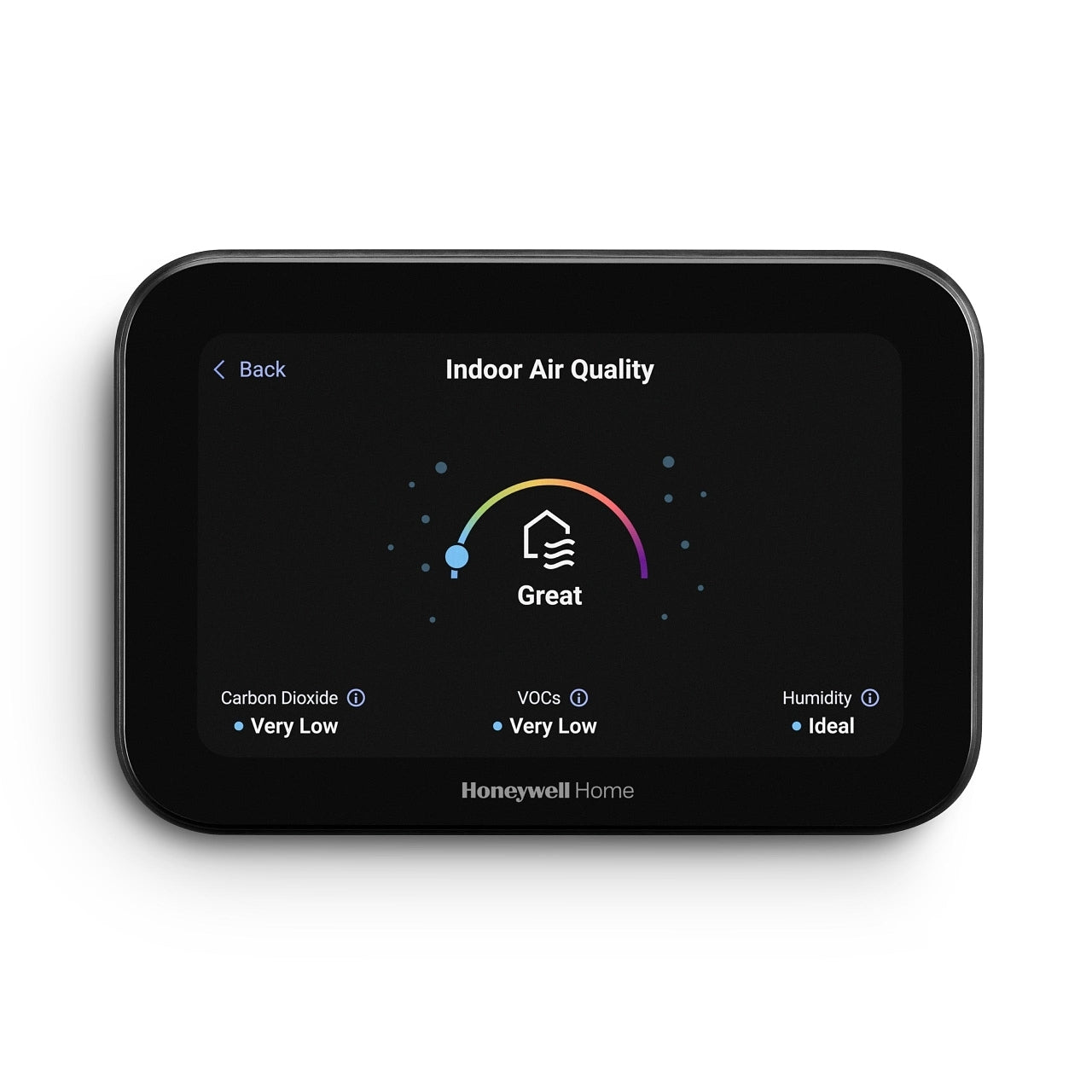

- Monitor indoor humidity, VOC, and estimated CO₂
- Expandable application coverage and simplified installation with use of equipment interface module1 (EIM)
- Compatible with dual fuel, fan-coil, PTAC, and radiant systems
- Advanced occupancy detection helps save energy2
- Redlink™ 3.0 technology connects wirelessly with Room Sensors (temp, humidity, & motion), EIM, and Outdoor Sensors (temp & humidity)
- Prioritize the comfort of the room of choice with remote Room Sensors3
- Added Pro-IQ benefits4
- Create, save, and apply installation templates using the Resideo Pro app for fast setup and reduced errors
- Display company info on-device and in-app for easy customer contact
- Monitor HVAC alerts and remotely modify settings to quickly resolve
1Additional equipment or accessories may be required /2Auto-away feature enablement required /3Additional sensors sold separately/4Pro-IQ enrollment required
Specifications
|
Application: |
Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control. |
| Dimensions (in.): | 5.25 W X 3.54 H X 0.96 D |

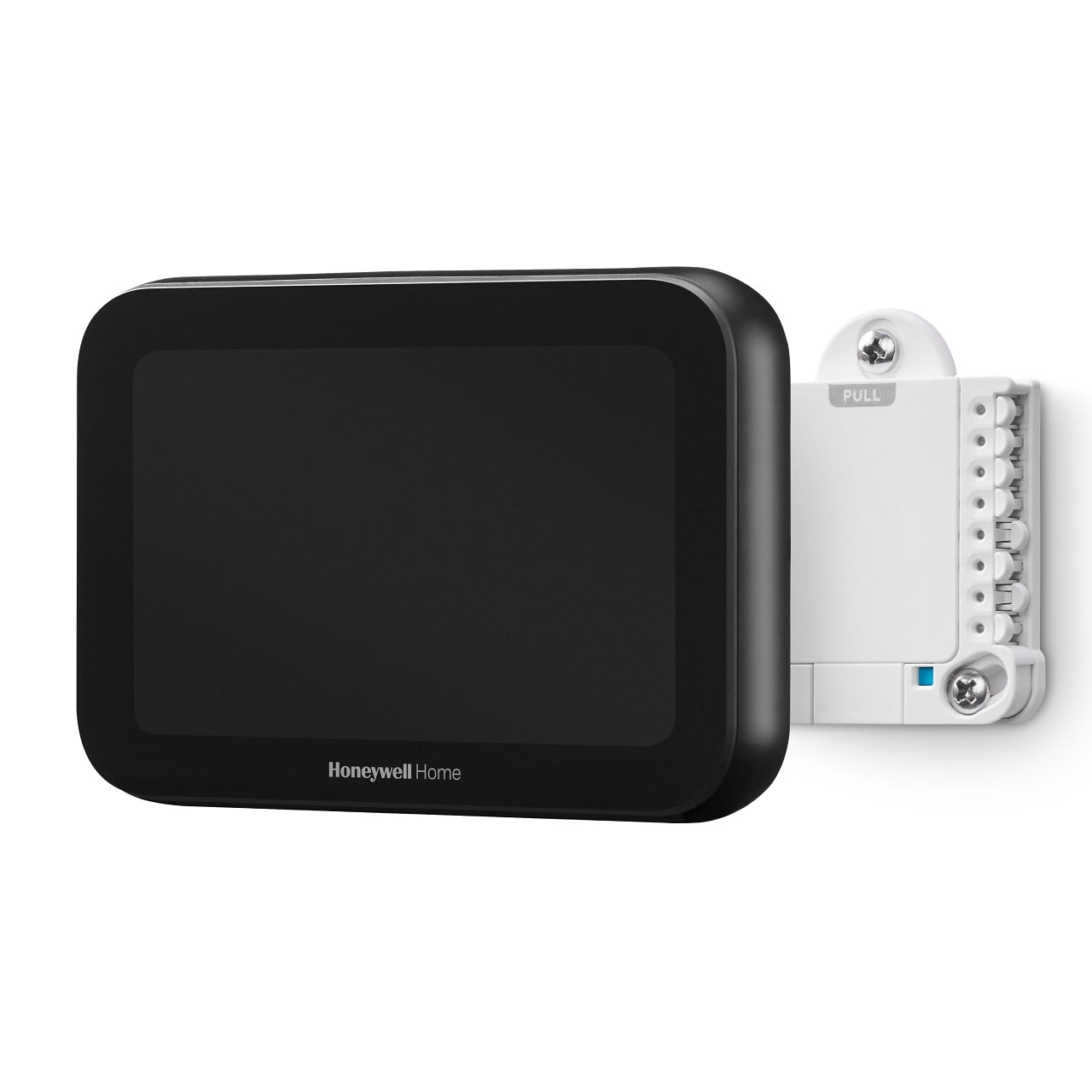

| Includes: | ElitePRO™ S1200 Smart Thermostat in Black, UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature |
| Electrical Ratings: | 20 to 30 Vac |
| Frequency: | 60 Hz |
| Stages: | 4H/2C Heat Pump or 3H/3C conventional |
| Operating Humidity Range (% RH): | 5 to 90% RH, non-condensing |
| Switch Positions (System): | (Touchscreen) Heat, Off, Cool, Auto, Emergency Heat |
| Switch Positions (Fan): | (Touchscreen) on, auto, circ, (fan speeds for some systems) |
| Operating Temperature Range (F): | 37 F to 102 F |
| Network Communications: | WiFi |
| Power Method: | Hardwired |
| Ambient Temperature Range (F): | 32 F to 120 F |
| Display: | Touchscreen |
| Programmability: | Time-Based or Smart Away; Residential or Commercial |
| Terminal Designations: | R, RC, C, W, O/B, G, Y, Y2, W2-AUX, E, L-A, K |
| Energy Star Certified: | Yes |
| Display Size: | 5 sq. in |
| Changeover: | Auto or Manual |
| Setting Temperature Range (F): | Heat: 40 °F to 90 °F|Cool: 50 °F to 99 °F (with optional limits) |
| Humidification Setting Range: | 0% to 90% RH |
| Dehumidification Setting Range: | 10% to 100% RH |
Replaces These Models
THX321WF2003W/U, THX321WF2003W/UA, THX321WF3003W/U, THX321WF3003W/UA, THX8321WF1001/U, TH8321WF1001/UA
