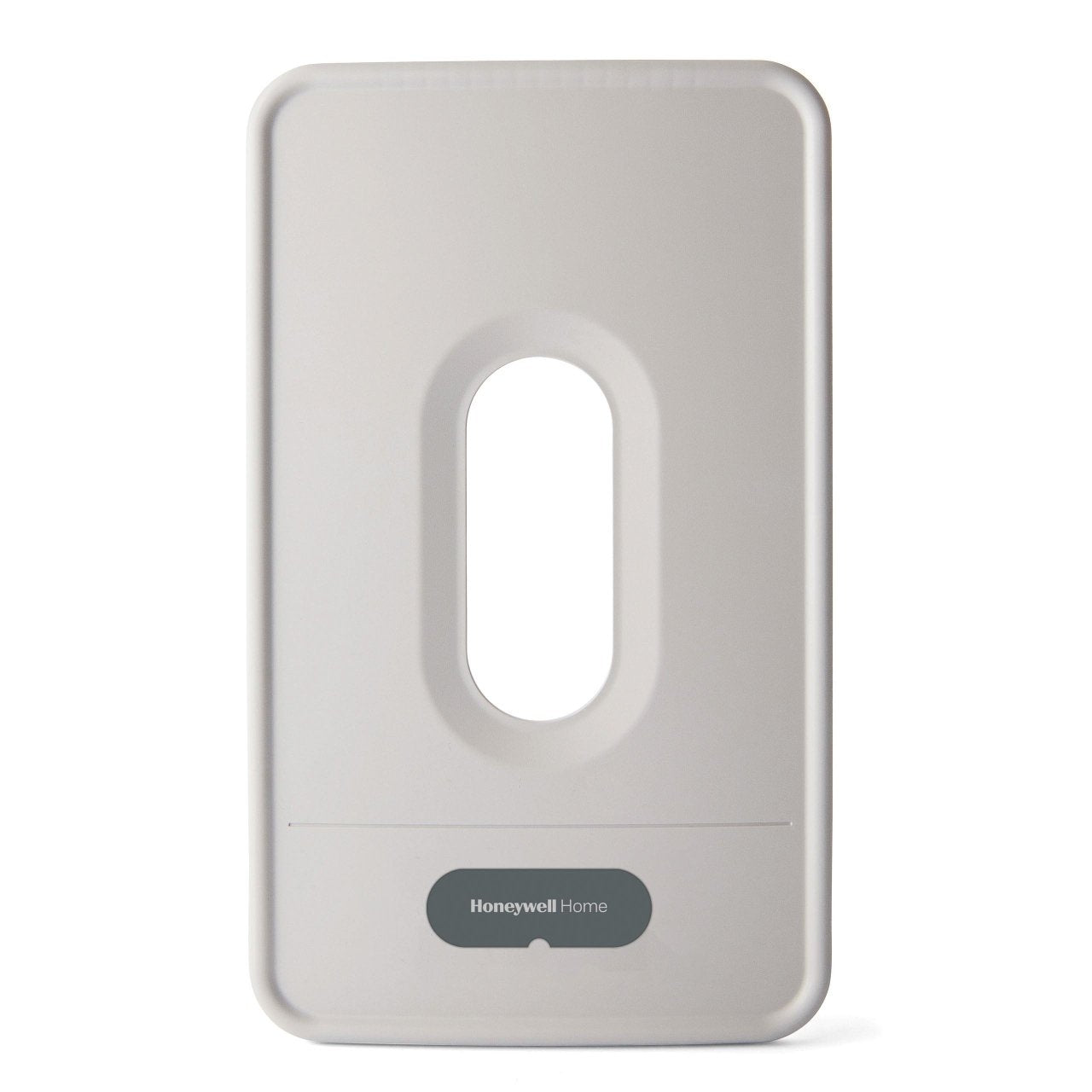

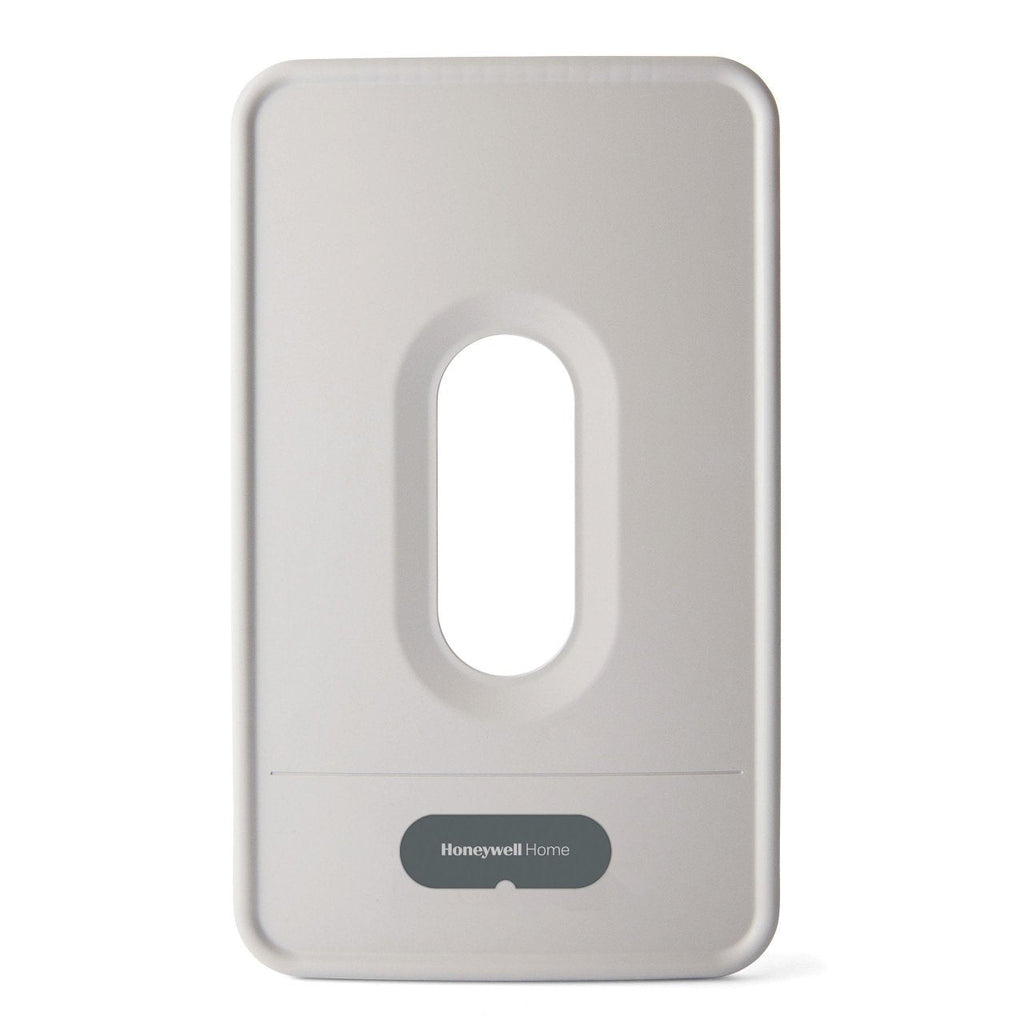

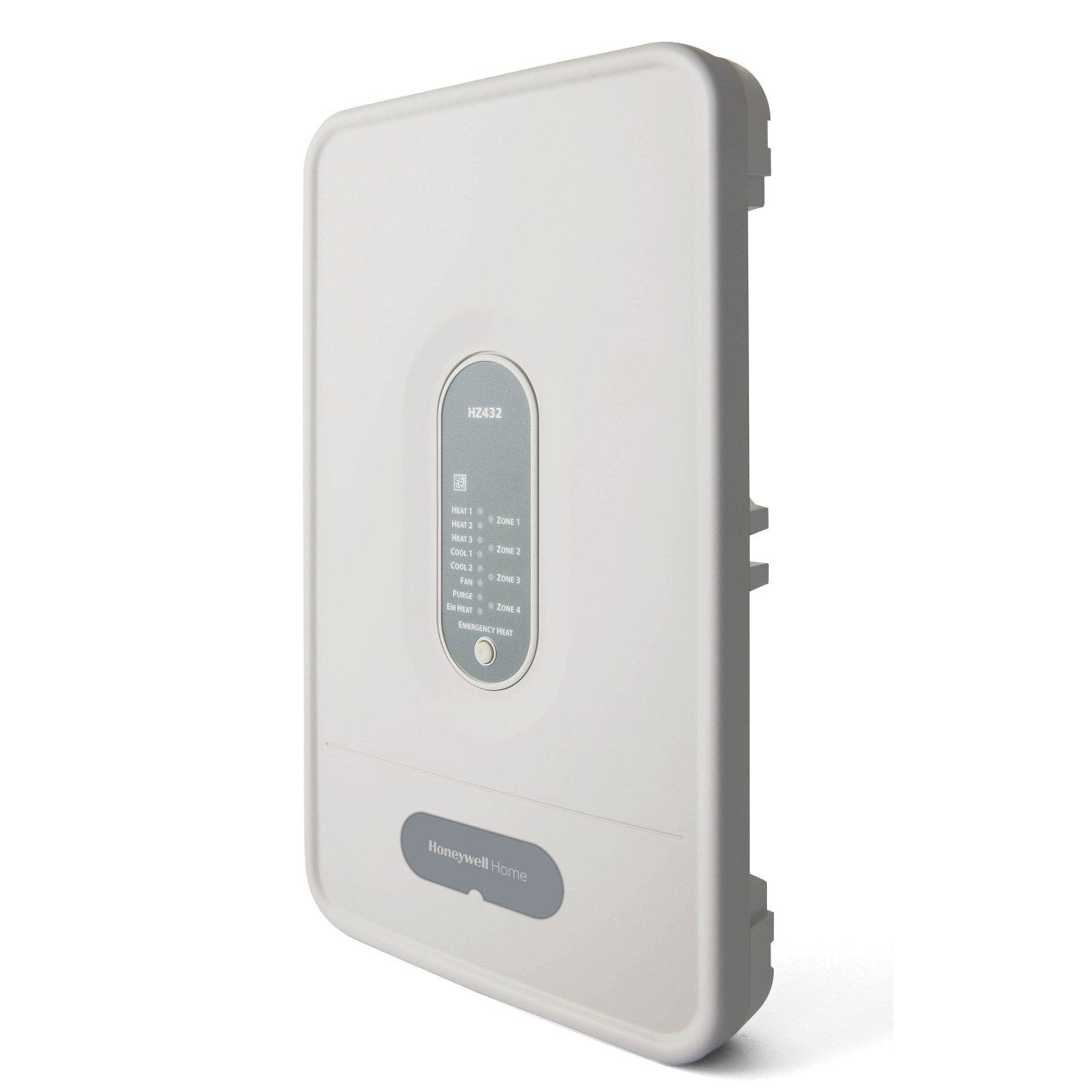

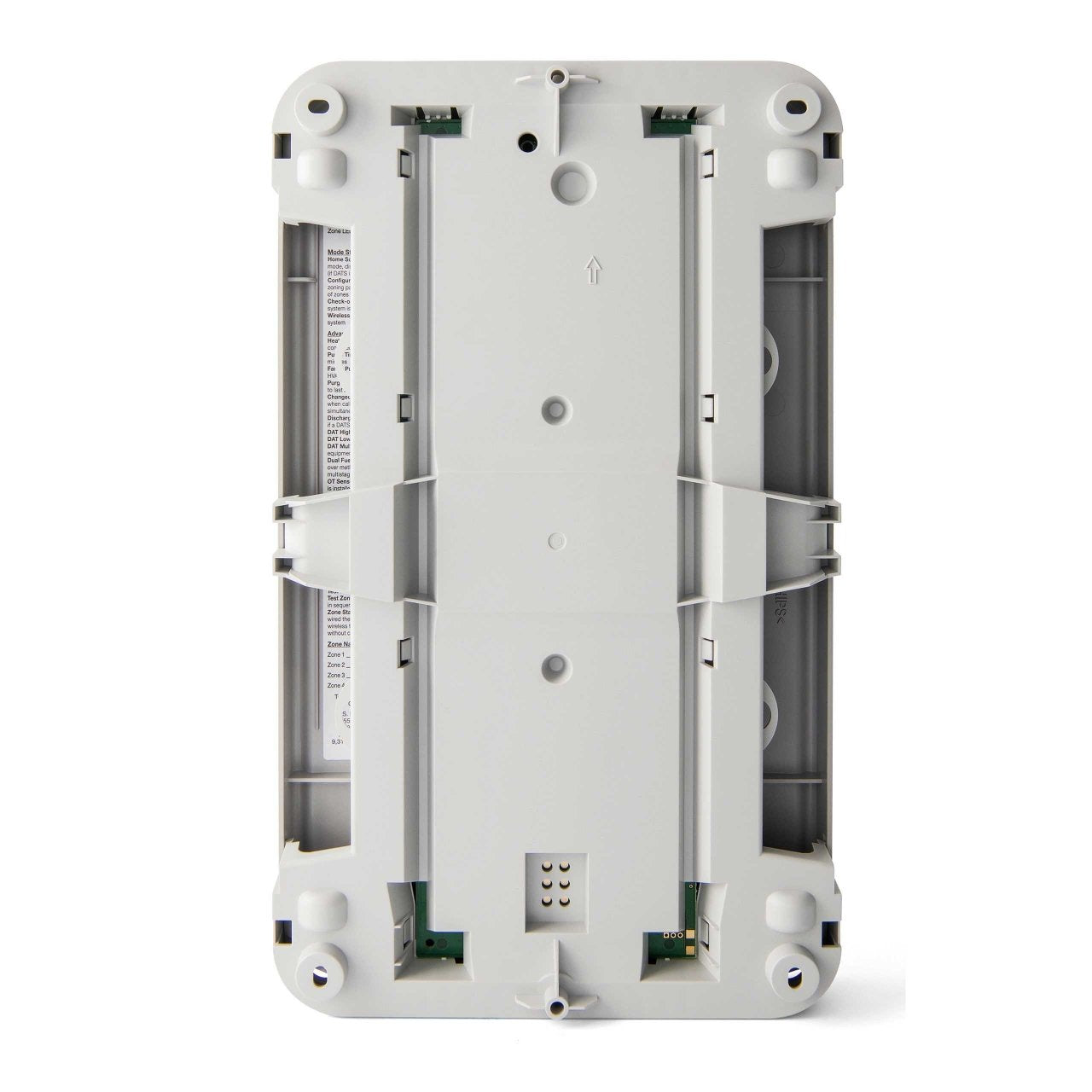

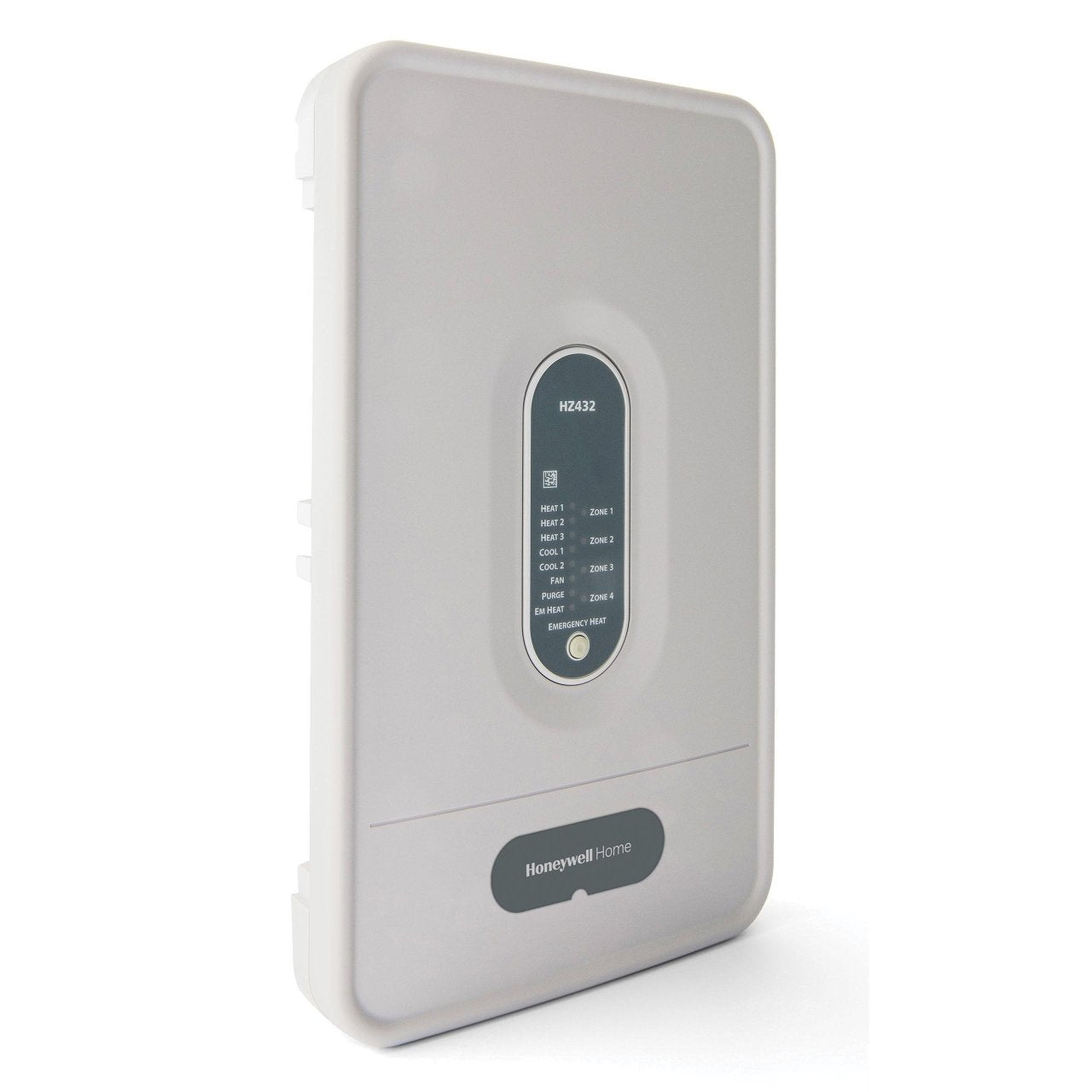

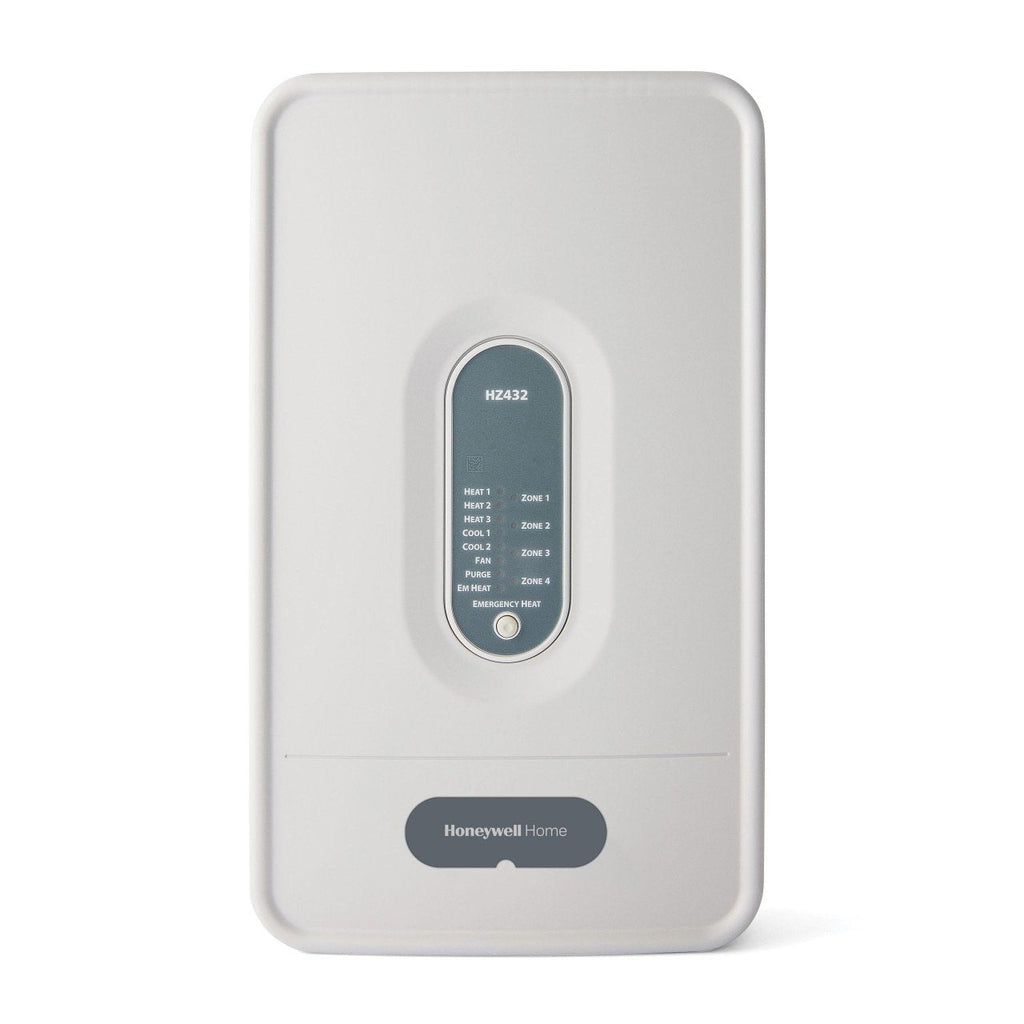

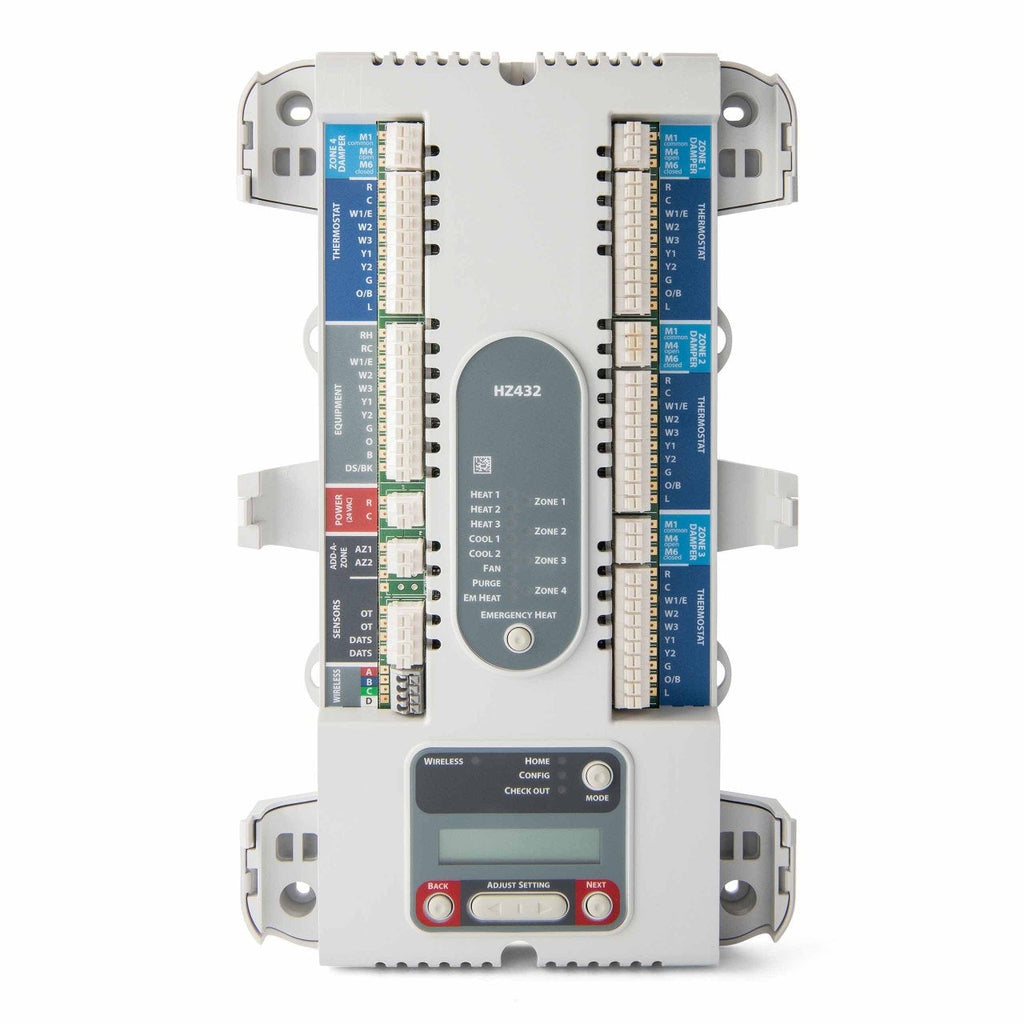

Honeywell Home HZ432/U TrueZONE® Control Panel, 4-Zone, 3 Heat/2 Cool
$437.72
SKU HZ432/U
Honeywell Home HZ432/U TrueZONE® Control Panel, 4-Zone, 3 Heat/2 Cool
Products usually ship within 1 business day.
Ready for easy professional installation in four steps, the TrueZONE® HZ432 Panel can be used with conventional, heat pump or dual fuel applications up to 4 zones. Get confirmation that the panel is operating properly before you ever leave the job site.
Features:
- Intuitive Installer setup. Easy-to-follow, digital display uses real language to guide installer through four easy steps
- Standard Checkout Procedure
- Robust Push Terminals
- Variable-Speed Fan Control
- >Discharge Air Temperature Staging
- Advanced Dual-Fuel Operation
- RedLINK™ enabled for up to 4 wireless zones when used with THM4000R1000 Wireless Adapter
- Controls up to 3 Heat/2 Cool conventional or heat pump
- Controls up to two stages compressor and two stages fossil fuel in dual fuel mode
Brochure for Zoning Product Line
TrueZONE Panels Features and Benefits
TrueZONE Zoning System Worksheet
TrueZONE Zoning Panel FAQ
Zoning Products Catalog
Professional Installation Guide for HZ432 TrueZONE Panel
Specifications
|
Application: |
Zoning |
| Dimensions (in.): | 13.42" H x 8" W x 1.86" D |
| Voltage: | 24V |
| Includes: | HZ432 Zone Control Panel |
| Stages: | 3 Heat/2 Cool |
| Number of Zones: | 4 Zones (expandable to 32 with TAZ-4H panels) |
| LEDs: | Yes |
| Auto Changeover: | Yes |
| Heat Pump Compatible: | Yes |
| Compatible with Sensor: | Discharge Air Temperature Sensor |
| Emergency Heat Switch: | Yes |
| Resettable Fuse: | Yes |
| Individual Zone Fan Control: | Yes |
