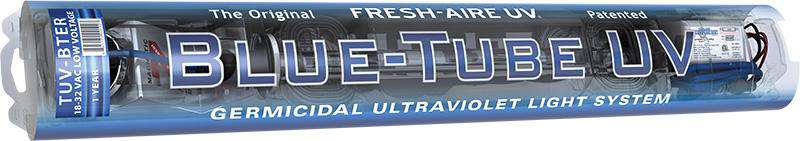

Fresh-Aire UV Blue-Tube UV TUV-BTER2 18-32 VAC, 2-Year UV Lamp

$193.99
SKU TUV-BTER2
Currently 2 in stock.

Fresh-Aire UV Blue-Tube UV TUV-BTER2 18-32 VAC, 2-Year UV Lamp

Products usually ship within 1 business day.

Best-Selling Germicidal UV Light

Blue-Tube UV is the single most popular germicidal UV light product for HVAC systems in the world. Home owners breathe easy knowing that the air their family breathes is protected by this proven technology. Blue-Tube UV is the simple, safe, and effective way to keep your air system clean and improve indoor air quality.

Award-Winning Design

Blue-Tube UV features a number of patented innovations from Fresh-Aire UV. The original low-voltage UV light kit for HVAC has been updated to include a magnetic mounting bracket and now has a 110-277 VAC high-voltage power supply option. Choose one or two year lamps.

How Blue-Tube UV® Works

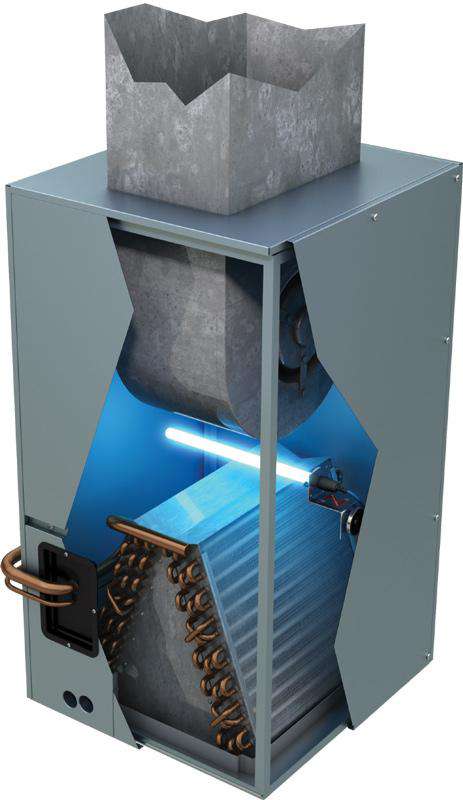

Blue-Tube UV is installed in the central air system where it works continuously to fight mold and other biological contaminants in the air and on HVAC system interior surfaces, particularly the cooling coil. For over a century scientists have known that certain frequencies of light have a devastating effect on microbial life. We now know that exposure to ultraviolet light in the range of 254 NM (UV-C band) disrupts the DNA of micro-organisms thus preventing them from reproducing, thereby effectively killing them.



Spec Sheets

Manual




    SPECIFICATIONS
    UV Lamp: 254 NM germicidal UV-C, quartz hot filament
    Dimensions:

    Lamp:  15"L x 0.74" Dia.

    ER Power Supply:  4.1"W x 1.7"H x 1.8"D

    ST Power Supply:  5.0"L x 1.1"W x 2.4"D

    ER Models Electrical:

    18-32 VAC, 60 Hz, 0.68 AMps, 16 VA

    Kit Includes:

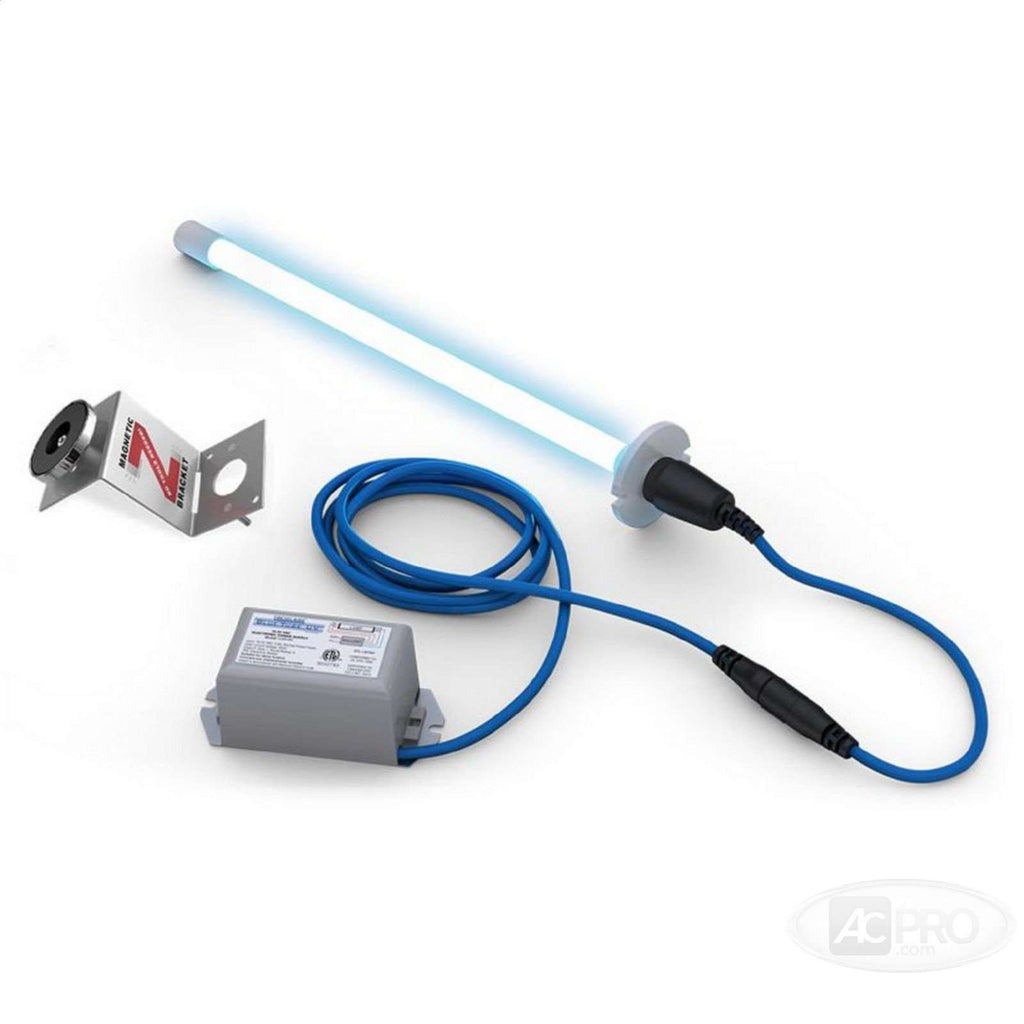

    Power Supply, 6' Lamp Cord, UV Lamp, Magnetic 'Z' Bracket, Mounting Hardware, Panel Indicator, Installation Sticker

    Warranty:

    Lifetime for all parts except lamp



    IMPORTANT!

    • Only qualified technicians should install this product*
    • Install in accordance with relevant building codes
    • Read instructions carefully including safety warnings

    *Installation of this product by anyone other than licensed HVAC or electrical contractors voids warranty
