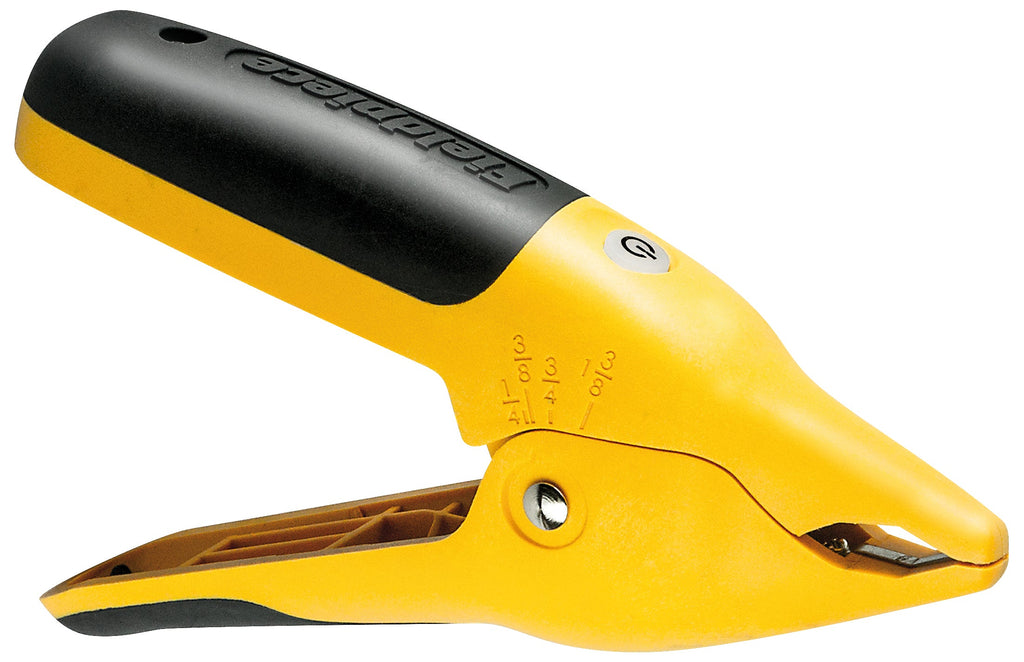

Fieldpiece JL3PC Job Link® System Premium Pipe Clamp Probe

Save 15%
Original price $114.00
Current price $96.90
SKU JL3PC

Fieldpiece JL3PC Job Link® System Premium Pipe Clamp Probe

Products usually ship within 1 business day.

Job Link® System Pipe Clamp Probe - Lightening Fast and Extremely Accurate
The JL3PC pipe temperature wireless clamps feature patent pending Rapid Rail™ Sensor Technology that uses electrically conductive pipe to complete the circuit so readings stabilize in 3 seconds and are not affected by ambient air. One beep with a slow green blinking light indicates a closed circuit.  If the pipe is corroded the circuit will be open and will not read temperature.  The clamp will indicate the open loop with a double beep and rapid blinking light.  Simply clean the pipe to enable the circuit to be closed and allow fast readings with +/- 1° F accuracy.

  • LED and beep indicate accurate connection
  • Ambient air conditions do not affect measurements
  • Narrow jaw connects in tight spaces
  • Water resistant

350' Wireless Range
Connect pipe clamps directly to the Job Link app, or connect directly to the new SM380V or SM480V refrigerant manifolds.  There is no JL2 transmitter required for either application.

  • Powerful 350' wireless range w/no transmitter required
  • Needle nose to fit in tight spaces
  • Stabilizes in 3 seconds with +/- 1° F accuracy
  • Communicates with Job Link App and Wireless Manifolds (SM380V/SM480V)



SPECIFICATIONS

 Wireless Range 350 feet (107 meters) line of sight, obstructions affect distance
Wireless Frequency 2.4 GHz
Battery 2 x AAA (included)
Battery Life 150 hrs typical alkaline
Auto Power Off (APO) 2 hrs (can be disabled)
Minimum Device Requirement BLE 4.0 devices running iOS® 7.0 or Android™ 5.0
Best Accuracy ±1°F (±0.6°C)
Measurement Range -50°F to 257°F (-46°C to 125°C)
Pipe Compatibility Electrically conductive 1/4" to 1-3/8" dia. (6.4mm to 34.9mm) dia.
Stabilization Time 3 seconds typical
Water Resistance Designed to IP55
