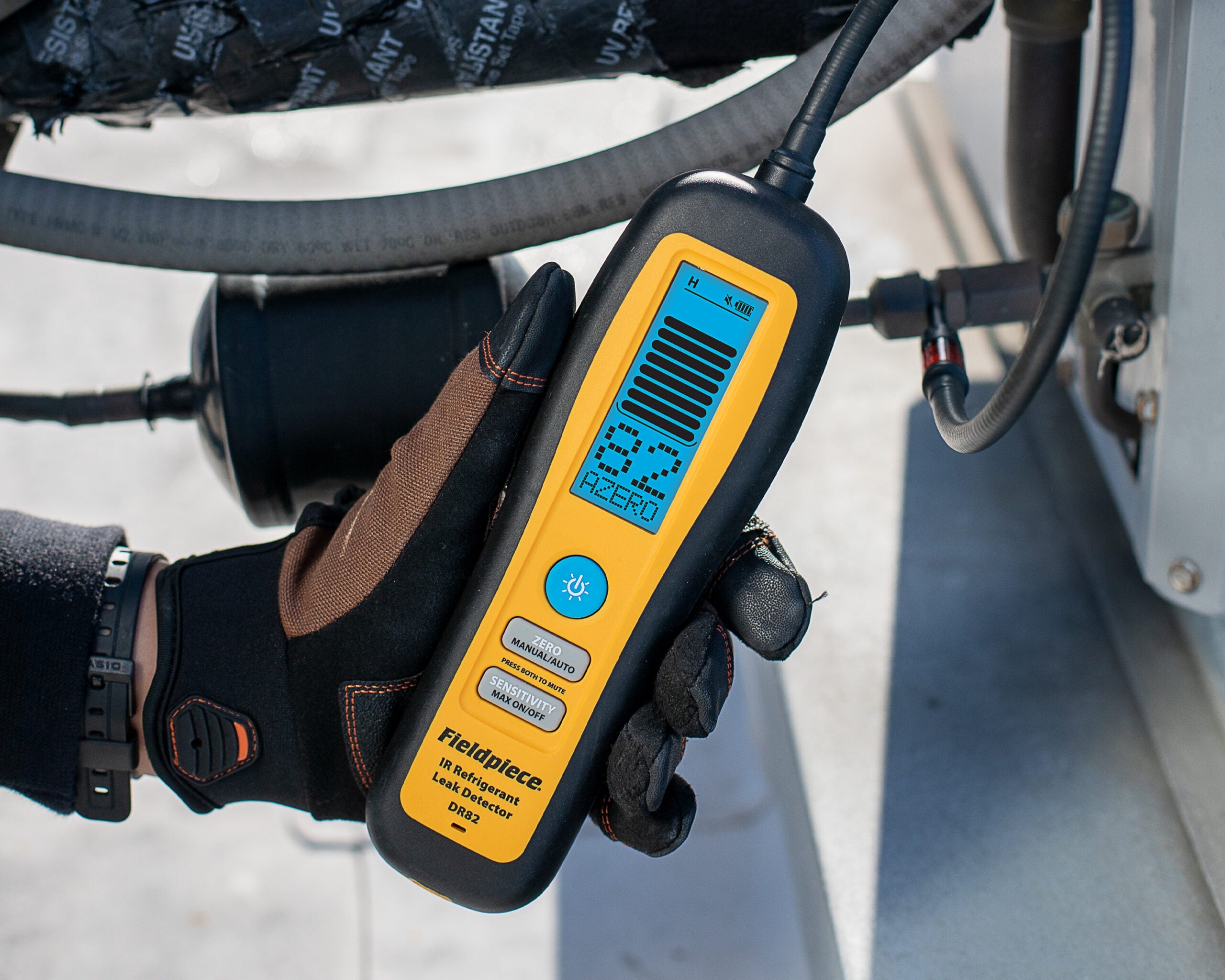

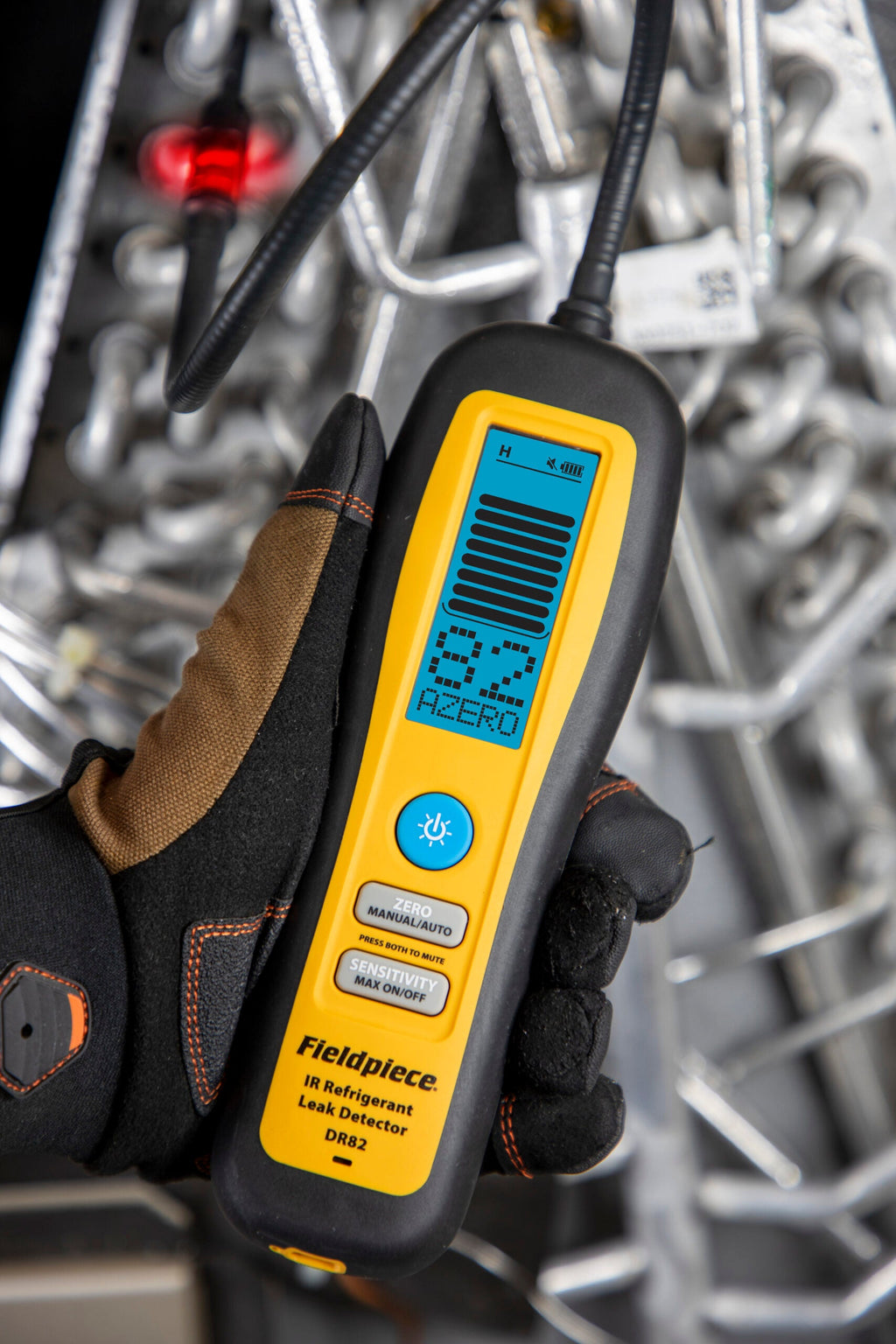

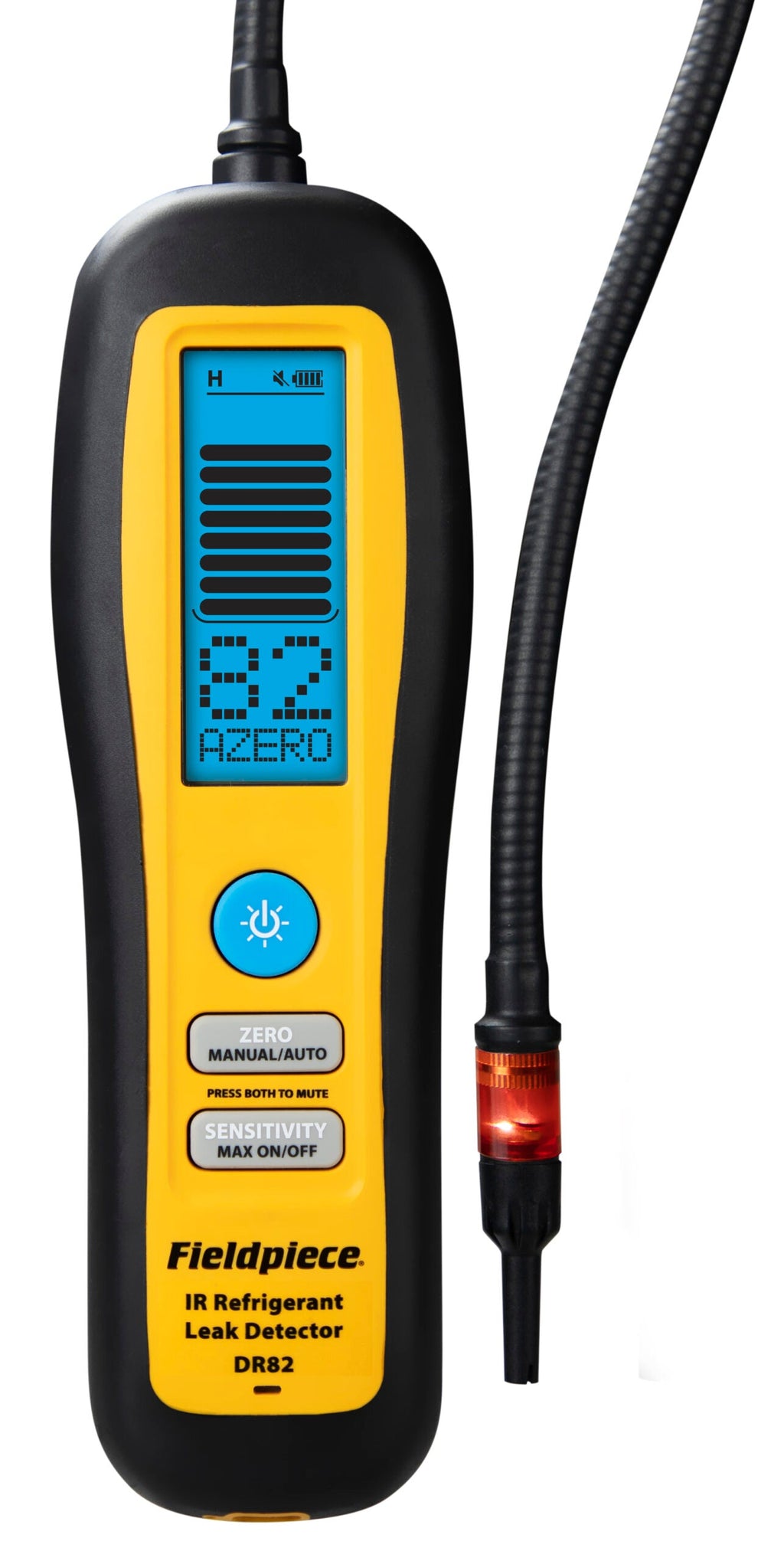

Fieldpiece DR82 Infrared Refrigerant Leak Detector

Save 15%
Original price $581.00
Current price $493.85
SKU DR82
Currently 3 in stock.

Fieldpiece DR82 Infrared Refrigerant Leak Detector

Products usually ship within 1 business day.

Easy to see it’s more reliable.

  • State-of-the-art infrared sensor
  • Massive backlit LCD screen provides clear, easy-to- see information
  • Sensitivity better than 0.03 oz/yr (1g/a)
  • Detects all HFC, CFC, HCFC, HFO  and blends
  • Flashing lighted tip, loud beeper and leak rate indicator
  • Doesn’t trigger on soap bubbles and oil

The highest possible sensitivity.

If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <0.03 oz/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends.



Goodbye false-positives.

Unlike other detectors you’ll find on the market, the DR82 doesn’t trigger on oil or moisture. It also senses change in refrigerant levels and can work in contaminated environments. The sensors are fast-acting and last up to 10 years.

Easy to use, see and charge.

The DR82 is designed to easily fit in your hand and is rugged enough to handle the demands you face in the field every day. Its new, bright screen has an easy-to-read bar graphs, numeric readings and customizable dual alarms so you’ll always know exactly what you’re seeing. The DR82 also holds a charge for up to 10 hours and can be used while charging, so it can work as long as you need.

DR82 Features:

  • 10-year sensor life
  • Doesn’t trigger on soap bubbles and oil
  • Compact – designed to fit in your hand
  • Multiple alarms
  • LED lighted tip and loud beep help find leaks in noisy and dark environments
  • Sensitivity better than 0.03 oz/yr (1g/a)
  • Ruggedized and IP54-certified
  • 10-hour battery charge
  • Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
  • Non-conductive, sturdy probe that stays where you want it.
  • Weighs less than a pound
  • Works on A2L Refrigerants

What’s Included

  • (1) Advanced Infrared Refrigerant Leak Detector – DR82
  • (5) Replacement Filtered Tips – RFT6
  • (1) Blow-Molded Case

    Specifications

    • Sensor Type: Infrared (IR)
    • Sensor Life: 10 years typical
    • Sensitivity Levels: High, medium, low, turbo (selectable)
    • Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
    • Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
    • Refrigerants: HFC, HCFC, CFC, HFOs, and blends
    • Response Time: <1 seconds typical
    • Recovery Time: <5 seconds typical
    • Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
    • Charge Time: 6 hours typical with included charger.
    • Battery Life: 10 hours typical, backlight off
    • Auto Power Off: 10 minutes without detection or button press
    • Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
    • Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH
    • Weight: 14 oz (400g)
    • Water Resistance: Designed to IP54
    • US Patent: www.fieldpiece.com/patents
