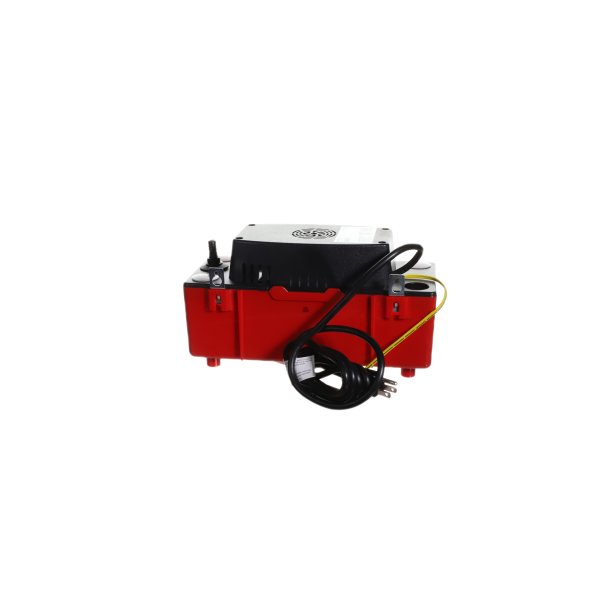

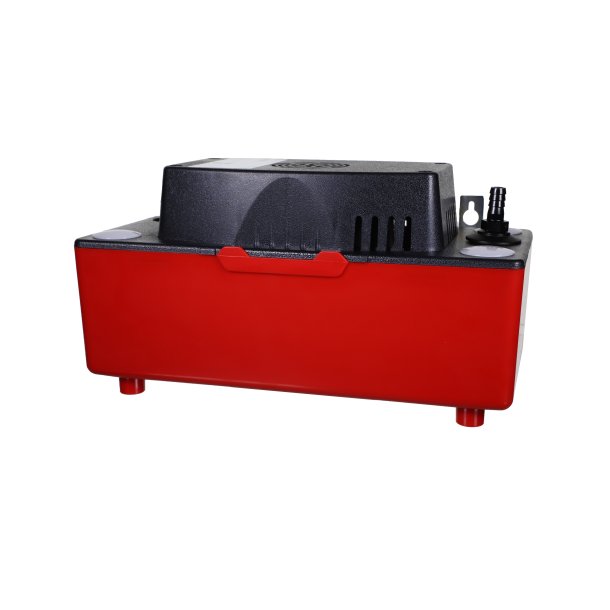

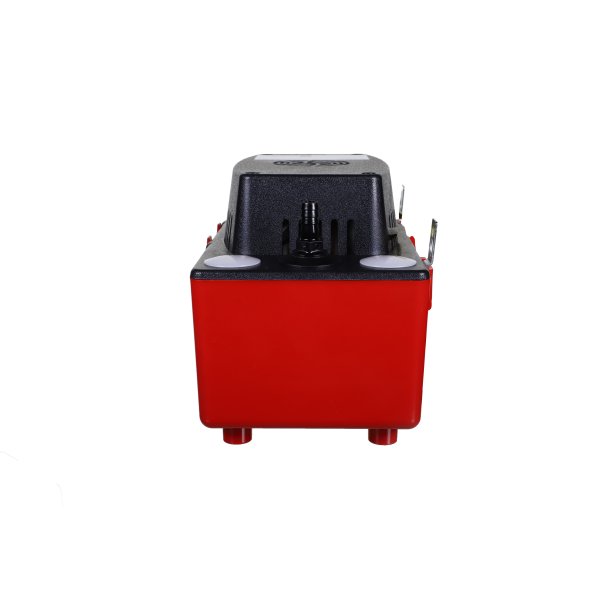

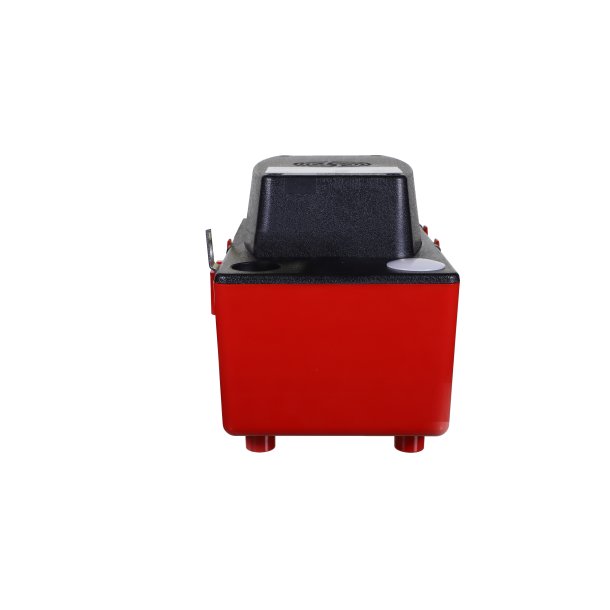

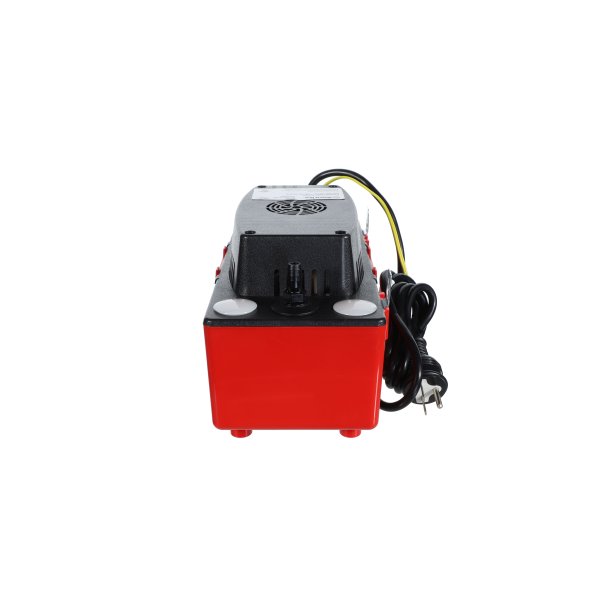

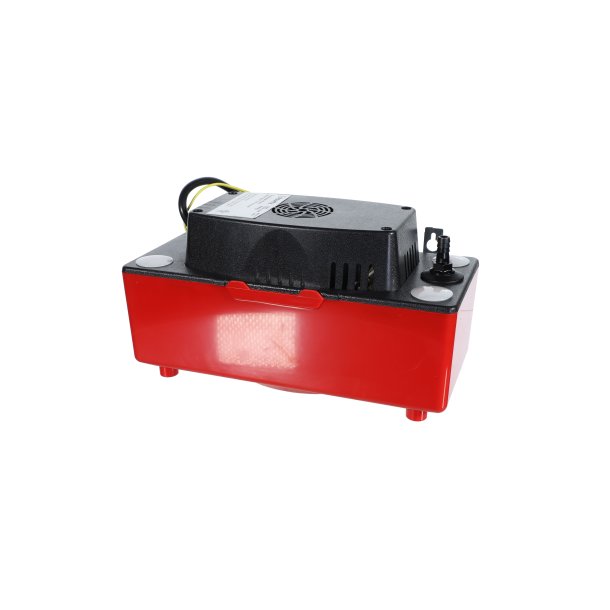

DiversiTech Asurity™ PROCP-22S-230 Condensate Pump, 22ft. Lift, 230V
$67.41
SKU PROCP-22S-230
DiversiTech Asurity™ PROCP-22S-230 Condensate Pump, 22ft. Lift, 230V
Asurity® PROCP-22S series pumps beat the industry standard of 20’ lift height by 2 feet
and come with innovative features such as: vibration dampening motor mounts, metal
mounting tabs, four inlet holes (and 3 poly covers for the unused), built in safety
overflow switch for added protection and detailed installation instructions. PROCP-22S
is also available with 20’ of 3/8” tubing as well.
and come with innovative features such as: vibration dampening motor mounts, metal
mounting tabs, four inlet holes (and 3 poly covers for the unused), built in safety
overflow switch for added protection and detailed installation instructions. PROCP-22S
is also available with 20’ of 3/8” tubing as well.
The Asurity® PROCP-22S-230 Condensate Pump is a 230 volt pump for standard applications with 22 ft of lift.
- 22 ft maximum lift height
- Built-in safety overflow switch
- Suitable for condensate up to 160° F
- Suitable for condensate up to 160° F
- Sturdy metal hang tabs
- Includes removable check valve
- 4 inlet holes
Data Sheet
Specifications
| Volts: | 230 |
| Input Type: | NEMA 6-15 Plug |
| Hertz: | 60 |
| Horsepower: | 1/30 |
| Floatless Sensor: | No |
| High Level Switch: | Yes |
| Max Condensate Temp. (Degrees): | 160°F |
| Max Flow Rate (GPH): | 132 |
| No. of Inlets: | 4 |
| Self-Cleaning: | No |
| Tank Capacity (Gal.): | 1/2 |
| Variable Speed and Lift: | No |
| Discharge Line (In.): | 3/8 in |
| 108 | |
| Ducted or Ductless: | Ducted |
