CPS® VG200W Vacrometer® Wireless Digital Micron Vacuum Gauge

$212.83
SKU VG200W

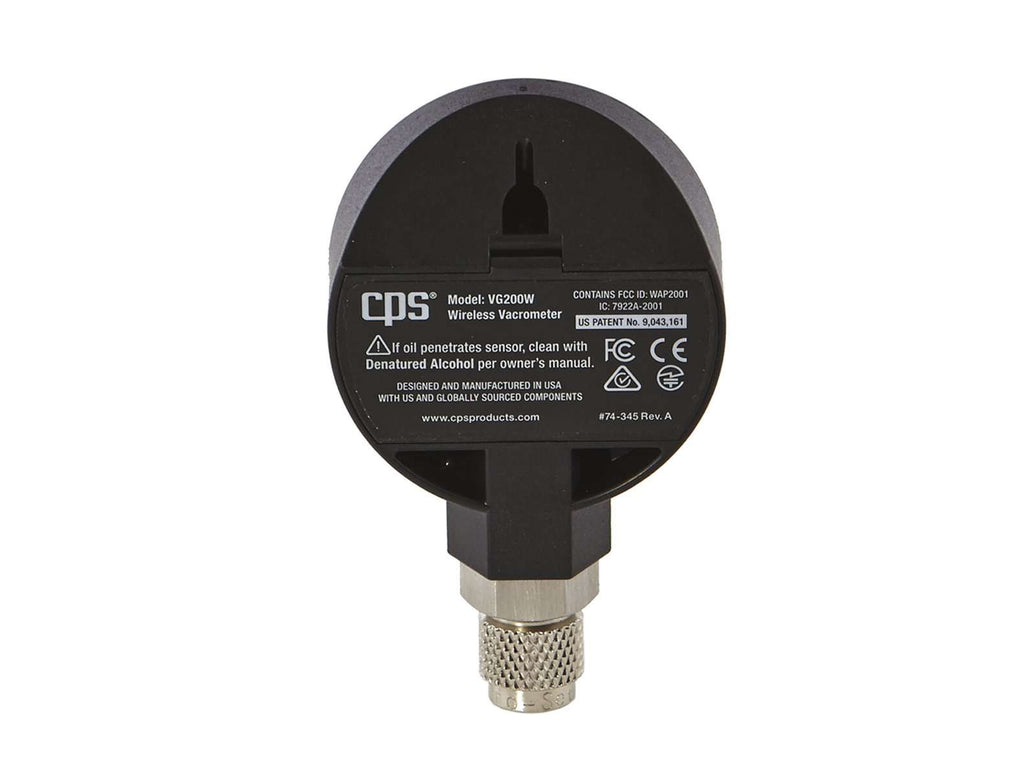

CPS® VG200W Vacrometer® Wireless Digital Micron Vacuum Gauge

Products usually ship within 1 business day.

The VG200W is a precision digital vacuum gauge for obtaining accurate vacuum measurements during evacuations of HVAC and refrigeration systems.

It is also ideal for obtaining vacuum data while conducting time, target, dynamic and static vacuum tests. The VG200W may be used as a standalone gauge, or it may be paired with a mobile device (using the free CPS Link app) for greatly enhanced jobsite capabilities.

KEY FEATURES

• Large, 5 digit LCD display with low battery indicator
• Easy 2 button control (On/Off and Units)
• Select from 4 different vacuum units (at any time).
• Atmospheric to 0 micron pressure range
• Auto-Off after 10 minutes of no use
• Operates up to 20 continuous hours on one 9V alkaline battery (included)
• Compatible with all refrigerant gases (including ammonia)
• Field cleanable sensor

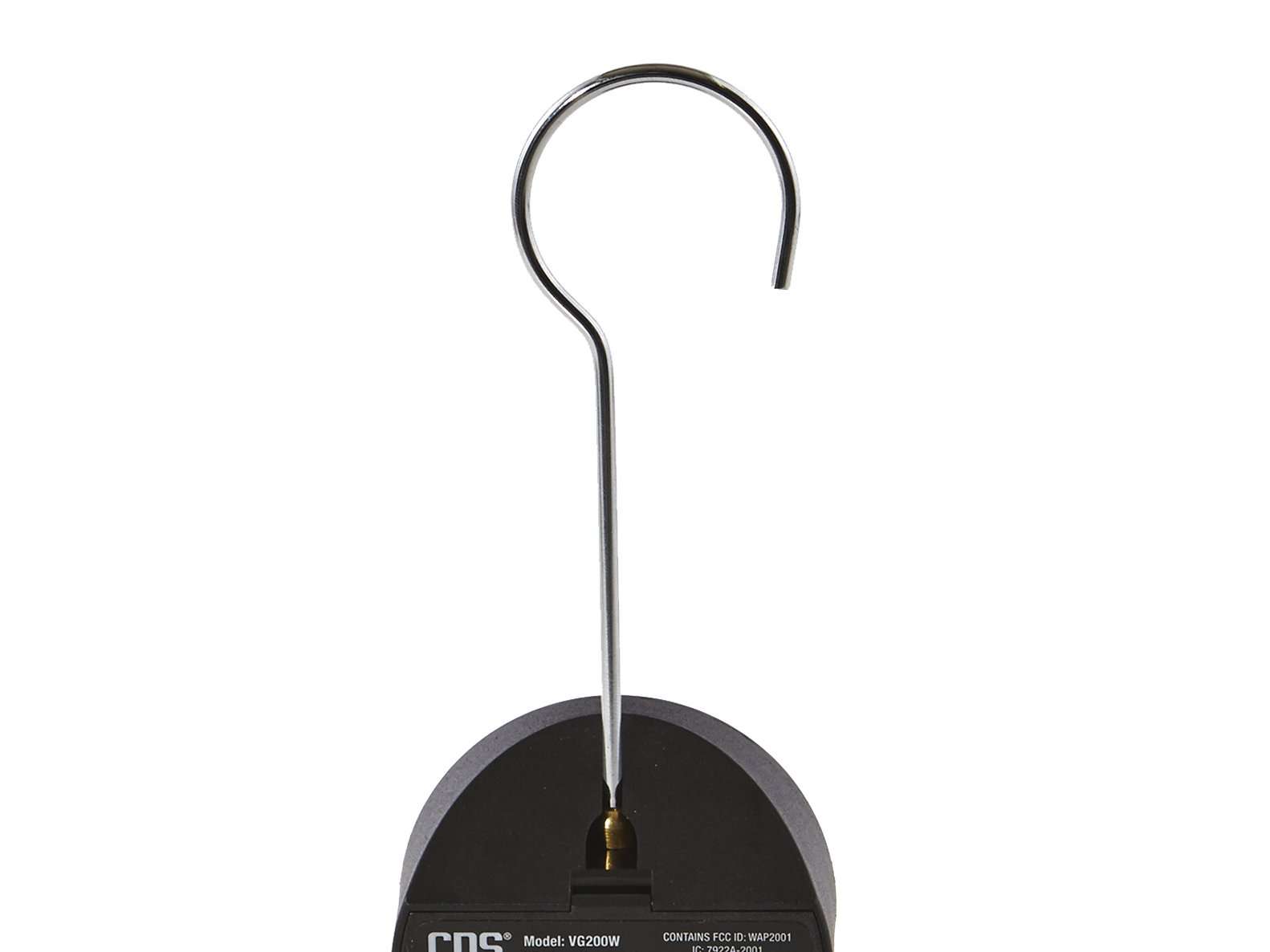

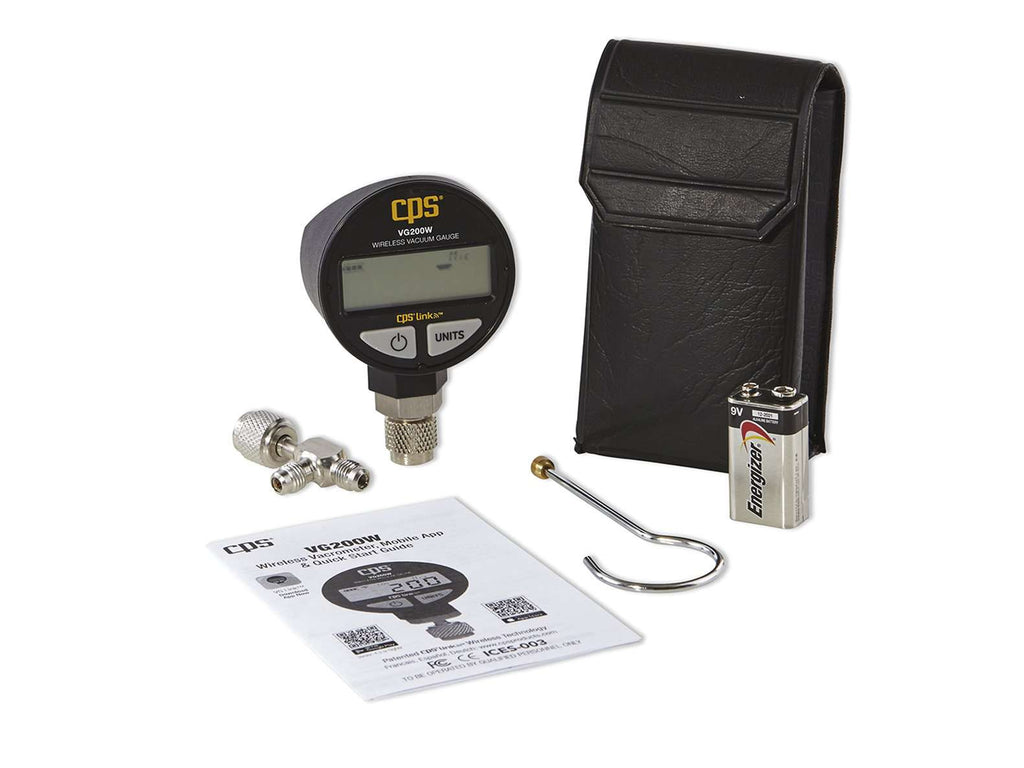

• Includes stainless steel T connector, hanger hook, vinyl storage case, and Quick Start Guide - all packed in a clear clamshell
• Designed and manufactured in the USA with US and foreign components

GREATER FUNCTIONALITY WHEN USED WITH CPS LINK™ APP

• Choose from 8 different languages to work in
• Log vacuum test data (viewable in real time graphs)
• Client Lists- Enter and retain client information
• Job Checklist- Create and retain job reminders
• Job Tracker- Create and retain record of services performed
• Geolocation- Record where (global coordinates) and when (time stamp) jobs performed
• Set low and high alarms
• Cloud backup of data

SPECIFICATIONS (STAND ALONE GAUGE)

Gauge Type:  Digital Vacuum Gauge (use as standalone gauge, or pair with a mobile device)
Sensor Type:  Self - heated thermistor bridge [with integral temperature compensation from 32° F to 122° F (0 to 50° C)]
Accuracy:  Up to 2,000 microns = 10% of reading +/- 5 microns
Resolution:  2000 microns : 98000 to 76000
                    1000 microns : 75000 to 50000
                      500 microns : 49500 to 25000
                      100 microns : 24900 to 10000
                        50 microns : 9950 to 5000
                        20 microns : 4980 to 1000
                        10 microns : 990 to 100
                          1 micron below 100
Display Type (Gauge):  LCD, 5 Digit
Display Auto-Off:  10 minutes = default if no key pressed, no wireless connection, gauge not logging data
Operating Range:  Atmospheric pressure to 0 microns
Selectable Vacuum Units (Gauge & Wireless Device):  Microns, Millibar, Inches Hg, Torr
Maximum Working Pressure:  450 PSIG MWP, 3000 PSIG Burst (Connect to system only at 0 PSIG)
Operating Temperature Range (Compensated):  Accuracy as stated: 32°F to 122°F (0°C to 50°C)
Operating Temperature Range (Non-Compensated):   Add +/- 0.5% error for every °C
Operating Temperature Range (Outside Compensated):  -22° F to 158° F (-30° C to 70° C)
Operating & Storage Humidity:  0 to 95%, Non-condensing
Storage Temperature Range:  -40° F to 185° F (-40° C to 85° C)
Battery Type:  One 9V Alkaline Battery (ANSI 1604AC – IEC 6LR61), included
Battery Life:  Up to 20 hours continuous use
Battery Level Indicator:  Battery symbol with 3 segments
Gauge Weight:  5.5 oz (156 g)
Mechanical Connection (Stainless Steel):  Standard 1/4” female SAE refrigerant hose with core depressor
Gauge Adapter (Stainless Steel, Included):  1/4˝ SAE Male to 1/4” SAE Male to 1/4” SAE Female
Refrigerant Gas Compatibility:  All (Including Ammonia)
Dimensions (Dia. x Depth x Height):  2.8” x 1.5” x 4.5” (71 mm x 38 mm x 114mm)
Approvals:  FCC, CE, ICES
Origin:  Designed and manufactured in USA with US and globally sourced components

SPECIFICATIONS (WHEN USED WITH CPS LINK™ APP & MOBILE DEVICE)

Gauge To Wireless Device Connection:  Patented Wireless CPS Link™ Technology (US Patent No. 9,043,161)
Wireless Range:  Power: High = up to 250 ft. (76 m); Normal = Up to 175 ft. (53 m); Low = Up to 100 ft. (30 m)
Frequency Range:  2.4 Ghz, ISM Band (Worldwide)
Auto-Off:  10 minutes = default if no key pressed, no wireless connection, gauge not logging data
Battery Indicator:  Green = >40%; Yellow = >15%; Red = <15%
Selectable Languages:  English, Espanol, Francais, Deutsch, Portuguese, Japanese, Russian, Hungarian
Perform Vacuum Tests:  Time, Target, Dynamic, Static
Custom Alarms:  To occur during vacuum tests
Create Client List:  Enter and retain client information (name, address, phone, email, etc.)
Job Tracker:  Create and retain record of services performed (vacuum tests, maintenance, new installation, etc.)
Job Checklist:  Create and retain checklists (task reminders) for reference on current or future jobs
Log Data:  Record vacuum test data (real time graphs)
Geolocation:  Record (global) geographic co-ordinates and “time stamp” when/where job was performed
Create Invoice:  Create and retain job invoices (with job data)
Share Data (E-Mail):  Conveniently store or send all data/job (files) to clients, home office, etc
Cloud Backup:  Securely back up all data on the cloud
