CPS® VG200 Vacrometer® Digital Micron Vacuum Gauge

Save 13%
Original price $207.51
Current price $179.84
Currently 7 in stock.

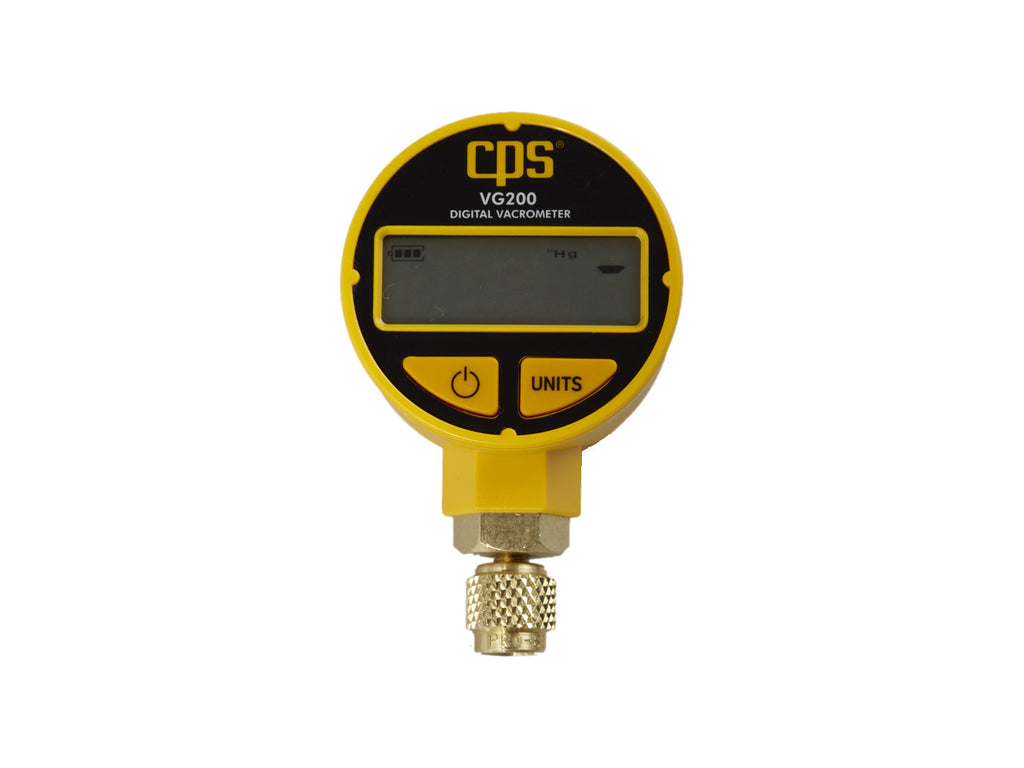

CPS® VG200 Vacrometer® Digital Micron Vacuum Gauge

Products usually ship within 1 business day.

Digital vacuum gauge with 5 digit LCD display reads Microns, Torr, In/Hg or mBar. Calibrated to strict NIST standards for accuracy and reliability

Monitors evacuation procedures from start to finish. Because of strict NIST standards and continuous calibration testing, the VG200 earned a reputation of best-in-class for its accuracy and reliability. A simple 2 button operation gives the flexibility to select or change units: MICRONSMILLIBARTORR and INCHES/HG quickly during any procedure. It will also automatically compensate for varying temperature conditions, with no manual adjustments necessary.

VG200 includes: Gauge Hook, Adapter “T-fitting” and Padded Vinyl Case.

  • Calibrated to strict NIST standards
  • Best-in-class accuracy and reliability
  • Automatic temperature compensation
  • Cleanable sensor, withstands 400 PSI positive pressure
  • Large, easy to read 5-digit LCD display
  • Selectable units: Microns, Torr, in/hg and mBar


VG200 Product Sheet

VG200 Owner's Manual


 Sensor Type: Self-heated thermister bridge with integral temperature compensation from 0 to 50°C (32 to 122°F)
Operating Pressure Range: Atmospheric pressure to 1 micron. Maximum Working pressure:  400 PSIG
Burst Pressure: 3000 PSIG
Operating Range: Atmospheric to 1 micron
Accuracy: ± 10% of Reading
Operating Temperature Range: Compensated (accuracy as stated):  0°C to 50°C (32°F to 122°F); Non-compensated (add ± 0.5% error for every °C outside compensated range):  0 to 50°C (-22 to 158°F)
Operating & Storage Humidity: 0-95%, non-condensing
Storage Temperature: -40 to 185°F / -40 to 85°C
Power Source: One 9 volt alkaline battery (included)
Battery Life: 25 hours of continuous use. Auto-off after 10 minutes.
Weight: 5.5 oz. / 153 g. excluding battery
Dimensions: 68 mm. diameter x 40 mm. deep x 124mm. overall height (2.7" dia. x 1.6" deep x 5" overall height)
Mechanical Connection: Standard 1/4" female SAE refrigerant hose type with core depressor
Battery Indicator: Battery symbol with 3 segment Power Level Bar Graph



**All warranty claims will be handled according to the CPS Products, Inc. warranty policy.**
