CPS Products HP5NG Premium Refrigerant Charging Hoses with SafeMate™ Valves
Save 13%
Original price
$139.43
Current price
$120.84
SKU HP5NG
CPS Products HP5NG Premium Refrigerant Charging Hoses with SafeMate™ Valves

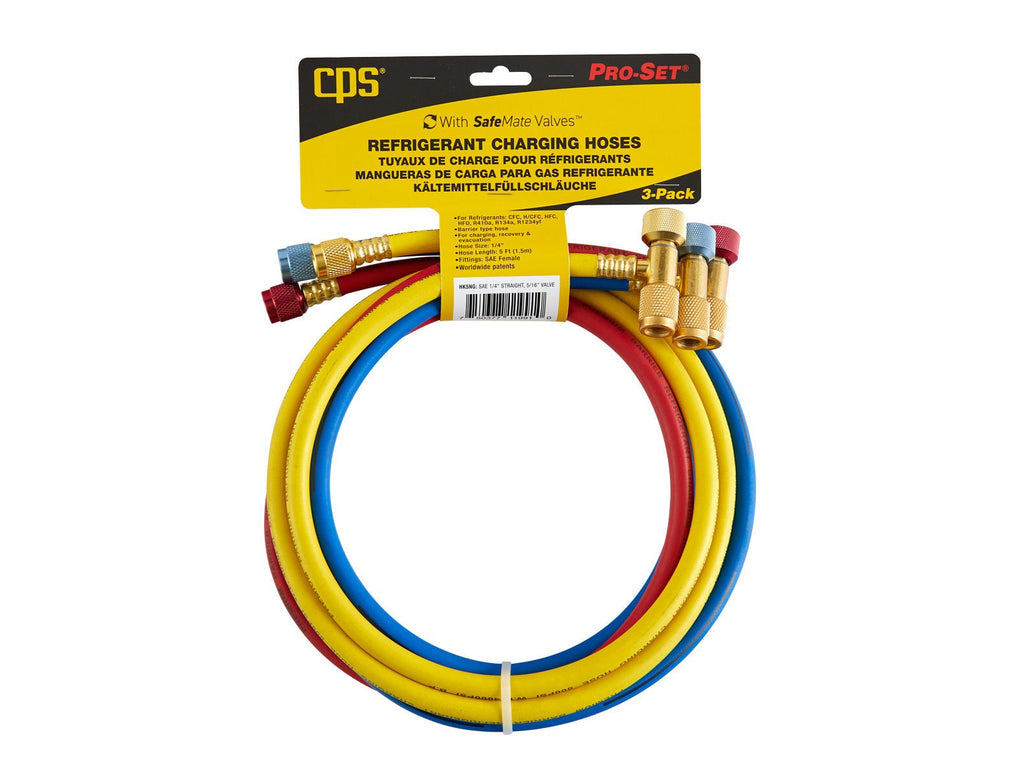

A convenient three-pack of 1/4″ patented 5 ft barrier hoses in red, yellow, and blue for safely and efficiently charging, recovering, and evacuating H/CFC, HFC, HFO, plus R410a, R134a, and R12234yf refrigerants in residential and commercial HVAC/R systems.

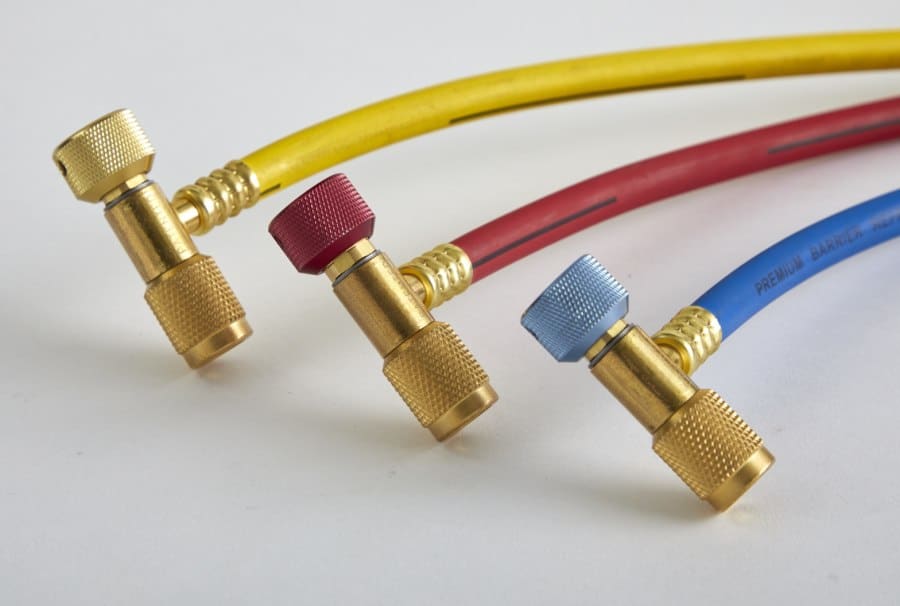

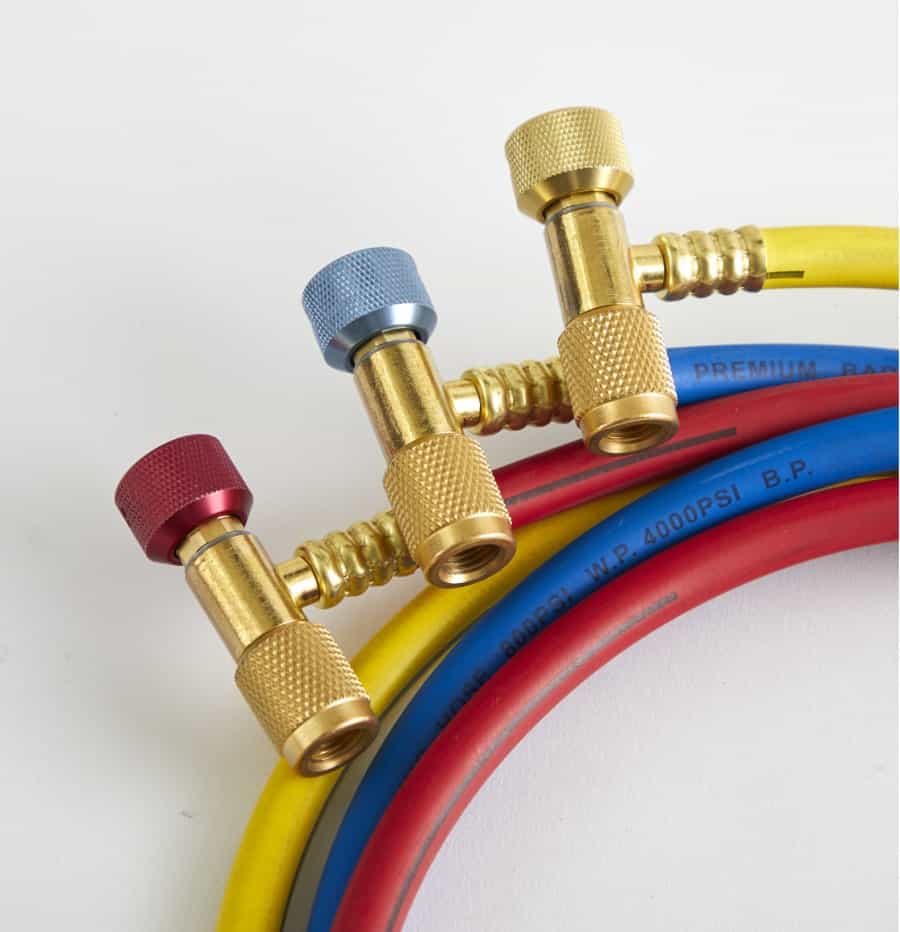

- Each hose features a patented, “T” shaped, “SafeMate” valve and fitting on one end, and an open, straight fitting on the other.
- The T-shaped SafeMate valve has a screw-down core depressor that activates refrigerant flow after the knurled brass fitting has been fully
tightened onto a service port. This protects technicians’ hands from frostbite and prevents refrigerants from escaping into the atmosphere. - Once attached, the innovative T valve swivels above the brass nut so it won’t loosen if a hose is moved during charging, recovery, or evacuation procedures.
- Barrier Lining- Minimizes refrigerant loss vs conventional hoses.
Product Sheet
Specifications
| Description: | 3 Pack, 5 Ft (1.5 m) Red, Yellow, Blue Premium Hose Set |
| Straight Fitting: | (Solid Brass, Aluminum Knob) 1/4˝ SAE Female |
| SafeMate™ Fitting: | (Solid Brass, Aluminum Knob) 1/4˝ SAE Female |
| Construction: | Layers Barrier/Tube/Reinforcement/Cover |
| Hose Size: | 1/4" |
| Hose Permeation Rate: | ≤1.01 Lbs/SqFt/Year (≤4.9 Kg/m2/Year) |
| Burst Pressure: | ≥4000 psi (27.6 Mpa) |
| Maximum Working Pressure: | 800 psi (5.51 Mpa) |
| Hose Colors: | Red, Yellow, Blue |
| Tensile Pull: | (Per SAE J2196 and SAE J2888) Minimum pull force to separate the hose from coupling: 120 Lbs (≥534 N) |
| Refrigerant Compatibility: | CFC, H/CFC, HFC, HFO & R410a, R134a, R1234yf |
