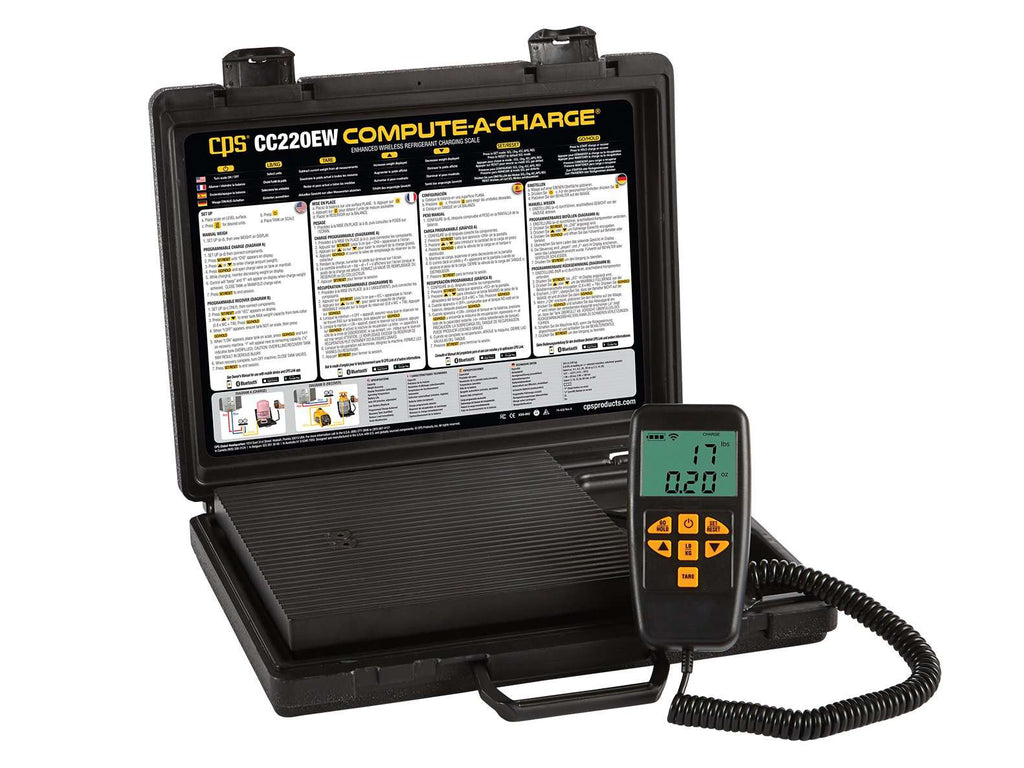

CPS CC220EW Compute-A-Charge Enhanced Wireless Refrigerant Charging Scale

Save 13%
Original price $265.21
Current price $229.85
SKU CC220EW

CPS CC220EW Compute-A-Charge Enhanced Wireless Refrigerant Charging Scale

Products usually ship within 1 business day.

The Compute-A-Charge CC220EW is a battery operated, precision scale for weighing, charging and recovering refrigerants used in HVAC/R systems and may be operated in a MANUAL or PROGRAMMABLE mode.

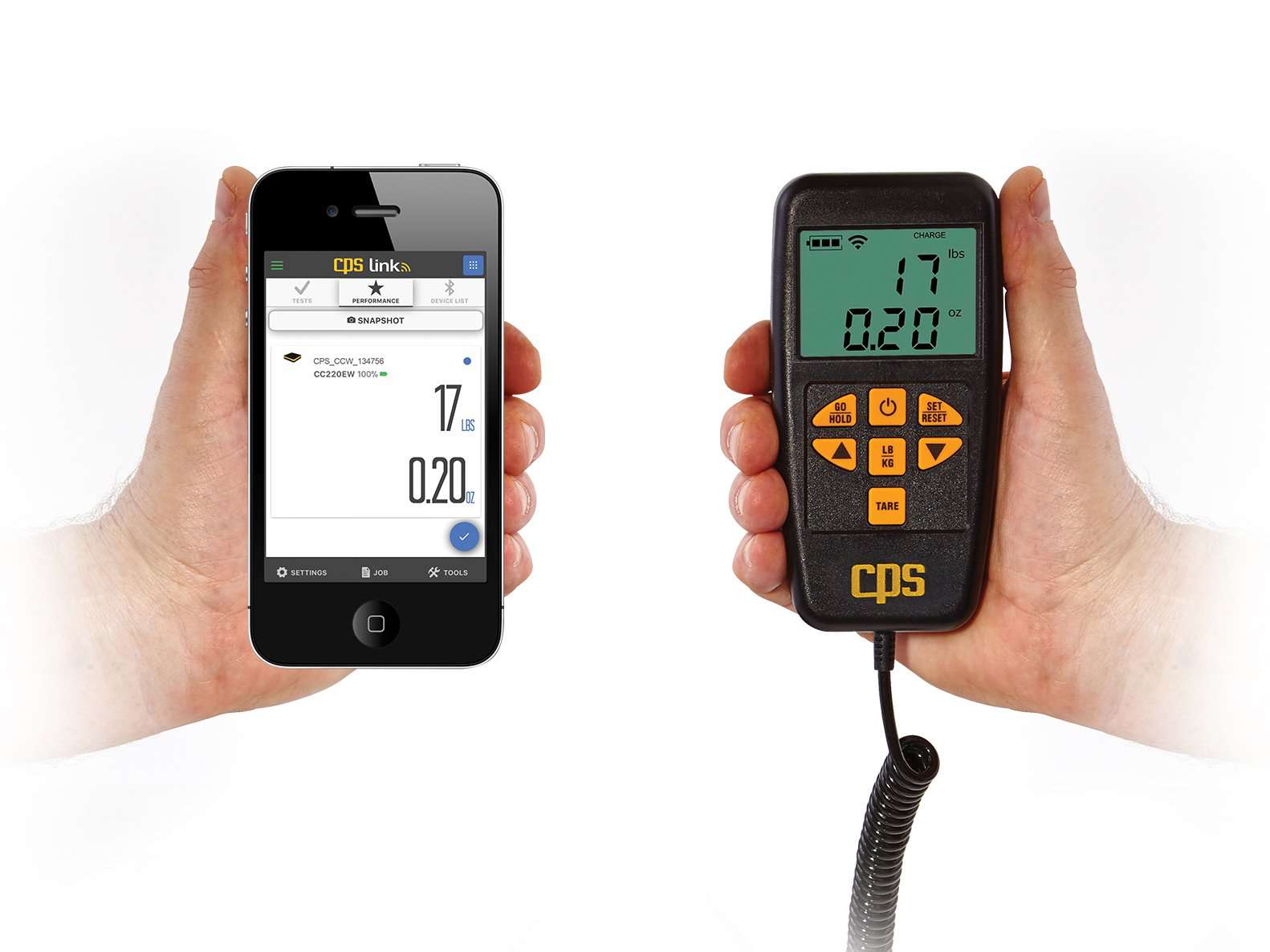

For added functionality, the CC220EW may be operated as a wireless scale by pairing it to a mobile device running the CPS Link app. This allows technicians to organize and store, or e-mail Jobsite, Tank Tracker™ (refrigerant use) and customer data to others.

KEY FEATURES:

  • Capacity: 220 lb (100 kg)
  • Accuracy: 0.015% of reading [or +/- selected resolution, whichever greater]
  • Display Resolution: Select from 4 different increments
  • Audible & Visual Alarms: Alerts user when approaching a programmed charge or recovery limit

ADDED FUNCTIONALITY (When paired to a mobile device running the CPS Link app):

Organize, Store or Send:

  • Job Data – Work order, invoice number, customer, and data logs
  • Customer Data – Name, address, e-mail, phone, notes
  • Test Logs – Measurements/results associated with services performed
  • Export – E-mail specific files to customers, your head office or others

Tank Tracker™ Refrigerant Management System:

  • Tank Inventory – Keep real-time records of supply & recovery tanks, their weights and refrigerant types
  • Refrigerant Usage – Automatically geotags job location, time and amount dispensed or recovered
  • Record Keeping – Easily maintain refrigerant usage/disposal records to comply with EPA Clean Air Act



SCALE SPECIFICATIONS

 Maximum Load

220 lb (100 kg)

Weight Accuracy

0.015% of reading +/- selected resolution, whichever is greater

Display Resolution (Increments)

Selectable:  0.1 oz (2 g); 0.2 oz (5 g); 0.25 oz (10 g); or 0.50 oz (25 g)

Battery Life

One 9v = Up to 50 hrs; Two 9V = Up to 100 hrs

Power Source

One or two (included) 9V Alkaline batteries

Battery Status Indicator

3 segment symbol

Control Type

Handheld LCD display (or wireless using CPS Link app and mobile device)

Control Mount

Magnetic back, with 360° swivel hook

Cord

6' (1.8 m) flexcord, extended

Auto Power Off (Enabled)

Default = Display turns OFF after 10 minutes inactivity (Can re-set in increments of 5, 10, 15, 30, 60 mins or OFF)

Auto Power Off (Disabled)

Display shows "APO OFF" at power up (Display will be constant ON)

Smart Awake

Displays last weight measurement at time of Auto-Off, updated to current value

Weight Readout

lb/oz or kg/g

Operating Temperature Range

14°F to 122°F (-10°C to 50°C)

Scale to mobile device range

150 ft. (45.7 m) Unobstructed

Operating Humidity Range

0 to 95% non-condensing

Overload Protection

Mechanical and visual

Platform Dimensions

8.75" x 8.75" (22.3 x 22.3 cm)

Calibration

National Institute of Standards & Technology (U.S.)

Approvals

FCC, ICES-003, IC, CE

Warranty

1 year (Factory)
