CPS ABM-HOOD-200 EasyHood - Airflow Capture Hood with ABM-200 Environmental Meter

Save 13%
Original price $463.40
Current price $401.61
SKU ABM-HOOD-200

CPS ABM-HOOD-200 EasyHood - Airflow Capture Hood with ABM-200 Environmental Meter

Products usually ship within 1 business day.

The ABM-HOOD-200 EasyHood includes: ABM-200, Padded Carrying Case, Expansion Hood for grilles up to 24″ x 24″ and a Low Airflow Adapter. Use the included ABM-200 meter with a smartphone to display, capture and record real-time airflow readings from air grilles ranging from 12″ to 24″. The ABM-100 is also compatible with ABM-HOOD and may be purchased separately.

The Fastest and Easiest Way to Measure Airflow!

  • No more entering duct dimensions!
  • No more determining (or guessing) AK factors!
  • No more traversing the grille!

Other Balometer hoods cost 10 times as much, are too delicate and need constant calibration.

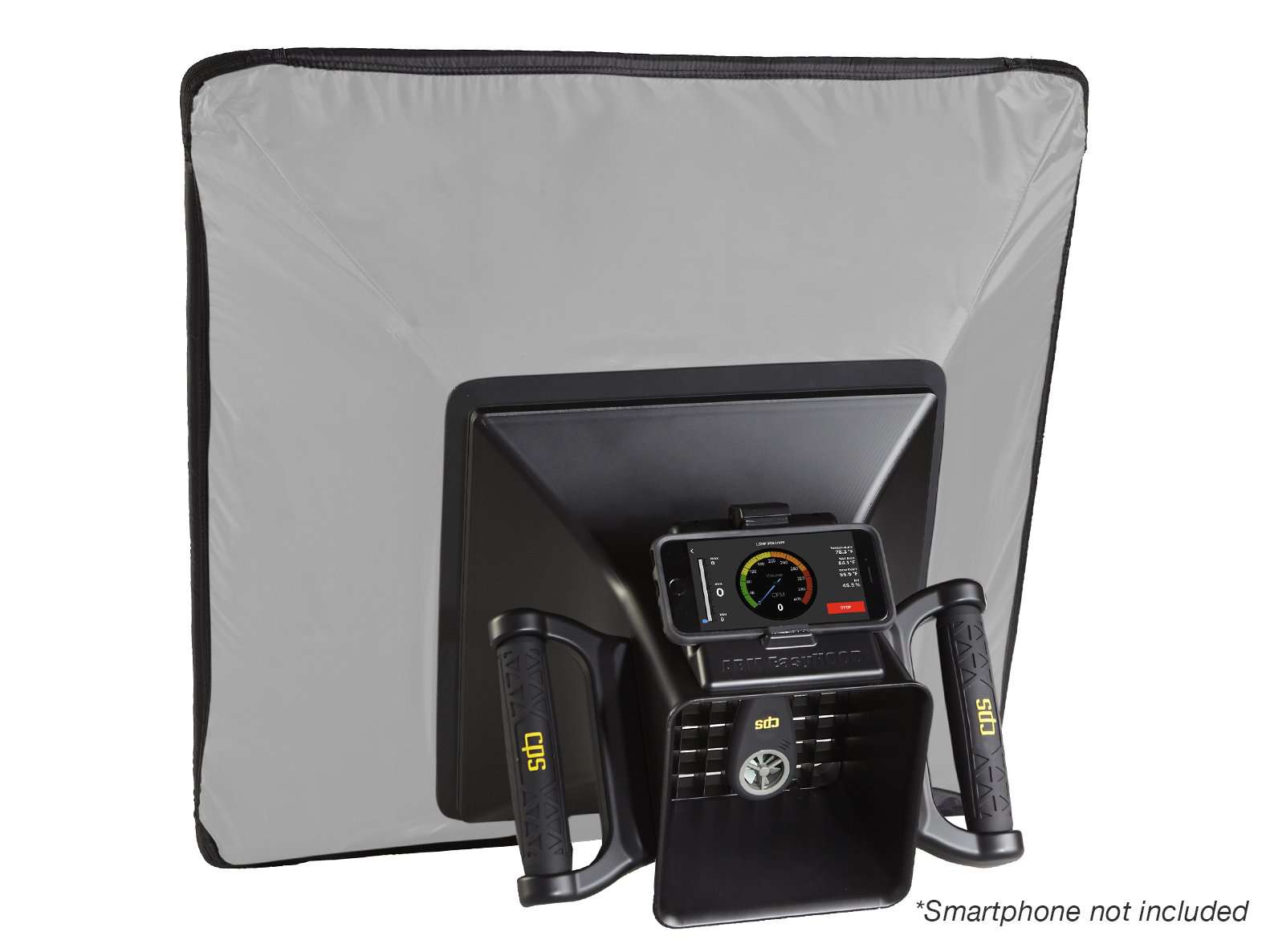

The ABM-HOOD-200 comes with a 24” x 24” extension hood that can be connected and extended in less than 5 seconds and ABM-200. We also revolutionized the Extension Hood (Patent Pending)

ABM-HOOD-200 (EasyHood) Key Features:

  • Stores readings on your smart device and generates professional reports to send customers
  • Rugged control box
  • Vortex air straightener

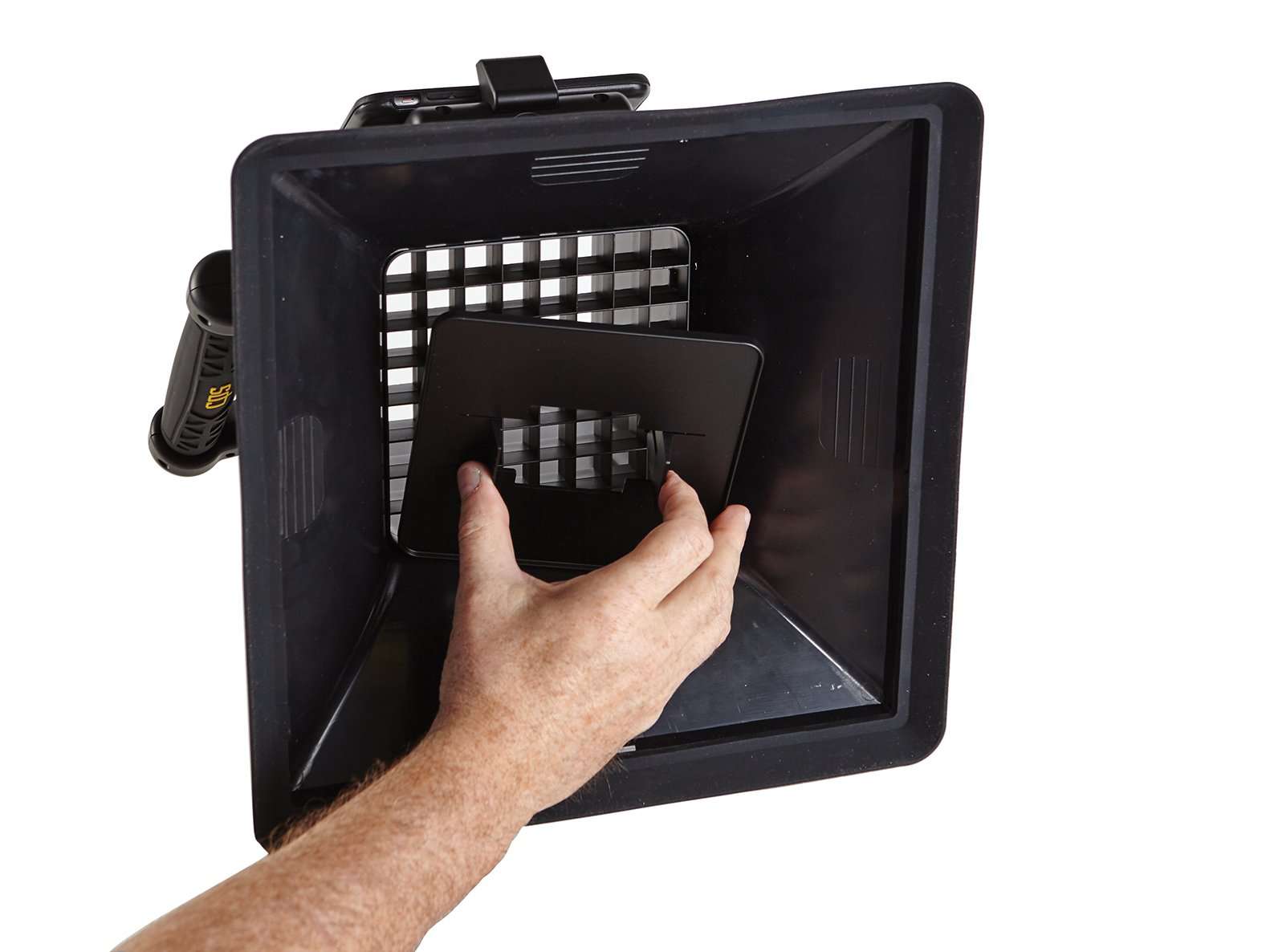

  • Low volume reducer plate (for readings down to 7 CFM)
  • Up to 12” x 12” tests with the control box or up 24” x24” tests with the extension hood
  • Wireless and wired connections to the ABM-100 & ABM-200

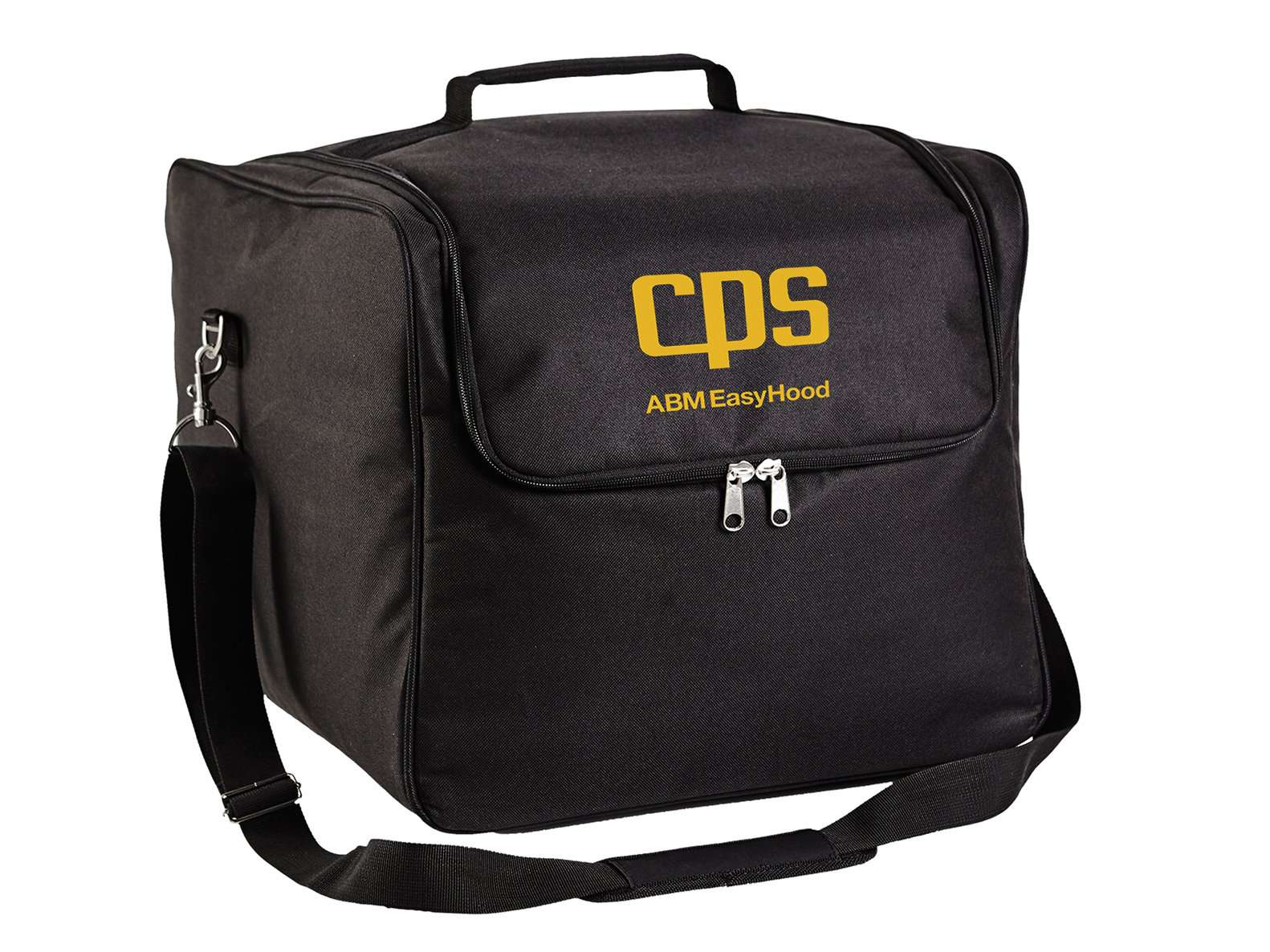

  • Canvas carrying case



SPECIFICATIONS
Hood Opening: 12" x 12" (0.3 m x 0.3 m)
Expansion Hood Opening: 24" x 24" (0.6 m x 0.6 m)
Weight (with Expansion Hood): 4.75 lb (2.15 kg)
Hood Size (with Expansion Hood): 17.75"H x 25"W x 25"D (0.45 m x 0.63 m x 0.63m)
ABM-HOOD-200 (When Used With ABM-200 Meter)
Wireless Connection Range: ≤ 100 ft. (30.5 m)
Airflow Volume Regular Test: 35 – 1,200 CFM (59 – 2,039 M3/H
Airflow Low Volume Test: 7 – 100 CFM (12 – 170 M3/H
RH Range: Range: 0 – 85%    Accuracy: ±4%
Operating Temperature: Range: 0 ˚F to 140 ˚F (-18 ˚C to 60 ˚C) Accuracy: ±0.7% (0.4 ˚C)
Auto Power Off: No connection or 30 sec after closing app
Battery Type (3.0 V): Inside ABM-200 (CR2450 Coin Cell, Lithium)
Battery Life: > 500 hrs.
Calibration, Certification: Accuracy verified in accordance with ANSI AMCA 201-207 Airflow Rate Device Verification Airflow calibration and certification tests performed at a 3rd party AMCA Certified Laboratory in accordance wiht ANSI/AMCA 210-ANSI/AMCA 51 test methods.
