Cherne® 262129 12" Muni-Ball® Test Plug, 3" Bypass - Edmondson Supply

Cherne® 262129 12" Muni-Ball® Test Plug, 3" Bypass

$453.63
SKU 262129
Currently 2 in stock.

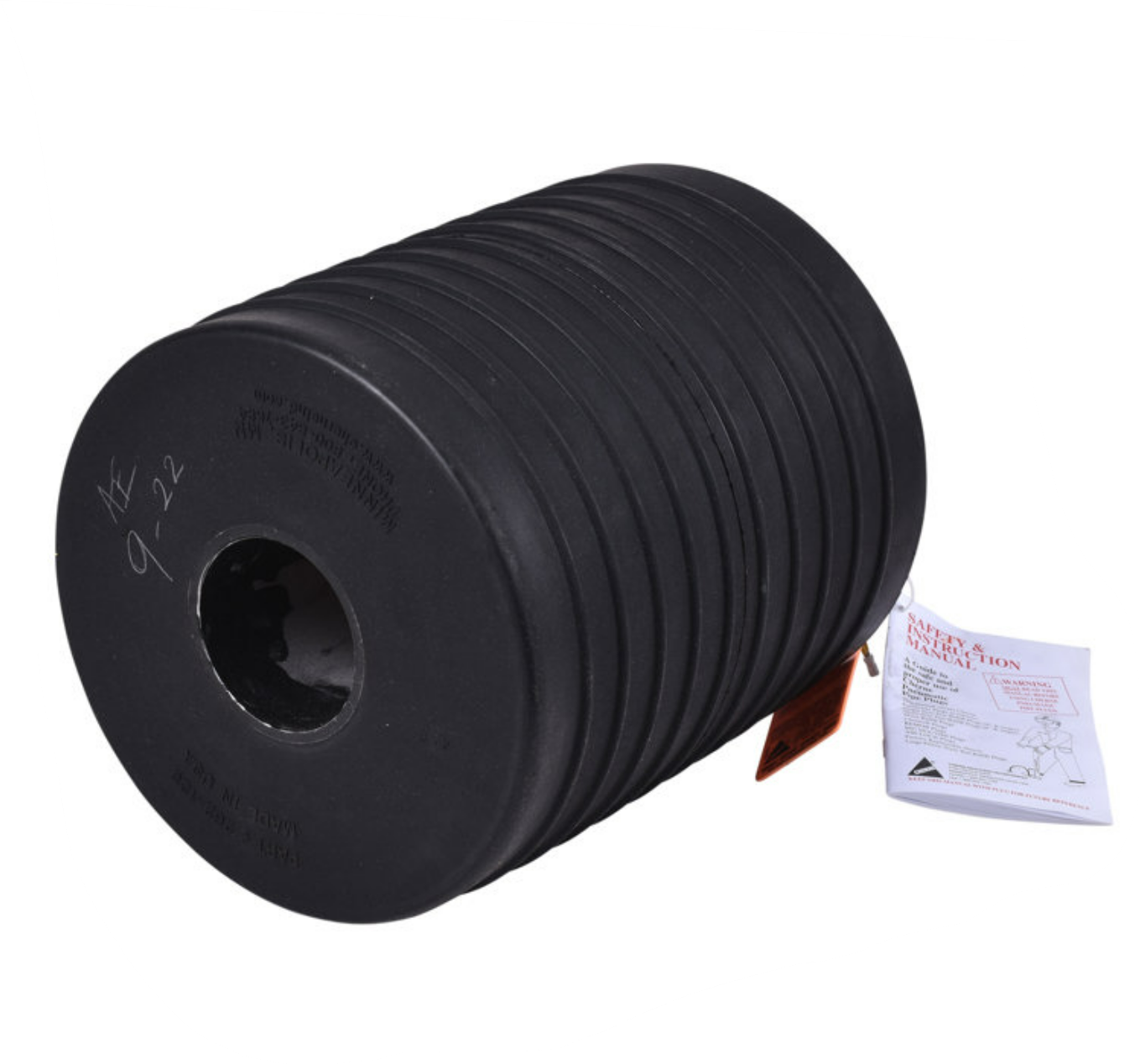

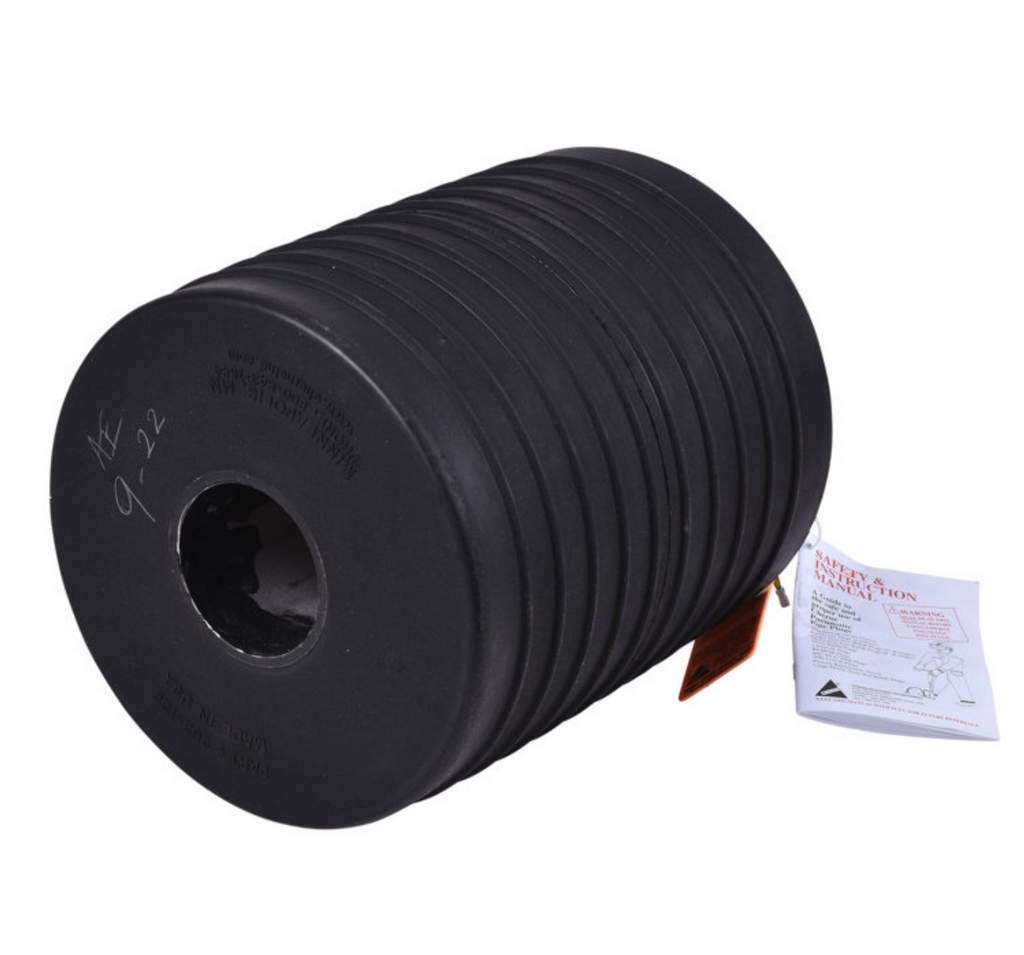

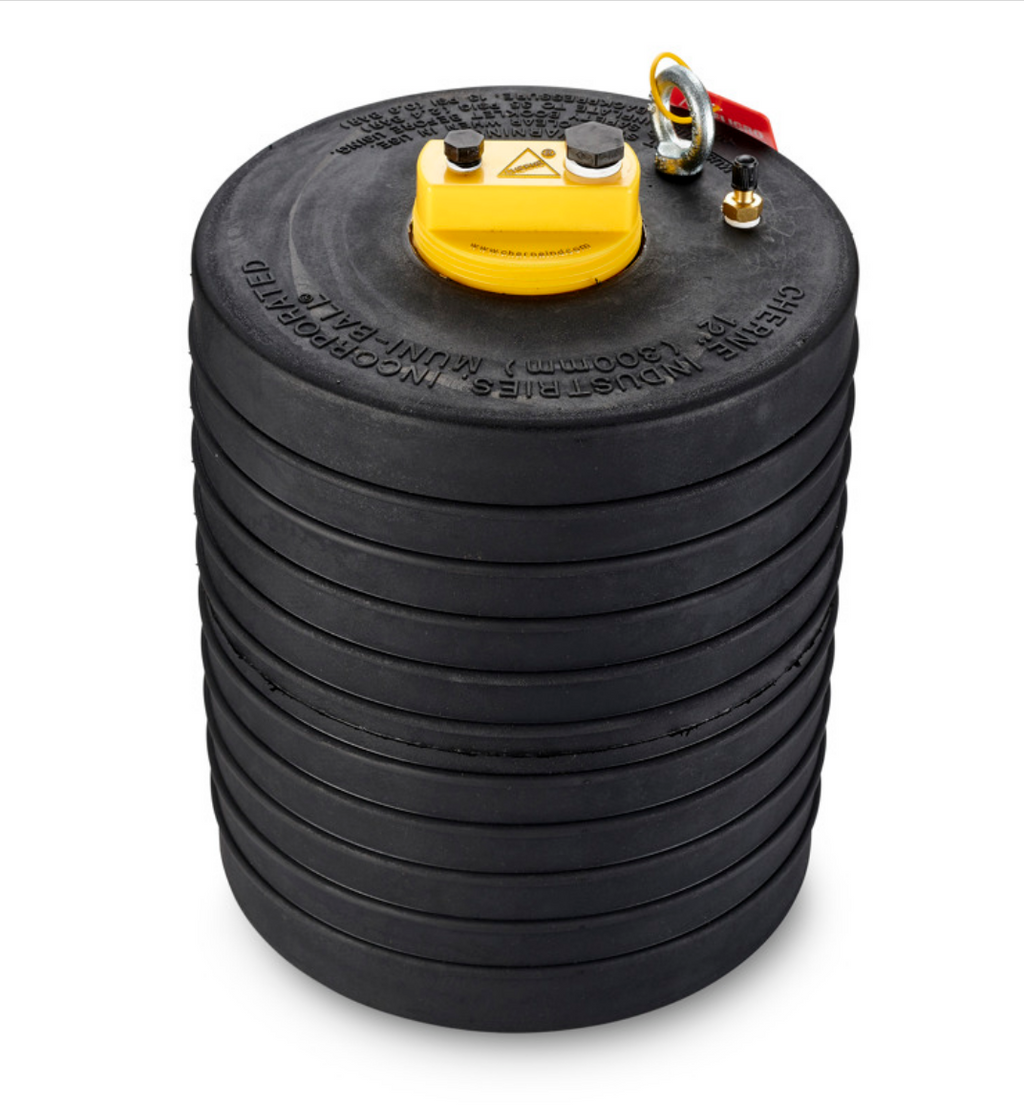

Cherne® 262129 12" Muni-Ball® Test Plug, 3" Bypass

Cherne® Single-Size Plumbing Muni-Ball® Plugs offer a full bypass, allowing both testing and monitoring of piping systems. This makes them ideal for installation and repair of residential or commercial piping systems. Cherne Industries is a global leader in pipe plug, blocking and testing.

Product Specifications:

  • Nominal Size: 12 in. (300 mm)
  • Bypass Diameter: 3 in. F
  • Chain Eye Bolts: 3/8 in. (1)
  • Deflated Diameter: 10.25 in. (260 mm)
  • Deflated Length: 13.75 in. (350 mm)
  • Inflation Pressure: 35 psi (2,4 bar)
  • Inflation Thread: 1/4 in.
  • Maximum Back Pressure: 13 psi (0,9 bar)/30 ft. (9.1 M)
  • Nominal Max: 12
  • Nominal Min: 12
  • Usage Range: 10.50 in. - 12.25 in. (267 - 311 mm)
  • Weight: 13 lb.

      •

      Safety & Instruction Manual
